Product Name

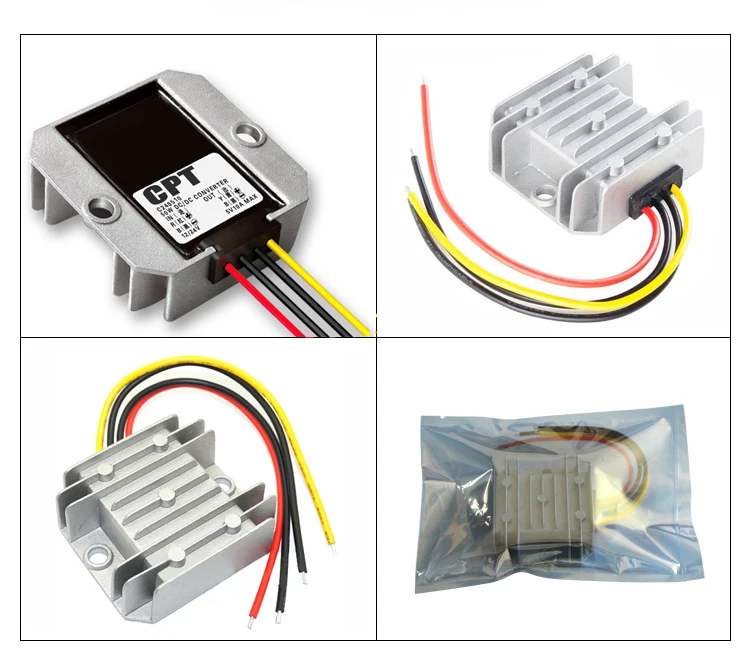

12V 24V to 5V 5A 10A DC Converter

Model No.

F35J5V5A4L/F35J5V10A4L

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input (cable length: 12cm)

Input Voltage

DC 12V 24V

Input Voltage Range

DC 8-35V

Output(cable length: 12cm)

Output Voltage

DC 5V

Output Current

5A / 10A Max

Output Power

25W / 50W Max

Conversion Efficiency

>93%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Waterproof Rating

IP68

Protection

Over-current protection / Overheating protection / short circuit protection / waterproof IP68 design, anti-shock protection

Application

mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.

Case Material

Die-casting aluminum alloy

Product Size (L x W x H)

66*60*22mm

Product Weight

102g

Warranty

12 months

Cooling Way

Free air convection

OEM&ODM Service

Acceptable
