Feature:

1. The mixer is located behind the low noise amplifier (LNA) and directly processes the RF signal after LNA amplification.
2. The passive mixers adopt mini components design, compact and light weight
3. ADE-1, ADE-6 ,ADE-25 Passive Mixer has low conversion loss, respectively are 5.0dB, 4.6dB, 7.0dB
4. Passive mixers feature excellent L-R isolation, and low profile package, protected by US patent 6,133,525
5. Frequency conversion passive mixer can be used in VHF/UHF

    Specifications:

    RF Power: 50mW
    IF Current: 40mA

    Type: 5M-2500MHz (ADE-25)

    Conversion loss: 7.0dB(ADE-25)

    ADE-25RF/LO: 5M-2500MHz
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -55°C to 100°C

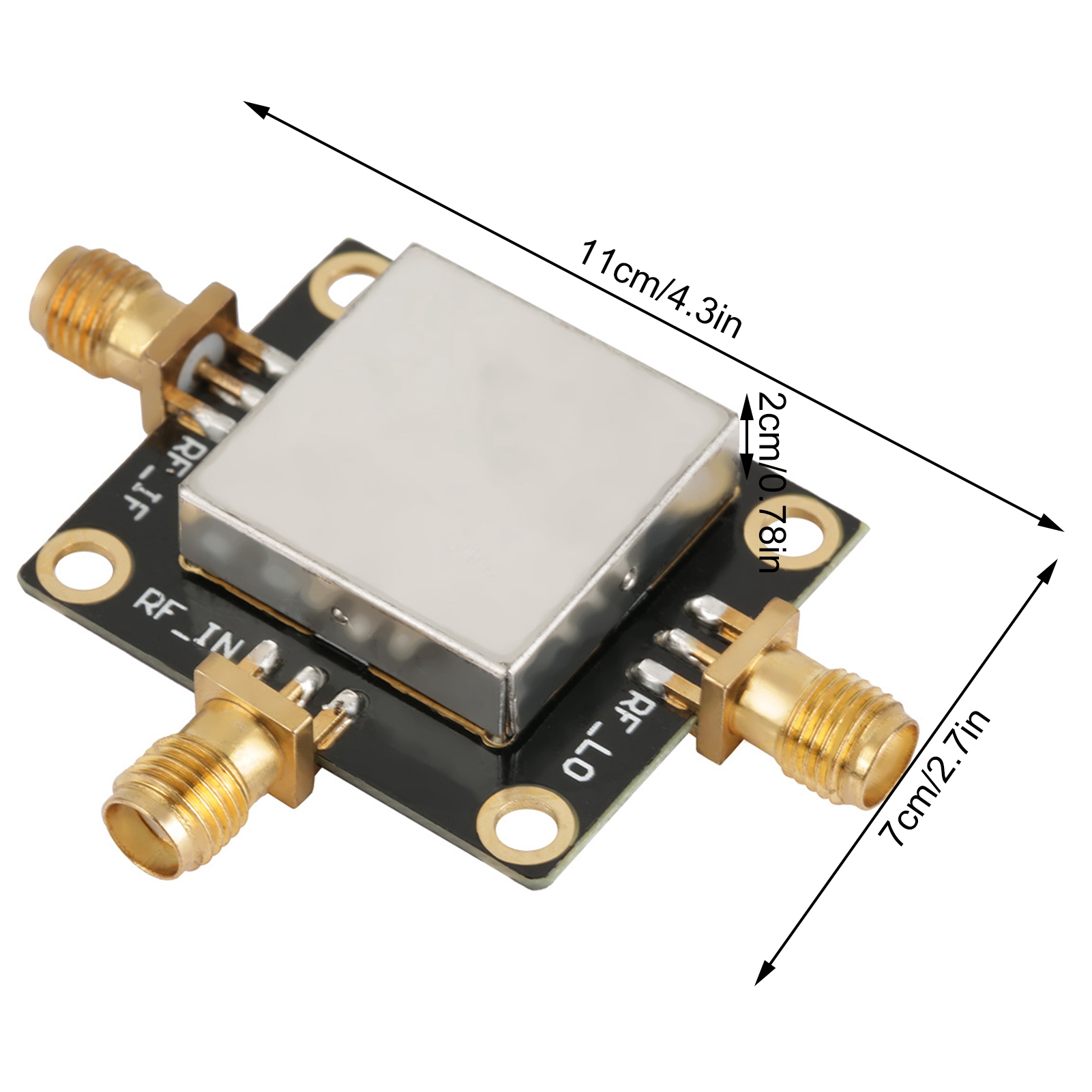

    Weight: 9g

    Package list

    1 x Passive Mixer
