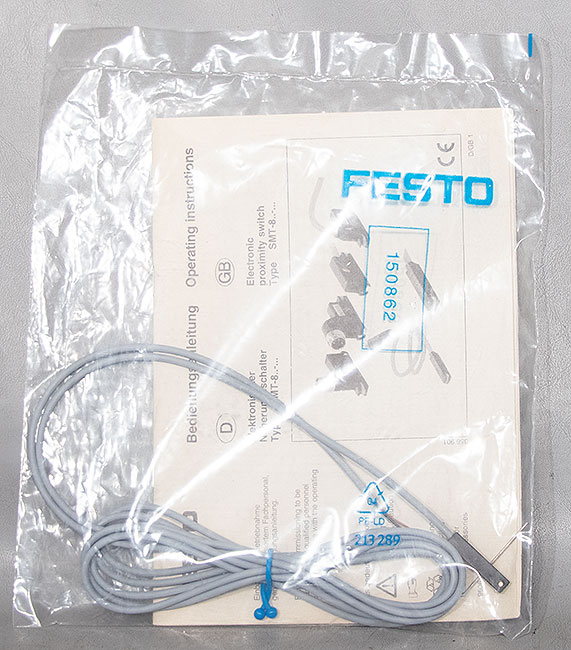

NEW Festo SMT-8-NS-K-LED-24 150862 T-Slot Magneto-Resistive Proximity Sensor Switch
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Festo and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE. WE CANNOT SHIP TO AN INTERNATIONAL FREIGHT FORWARDER ON SMALLER PACKAGES.
These units are new, old stock surplus.

Specifications:
Signal Processing/Type of Contact: Inductive
Function of Actuation: N/O contact
Output Potential (El. Output): NPN
Switching Accuracy: ±0.2 mm
Ambient Temperature: -20°C to +60°C
Correlation Ambient Temperature/Hours: Fixed cable installation
Ambient Temperature, Screwed-in: 0°C to +60°C
Air Connection Type Elec.: Cable
Number of Cores: 3
Core Cross Section: 0.14 mm²
Length of Cable: 2500 mm
Number of Pins, Plug Connection: 3
Operating Status Display: Yellow LED
Short-circuit Strength: Yes
Protection Against Incorrect Polarity: Integrated
Housing Material: PET-reinforced
Cable Sheath Material: TPE-U(PU)
CT Criterion: Free of copper and PTFE
Weight: 0.05 kg
Voltage Type: DC
Operating Voltage: 10 to 30 VDC
Maximum Voltage Drop: 1.5 V
Switching Current: 100 mA max.
Contact Rating: 3 W DC max.
Degree of Protection: IP67
