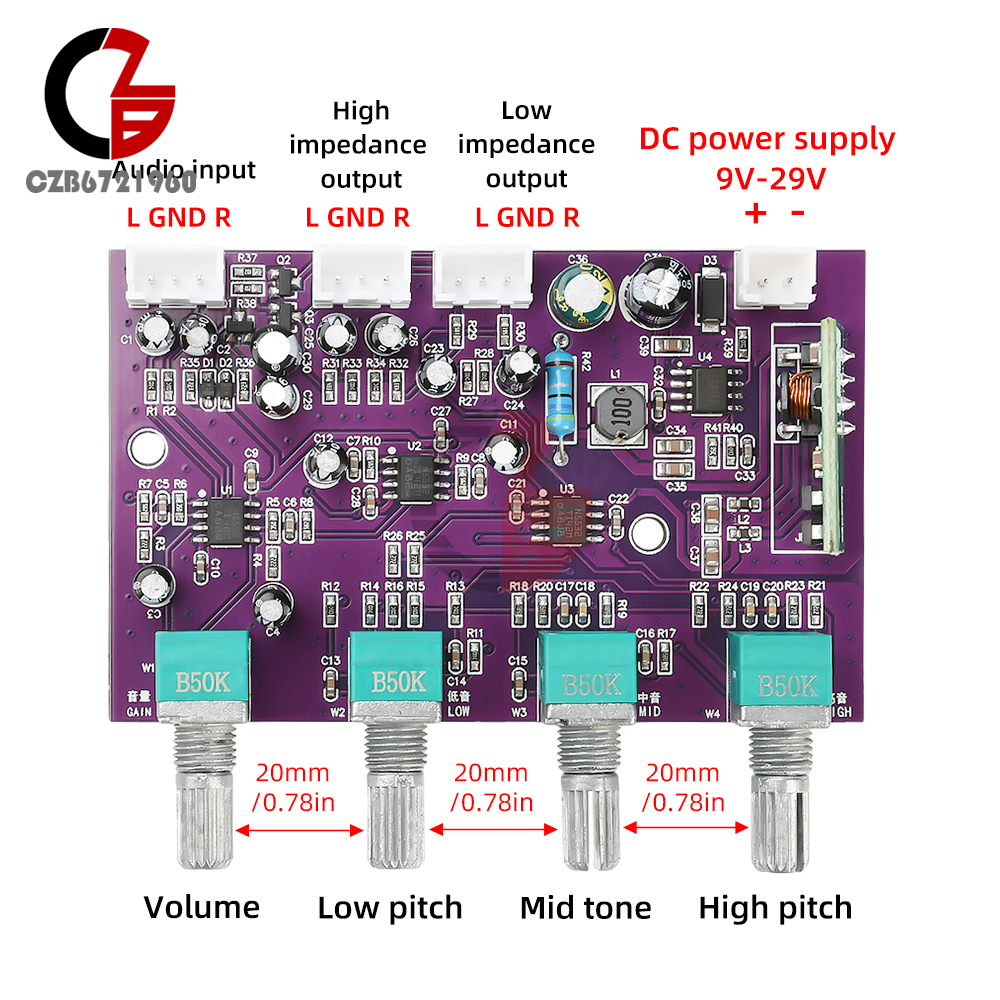

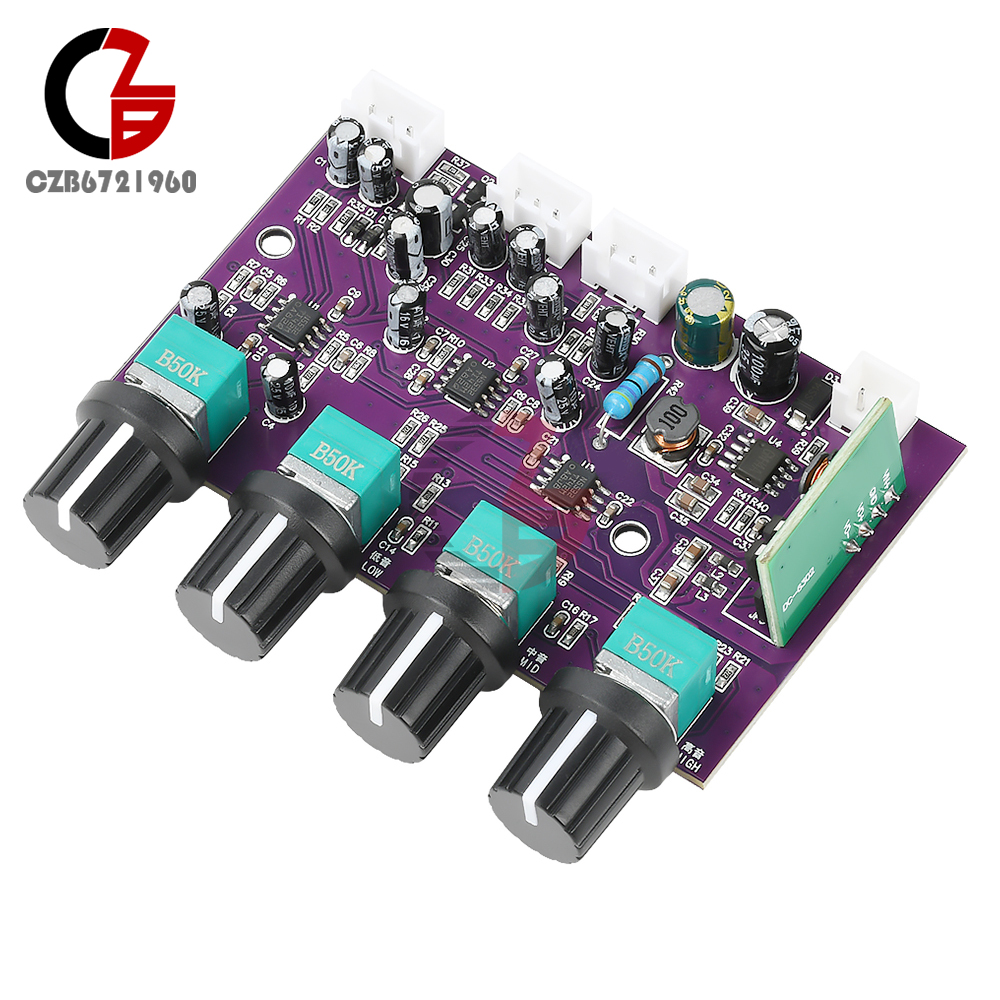

DC 9V-29V TINE553 Amplifier Pre-amp Speaker Preamplifier Tone Amplifier Board
Popular
Product Introduction
Features:
1.Adopting TINE5532 three-chip design, with one-stage gain, buffer and tone processing function.
2. Switching mute circuit design, effectively avoid the impact sound when switching on and off.
3. Support DC9-29V wide voltage regulator input, with positive and negative reverse connection protection.
4. Built-in boost module, single power supply can be converted to dual power supply, large dynamic range.
5. Dual impedance output interface design, high resistance and low resistance to meet the needs of different amplifier equipment connection.
1.Adopting TINE5532 three-chip design, with one-stage gain, buffer and tone processing function.
2. Switching mute circuit design, effectively avoid the impact sound when switching on and off.
3. Support DC9-29V wide voltage regulator input, with positive and negative reverse connection protection.
4. Built-in boost module, single power supply can be converted to dual power supply, large dynamic range.
5. Dual impedance output interface design, high resistance and low resistance to meet the needs of different amplifier equipment connection.
Product Description:
This circuit adopts TINE5532 three pieces, a gain, a buffer, a tone processing; with a switching mute circuit, switching on and off basically no impact sound; power supply positive and negative reverse connection protection; wide voltage regulator, DC 9-29V can be; built-in boosting module, a single power supply can be converted into a dual power supply of +14.5V to the circuit power supply, the sound of a large dynamic range, strong, can promote high-power rear stage, the dynamic range is large, thrust The sound dynamic range is large and the thrust is strong, which can push the high-power rear stage. The output is designed with two kinds of impedance interfaces to facilitate the connection of different amplifiers, low resistance interface can be connected to a purely rear stage amplifier, high resistance interface can be directly connected in parallel with the preamplifier combined amplifier or other audio equipment line input.
This circuit adopts TINE5532 three pieces, a gain, a buffer, a tone processing; with a switching mute circuit, switching on and off basically no impact sound; power supply positive and negative reverse connection protection; wide voltage regulator, DC 9-29V can be; built-in boosting module, a single power supply can be converted into a dual power supply of +14.5V to the circuit power supply, the sound of a large dynamic range, strong, can promote high-power rear stage, the dynamic range is large, thrust The sound dynamic range is large and the thrust is strong, which can push the high-power rear stage. The output is designed with two kinds of impedance interfaces to facilitate the connection of different amplifiers, low resistance interface can be connected to a purely rear stage amplifier, high resistance interface can be directly connected in parallel with the preamplifier combined amplifier or other audio equipment line input.
Product Parameters:
Supply Voltage: DC9-29V
Static Power Consumption: about 1W
Frequency Response: 20HZ-20KHZ
Amplification Gain: 14db
Tone Adjustment Range: ±15db
Input Impedance: 50K
High Resistance Output Impedance: 10K, Output Amplitude: 0.7Vrms
Low Resistance Output Impedance: 600Ω, Output Amplitude: 3.5Vrms

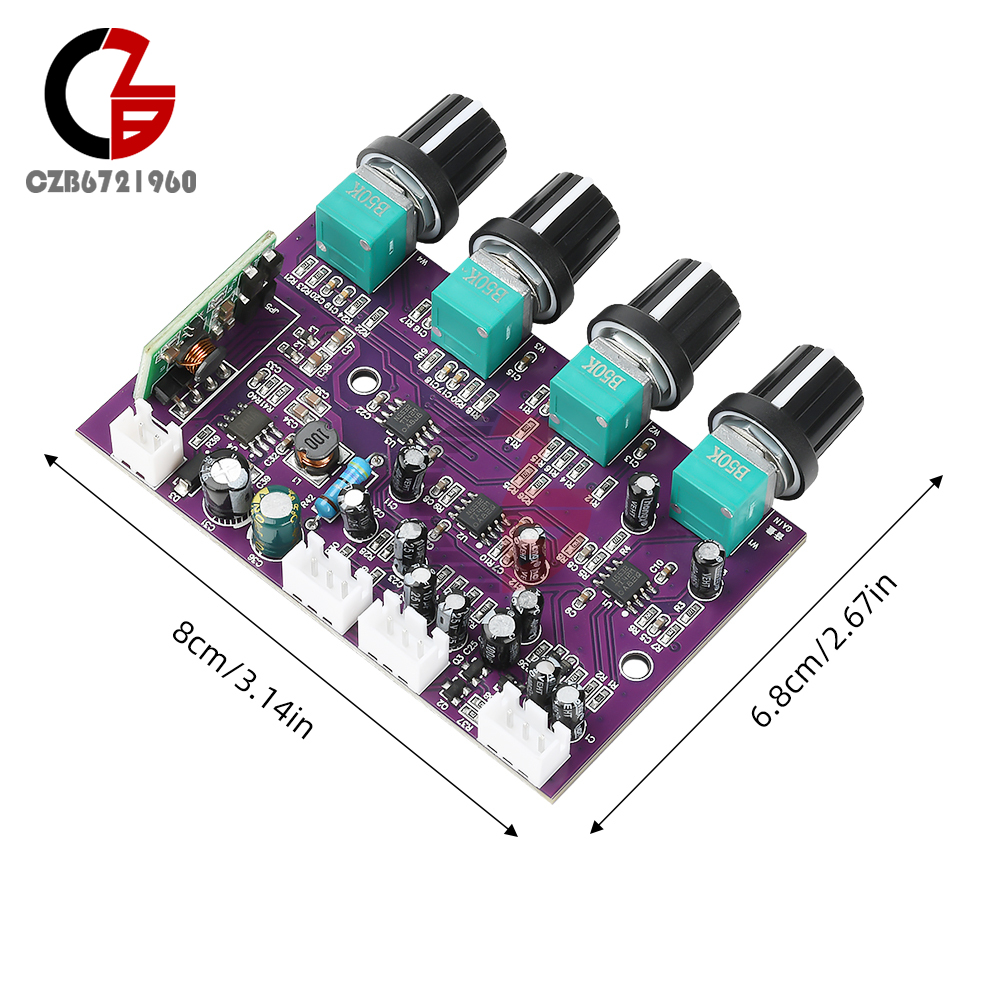

Dimensions: 50mm*80mm
Supply Voltage: DC9-29V
Static Power Consumption: about 1W
Frequency Response: 20HZ-20KHZ
Amplification Gain: 14db
Tone Adjustment Range: ±15db
Input Impedance: 50K
High Resistance Output Impedance: 10K, Output Amplitude: 0.7Vrms
Low Resistance Output Impedance: 600Ω, Output Amplitude: 3.5Vrms
Dimensions: 50mm*80mm

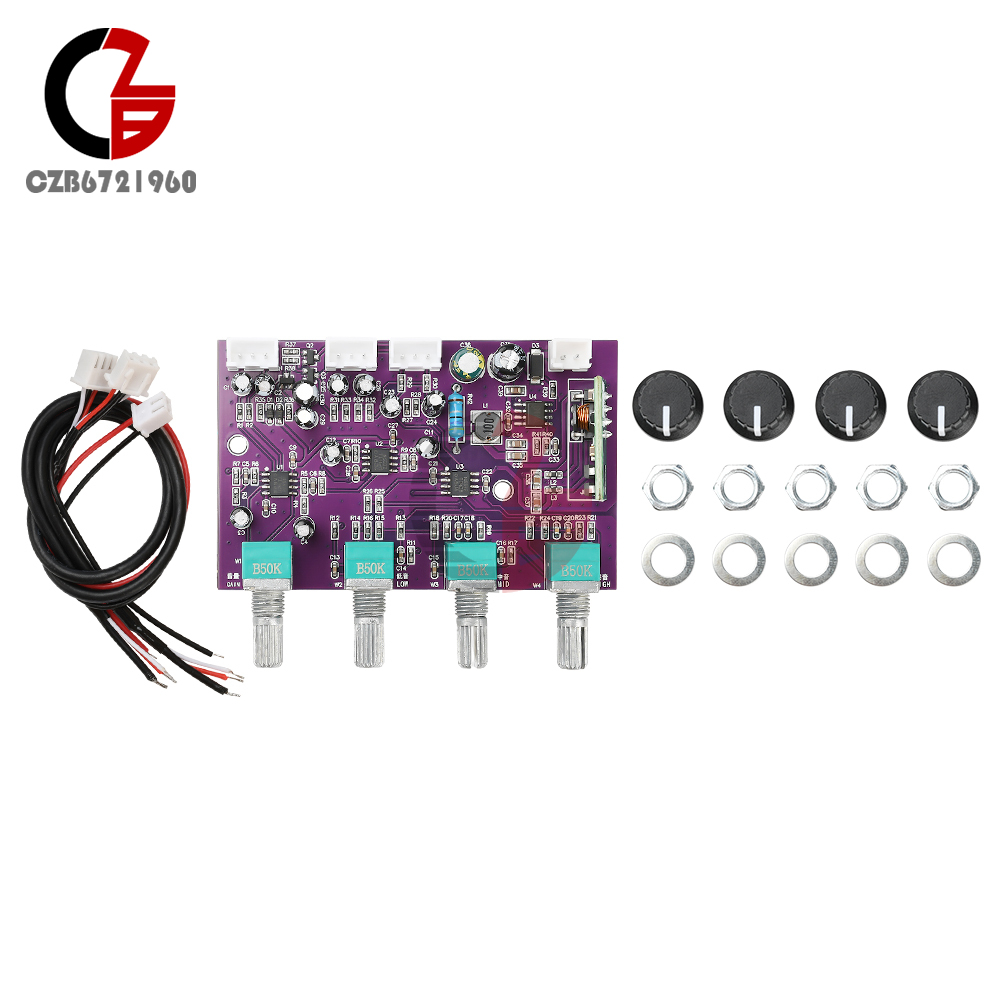

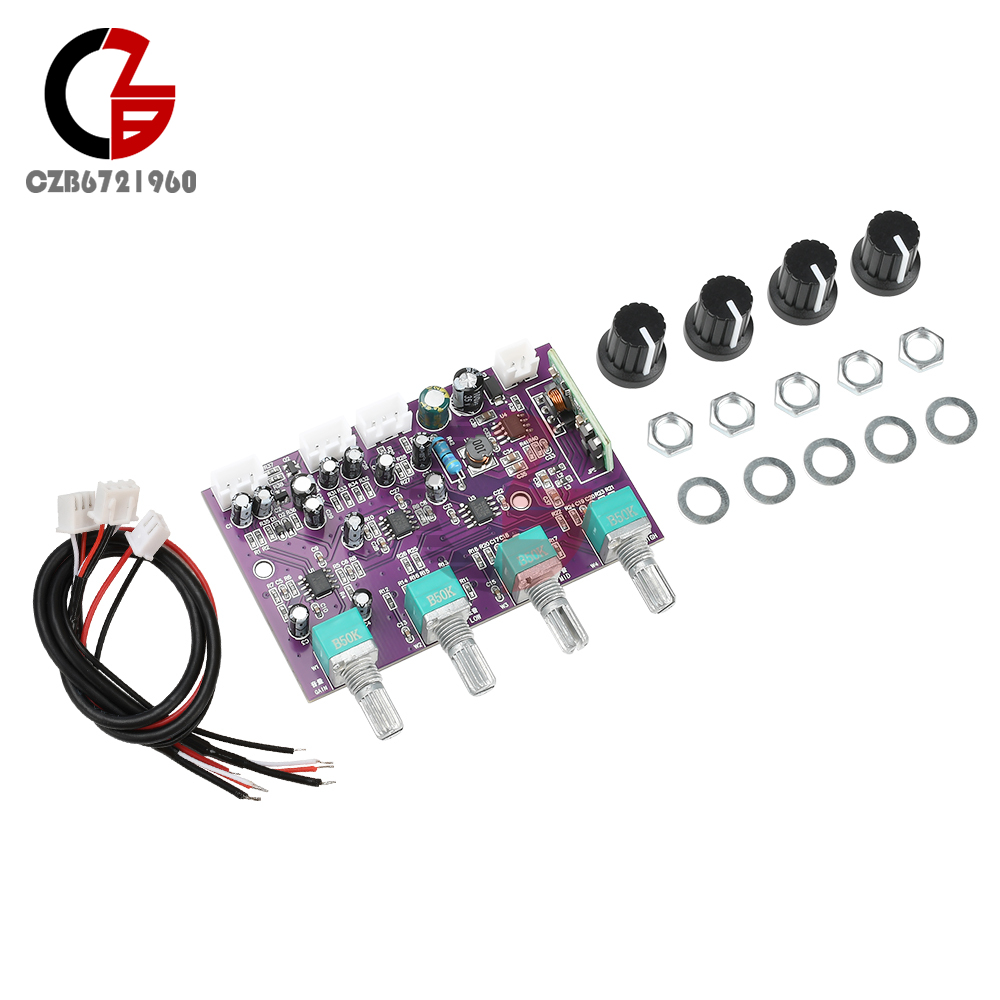

Product List:
Preamp Board X1
3P Terminal Cable X2
2P Terminal Cable X1
Preamp Board X1
3P Terminal Cable X2
2P Terminal Cable X1
