Item Description


Specification:

1. Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM

Camshaft Intake Valve Lift: .585"

Camshaft Exhaust Valve Lift: .585"

Camshaft Advertised Intake Duration: 283°

Camshaft Advertised Exhaust Duration: 286°

Camshaft Intake Duration at .050": 228°

Camshaft Exhaust Duration at .050": 230°

Camshaft Lobe Separation: 112°

Camshaft Intake Centerline: 108°

Camshaft Cam Gear Attachment: 3-Bolt


2. Number of Springs Per Valve: Single

Outside Diameter of Outer Spring (in): 1.290 in.

Spring Coil Bind Height (in): 1.140 in.

Damper Spring Included: No

Spring Install Load: 130lbs

Spring Install Height: 1.800"

Spring Open Height: 1.175"

Spring Open Load: 318 lbs

Spring Rate (lbs/in): 313 lbs./in.

Inside Diameter of Outer Spring (in): 0.885 in.

Valve Spring Style: Beehive


3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.


Fitment:

Fits for 1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A

Fits for 1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B

Fits for 1997-2004 5.7L LS1 V-8

Fits for 2001-2005 5.7L LS6 V-8

Fits for 1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K

Fits for 2005-2009 6.0L LS2 V-8

Fits for 2008-2013 6.2L LS3 V-8; without AFM

Fits for 2006-2013 7.0L LS7 V-8

Also fit for Factory Roller 93-97 LT1, and 305-350 Chevy Engines.

*4 putters

5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

*5 M295(12586665) Oil Pump Timing chain

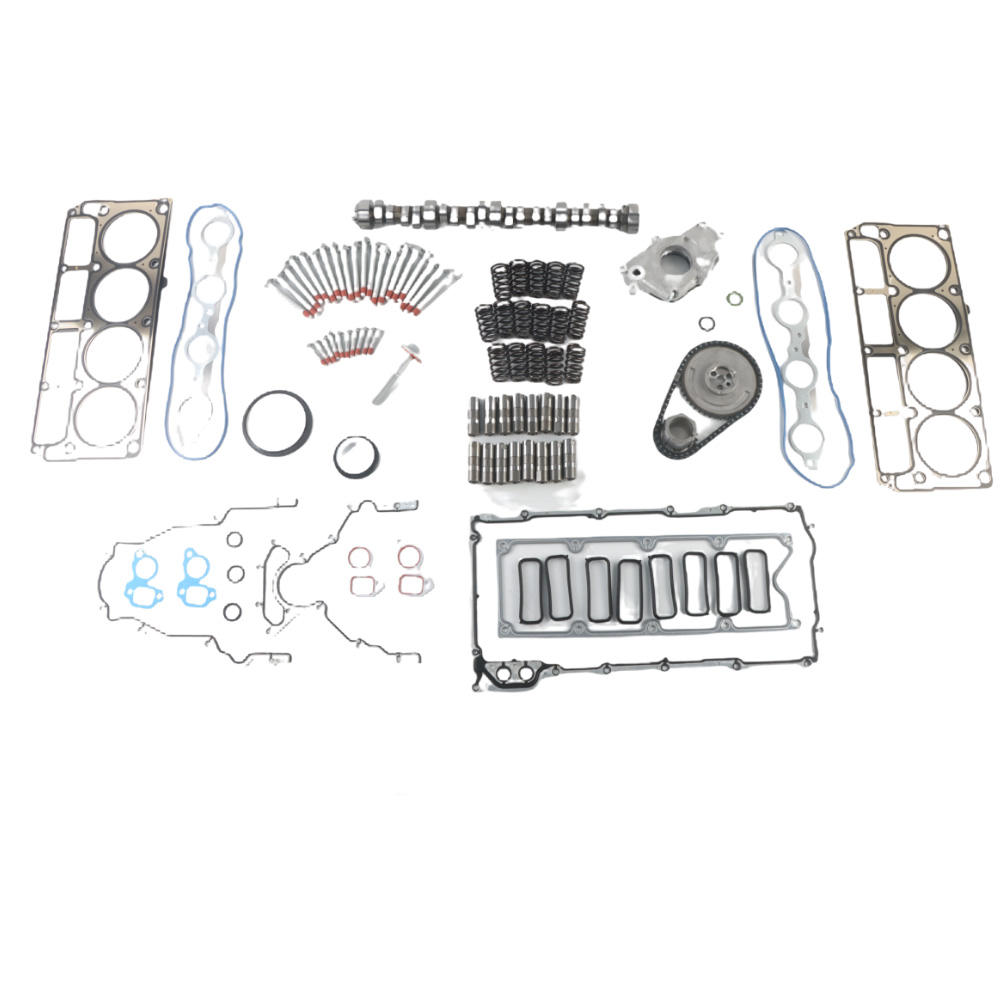

Package includes:

Camshaft

Valve Lifter

Push Rod: Camshaft

Screw Set

Spacer Set with 16 Valve Lifters and 16 Valve Lifters+16 putters+Oil Pump+Timing chain


Note:

Professional installation is highly recommended

Please check the interchange part number before you purchase
