Condition: Used
Dimensions: 16.00 x 24.00 x 10.00 inches (L x W x H)
Weight: 15.00 Lbs.

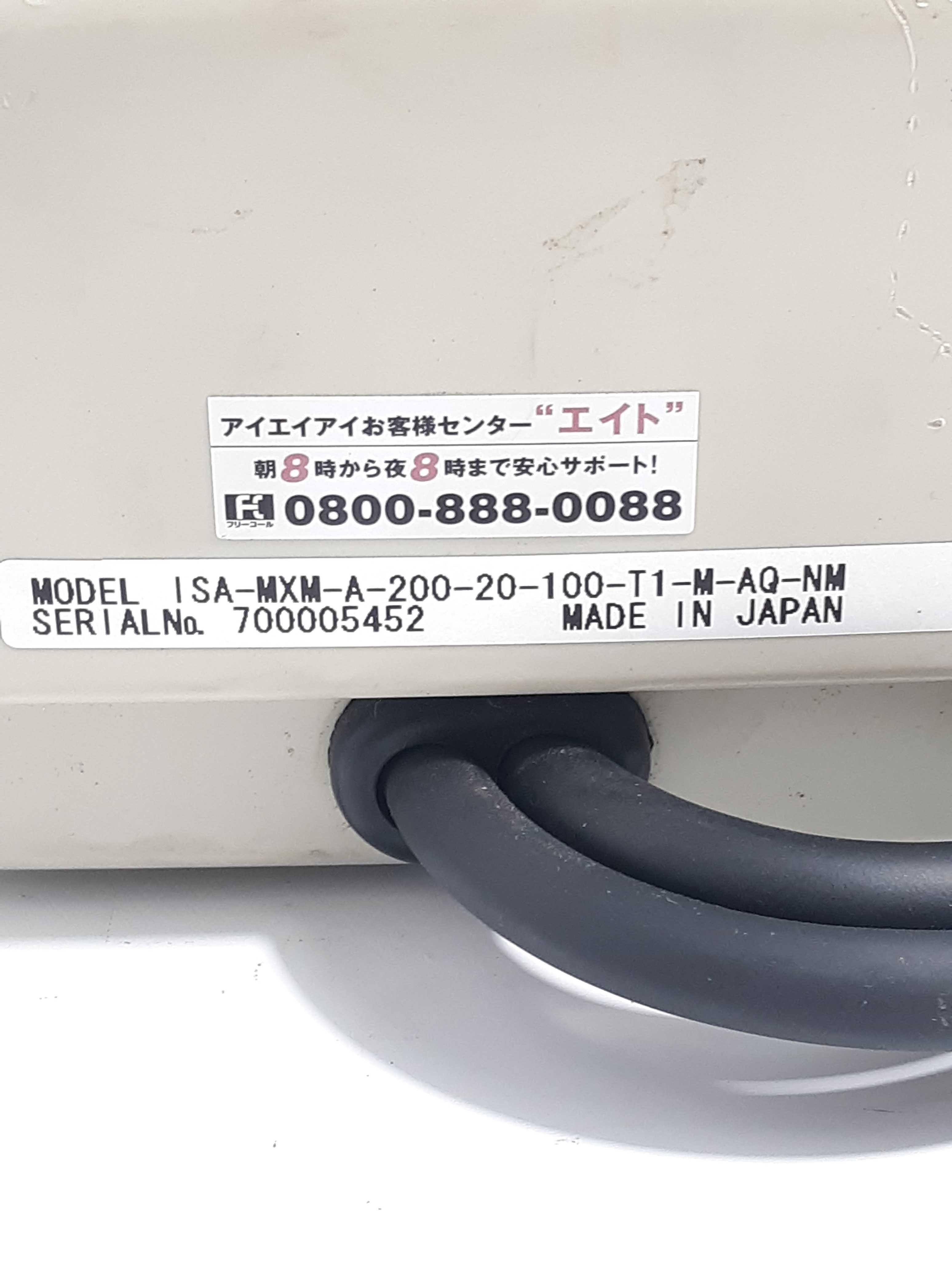

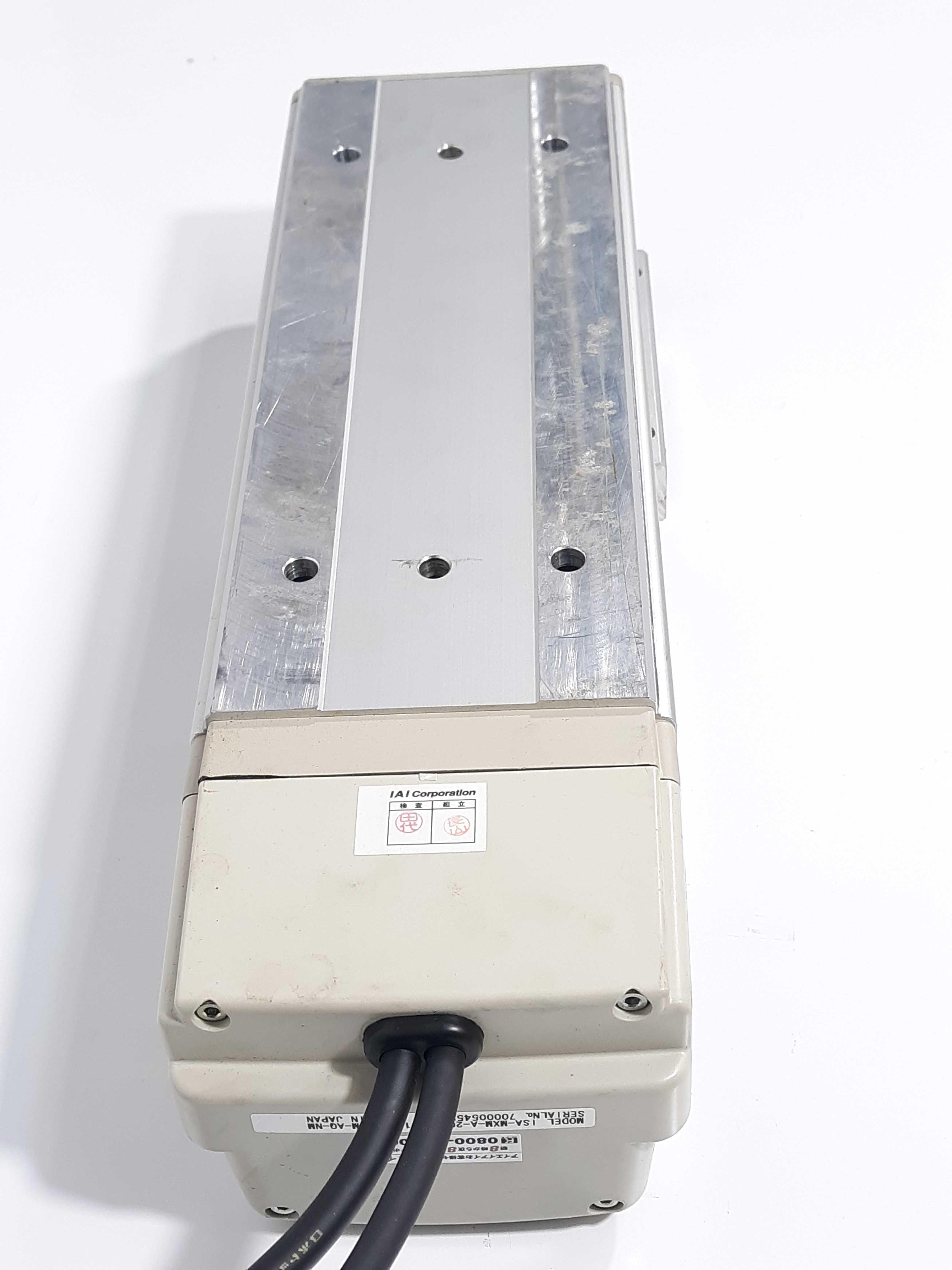

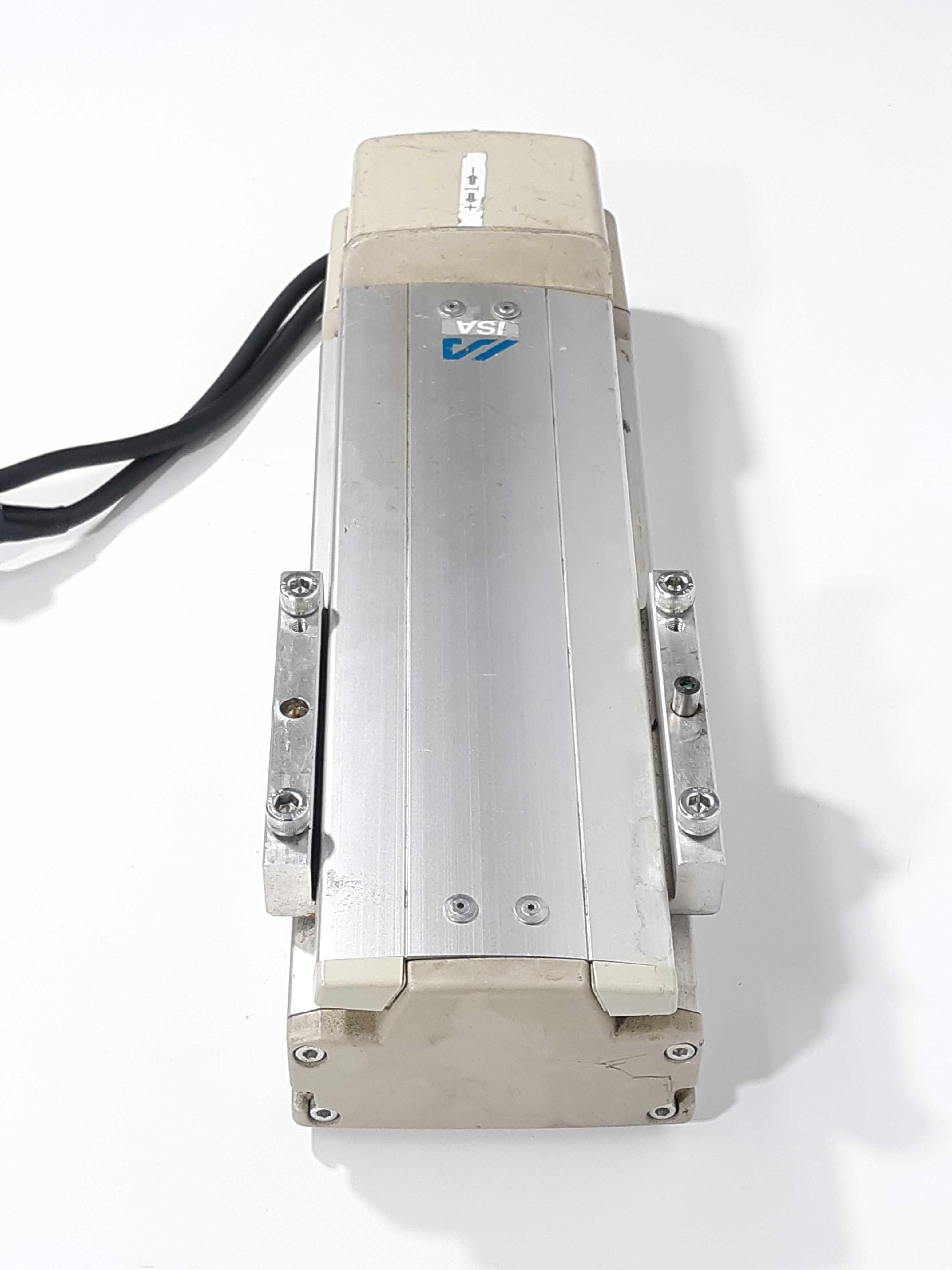

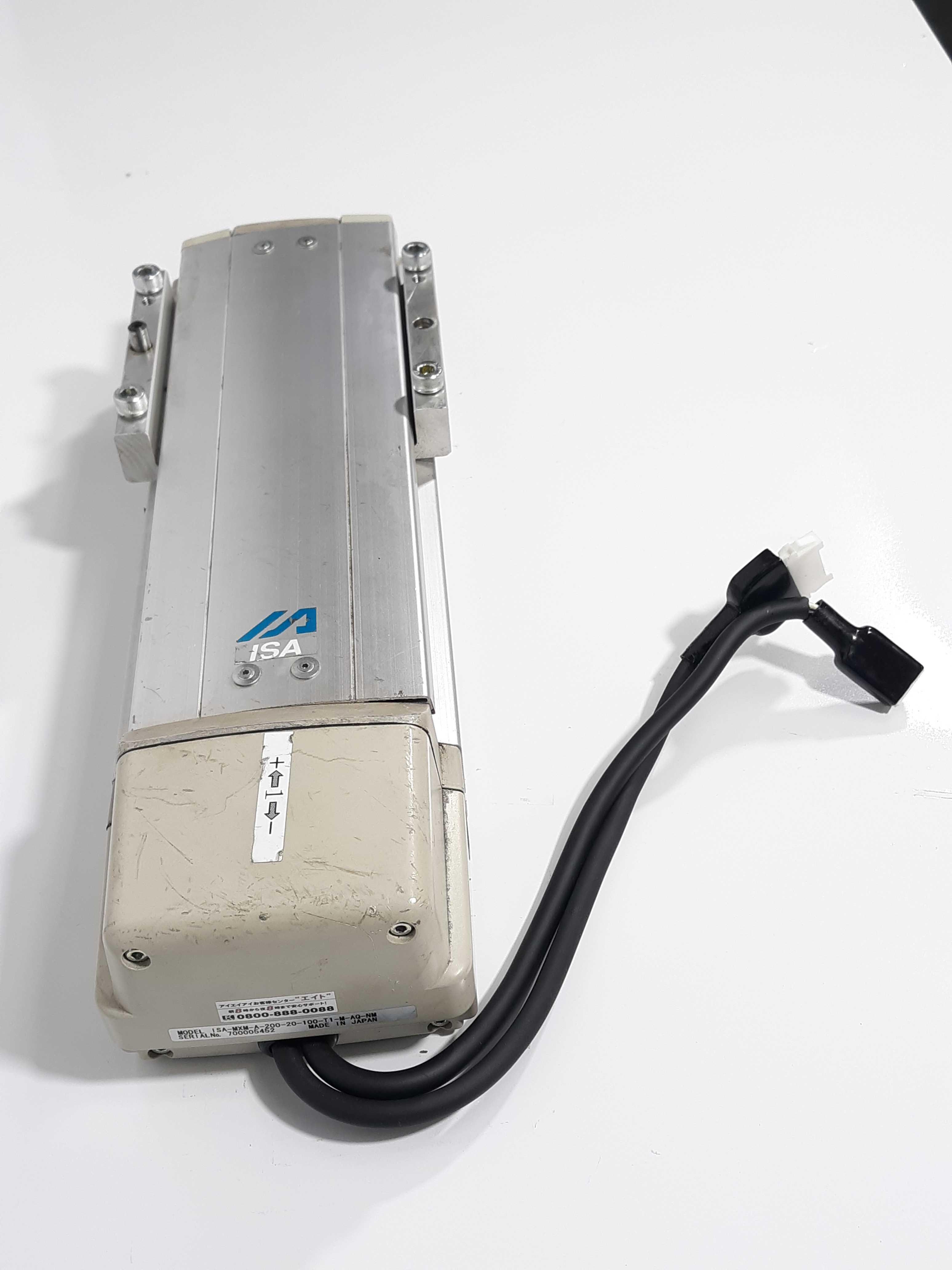

The ISA-MXM series from IAI (Intelligent Actuator Inc.) is a precision electric linear actuator designed for automated motion in pick-and-place, inspection, and general industrial applications. The model ISA-MXM-A-200-20-100-TI-M-AQ-NM is part of the MXM (Mini Table) series, optimized for compact integration and high-accuracy movement. Model: ISA-MXM-A-200-20-100-TI-M-AQ-NM Series: MXM (Mini Table Type, Integrated Slide) Stroke: 100 mm Lead: 20 mm (ball screw lead, affects speed/force) Motor Type: Servo motor (internal) Max Speed: Up to ~1,000 mm/s (depends on lead and load) Max Payload (Horizontal): Approx. 10–15 kg (lead-dependent) Repeatability: ±0.01 mm Drive System: Precision-ground ball screw Base Width: Typically ~50–60 mm (MXM standard) Mounting Orientation: Horizontal or vertical Feedback: Encoder integrated (absolute or incremental – check option NM) Limit Sensors: Integrated as standard Control Interface: Requires compatible IAI controller (e.g., SCON, MCON) Lubrication: Maintenance ports for easy servicing Protection Rating: IP40 (standard) Manufacturing Origin: Made in Japan by IAI Corporation Please review pictures carefully and let us know if you have any questions!
