Condition: Used
Dimensions: 16.00 x 24.00 x 10.00 inches (L x W x H)
Weight: 16.00 Lbs.

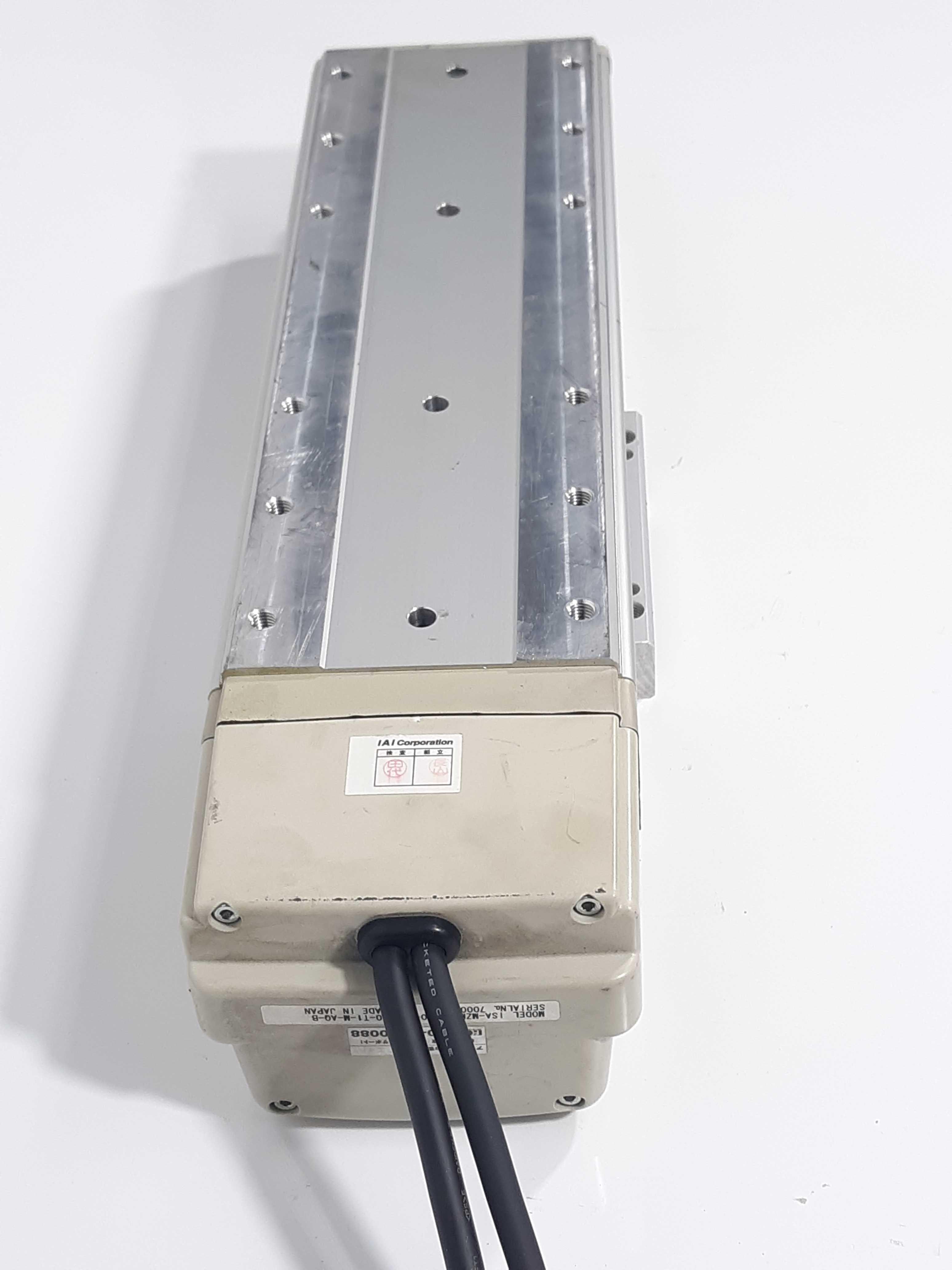

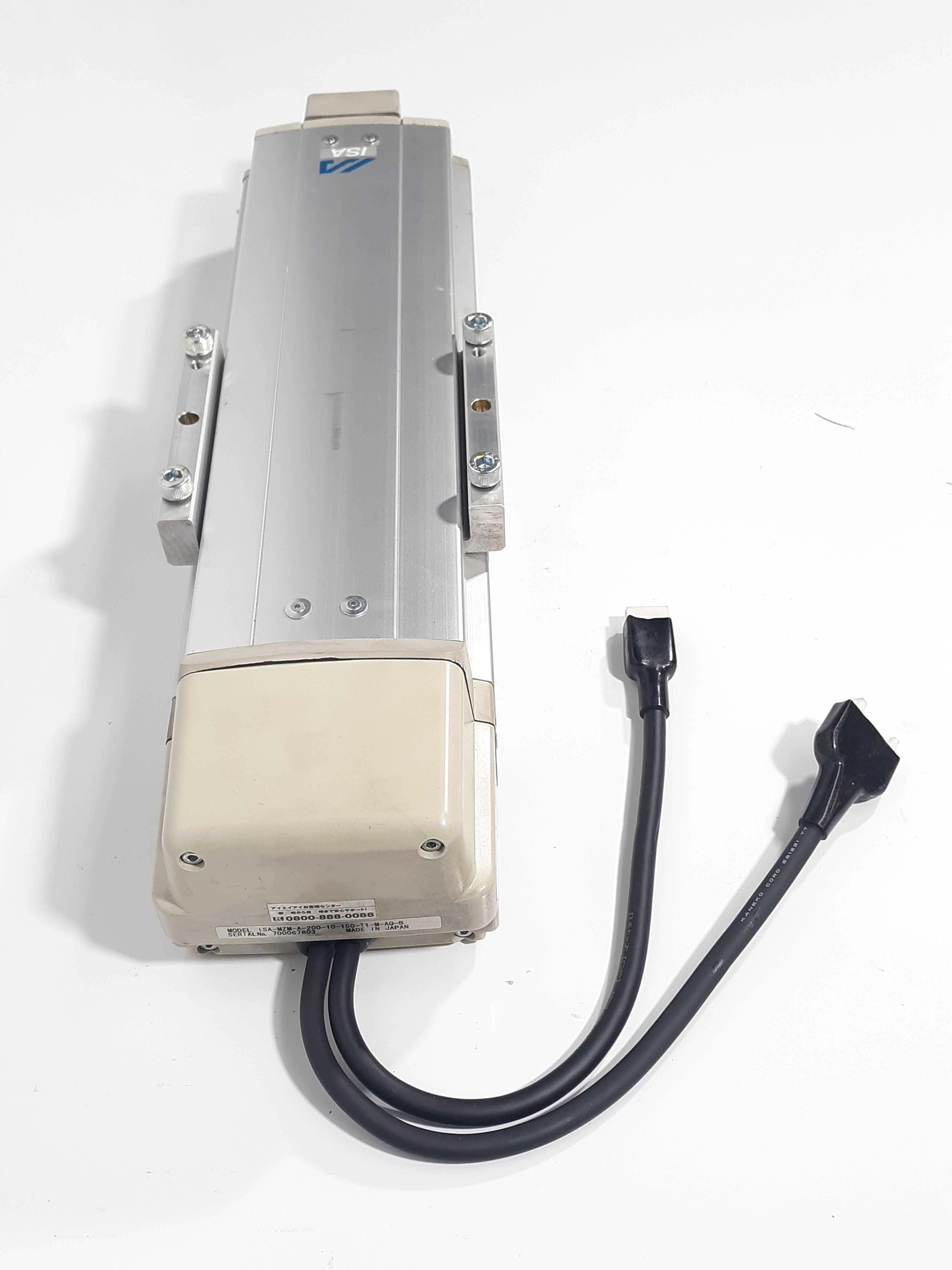

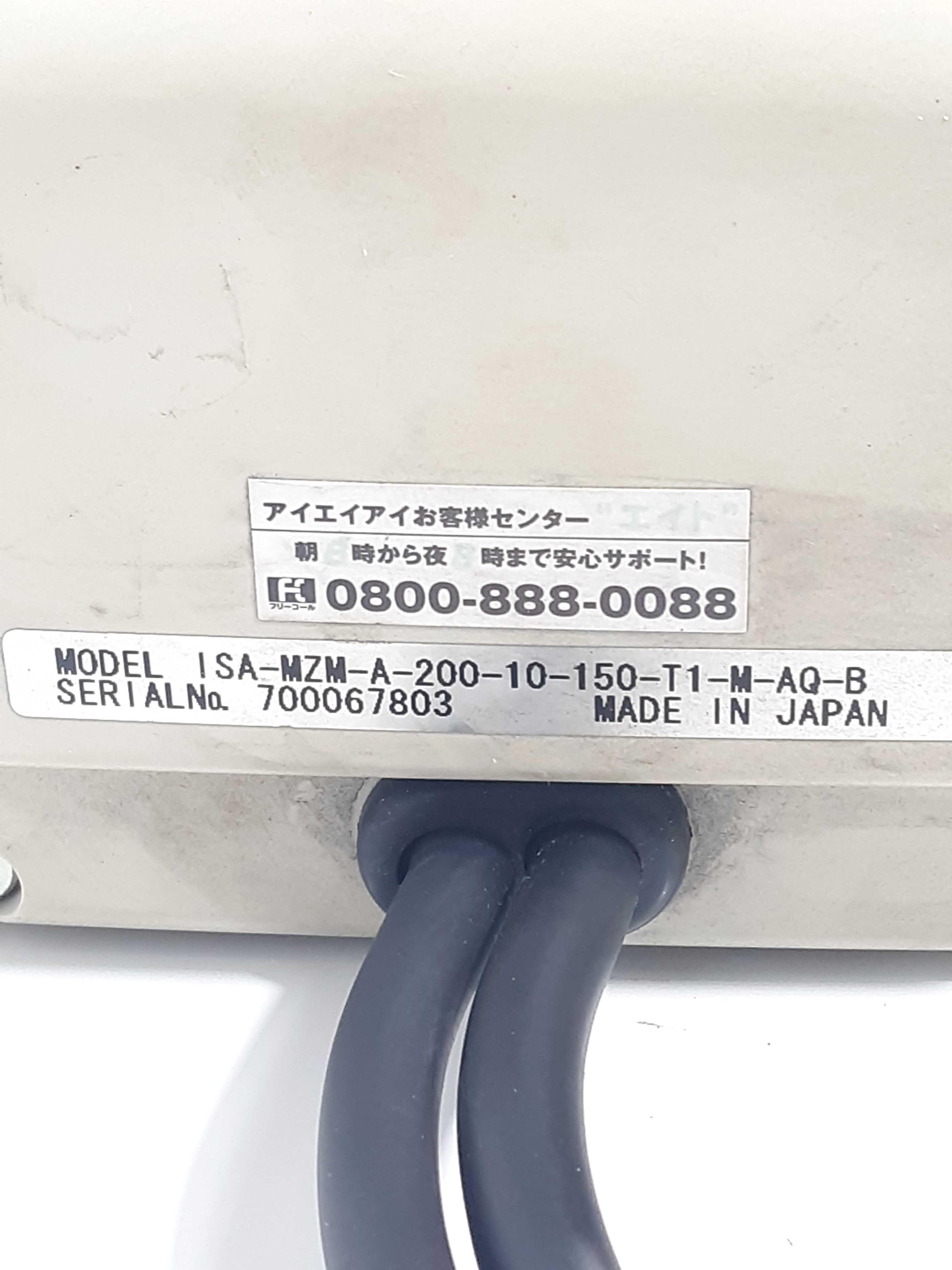

The IAI ISA-MZM-A-200-10-150-T1-M-AQ-B is a high-precision servo-driven linear actuator from IAI's ISA Series, designed for compact automation systems that require fast, accurate positioning. It integrates a motorized slide mechanism with a ball screw drive and built-in servo motor for efficient space-saving motion control. Series: ISA (Intelligent Servo Actuator) Model Code Breakdown: MZM: Motor-internal type (compact motor integration) A: Standard configuration 200: Base length = 200 mm 10: Ball screw lead = 10 mm 150: Stroke length = 150 mm T1: Motor type = 1 (usually stepper or servo, depending on driver series) M: Motor mount type = standard AQ: Option code (often related to cleanroom, cable exit, or brake options) B: Brake equipped (holding brake) Drive Mechanism: Precision-ground ball screw Motor Type: Integrated servo or closed-loop stepper motor (depends on controller/driver) Repeatability: ±0.01 mm Max Speed: Depends on screw lead and payload, typically up to 600 mm/s Payload Capacity: Horizontal: up to ~20–30 kg Vertical: ~5–10 kg (with brake support) Mounting Orientation: Horizontal, vertical, or inverted Sensors: Built-in or external limit/home sensors (varies by config) Controller Compatibility: Compatible with IAI SEL, SSEL, PCON, or RCON controllers Enclosure Rating: Typically IP40–IP54 (varies by AQ option) Applications: Precision pick-and-place, inspection automation, small part transfer, XYZ gantry systems Country of Origin: Japan Manufacturer: IAI Corporation (Intelligent Actuator Inc.) Please review pictures carefully and let us know if you have any questions!
