853B 220V/540W Preheating Station BGA Recovery Station for BGA PCB Preheating

Specifications:

Name: preheat table
Model: 853B
Voltage: 220V
Power: 540W
Volume: 0.18mm fand /min
Temperature control range: 100-380 degree

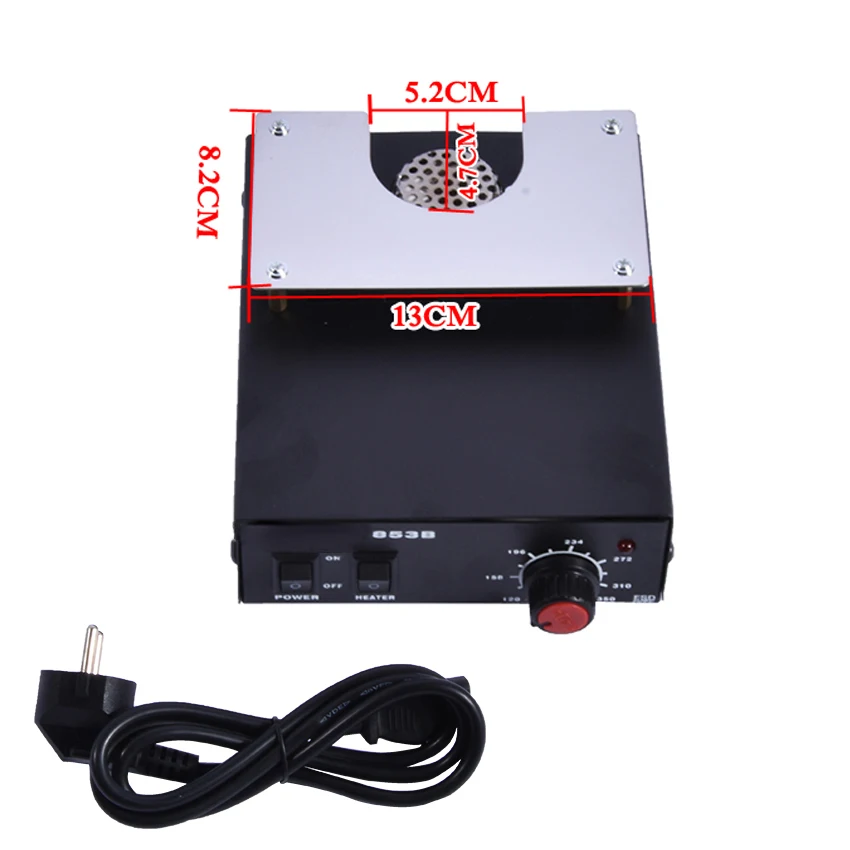

Product size: 140*60*170 mm

purpose
1, apply to electronic, electrical, fast, repair and other PCB board industry preheat / heating / component
2, for thermal shrinkage, drying, paint removal, removal of bonding, thawing, preheating, disinfection, welding.
3, blow welding with plastic components, vibration to the device, the end of the socket is not deformed, blowing

welding line is not foaming, and remove the mask does not change the color, blowing BGA chip is not easy to break off.

Instructions:

The PCB board to be processed in the central outlet. According to the component size, thickness of the circuit board, PCB

board of tin, set the temperature (note the temperature setting is very important to grasp, otherwise easy to cause PCB

damage, the temperature should not be too high, otherwise it will make PCB plate deformation, severe burn conversely,

low temperature will make the components do not get down).

Turn on the power switch and the heating switch, the temperature rise and quickly reach a constant, when the component

pin points molten, the component will be removed.

Note:

in the vicinity of the plait point for each element at the tin pin on the PCB board, then please do not immediately PCB board

is removed, should be the first heating switch off, the machine head to the PCB board temperature to room temperature.

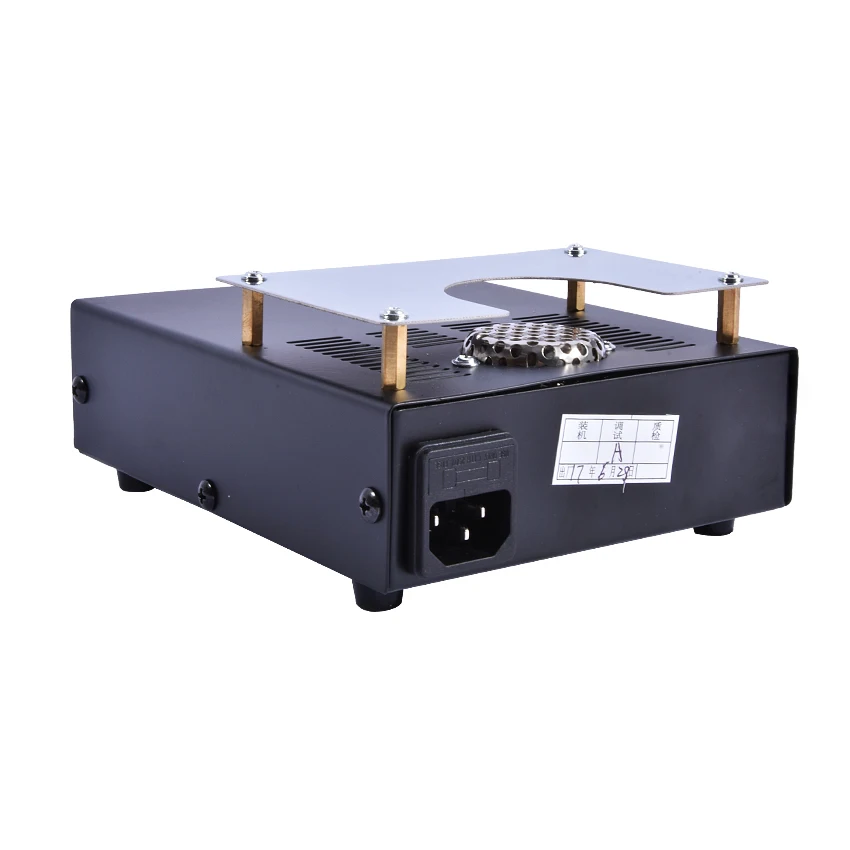

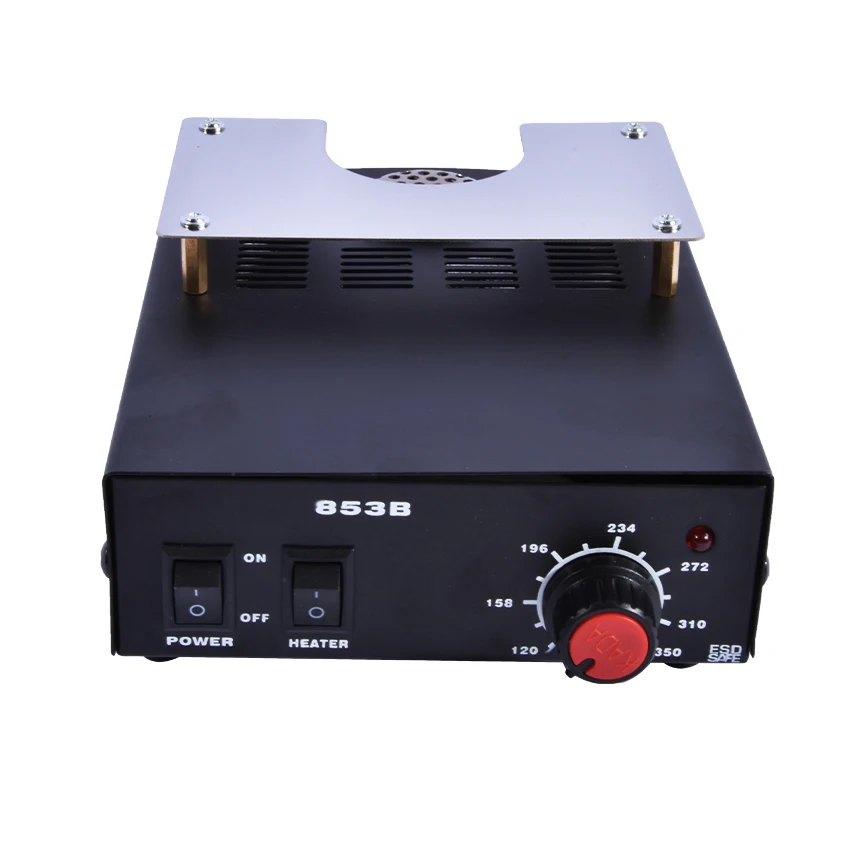

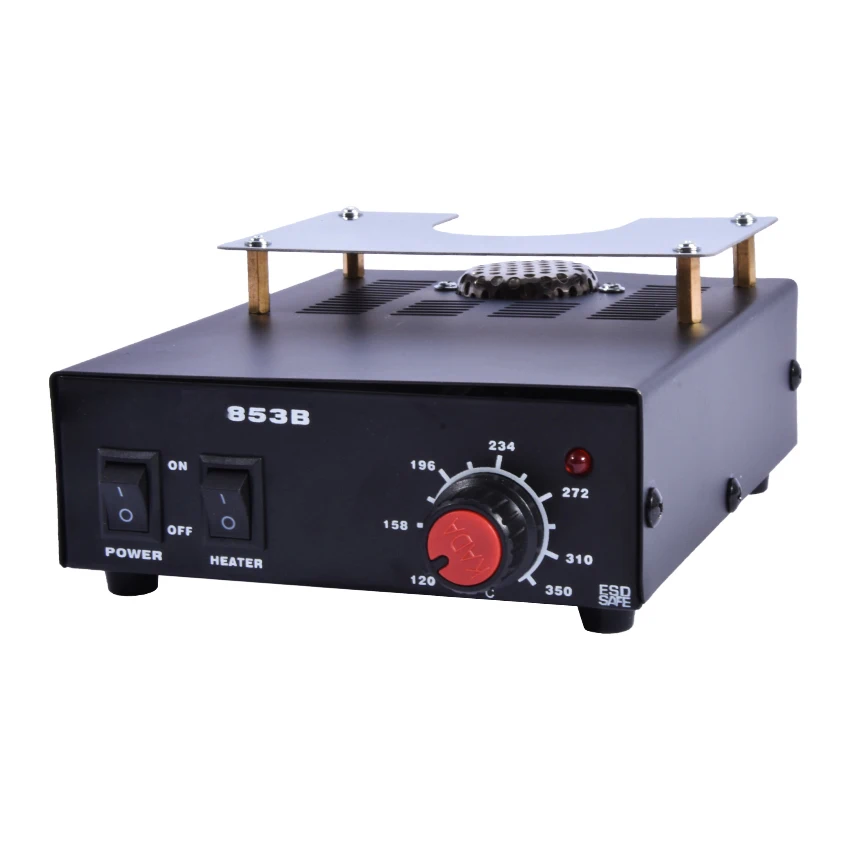

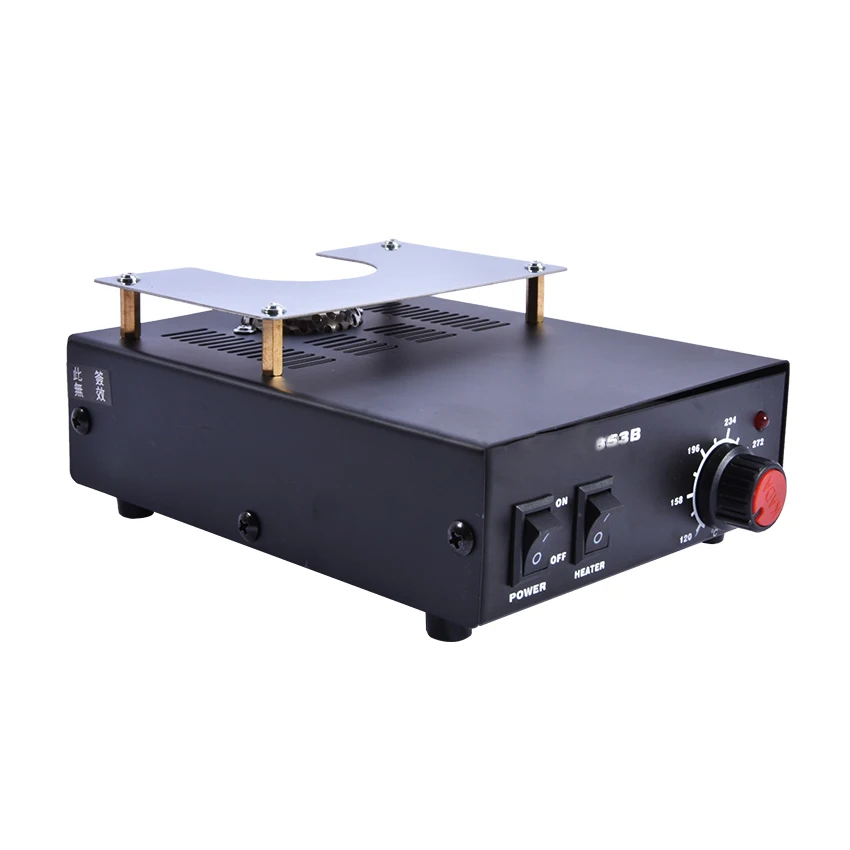

Picture showing:
