EBD-B10H Battery Capacity Tester 0.5-10A Discharge Tester 12-72V 100-240V 880W


Specifications:

EBD-B10H is a capacity tester for lead-acid and lithium-ion batteries. It is suitable for

battery capacity test in the range of 12V-72V. It has built-in discharge load resistor and

supports computer online drawing curve.

Name: EBD-B10H battery capacity tester
Voltage: AC100-240V
Power: 880W
Battery group Capacity test: 12-72V
Discharge: 0.5-10A
Packing size: 44*29*27cm
Weight: 6.5kg
Volume weight: 6.89kg

Voltage setting: 9.00-88.00V, minimum step 0.01V
Current setting: 0.50-10.00A, minimum step 0.01A (maximum 5A for 12V battery group)
Test mode: DSC (constant current discharge), the measured voltage will automatically stop

when it is lower than the set termination voltage.
Voltage measurement: 0.10-89.00V, accurate to 0.01V, error +-0.5%
Current measurement: 0.50-10.00A, accurate to 0.01A, error +-0.5%
Capacity measurement:
10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
100Ah or more, resolution 0.1Ah
Wiring method: four-wire detection, voltage measurement and current channel separate

wiring to ensure measurement accuracy
LCD display: test data such as voltage, current, capacity, time, etc.

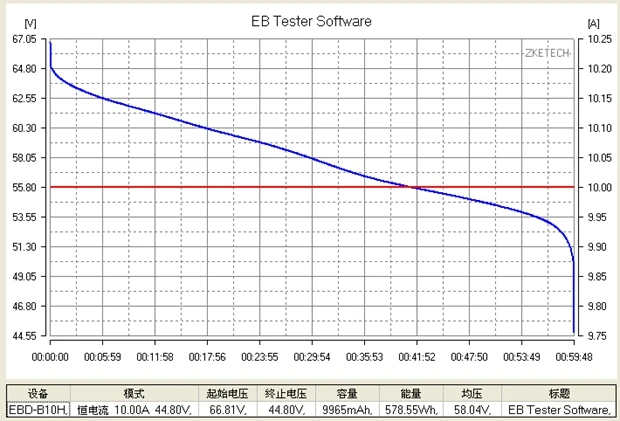

Computer connection: dedicated USB to TTL serial cable. Computer control, plotting curves,
calibrating measurement benchmarks, upgrading device firmware

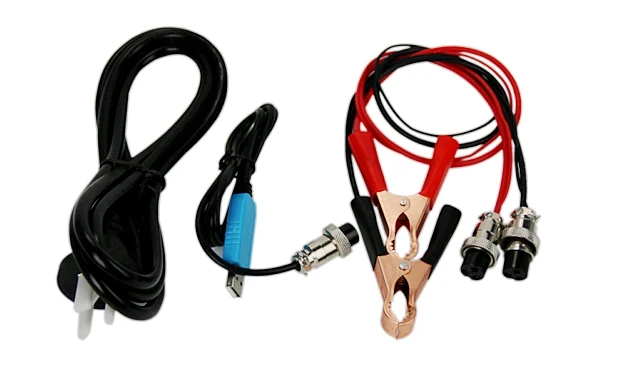

Packing list:
Tester*1pc
Power cord*1pc
Online cable *1pc
Test clamp *1 pair

Picture showing:
