A 60µF metallised polypropylene film capacitor in a plastic case. Designed for motor start and motor run applications.



  • Size Ø50 x 117mm

  • Tolerance 5%

  • Fitted with an M8 x 10mm stud for mounting

  • Terminated by double 6.3mm FASTON push-in connector

  • Non-inductive winding means low losses

  • Self-healing properties avoids short circuits

  • Small size and weight

  • No leakage risk

  • Case and cover made from self-extinguishing material

  • Capacitive element is sealed with resin

  • Safety protection class P0

  • UL 94V-0 recognised

Responsive image

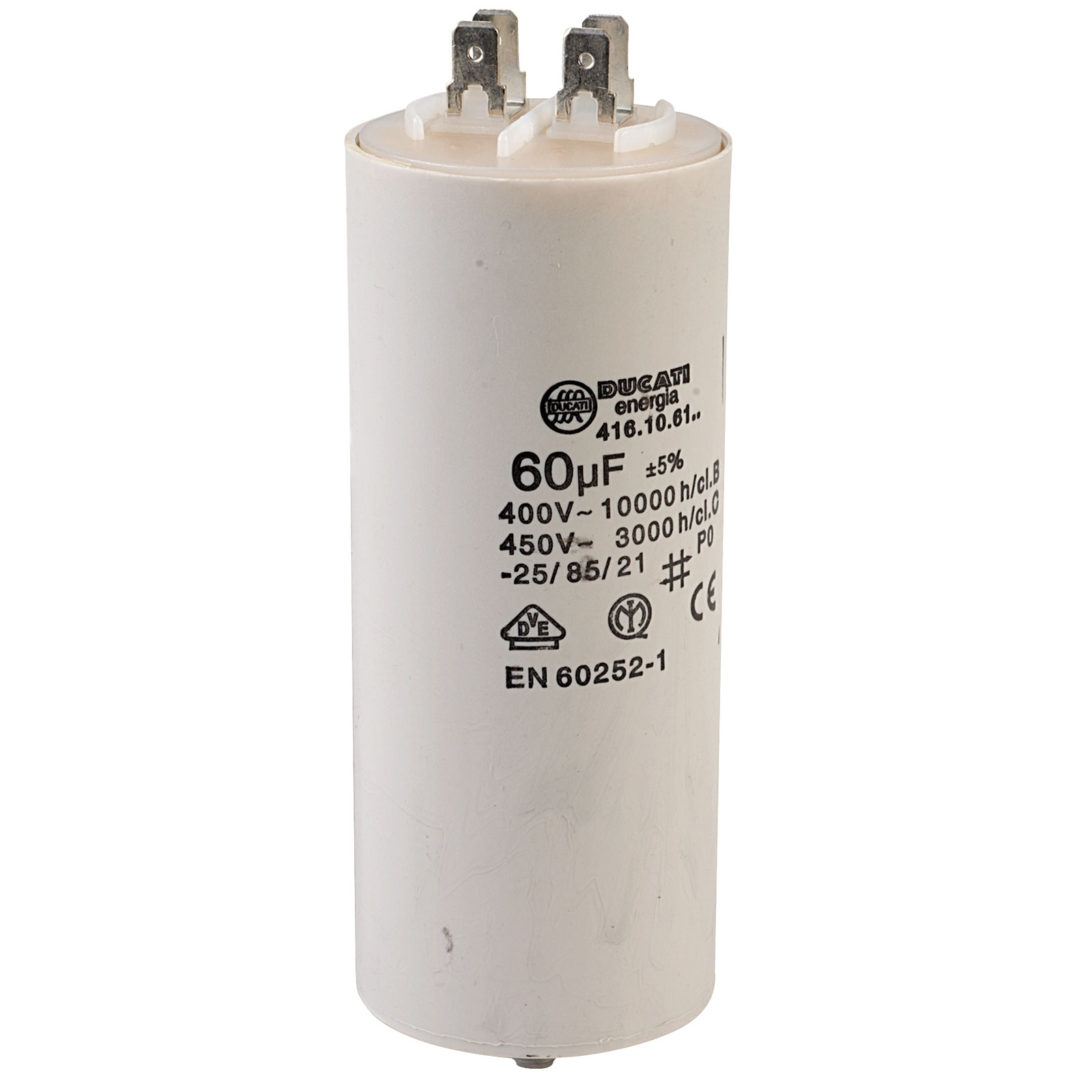

Ducati 4.16.10.61.64 60uf Plastic Case Motor Run Capacitor

Product Details

A 60µF metallised polypropylene film capacitor in a plastic case. Designed for motor start and motor run applications.


  • Size Ø50 x 117mm
  • Tolerance 5%
  • Fitted with an M8 x 10mm stud for mounting
  • Terminated by double 6.3mm FASTON push-in connector
  • Non-inductive winding means low losses
  • Self-healing properties avoids short circuits
  • Small size and weight
  • No leakage risk
  • Case and cover made from self-extinguishing material
  • Capacitive element is sealed with resin
  • Safety protection class P0
  • UL 94V-0 recognised
NameValue
Size50 x 117mm
Capacitance60µF
Dimensions50 x 117mm
Can TypePolypropylene
Operating Temperature-25 to +85°C
Tolerance5%
TypePlug in
Voltage400V
