52mm 4 Gauge Set Fuel Level Gauge Oil Pressure Volt Water Temp Gauge 7 Color LED
4 Gauge Set 52mm Fuel Water Temp Oil Pressure Voltage 7 Colors For Car Boat
Feature:
- High-brightness LED backlight.
- 316 stainless steel for long-term use even in acid-base, humid environment.
- IP67 waterproof and dust-proof grade.
- With curved glass( with anti-fog function).
- Suitable for all kinds of vehicle modification.
- Using stepper motor drive pointer, accurate display of the engine speed, and with the LCD display clear display mileage.
- Gauges have many kinds backlight color (red,yellow,orange,green,blue,purple,white),customers can adjust any color that you like
Fuel Level Gauge

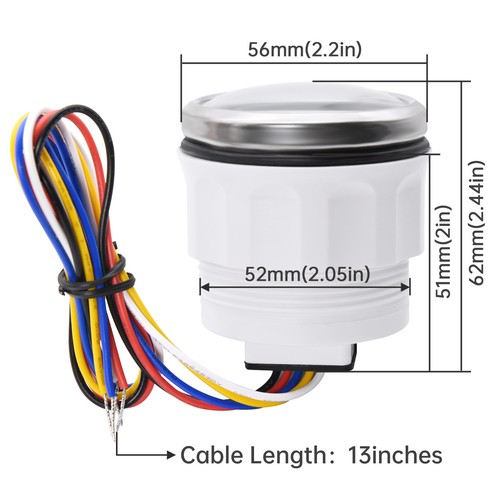

- Sizes: 52 mm (2-1/16")
- Measuring Range: Empty - Full
- Resistance: 240 (E) - 33 (F) ohms NOTES: 240-33ohms fuel level sensor only fit for 240-33ohms fuel gauge
- Backlight: 7 Colors
Volt Gauge
- Sizes: 52 mm (2-1/16")
- Measuring Range: 8 - 16 (V)
- Backlight: 7 Colors
Water Temperature Gauge
- Install diameter: Φ52mm
- Indication range: 0~120℃/30-250℉
- Input signal: 287.4~22.4 ohms
- Storage temperature: -40~+85℃
- Backlight: 7 Colors
Oil Pressure Gauge
- Install diameter:Φ52mm or 2-1/16"
- Indication range:0~10bar / 0-150 PSI
- Input signal: 10-184 ohms
- Operating temperature:-30~+75℃
- Storage temperature:-40~+85℃
- Backlight: 7 Colors
Package Includes:
- 1X 52mm Fuel Level Gauge
- 1X 52mm Voltmeter
- 1X 52mm Water temp gauge
- 1X 52mm Oil pressure gauge
- 4X Installation Instruction
- 4X Cable
