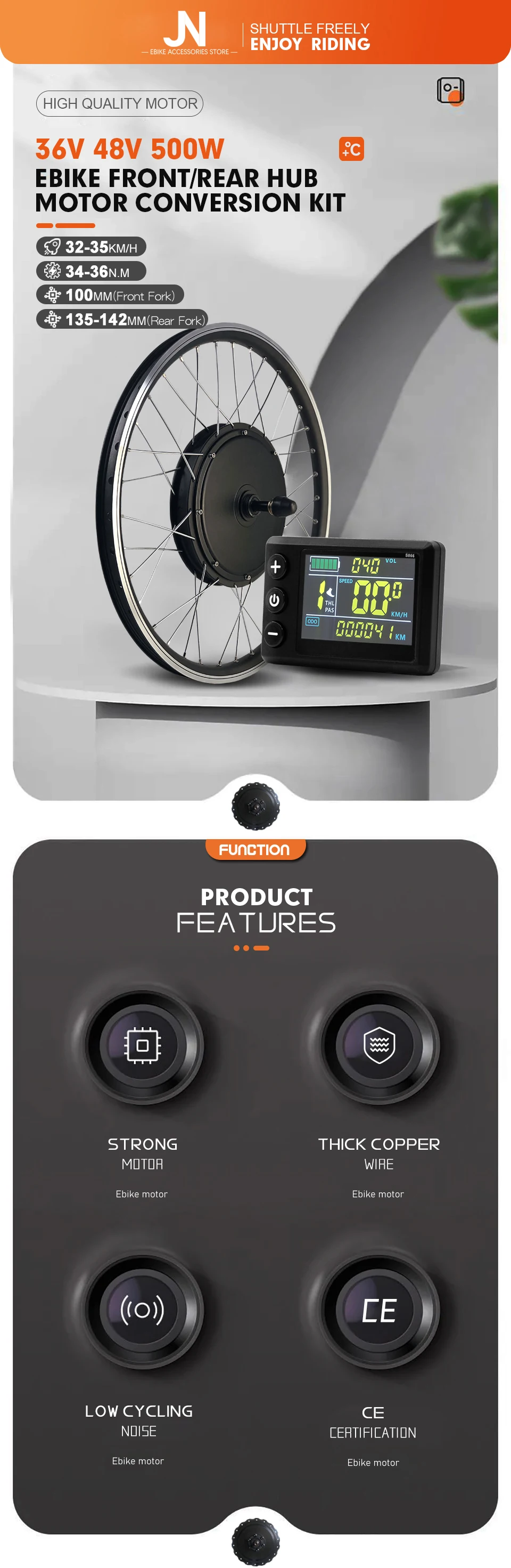

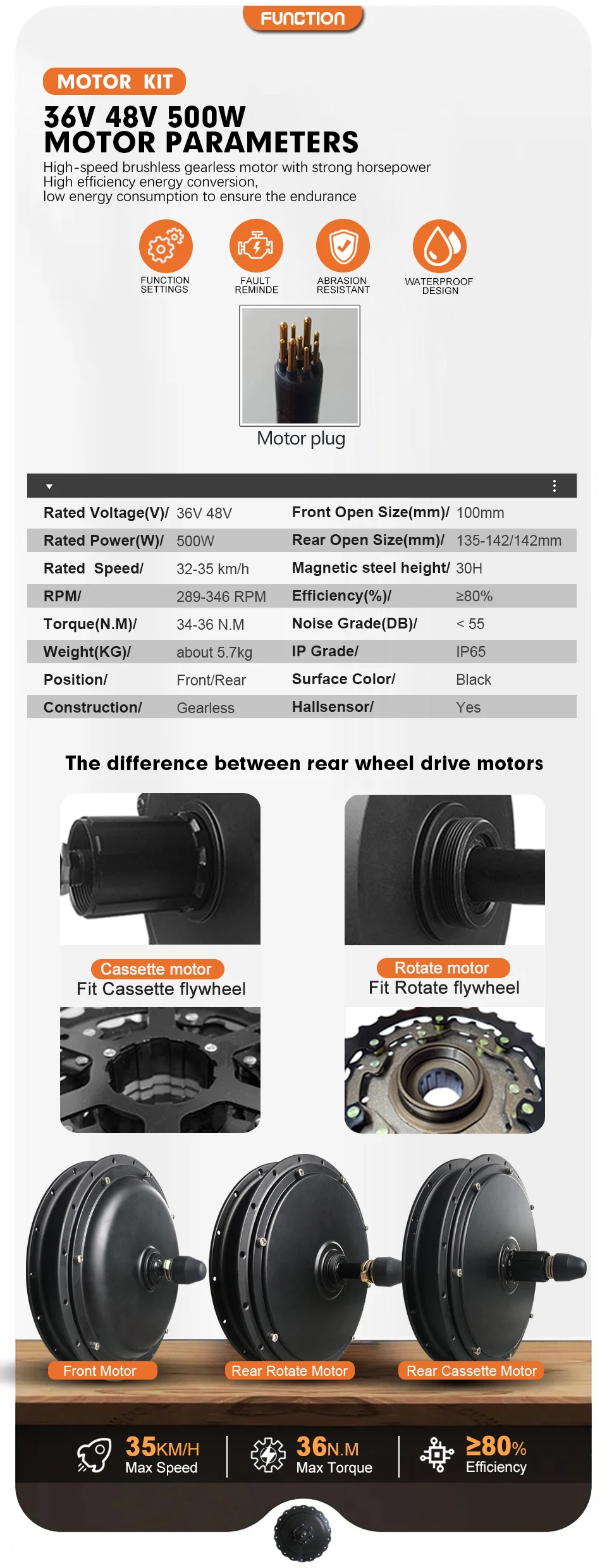

500W Motor Wheel:

1. Full Speed:

    500W about 32-35km/h,

    (different wheel size, road&weather condition and rider's weight will have different speed)

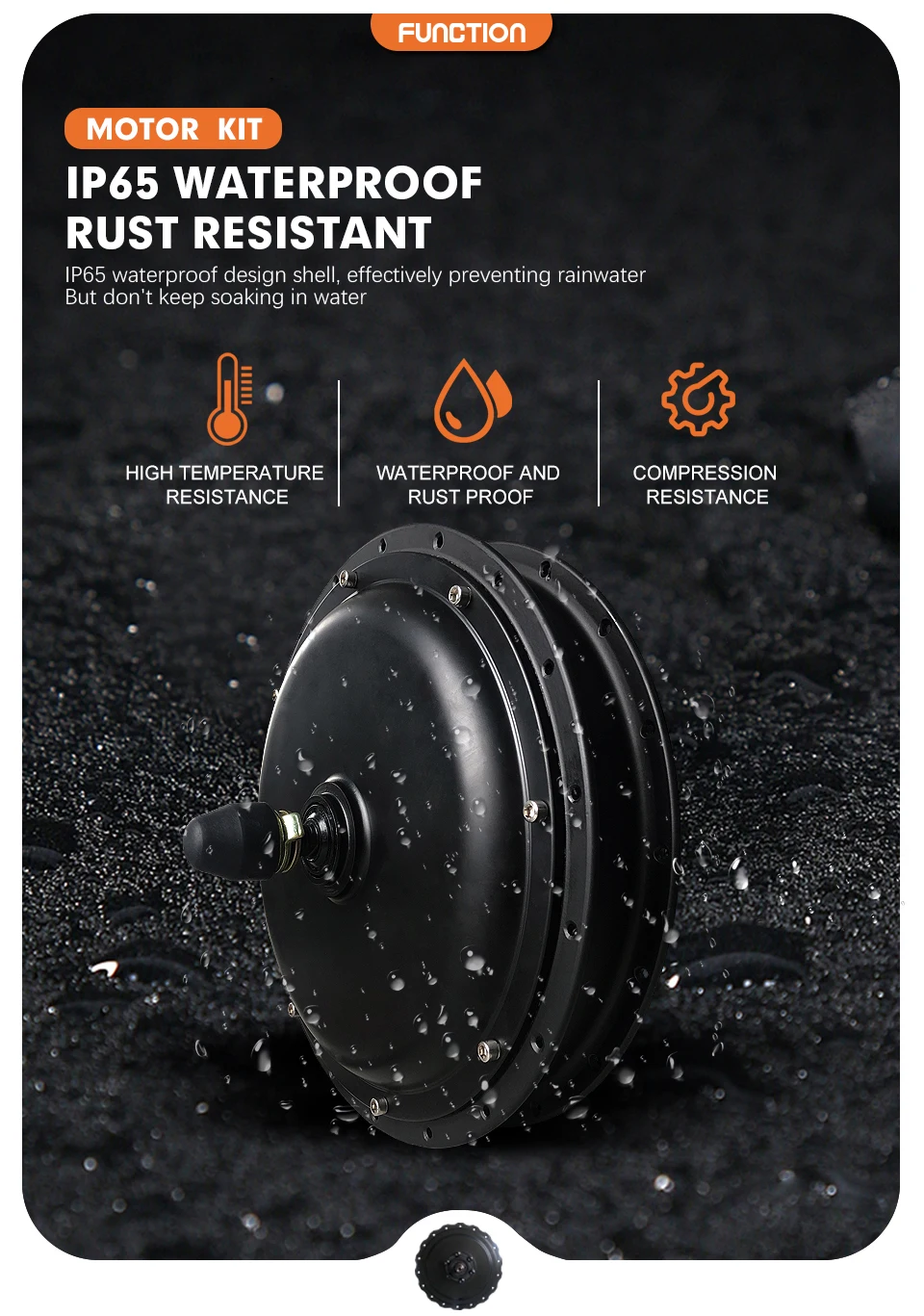

2. Hub Motor:

    Brushless Gearless Hub Motor

3. Rim:Double-wall Aluminium Alloy Rim

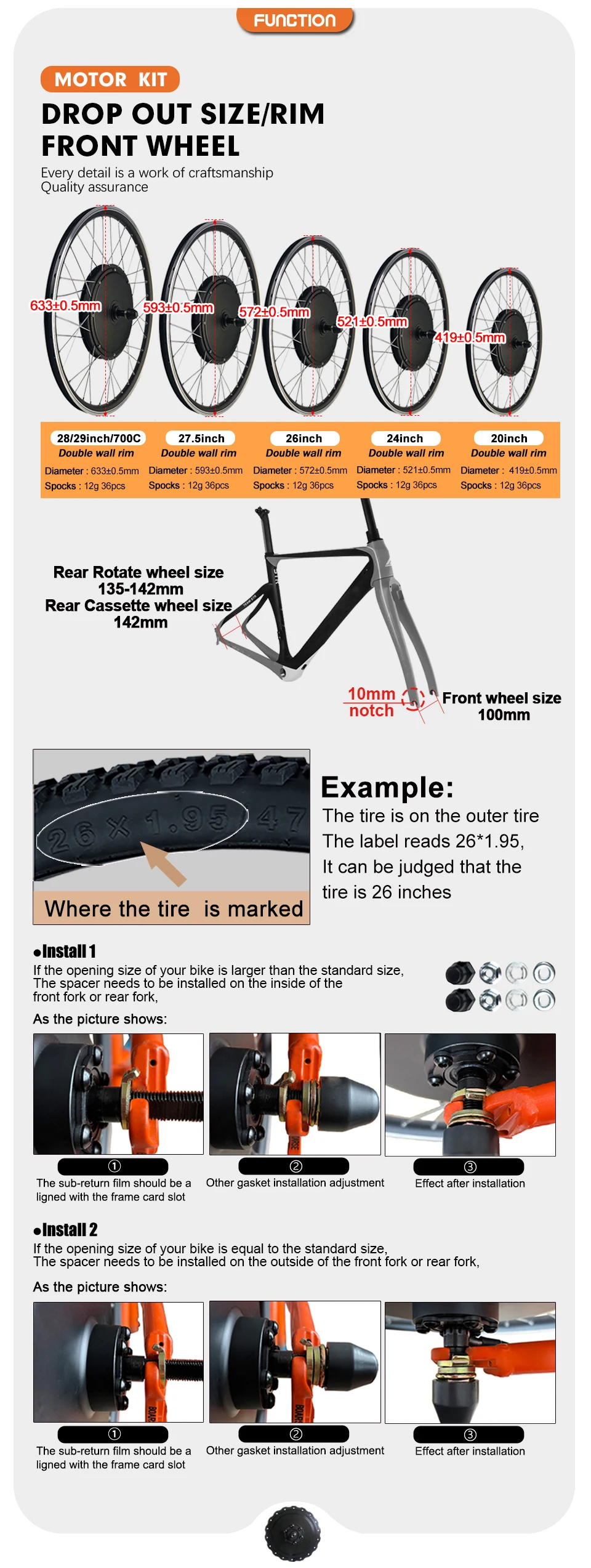

4. Wheel Bottom bracket: Front 100mm or Rear 135-142mm

5. Torque:34-36NM

6. RPM:289-346Rpm

7. Magnet height:30H

8.Number of magnet poles: 20

9.Operating Temperature: -20-45℃

10.Installation: Front/Rear

11.Certification: CE

12.Wheel Diameter (Inch): 20/24/26/27.5/28/29inch700C---Optional

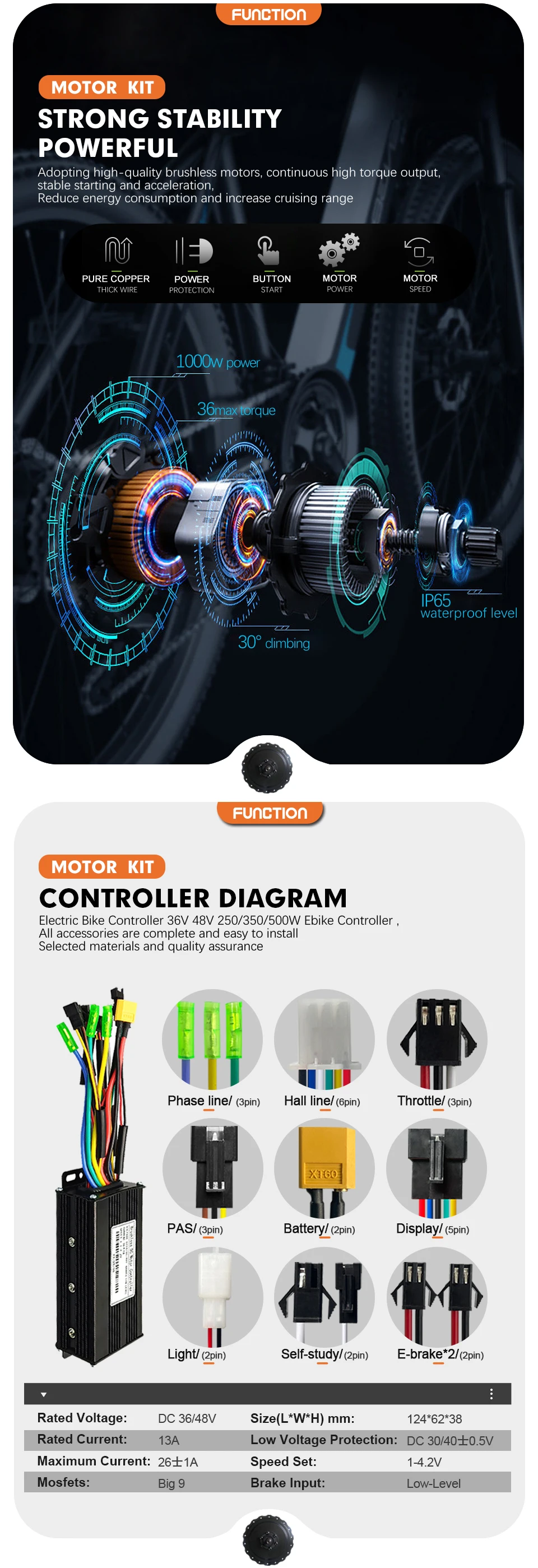

  JN 26A Controller

●Dimension :124*62*38mm

●Maximum current :26±1A

●Rated current :13A

●Mosfets :9mosfets

●Weight :349g

●Rated voltage :DC36V/48V

●Speed set :1-42V

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

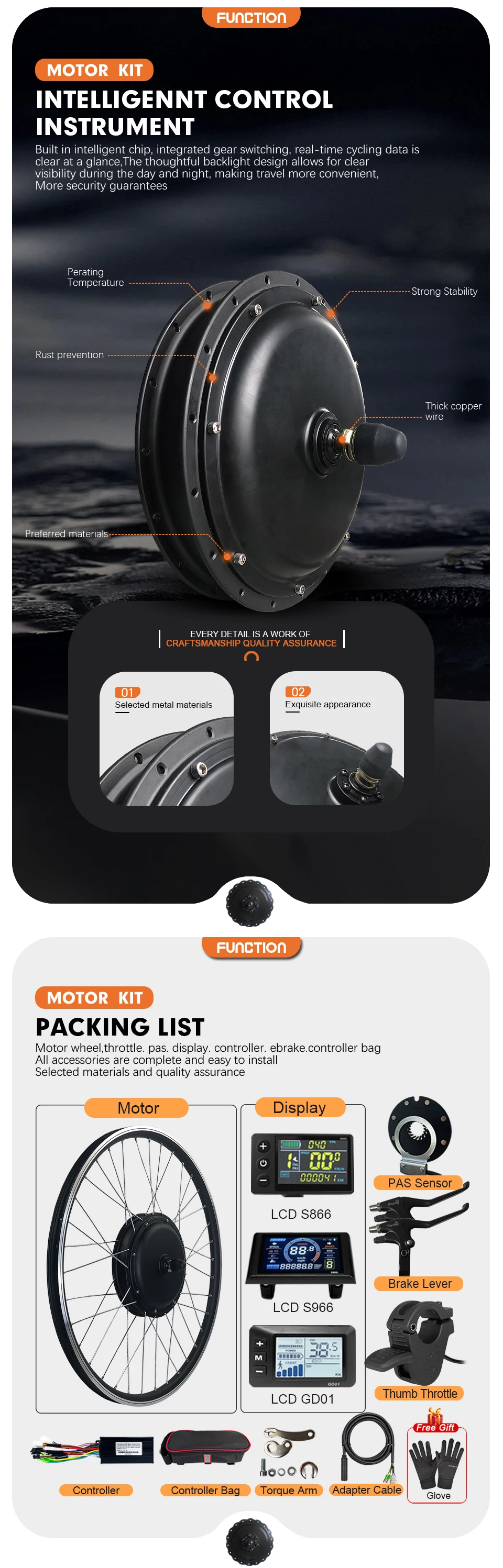

  Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Motor wheel

1 * Controller

1 * Controller Bag

1 pair * Power cut-off Brake lever

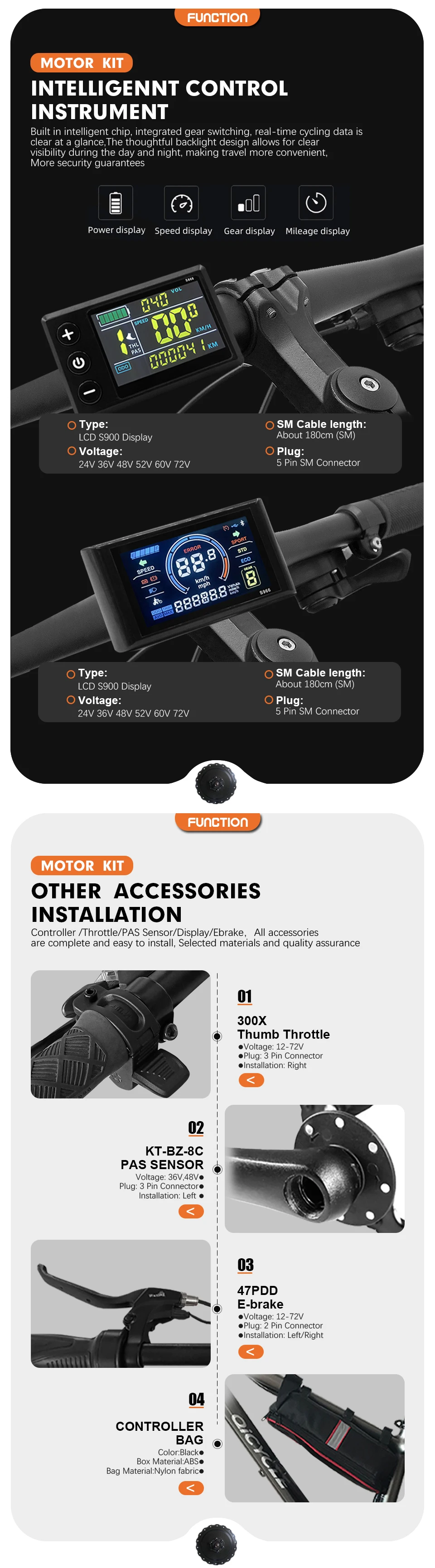

1 * Display (Option)

1 * 8 Magnet Pedal Assistant Sensor

1 * Whole Twist Throttle (default)
