Truma Combi 6E Kit 2 Water Boiler and Space Heater

The Truma Combi is a popular choice for heating both water and living space in your campervan, motorhome or caravan. The Combi 6E is energy efficient, quiet in operation and incredibly compact and lightweight for the performance it offers. The Truma kit 2 includes all the items needed for installation including a digital wall-mounted control panel which is iNet ready*. The Truma 6E features an integrated 10 litre stainless steel water tank. Suitable for all seasons, it allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode. Able to operate on either 230V electric mains voltage or on LPG, the Combi provides hot water, and a warm campervan, motorhome, or caravan, whether on a camping site, or in the wild. You can even use both electric and gas energy sources in unison for rapid heating times.

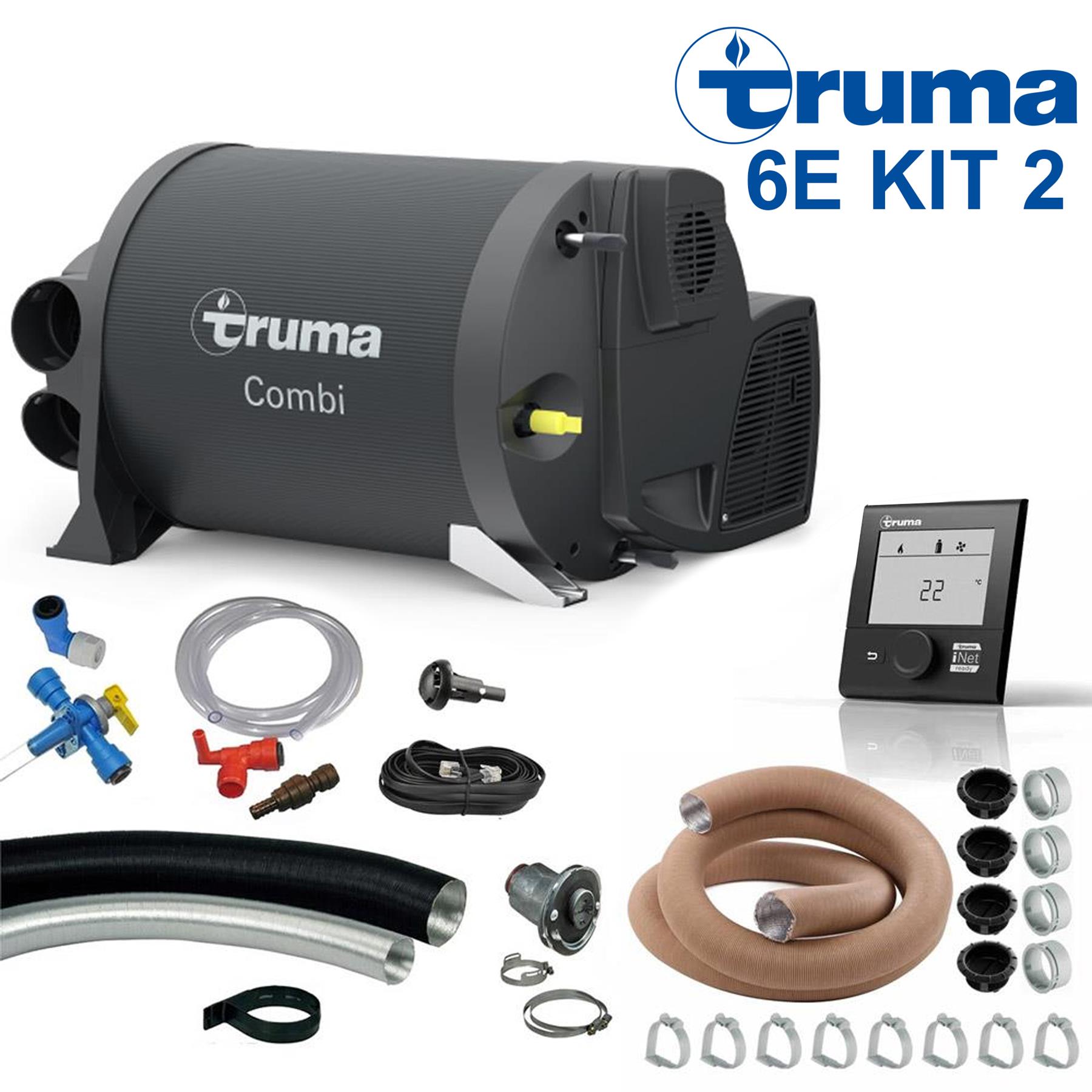

The Truma Combi kit 2 contains:

• Truma Combi LPG gas and 230V electric unit
• Truma CP Plus digital wall mounted control panel
• John Guest connection kit
• 10m of 65mm heater ducting pipe
• Truma cowl cover
• 8 x Truma heating clips
• 4 x Truma blown air heating nut
• 4 x black Truma end outlets with throttle

Please note that the Truma Room Temperature Sensor Cable is not included in the kit.

Specification:

• Heater model: Truma Combi 6E
• Dimensions (L x W x H): 510 x 450 x 300 mm
• Installation dimensions (L x W x H): 540 x 500 x 350mm**
• Weight (when empty of water): 15.1kg
• Heating time (from 15°C to 60°C) (Water only): Approx. 20min.
• Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.
• Fuel consumption (Gas): 130 g/h
• Water capacity: 10 litres
• Air flow rate: Max. 287 m3/h
• Power consumption (at 230V): 3.9A / 7.8A
• Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)
• Water pressure: MAX 2.8 Bar

Truma 6E:

• Rated thermal output (Gas): 2000/4000/6000W
• Rated thermal output (Electric): 900/1800W
• Rated thermal output (Electric & Gas Combined): 5800W
• Fuel consumption (Gas): 160–460 g/h

* To use the Truma iNet system with your Combi 6E you will need a Truma iNet controller

With the addition of a Truma iNet system you can conveniently control the Combi from your mobile phone using Bluetooth via an app. Additionally, if you have a Truma air-conditioning unit installed, the control panel can automatically co-ordinate the heater and air conditioning unit to ensure your living space maintains a comfortable and controlled environment.

Dimensions:

 Please note, in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.
