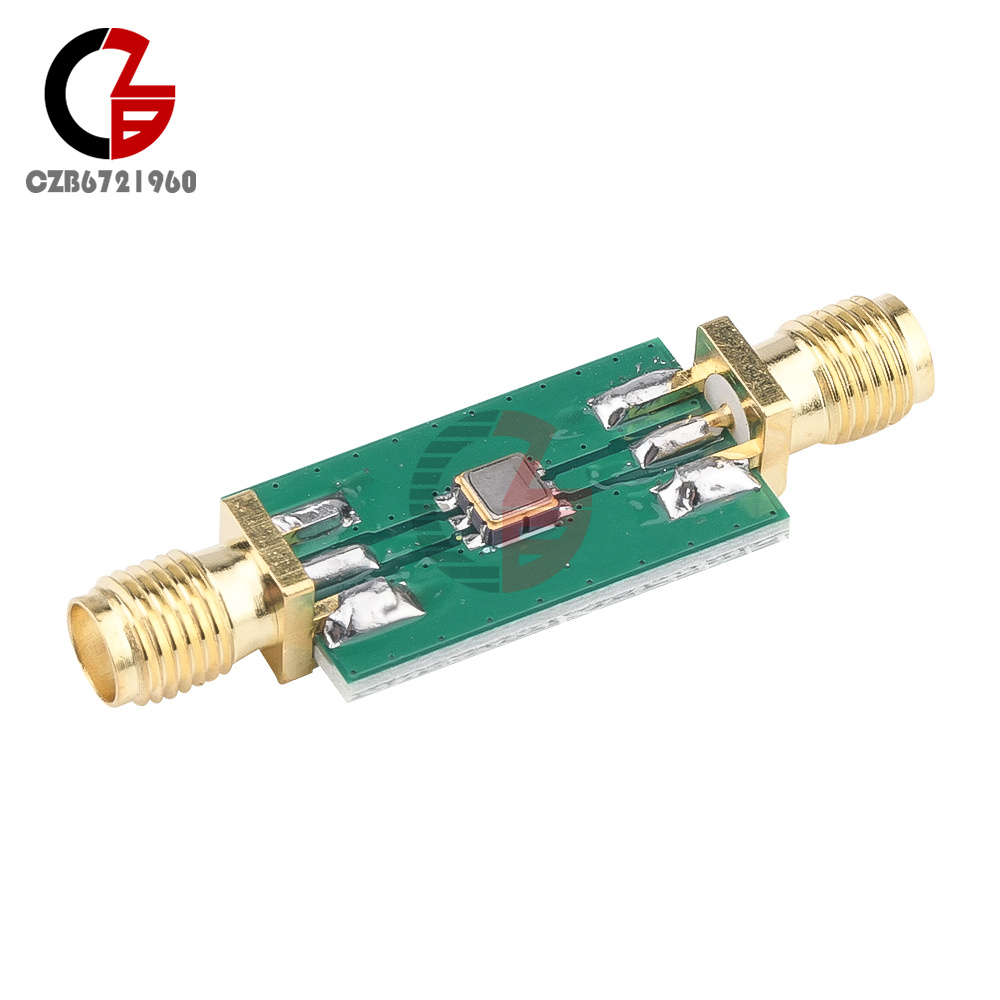

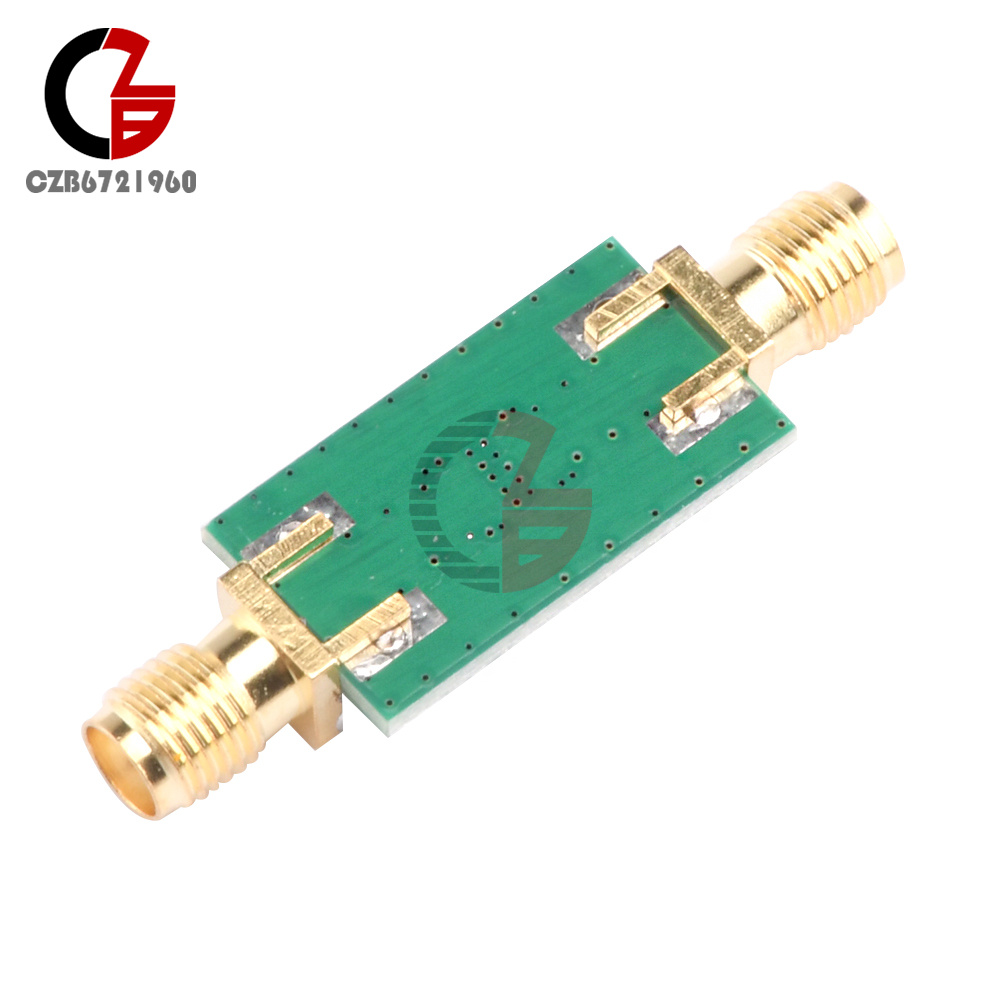

10MHz/403/433/915/1090/1207/1268/1561MHz Band Pass Filter BPF RF/Passive Filter

Popular

Product Introduction

915MHZ RF
Product parameters:
1）Operating frequency: 915±5MHz
2）Insertion loss: 1.5db
3) Out-of-band rejection: 45dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required

403MHz Passive
1）Operating frequency ：403±2.5MHz
2) Insertion loss: 1.7db
3) Out-of-band rejection: 60dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 20dbm (100mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)

433MHz Passive
Name：Band Pass Filter
Operating frequency: 433±20MHz
Insertion Loss: 2.8db
Out-of-band rejection: 40dB @ 50MHz
Input Impedance: 50 Ohm
Output Impedance: 50 Ohm
Maximum input signal strength: 13dbm (20mw)
Input Connector: SMA-K (SMA Female)
Output Connector: SMA-K (SMA Female)

ADS-B Filter BPF 1090MHZ
1）Operating frequency: 1090±15MHz
2）Insertion Loss: 1.5db
3) Out-of-band rejection: 40dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required

1207MHz RF
1）Center frequency: 1207MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°

1268MHz RF
1) Center frequency: 1268MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 4.5g
9) Applicable temperature: -40C°-70C°

1561MHz RF
1) Center frequency: 1561MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 3.5dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°

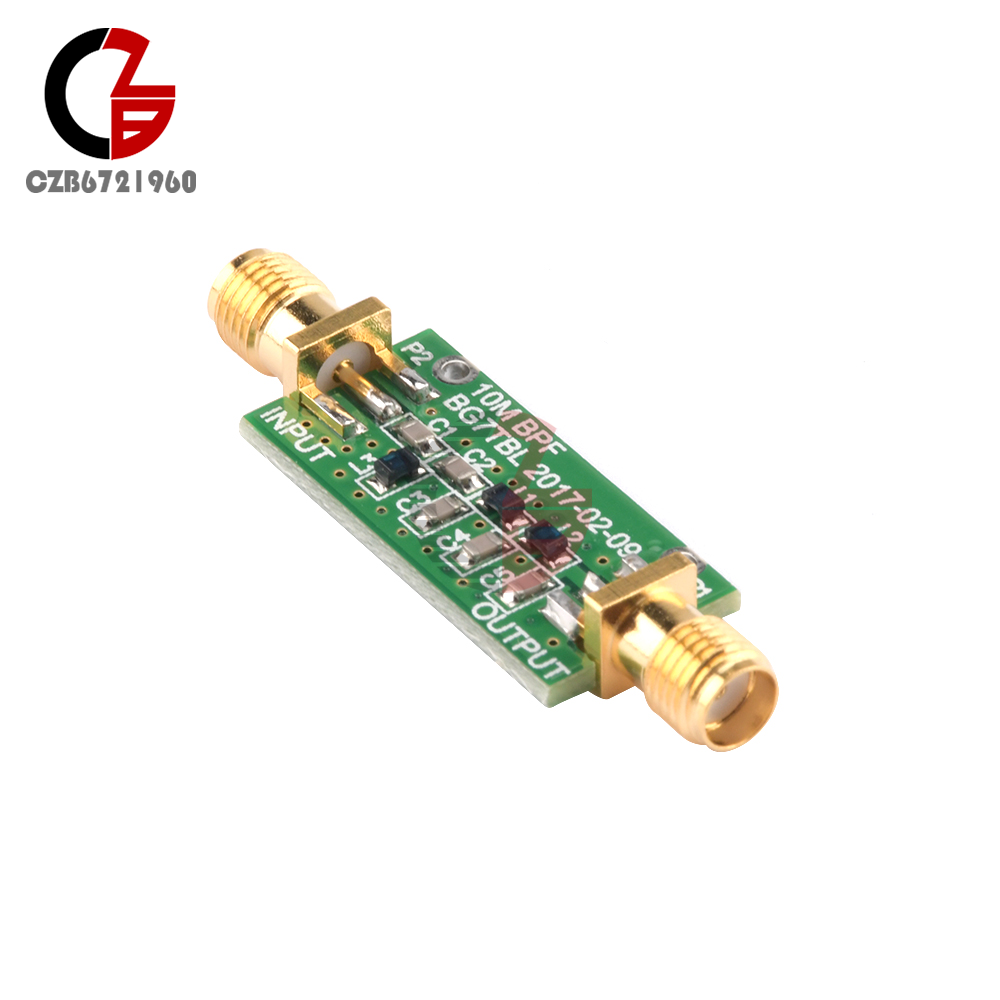

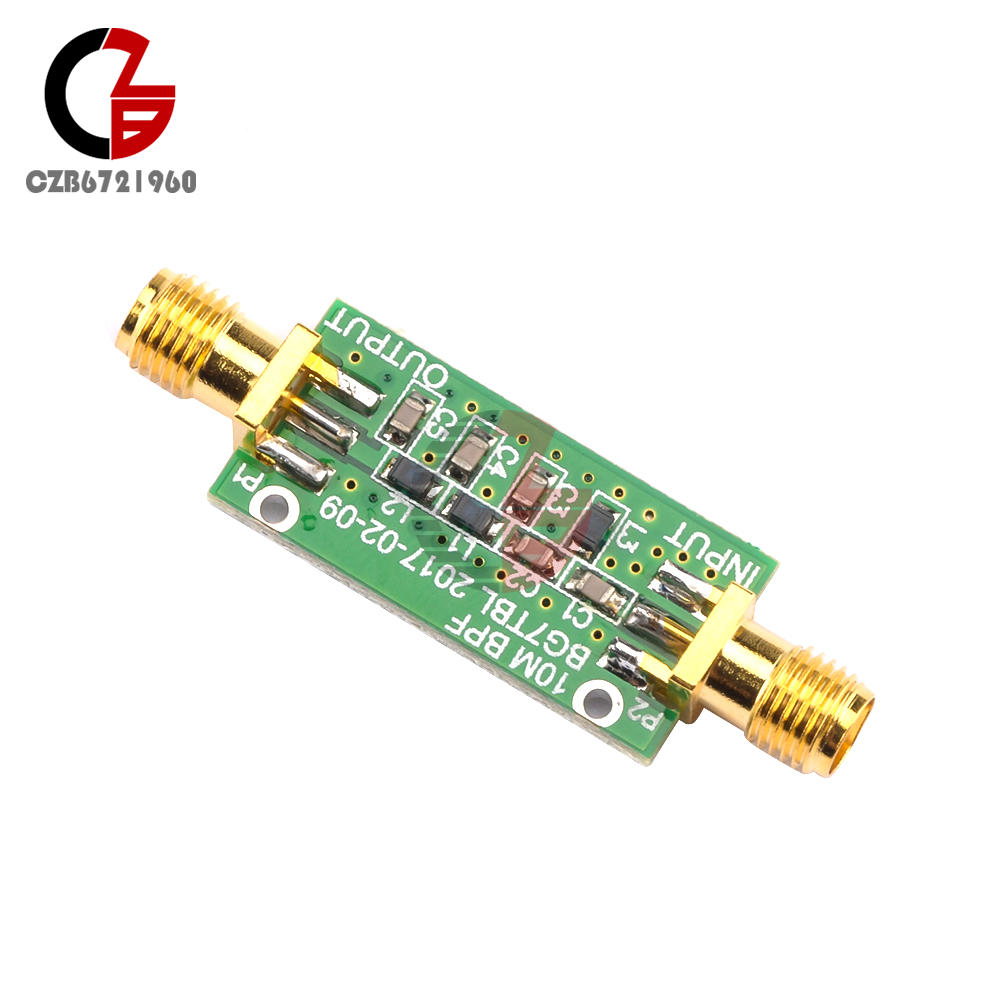

10M 10MHz BPF Bandpass Filter
Low insertion loss
Product Size: 45*15mm

List:
Filter *1
  • We accept PayPal only. But we only Accept your Ebay Address,Please Make sure it's 100% right.
  • Payment must be received in 5 business days of auction closing.
  • Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
  • Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched.
  • We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
  • All package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can't take a refund.
  • If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
  • If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
