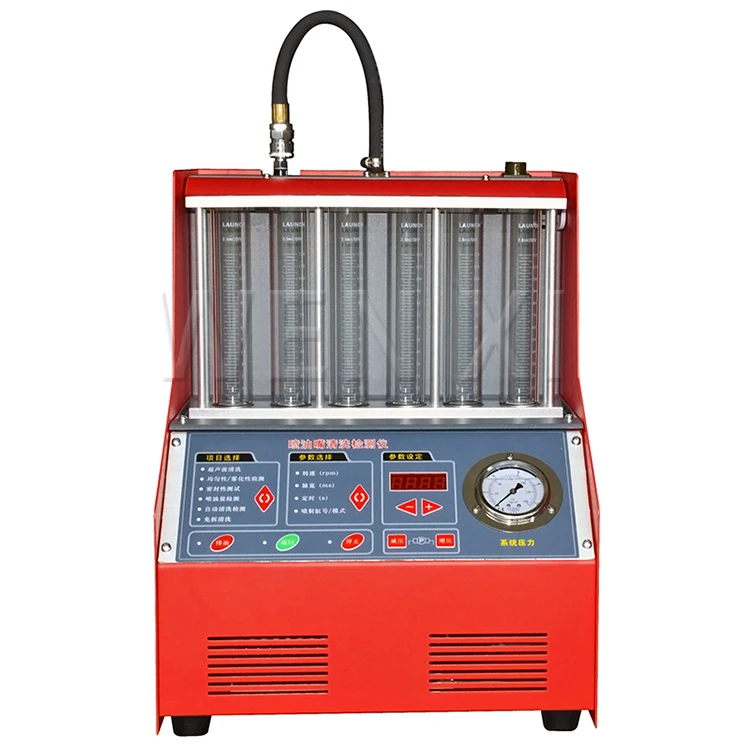

Model: CNC602A
Uniformity detection error: ≤5%
System pressure range: 0~6.5kg
Simulation detection speed range: 10~9990RPM step 10RPM
Pulse width range: 0.5~25ms step size 0.1ms
Power supply: AC220V±10% 50Hz/60Hz
Input power: 250W
Ultrasonic cleaning power: 100W
Timing range: 1~9999 seconds
Advantage:
*The product has comprehensive functions, including: ultrasonic cleaning, uniformity/atomization detection, sealing test function, fuel injection volume detection, automatic cleaning detection, and disassembly-free cleaning functions.
*The product can clean both single-point injection and multi-point injection nozzles.
*Microcomputer automatic control and digital display technology, full process automation
*The oil drain system can be operated automatically or manually.
*Complete range of automotive connectors, suitable for various European, American and Asian car models.
*The product is beautiful, the cabinet is luxurious, and the overall image is high-end.
Product features
Adopting ultrasonic powerful cleaning technology, with strong cleaning ability;
Adopting microcomputer pressure regulating control technology, stable oil pressure and wide adjustable range, which can adapt to the cars equipped with various petrol injection systems, and can realise the automation of injector cleaning and testing process;
Adopting microcomputer automatic control and digital display technology, the cleaning and testing process can be automatically controlled and the main state parameters can be monitored in real time;
Adopting automatic control technology of oil discharging, automatic oil discharging can be realised through the procedure in the process of some testing items, and oil discharging can also be carried out through the buttons on the control panel at the end of the testing.
Product parameters
Power supply: AC220V±10% 50Hz/60Hz AC110V±10% 50Hz/60Hz
Input power: 230W
Ultrasonic cleaning power: 100W
Analogue detection speed range: 10 ~ 9990rpm step 10rpm
Timing range: 1～9999 seconds
Pulse width range：0.5～25ms step 0.1ms
Tank volume: 4700ml
 CNC-602A external dimensions: 385mm × 410mm × 500mm
