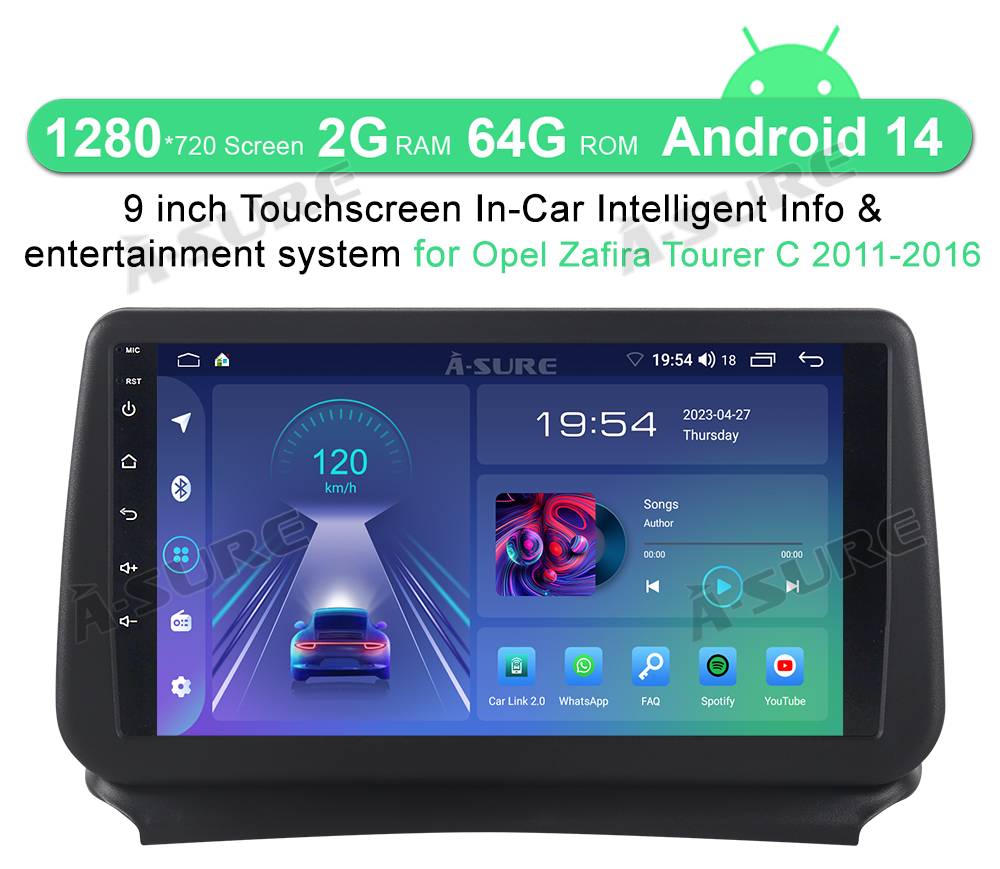

9" 4 core 2+64GB Android 14 Wireless CarPlay Android auto Car Stereo Radio GPS Sat Nav Bluetooth WiFi FM RDS for For Opel/Vauxhall Zafira Tourer Mk3 C 2011-2016
Vauxhall Zafira Tourer Mk3 C 2011-2016 High Spec. Version

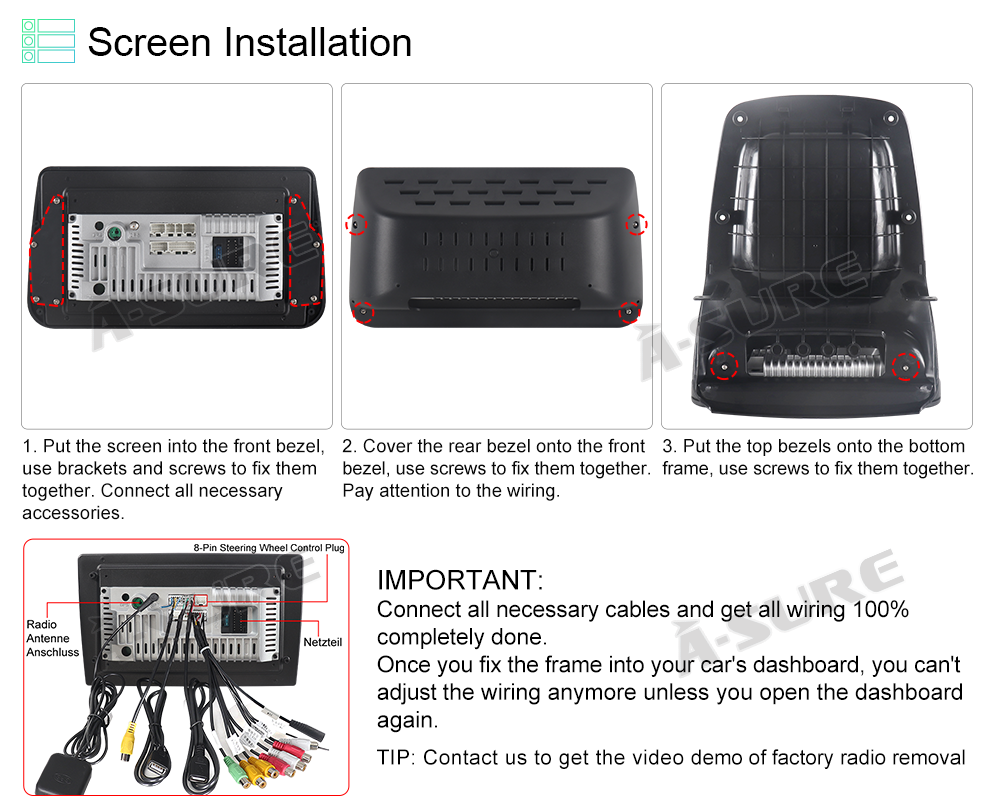

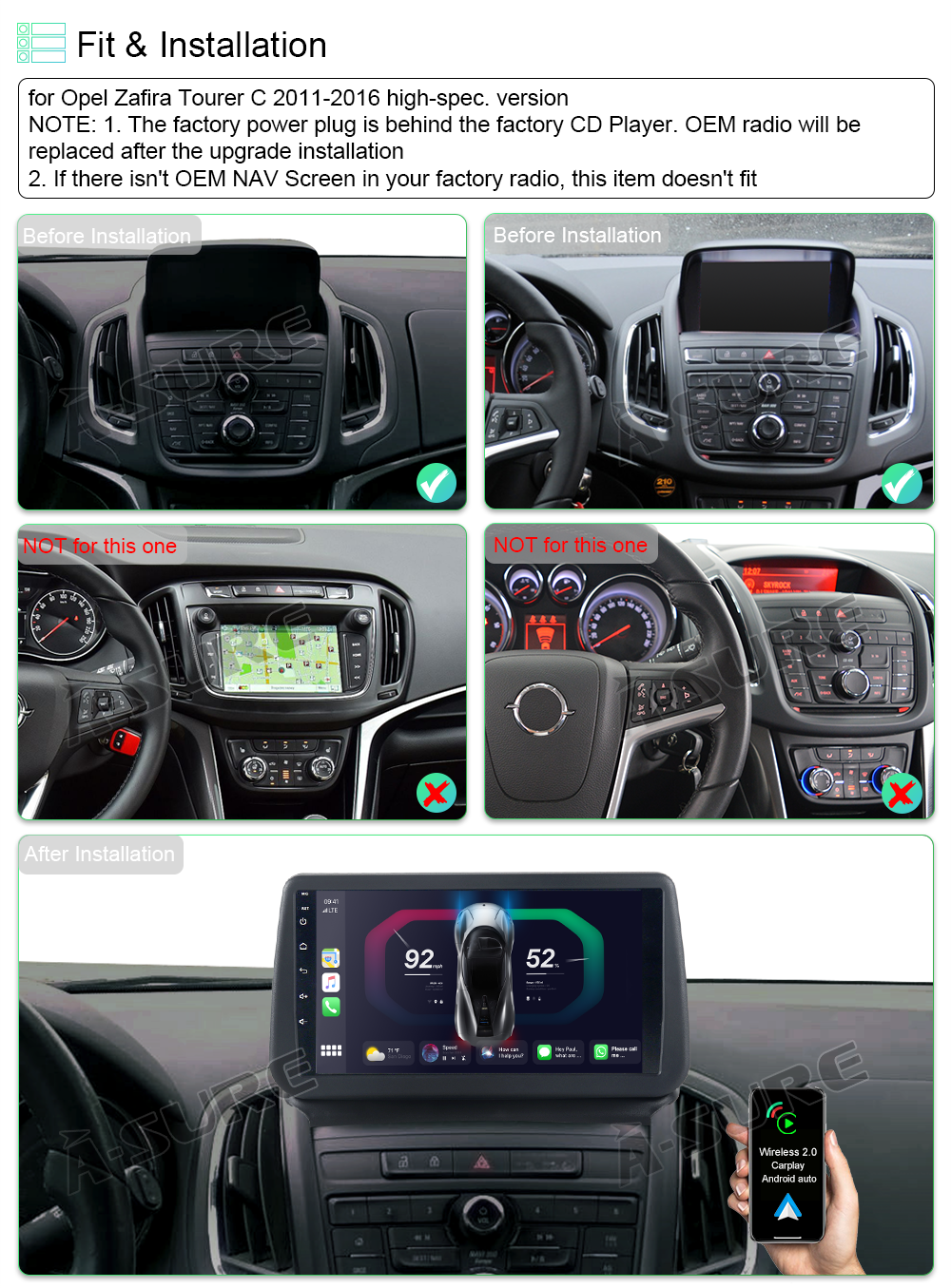

NOTE: the factory power plug is behind the factoy CD Player, OEM radio will be replaced after upgrade installtion.
if there isn't OEM Navi screen in your factory radio, then this radio is not sutiable, please don't buy it.
Technical Parameters
Password
- Factory Setup: 3368
-Factory Recovery: 0000
Main:
-IC Working Temperature Range: -30 °C to 70 °℃ (Vehicle Standard)
-OS: Android 14 HD Decoder:4K@60fps H.265
-Storage memory: RAM Samsung DDR3 2GB; ROM 64GB
Password
- Factory Setup: 3368
-Factory Recovery: 0000
Main:
-IC Working Temperature Range: -30 °C to 70 °℃ (Vehicle Standard)
-OS: Android 14 HD Decoder:4K@60fps H.265
-Storage memory: RAM Samsung DDR3 2GB; ROM 64GB
-8MP IPS

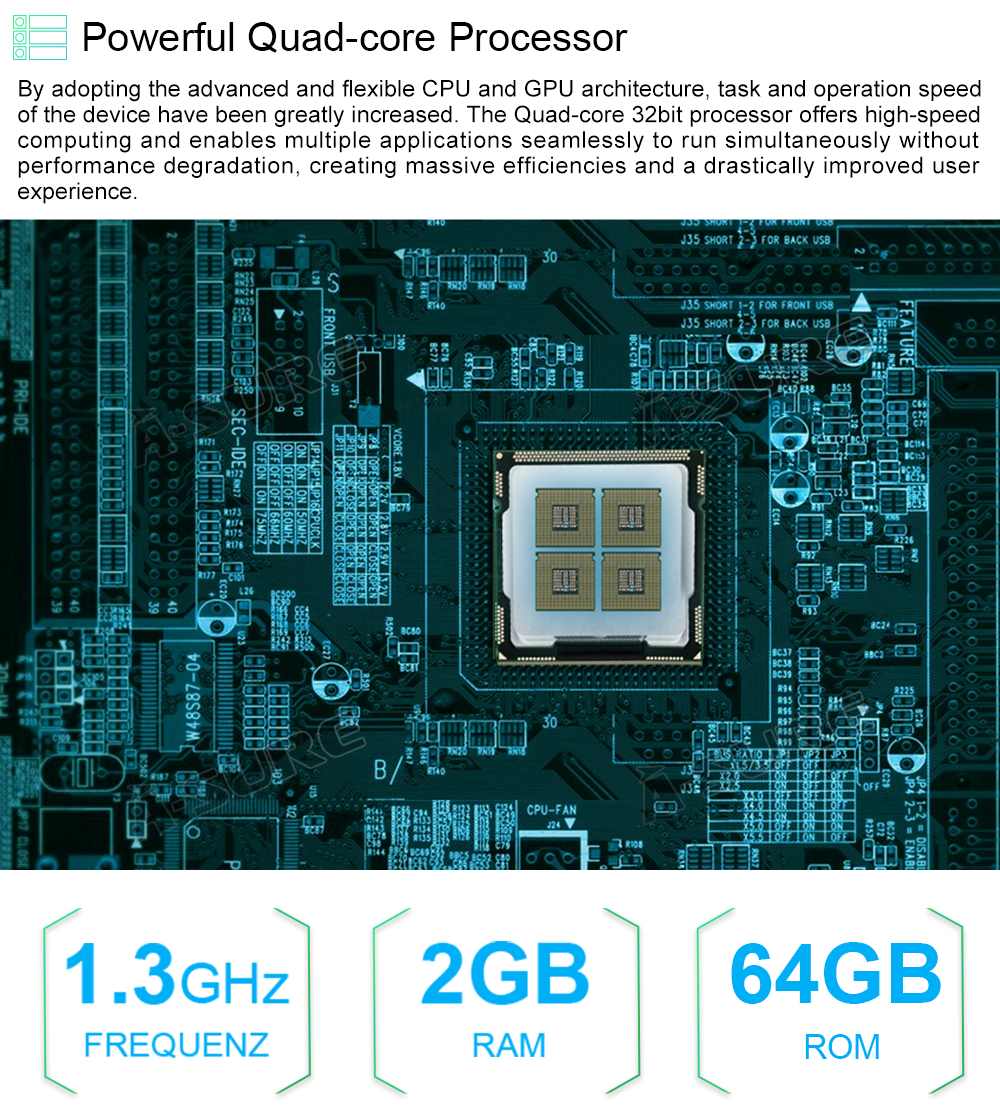

-CPU:4 Core CPU ARM Cortex A7*4,1.2GHZ*4
-GPU:ARM Mali T820 MP1
-Chipset: si4745
-Multipoint Capacitive screen Smart App Updates
-Smartphone-Link: Built-in modules of Carplay and Android Auto,
-support wireless connection
-DIY theme.
-Support original steering wheel control to work with the car radio
-Support 4G Dongle and WIFI
Screen:
-Resolution: 1280*720
-Touch Screen Function
-Image Brightness /Contrast/ Color Adjustable
Illumination:
7 Traditional Colors including Red, Green, Orange, White, Blue, Cyan-blue and Purple;
-Support Customized Color
Bluetooth：
- Built-in Bluetooth hands free call
- Support Bluetooth MPЗ Player Function A2DP
(Notice: This function can only be realized when the phone supports Bluetooth Audio Output)
- Support Bluetooth Phone Book Function
- Support Bluetooth Connection for iPhone

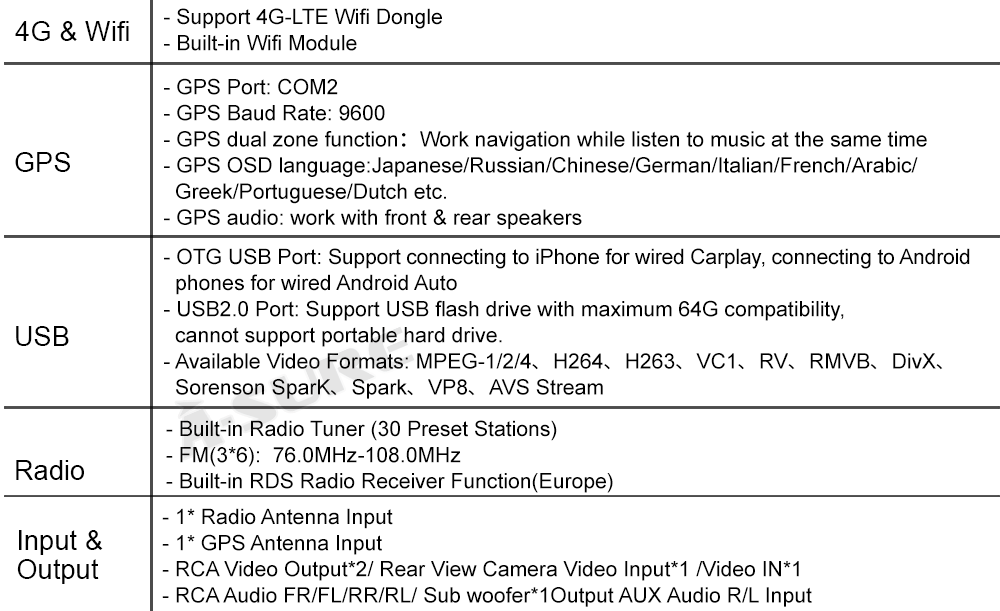

4G & Wifi
-Support 4G-LTE Wifi Dongle
-Built-in Wifi Module
GPS:
-GPS Port: COM2
GPS Baud Rate: 9600
-GPS dual zone function: Work navigation while listen to music at the same time GPS
-GPS OSD language: Japanese/Russian/Chinese/German/Italian/French/Arabic/ Greek/Portuguese/Dutch etc. GPS audio: work with front & rear speakers
USB:
-OTG USB Port: Support connecting to iPhone for wired Carplay, connecting to Android phones for wired Android Auto
- USB2.0 Port: Support USB flash drive with maximum 64G compatibility, USB cannot support portable hard drive.
-Available Video Formats: MPEG-1/2/4, H264. H263. VC1.RV. RMVB. Divx. Sorenson Spark. Spark. VP8. AVS Stream
Radio：
- Built-in Radio Tuner (18 Preset Stations) Radio -FM(3*6):76.OMHz-108.OMHz
-Built-in RDS Radio Receiver Function(Europe)

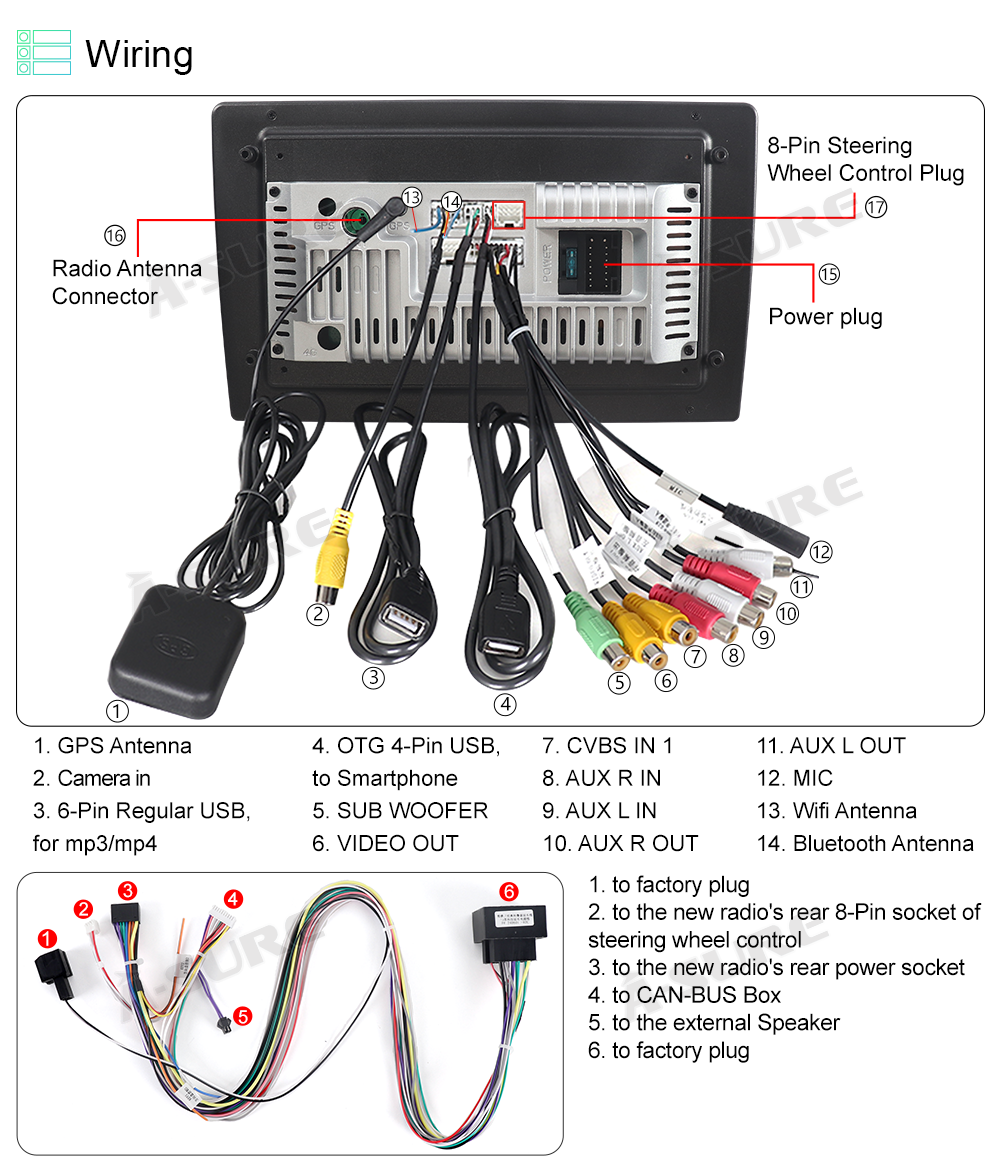

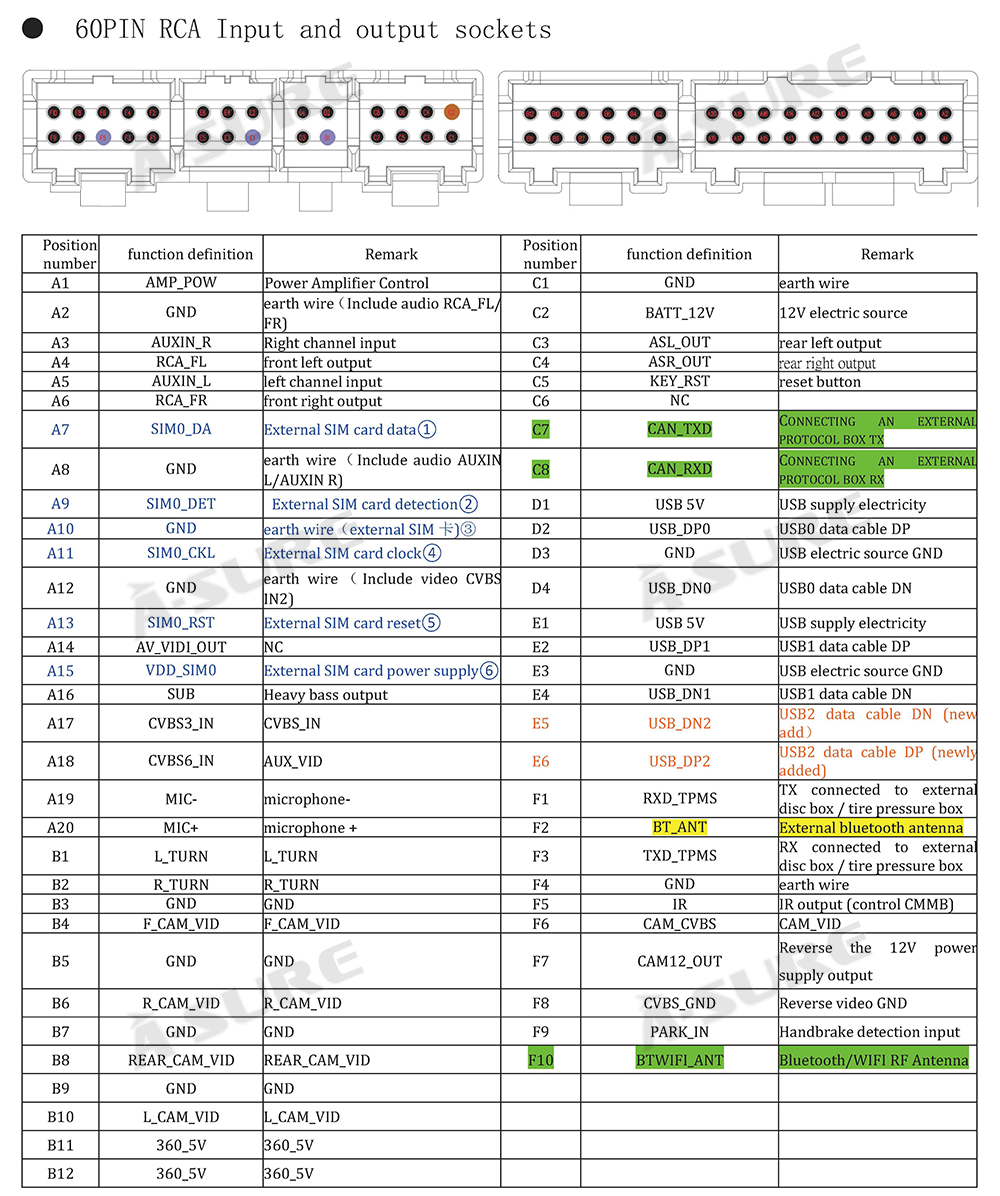

INPUT&OUTPUT:
-1* Radio Antenna Input Input & 1*GPS Antenna Input
Output RCA Video Output*2/ Rear View Camera Video Input*1 Nideo IN*1
-RCA Audio FR/FL/RR/RL/ Sub woofer*1Output AUXAudio R/L Input
-CPU:4 Core CPU ARM Cortex A7*4,1.2GHZ*4
-GPU:ARM Mali T820 MP1
-Chipset: si4745
-Multipoint Capacitive screen Smart App Updates
-Smartphone-Link: Built-in modules of Carplay and Android Auto,
-support wireless connection
-DIY theme.
-Support original steering wheel control to work with the car radio
-Support 4G Dongle and WIFI
Screen:
-Resolution: 1280*720
-Touch Screen Function
-Image Brightness /Contrast/ Color Adjustable
Illumination:
7 Traditional Colors including Red, Green, Orange, White, Blue, Cyan-blue and Purple;
-Support Customized Color
Bluetooth：
- Built-in Bluetooth hands free call
- Support Bluetooth MPЗ Player Function A2DP
(Notice: This function can only be realized when the phone supports Bluetooth Audio Output)
- Support Bluetooth Phone Book Function
- Support Bluetooth Connection for iPhone
4G & Wifi
-Support 4G-LTE Wifi Dongle
-Built-in Wifi Module
GPS:
-GPS Port: COM2
GPS Baud Rate: 9600
-GPS dual zone function: Work navigation while listen to music at the same time GPS
-GPS OSD language: Japanese/Russian/Chinese/German/Italian/French/Arabic/ Greek/Portuguese/Dutch etc. GPS audio: work with front & rear speakers
USB:
-OTG USB Port: Support connecting to iPhone for wired Carplay, connecting to Android phones for wired Android Auto
- USB2.0 Port: Support USB flash drive with maximum 64G compatibility, USB cannot support portable hard drive.
-Available Video Formats: MPEG-1/2/4, H264. H263. VC1.RV. RMVB. Divx. Sorenson Spark. Spark. VP8. AVS Stream
Radio：
- Built-in Radio Tuner (18 Preset Stations) Radio -FM(3*6):76.OMHz-108.OMHz
-Built-in RDS Radio Receiver Function(Europe)
INPUT&OUTPUT:
-1* Radio Antenna Input Input & 1*GPS Antenna Input
Output RCA Video Output*2/ Rear View Camera Video Input*1 Nideo IN*1
-RCA Audio FR/FL/RR/RL/ Sub woofer*1Output AUXAudio R/L Input
