Description

A good sand milling sheet can help you grind a better pulp so that you can experience healthier and tastier food. Therefore, you should take a look at our product, which is ideal for you to buy because of its high-quality material and the fact that two sheets can easily meet your grinding needs.

 Specification

Material: Vajra Sand

Color: White

Applicable Model: #150 General

Assembly Required: Yes

Mount Type: Grinding Machine

Number of Pieces: 2

Net Weight: 1kg/2.2 lbs

Gross Weight: 0.9kg/1.98 lbs

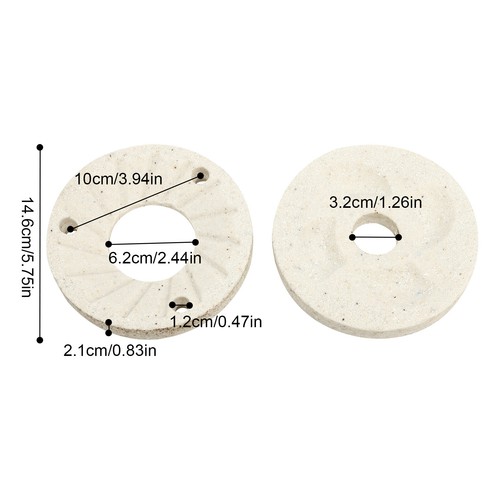

Product Diameter: 14.6cm/5.75in

Diameter of the Largest Hole: 6.2cm/2.44inch

Product Thickness: 2.1cm/0.83in

Package Size: 15*15*6cm/5.91*5.91*2.36in

Package Included

1 Pair* Sand Milling Sheets

Key Features

Sturdy and Durable: It is forged from high-quality vajra sand, which is corrosion-resistant, rust-proof, maintains long-term brightness and performance, and has a long service life.

Grinding Assistant: With them, you can grind the pulp you want to grind more easily and efficiently, bringing healthy eating enjoyment to your life.

High Cost-effectiveness: Two sheets can meet your different needs at once, which is convenient and cost-effective.

Simple Cleaning: Thanks to their sturdy material and simple construction, you can clean them with a damp rag.

Easy to Use: The precise hole location and simple structure allow you to quickly install them on the grinder (not included) and start using them.

Lightweight and Effortless: Thanks to their lightweight (1.98 lbs), you can easily pick them up and install them effortlessly.

Details

Round Corners: Compared with traditional square corners, an arc, smooth design without a burr can better care for your skin and grinder machine.

Grinding Marks: It helps to grind the raw material more finely.

Application

It can be used in the model 150 general (not included), mainly for grinding slurry in the home, mill, store, etc.

How to Install

1. Open the front cover of the machine(not included), remove the grinding disc, and then loosen the screws(not included) that fix the grinding sheets and take them out.

2. Reinstall the new grinding sheets back to the original grinding sheets position and lock the screws(not included), but please do not lock them first. Then, observe the gap between the inner circle of the grinding sheets and the mounting step, and adjust the gap to ensure uniformity.

3. Concentric with the motor shaft and then tighten the screws(not included).

How to Adjust

1. Put the moving grinding disc back into the grinding chamber, adjust the screw, turn it counterclockwise, then cover the front cover and lock it.

2. Start the motor and tighten the adjusting screw clockwise until the grinding piece rubs a sharp sound. Turn off the switch after the motor idles for two minutes.

3. Open the front cover, take out the product, observe the friction marks of the moving grinding piece and the static grinding piece tooth groove, and touch the grinding piece around the hand. If the friction marks on the grinding piece are evenly distributed, and the heat difference of the grinding piece is not obvious. This means that the grinding plate is installed in balance and can be used without adjustment.

Notes

• Model 150 sand milling sheets also can be used for other commercial electric feed mill wet grinders, please measure the dimension before ordering and check compatibility.
• This product needs to be used with a matching grinder (not included). Please note that the product is mainly used for grinding pulp but not for grinding dry powder.
• Please do not use too much force, the screws(not included) should be evenly applied and gradually locked.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
