PRODUCT DESCRIPTION

This listing is for parallel kits for MPP solar brand inverters only. This type is for most 48V parallel models including but not limited to all of LV-MK series, 5048MS(64V), 5048MG, 5048MK, 5048MKX, 5048MGX, 6048MGX-T, HV2-5048, LV2424, LVX6048 and the 8048MAX / 11KW MAX models.

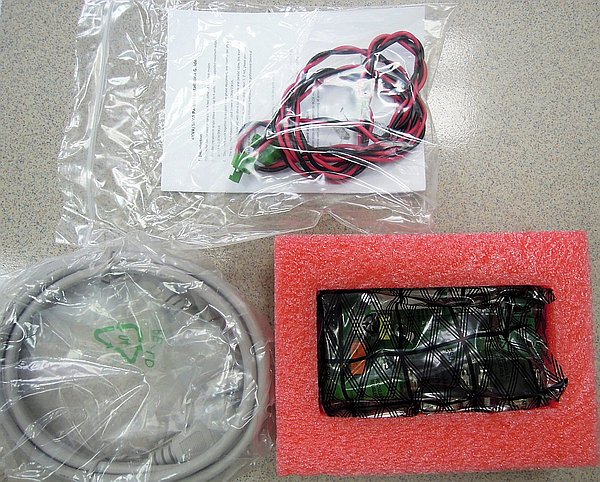

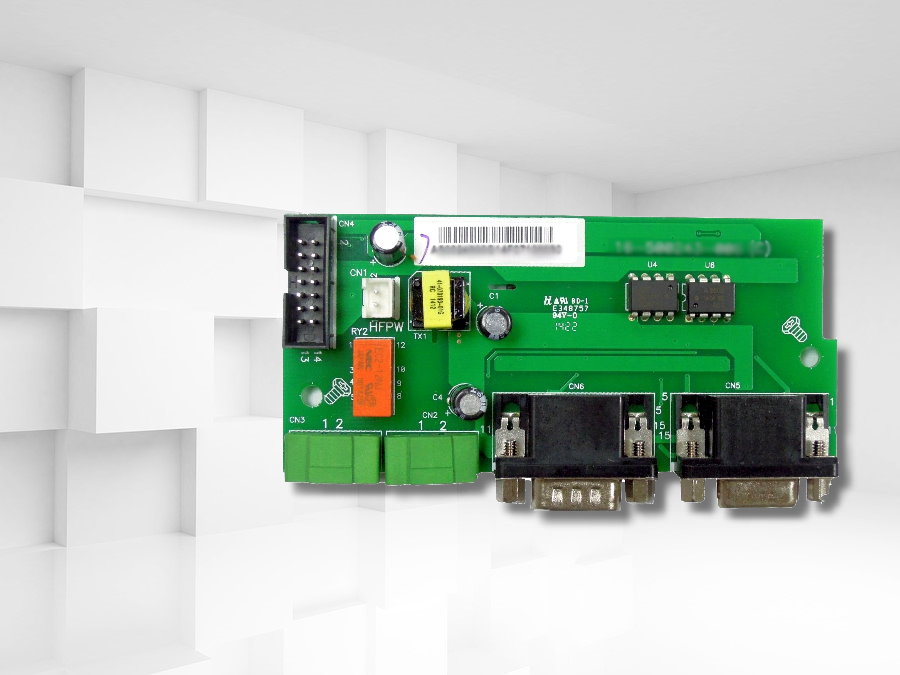

Every inverter in a parallel system requires 1 parallel kit.  Each parallel kit comes with a parallel PCB + parallel cable + current sharing cable.

Please do not use this with other generic clones or copies of MPP Solar invertersas compatibility is NOT guaranteed and it would be buyer's own risk.

HOW DOES IT WORK?

Before setting up a parallel system please make sure:
1. all the inverters you are planning to parallel together have 100% IDENTICAL MODEL NAME and are 100% authentic "MPP solar" inverter otherwise they may not parallel.
2. all the inverters are labeled as "parallel-ready". If you are not sure simply contact us and we can check.
3. Do NOT connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters and not covered under warranty!
note: while PV connection is optional, each inverter should have their own PV panels wired individually. please do NOT split or share PV array between two or more inverters under any circumstances as this can lead to damage.
