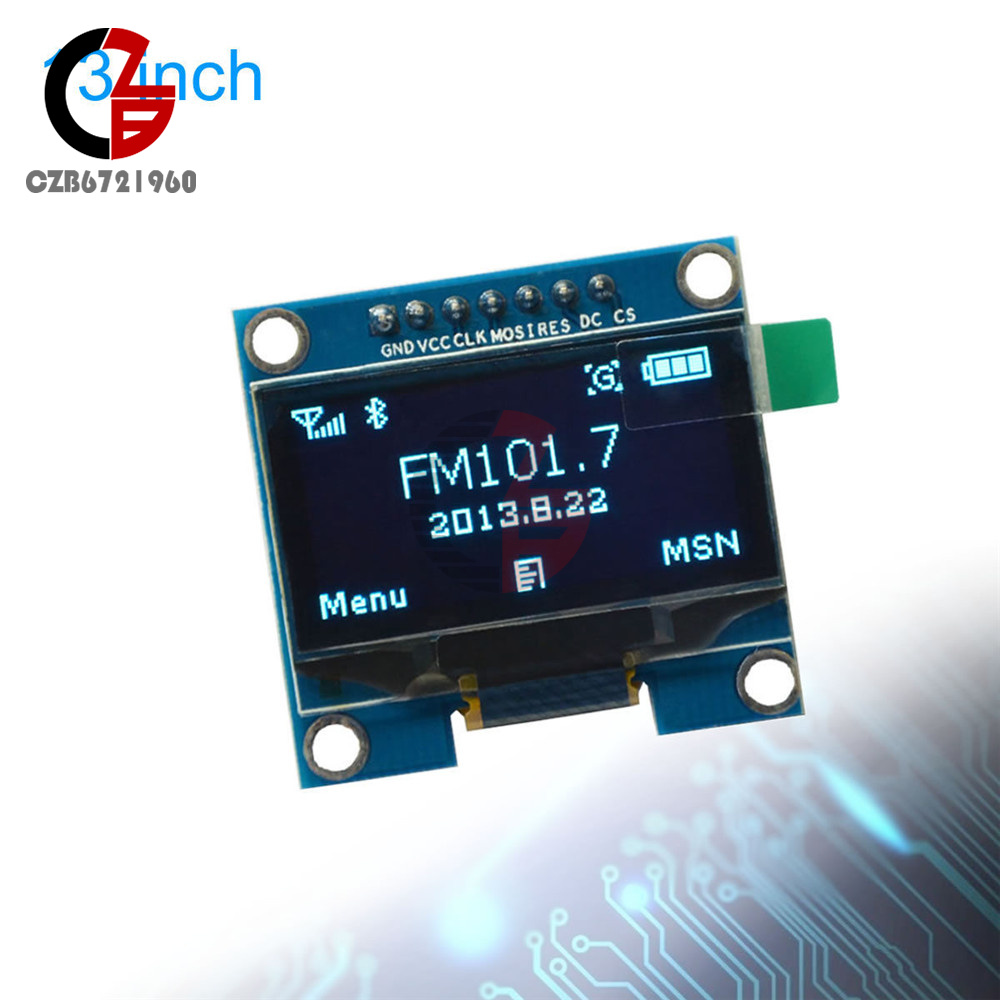

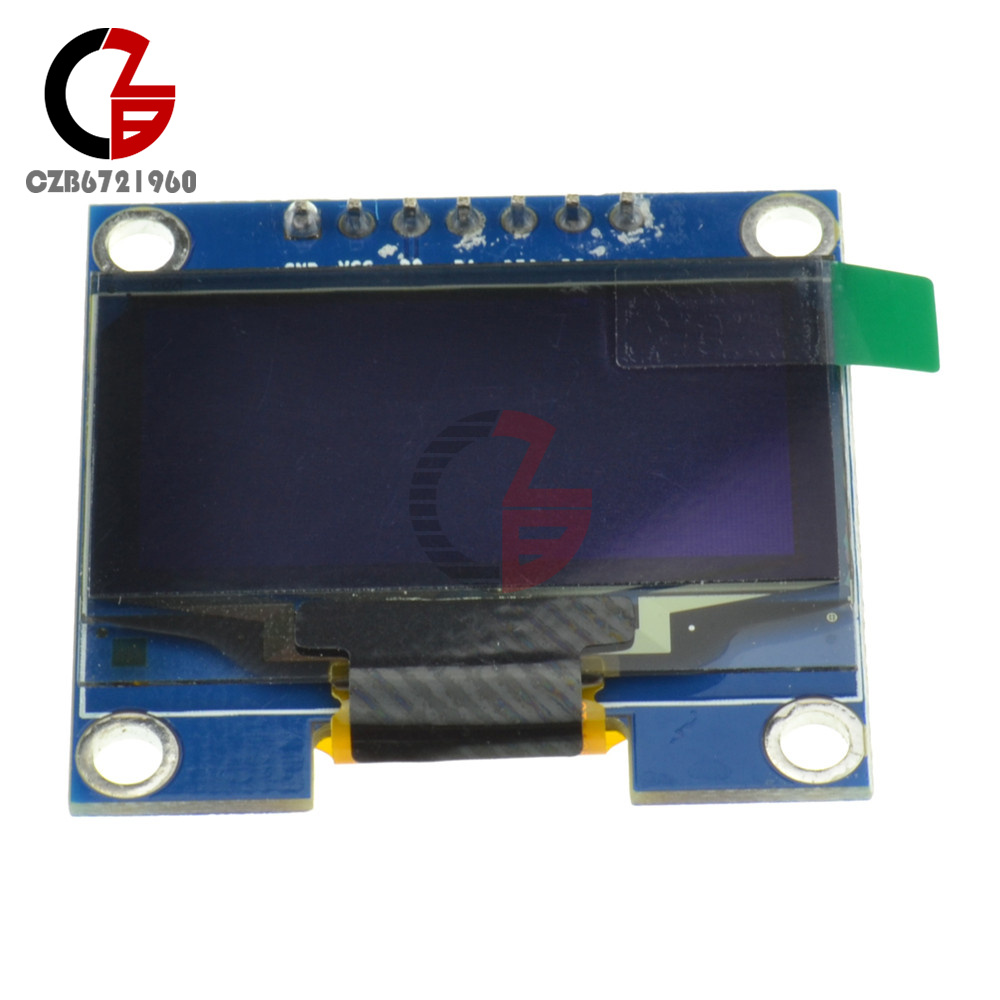

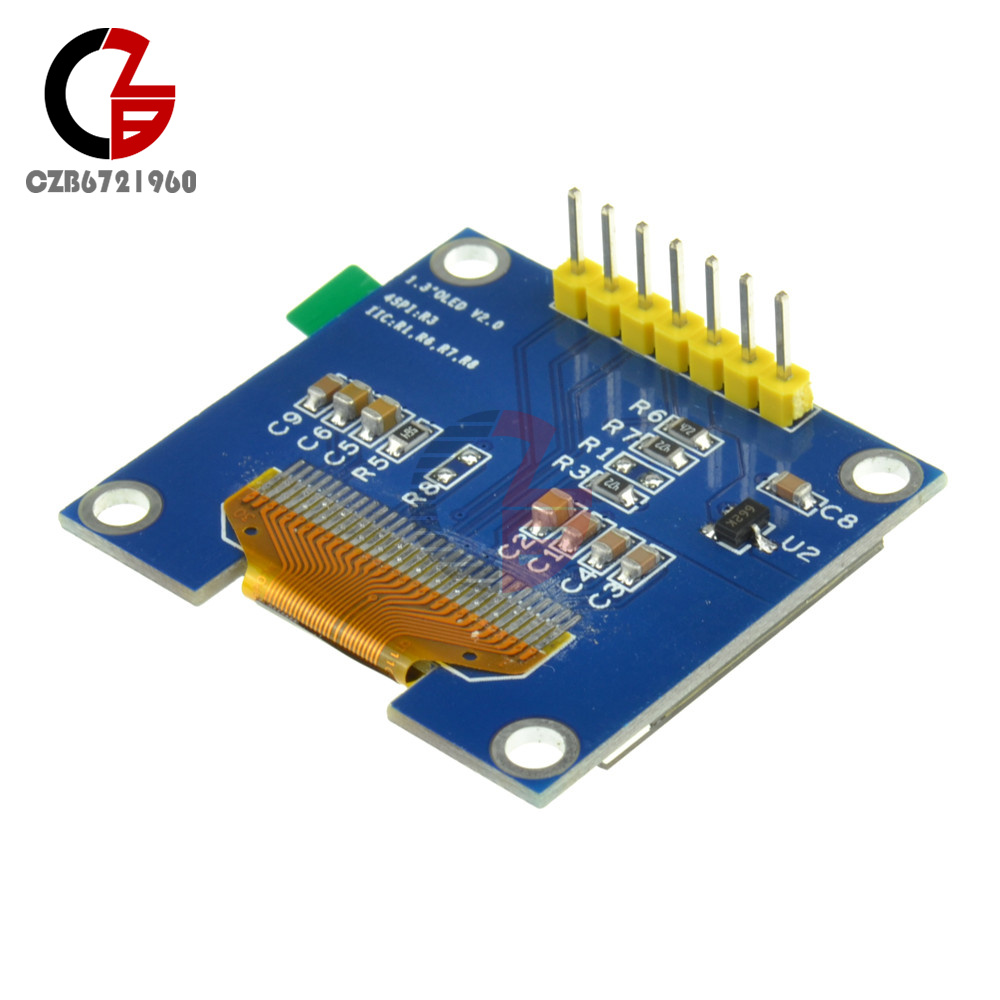

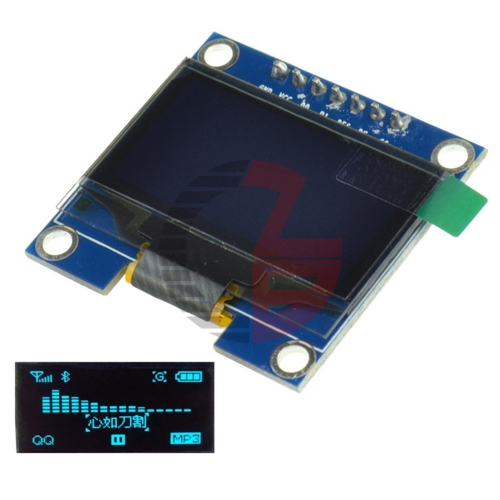

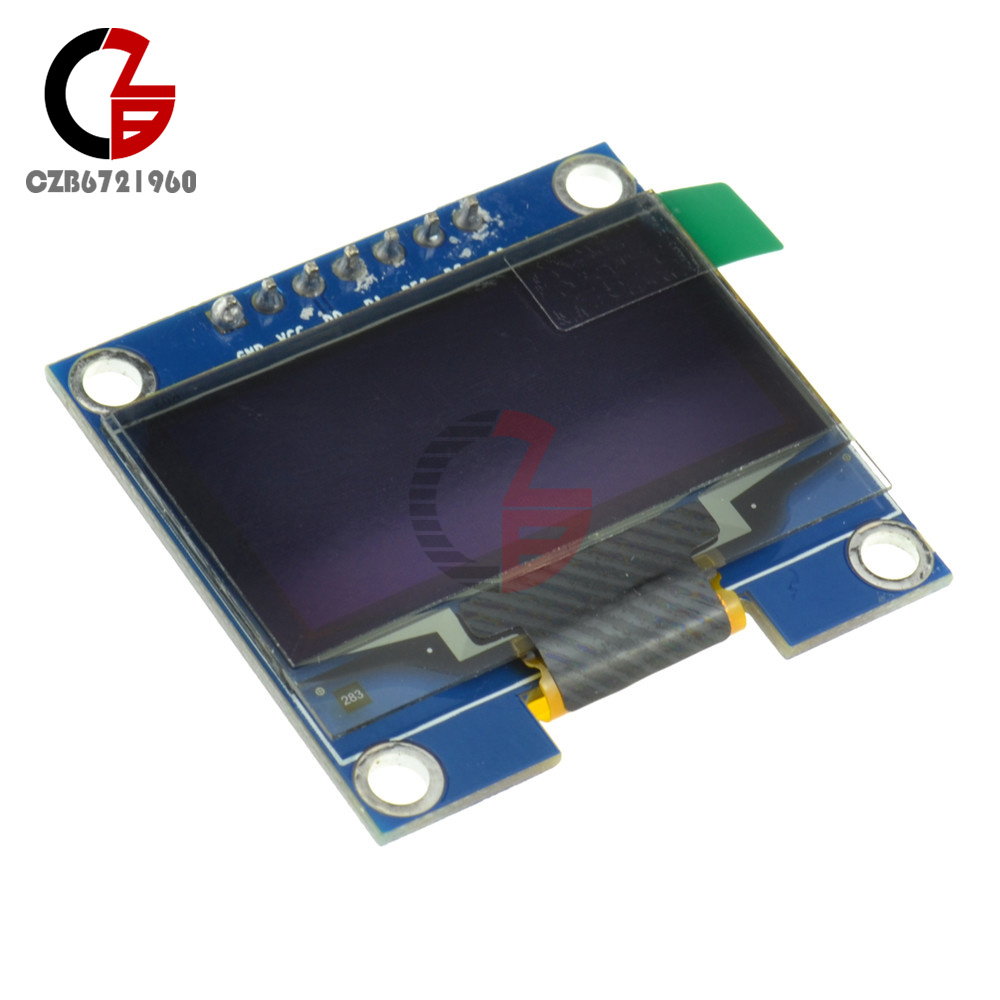

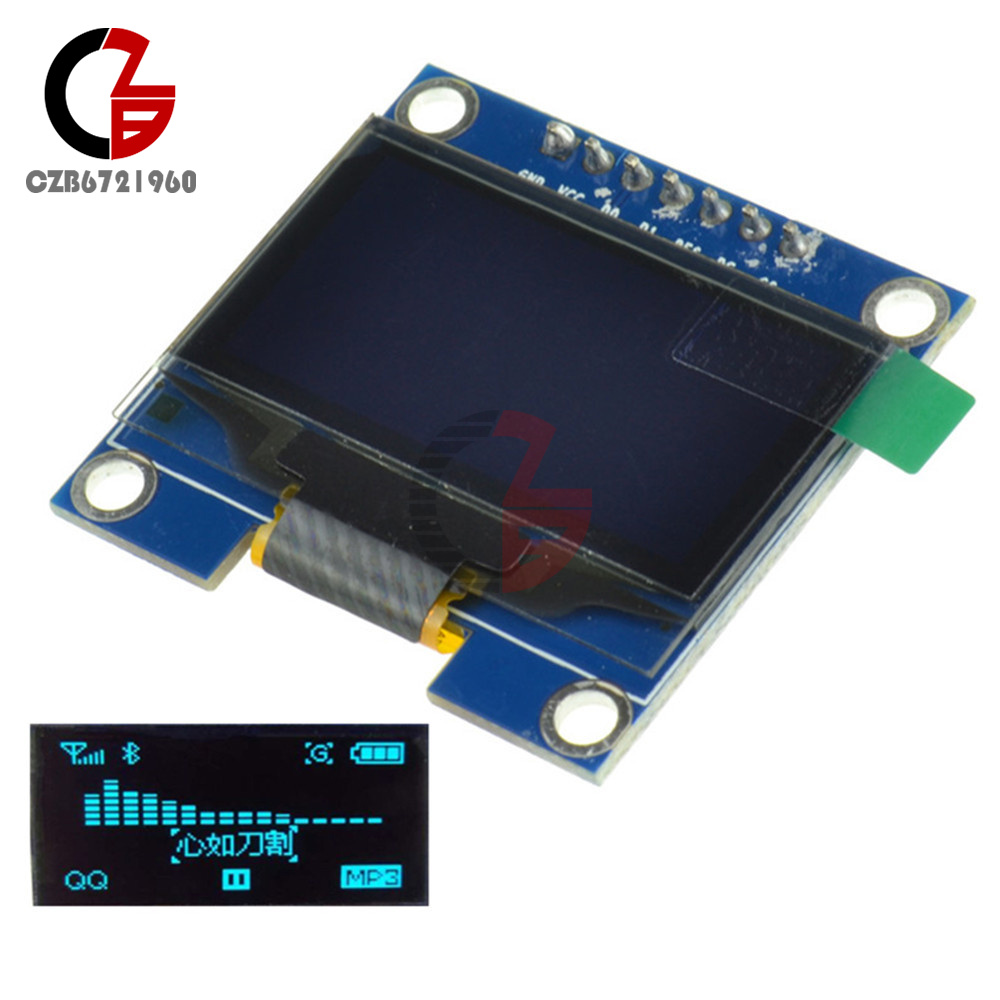

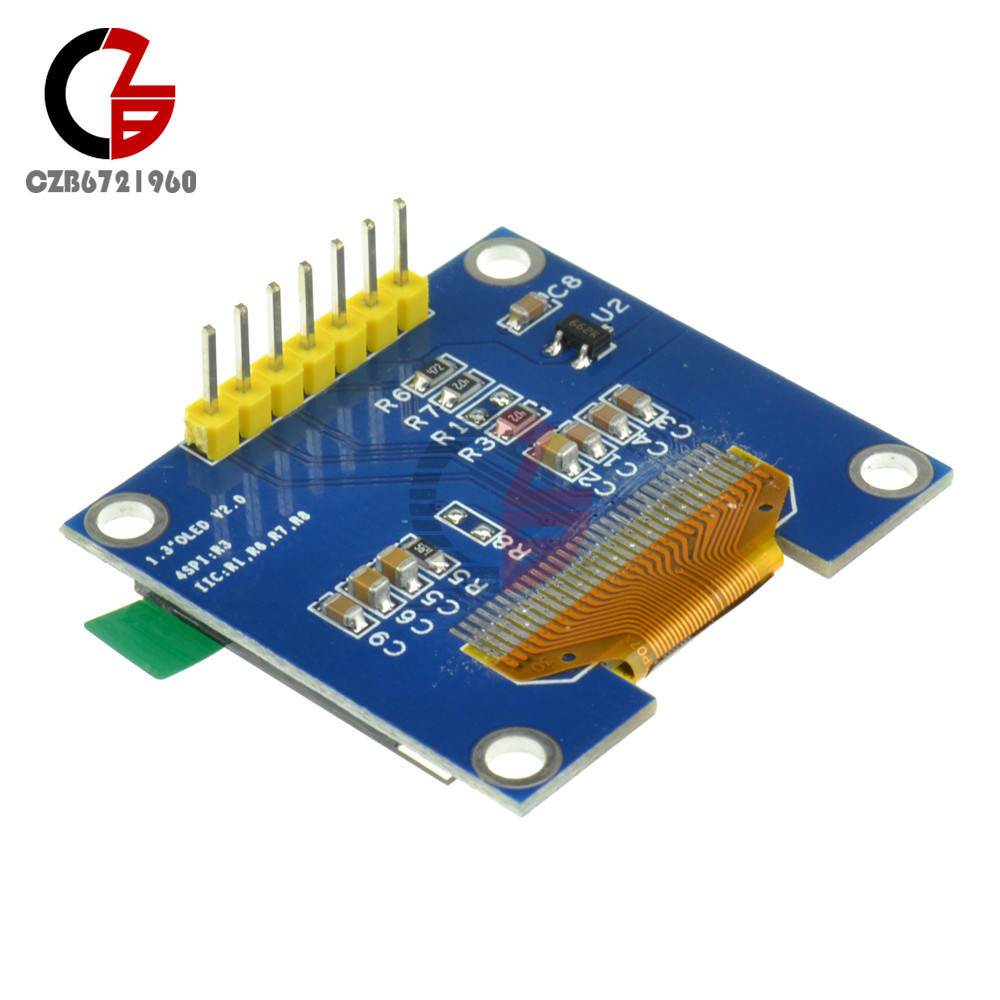

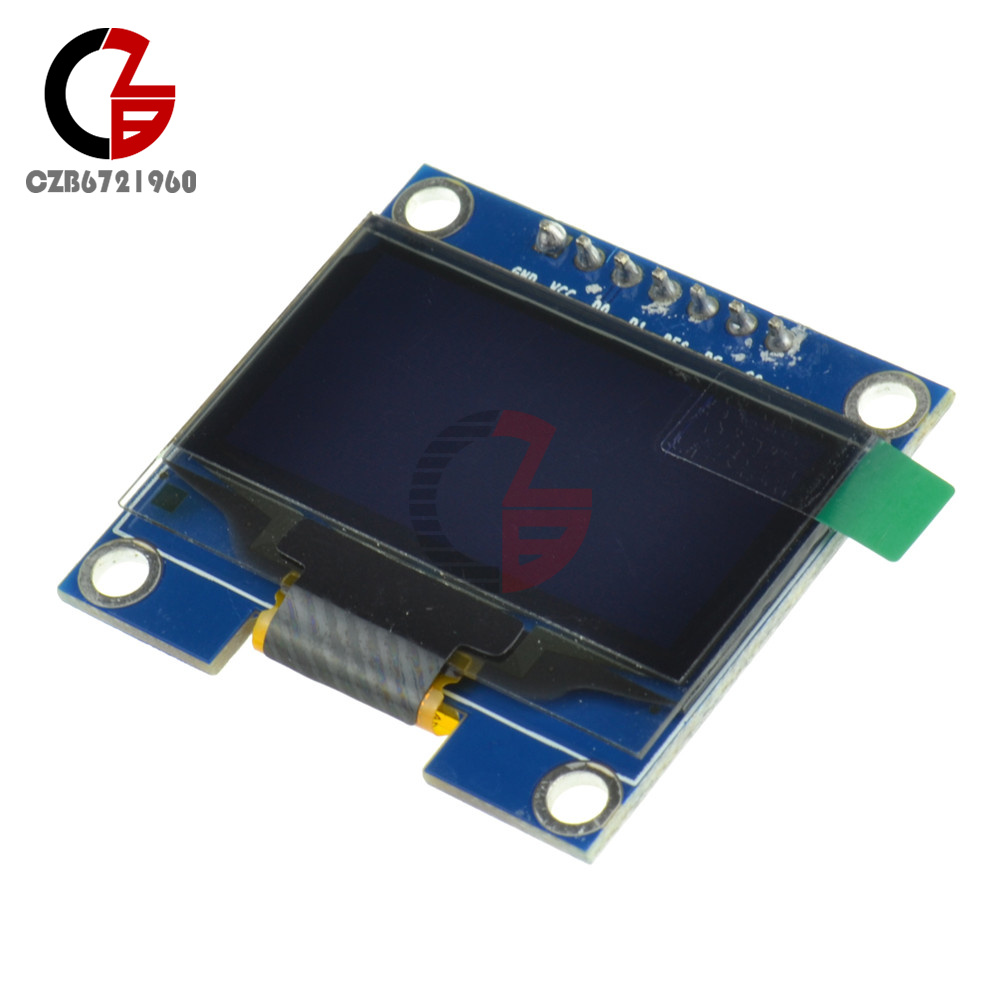

1.3 inch OLED Display Screen LCD Module 128x64 SH1106 SPI/I2C 7Pin 2.54mm Blue

Popular

Product Introduction

Features:
1. Good compatibility, SSG1106 is basically compatible with SSD1306.
2.More space, SSH1106 control chip RAM space is 132 * 64, while SSD1306 space is 128 * 64
3.1.3-inch OLED 128 * 64 dot matrix, so in the middle of the screen spent 128 lines
4. Easy to use, use SSD1306 program to point to the SSH1106 screen, just change the address to 0x02 line to start.
5. With pin description, can be directly connected to use
Functional parameters:
Resolution: 128 * 64
Control chip: SSH1106
Display area: 29.42 x 14.7mm
Driving voltage: 3.3-5V
Operating temperature: -40℃ to 70
Interface type: IIC / I2C interface
Pin Definition:
1 > GND (Power Ground)
2 > VCC (positive supply)
3> SCL (clock line)
4> SDA (data line)
About the control chip SSH1106: SSG1106 is basically compatible with SSD1306, the difference is that the SSH1106 control chip has a RAM space of 132 * 64, while the SSD1306 has a space of 128 * 64. 1.3-inch OLED 128 * 64 dot matrix, so it spends 128 lines in the middle of the screen. When using the SSD1306 program to point to the SSH1106 screen, simply change the address to line 0x02 to start.
Package Includes:
1 x 7-pin 1.3” OLED display 12864 LCD screen(Blue display)
