l NVME protocol M.2 interface hard drive with high speed read and write speeds
l 16PIN cable access to PI5, PI5-based 16PIN PClE interface design
l Compatible with 2230/2242 size M.2 drives, supports Gen2 and Gen3 modes, supports booting from SSD for PI5
l On-board Dual-LED for clear indication of device operating status
l On-board power monitoring chip and EEPROM, real-time control of the power status of the drive is more convenient and more stable
l Reserved fan ventilation holes for better ventilation of PI5 and cooler hard drive
Specifications:
l Applicable Model: for Raspberry Pi 5
l Types (Optional): PCIE to M.2 Adapter Board , M.2 Expansion Board + Heat Sink
l Size: 65x 56.5x 49mm

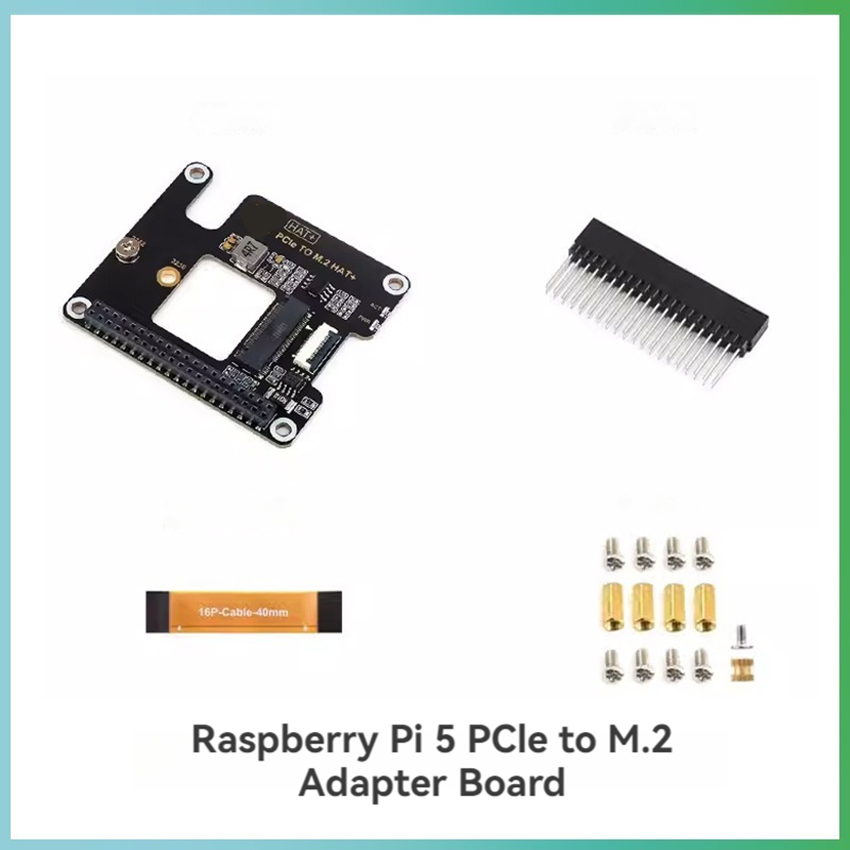

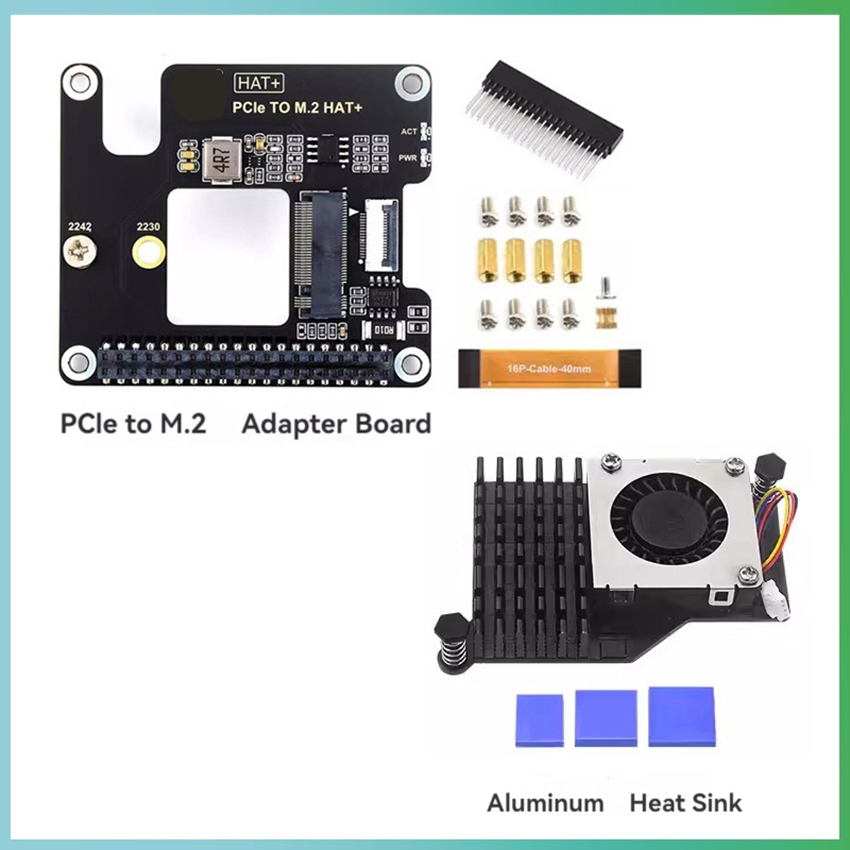

Package Includes:
l 1x PCIE to M.2 Adapter Board
Or
l 1x M.2 Expansion Board + 1x Heat Sink
Note:
l Pictures are for demonstration purposes only, Raspberry Pi 5, cooler and hard disk are not included in this product
