Features:
l High performance 25A ESC
l Low voltage protection mode, low pressure protection threshold
l ESC power connector is T-type plug, power cord is 14AWG silicone cord, to the motor end is 18AWG silicone cord.
l Both ESC current is 25A, the working voltage is rated 3S, the actual working range of 10V ~ 18V test can work properly, the control signal is BEC
Specification:

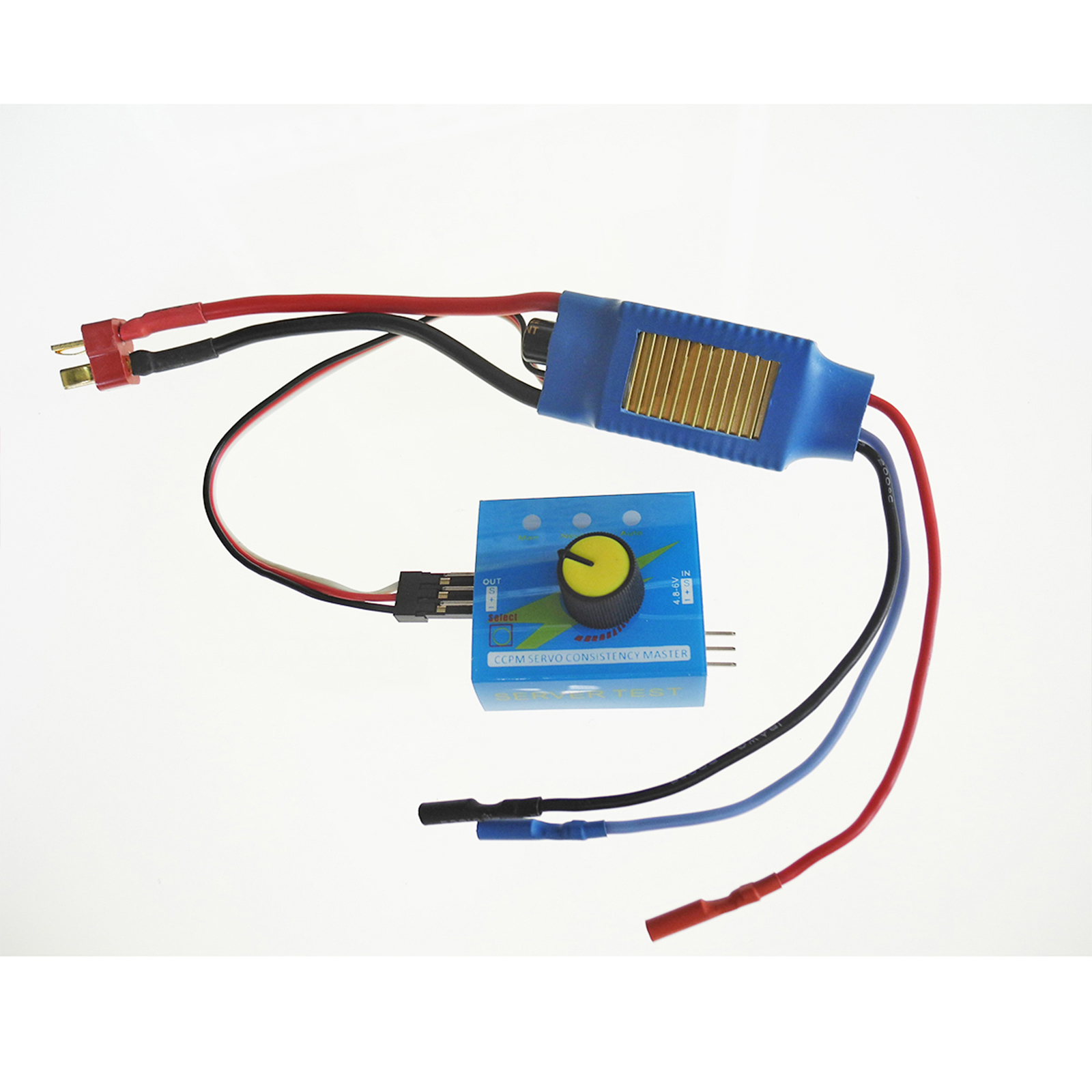

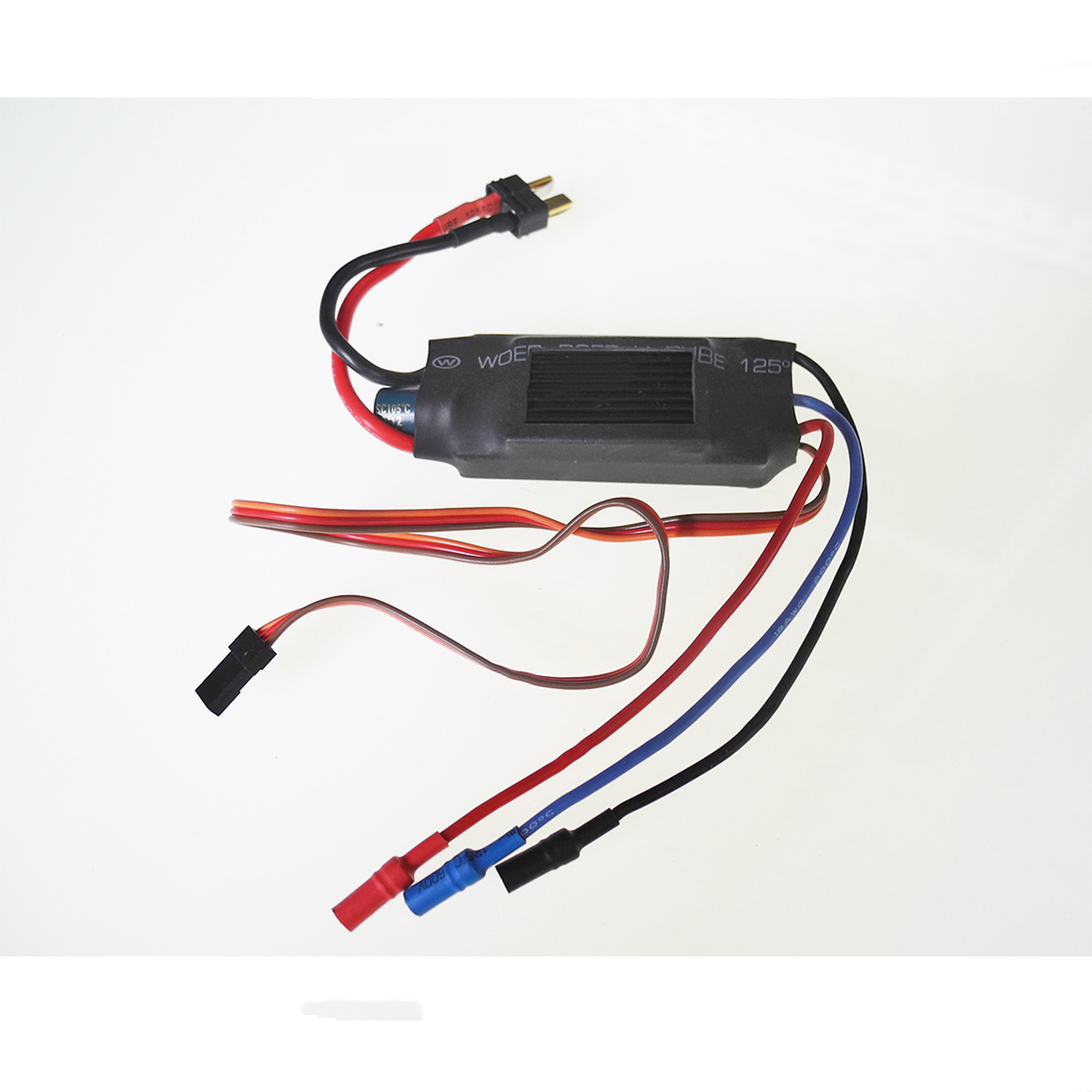

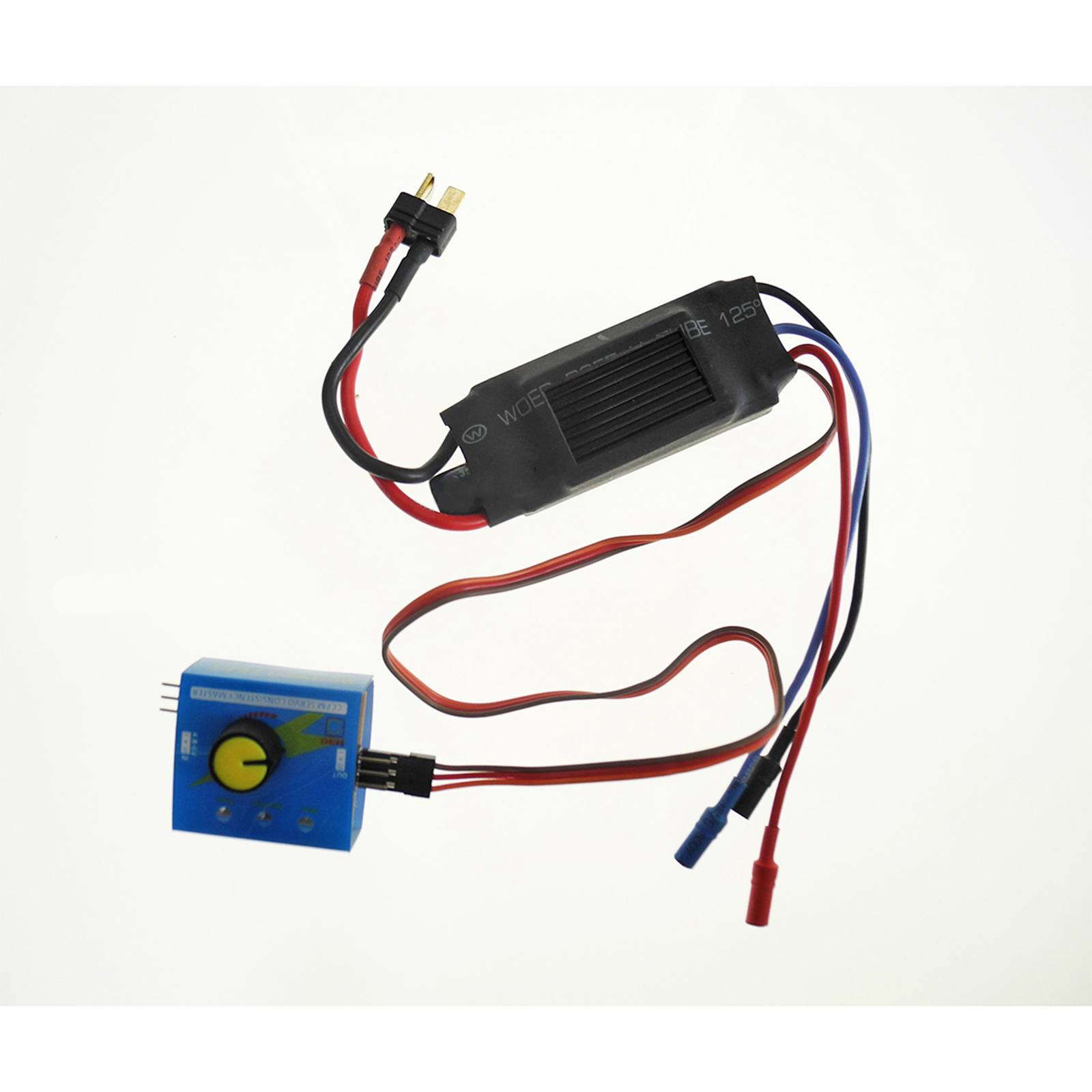

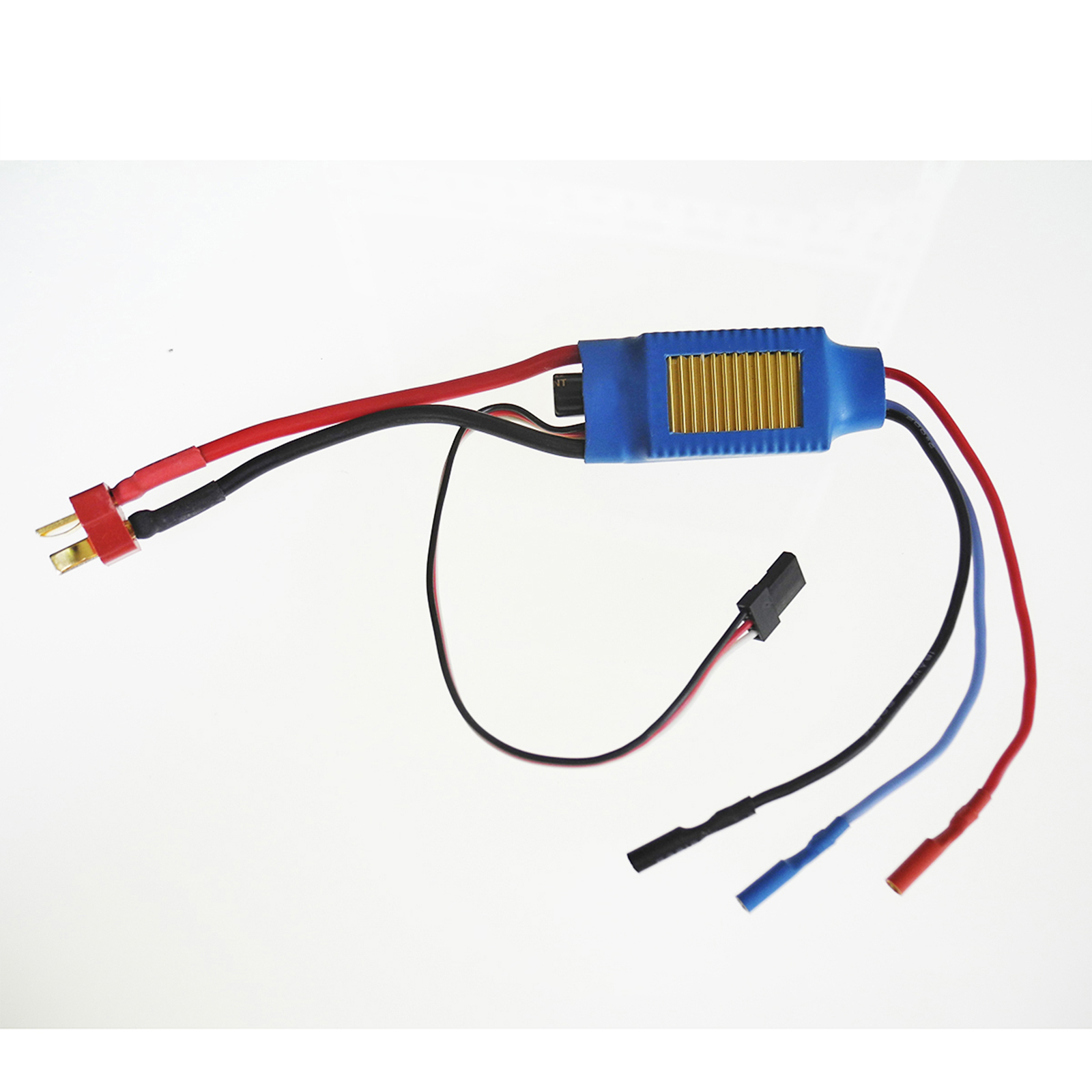

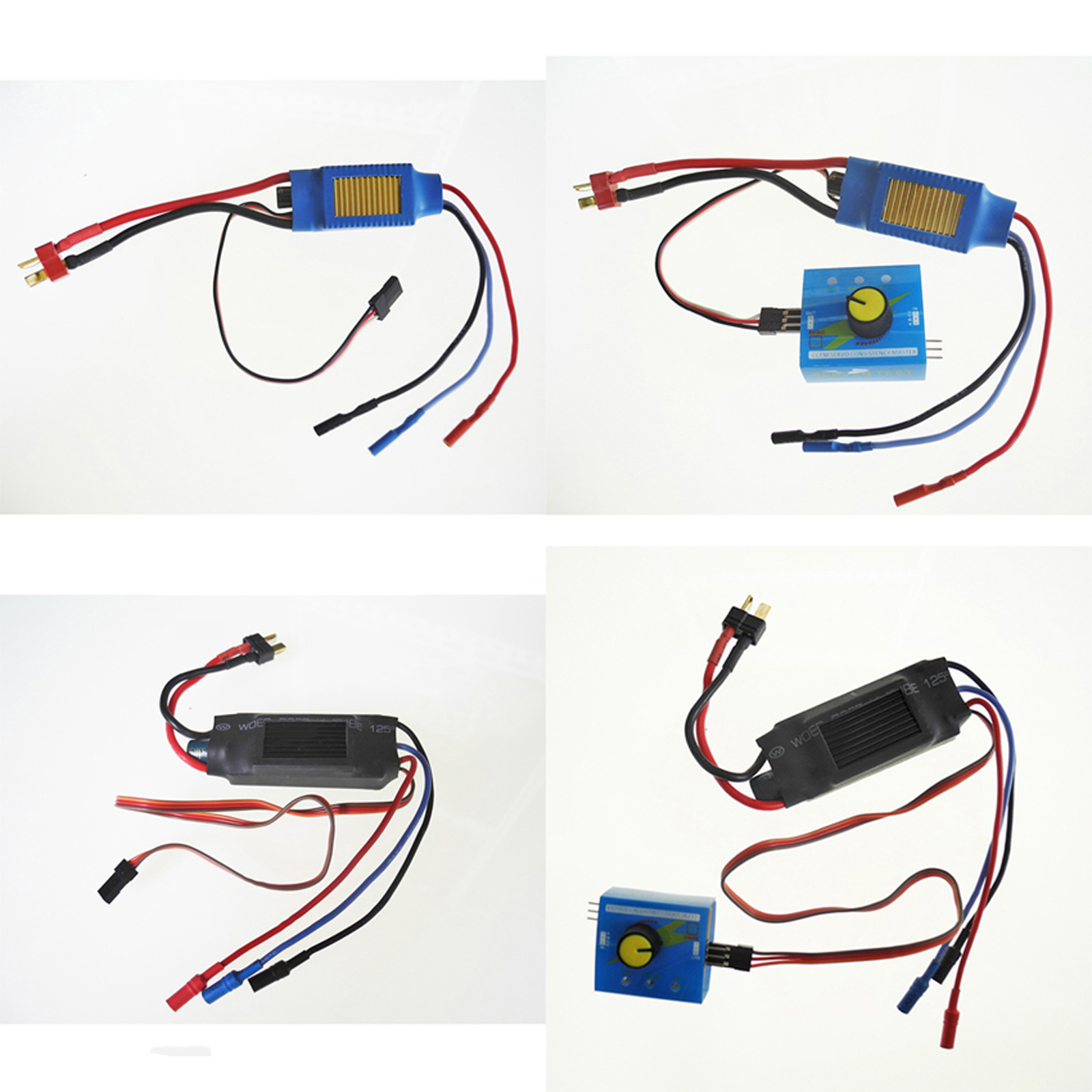

l Colors and Types (Optional): Black A Model ESC, Blue B Model ESC, A Model With ESC Tester, B Model With ESC Tester
l Rated Voltage: 11.1V (3S)
l Voltage Range: 10V~18V
l Maximum Continuous Current: 25A
l Instantaneous Maximum Current: 50A
l BEC POWER: 5.0Vs/2A
l Low Voltage Protection: 9.2V
l Overload High Temperature Protection: 95°C
l Applicable Model: for High Speed Airplane Brush-less Motor
Package:
l 1x Black A Model ESC
Or
l 1x Blue B Model ESC
Or
l 1x A Model Tester With ESC
Or
l 1x B Model Tester With ESC
Note:
l The positive and negative poles of the ESC power supply cannot be connected inversely, red positive and black negative poles, the ESC is suitable for high KV value model motors.
