PEAKMETER MS2205 Digital Power Clamp Meter With 0.1 - 1000A Current Measurement Range

Features

MS2205 Three-phase digital power clamp meter is a handheld aptitude meter with power measurement.

 1.The meter can be used for testing power, voltage, current, peak value, phase, frequency, power factor, phase angle, and reaction factor, etc.
 2.Of single/ three-phase circuit; automatic phase sequence testing is possible for 3-phase measurement.
 3.Low-consumption high-speed single-chip microprocessor is employed and sophisticated algorithm is applied, as a result, result can be obtained rapidly and precisely, and up to 20 harmonies and distortion value thereof can be measured.
 4.It is equipped with RS232C communication and recording interface and dedicated WINDOWS graphics software.
 5.Hand-held, clamp-type structure, wit light weight, convenient for carry-on.

Product parameter


SPECIFICATIONS

RANGE

ACCURACY

AC Voltage

0.1～600V

±(1.2%+5)

AC Current

0.1～1000A

±(2.0%+5)

Active Power

0.1kw～600kw

±(3.0%+5)

Apparent

0.1kVA～600kVA

±(3.0%+5)

Reactive Power

0.1kVAr～600kVAr

±(3.0%+5)

Power Factor

0.3～1

±(0.02%+2)

Hamonic Measurement45Hz-60Hz fundamental frequency)

Harmonic NO.1

±(3.0%+10)

Harmonic NO.2-6

±(3.5%+10)

Harmonic NO.7-8

±(4.5%+10)

Harmonic NO.9-10

±(5.0%+10)

Harmonic NO.11-15

±(7.0%+10)

Harmonic NO.16-20

±(10%+10)

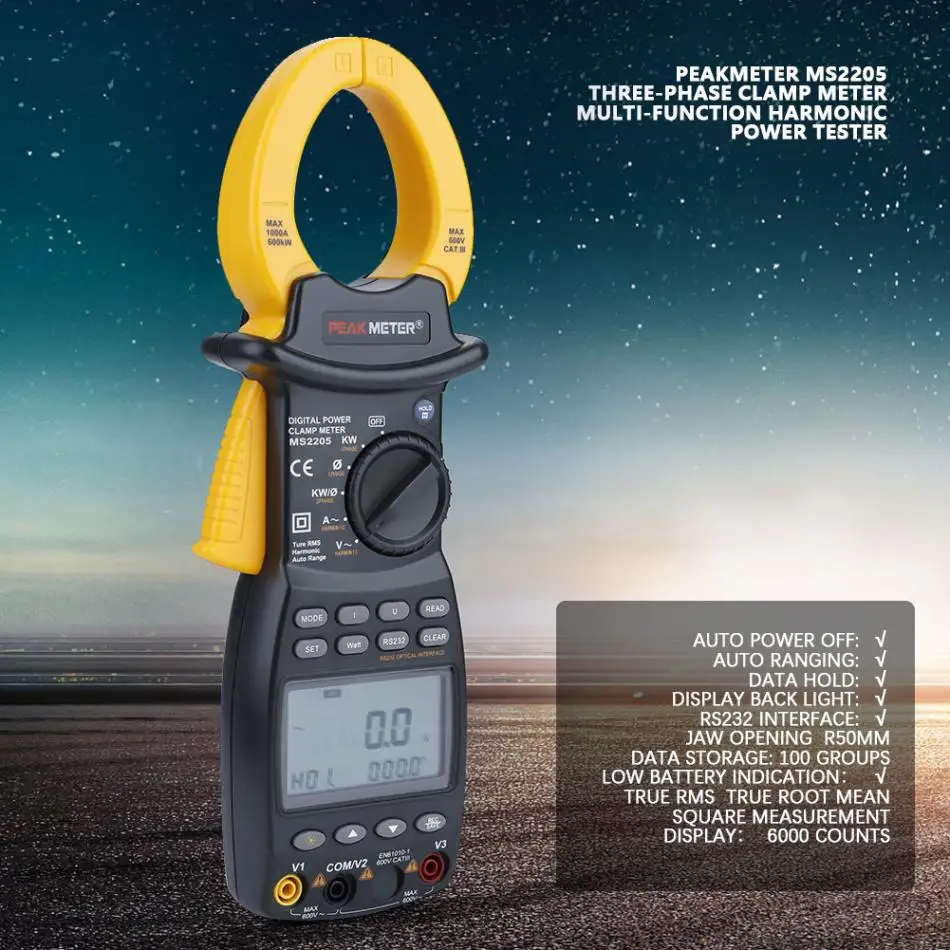

FEATURE

Display

6000 Counts

Data logging And recall

100 groups

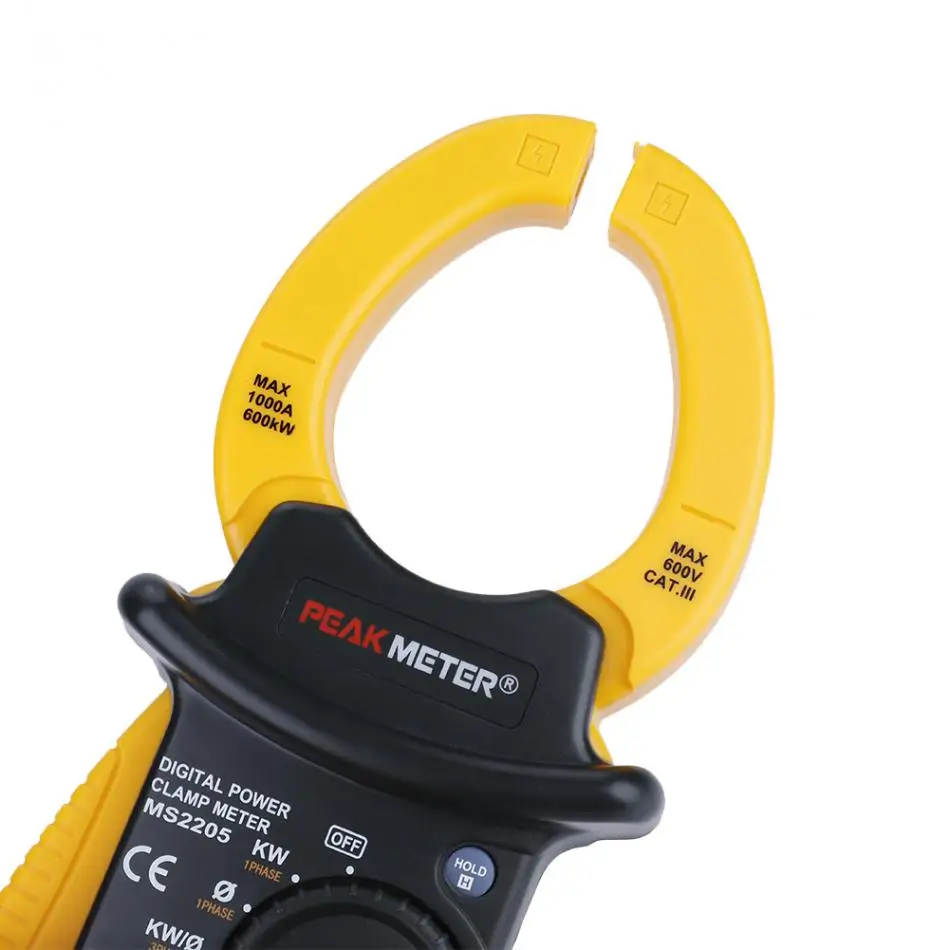

Jaw opening

φ50mm/2.0"

True RMS

Ture Root Mean Square Measurement

LBD

Low Bettery indication

Auto Reanging

√

Data hold

√

Auto Power Off

√

Display Back Light

√

Rs232 Interface

√

GENERAL

Power Supply

4×1.5V AA Batteries (No Battery included)

Weight

Approx.640g

Size

300mm×103mm×51mm

Safety Rating

EN61010-1,EN61010-2-032, EN61326,CAT.Ⅲ 600V

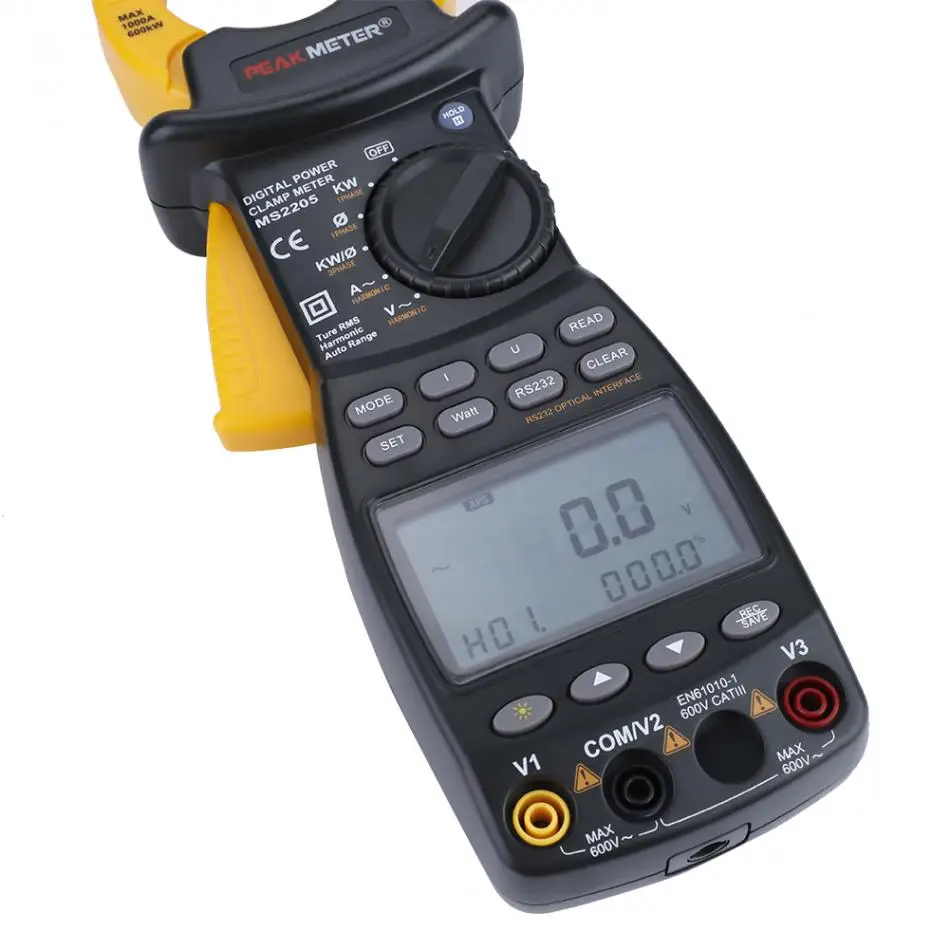

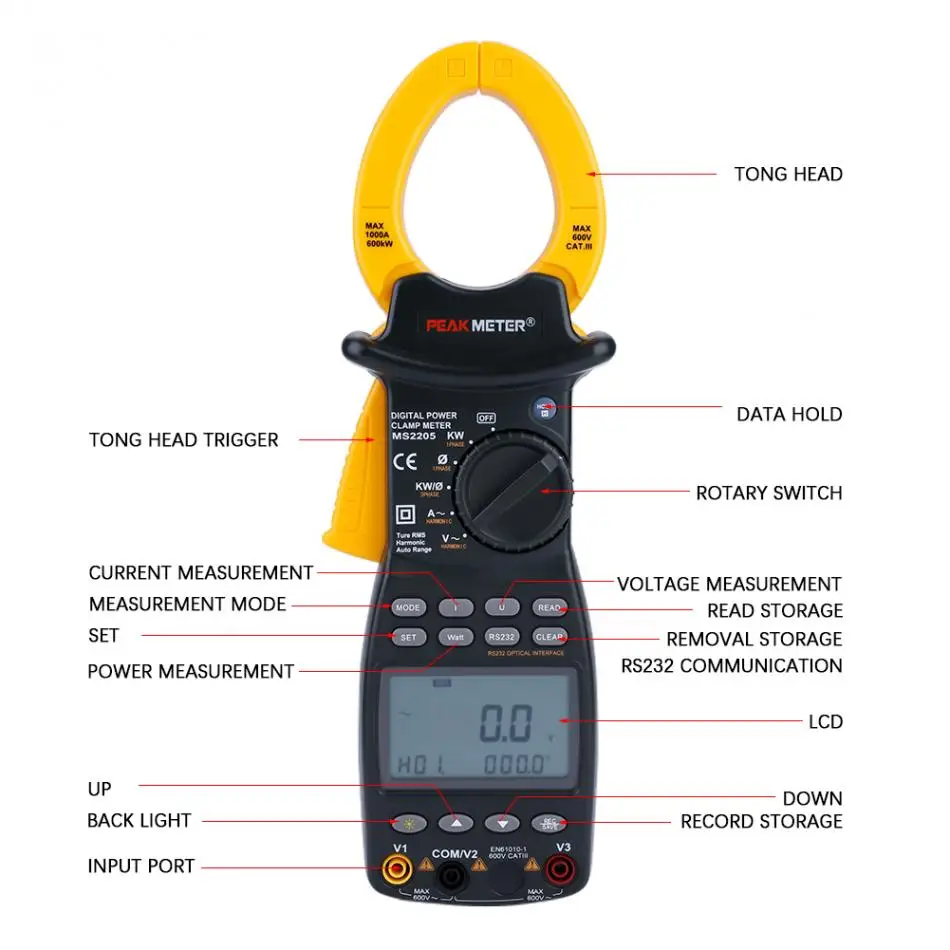

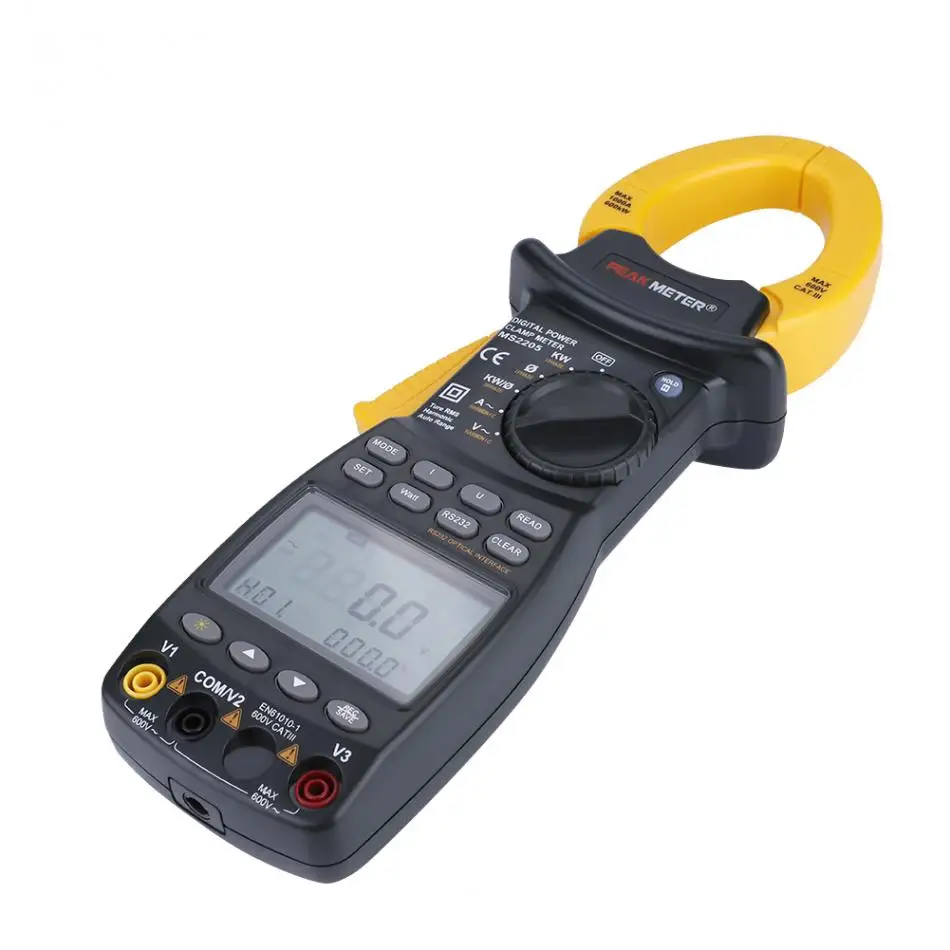

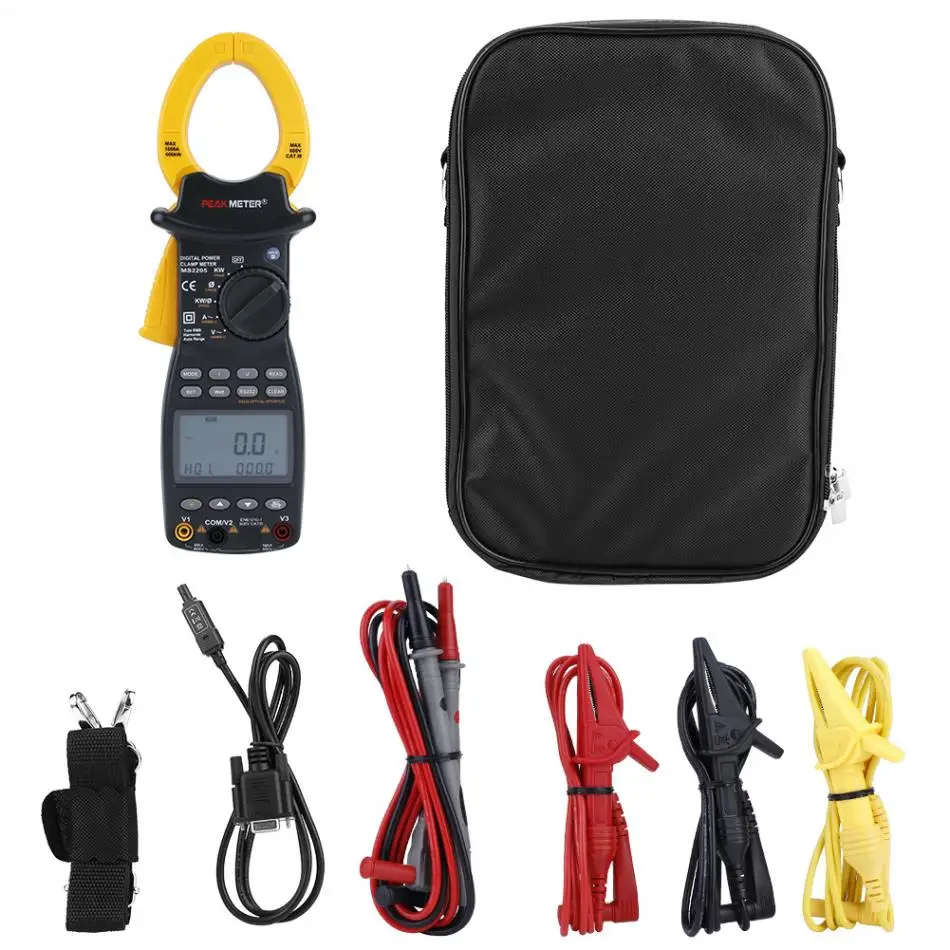

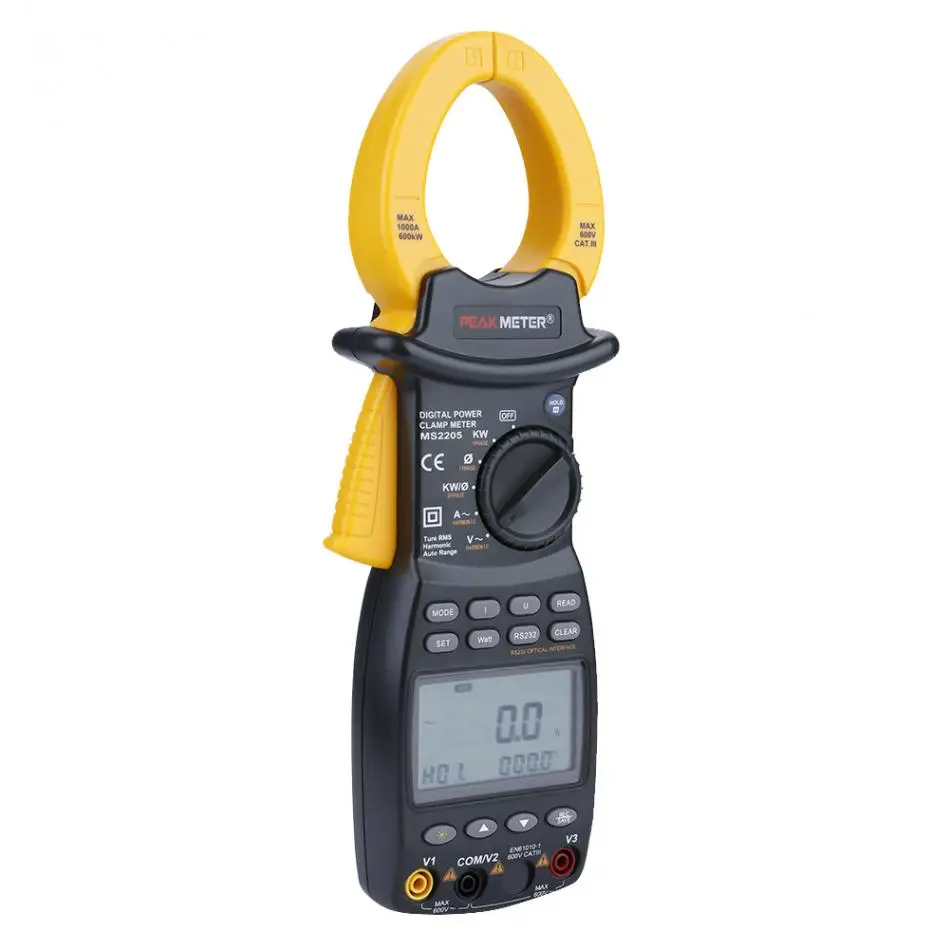

Product Image
