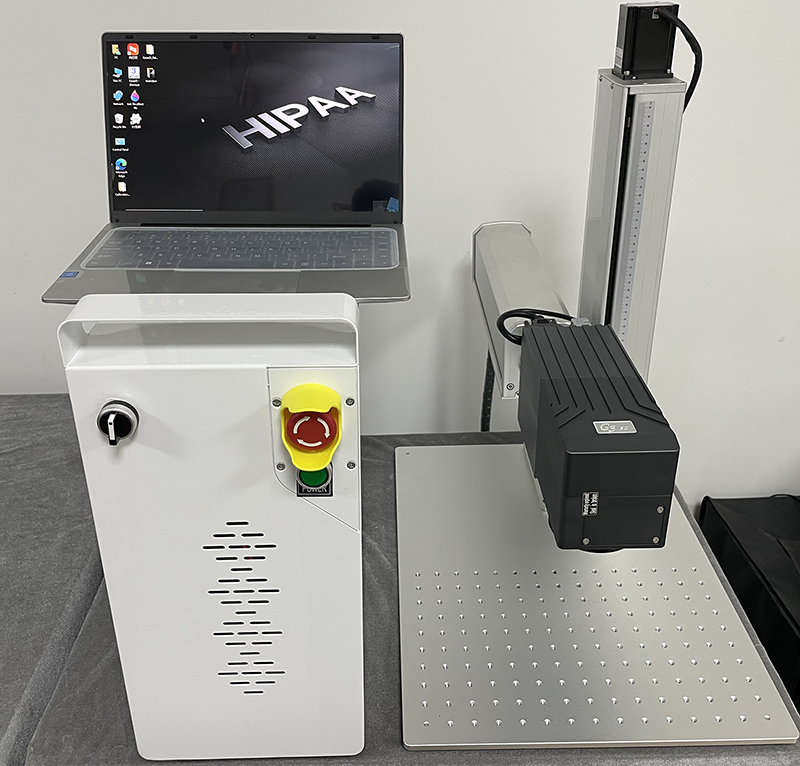

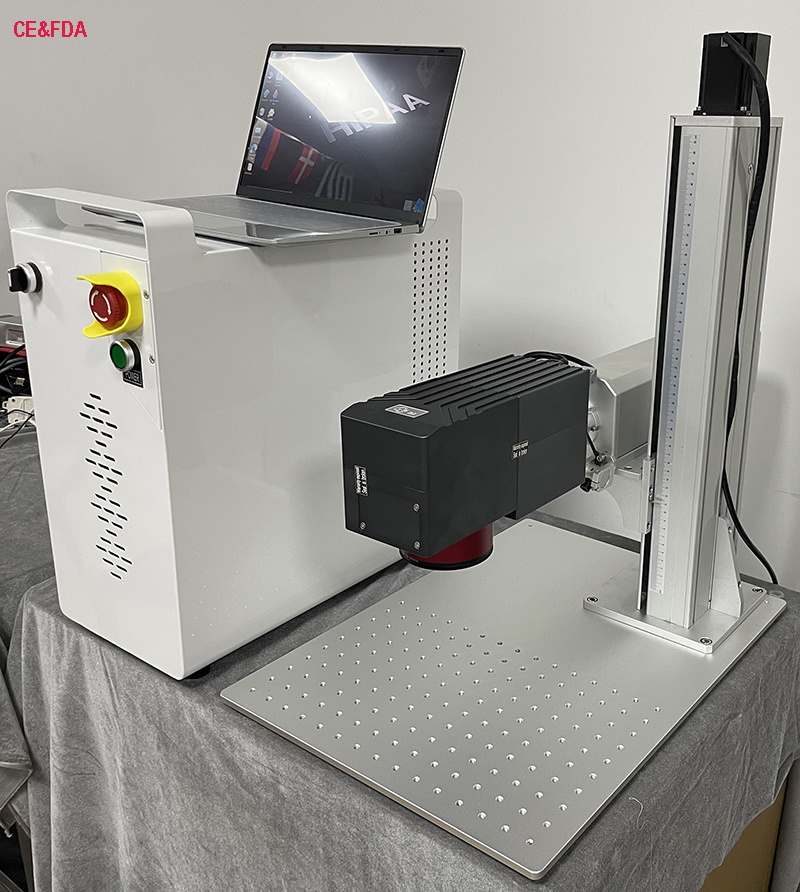

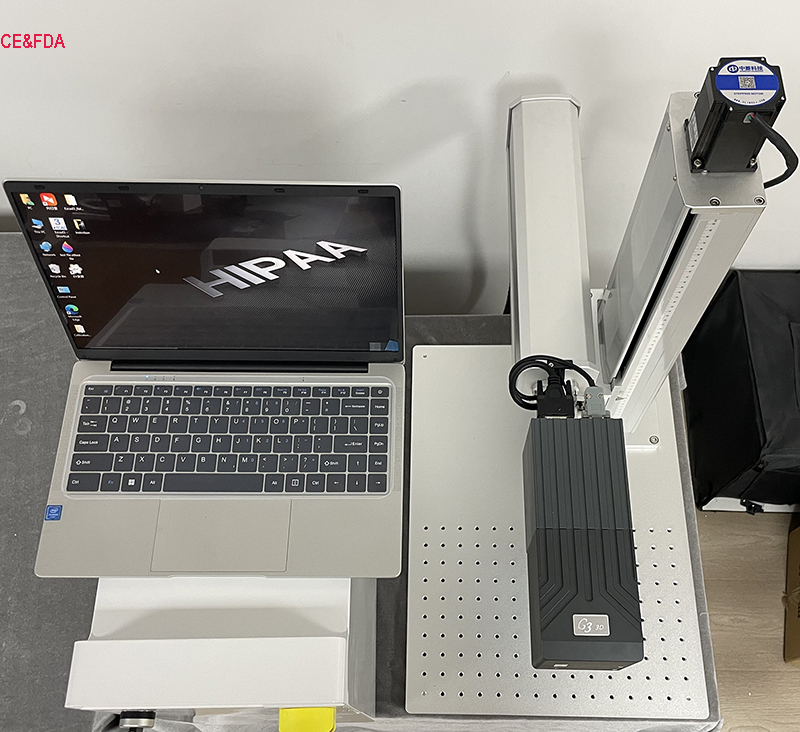

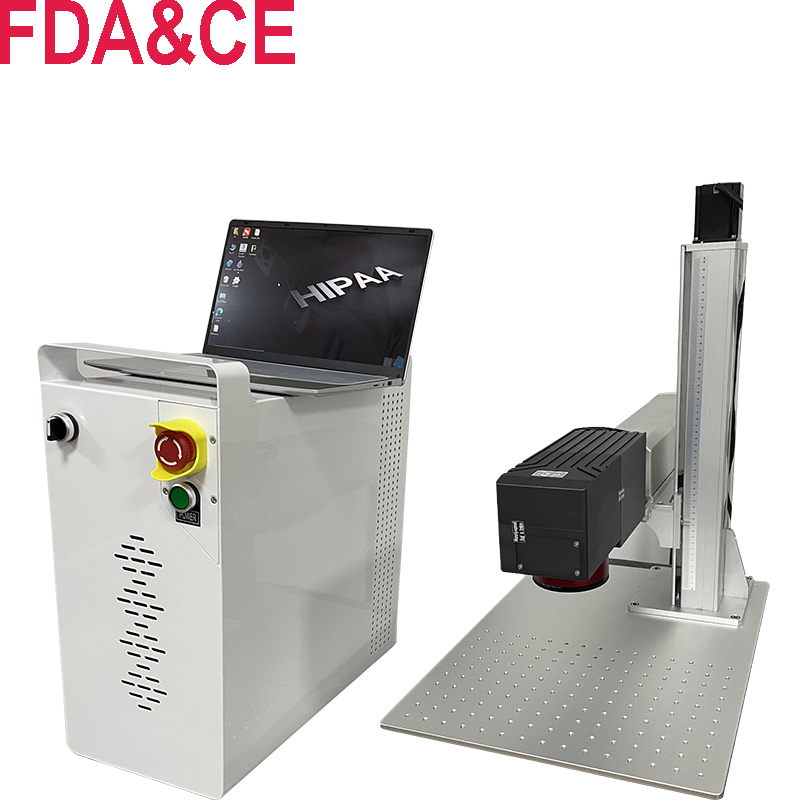

3D 100W JPT M7 fiber laser marking cutting machine with ezcad 3
not suitble for skin
Machine with CE and FDA certificate safety and high quality
1. Your satisfaction is our first priority. Defective product will be offered for an exchange or store credit.
2. Before shipping, we test the machine over 24 hours, be sure you can use it directly once you received it.
3. 5 years warranty, 24 hours online technician support.

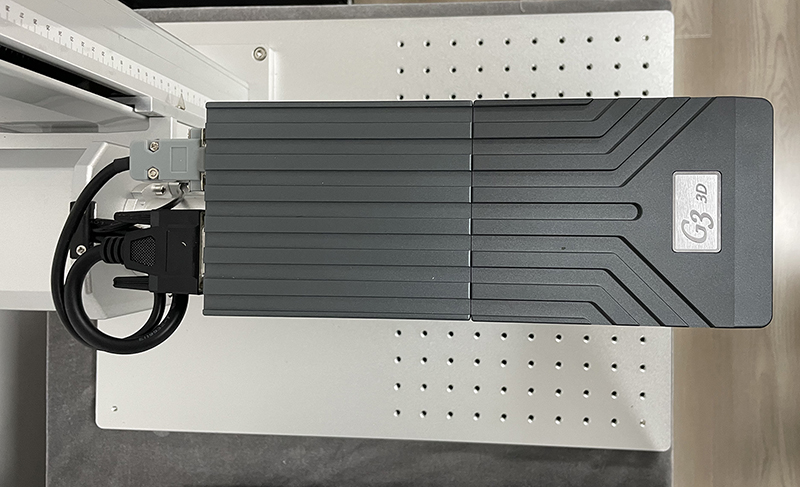

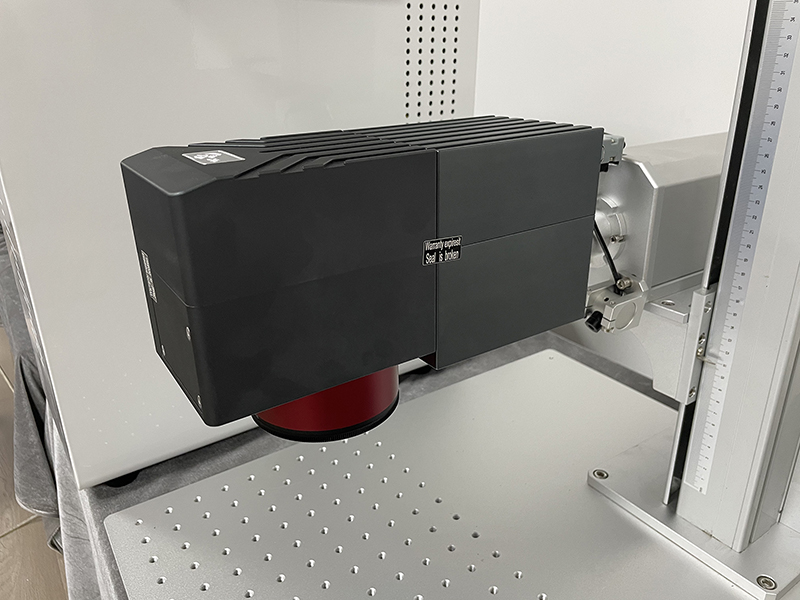

4. 3D dynamic focus fiber laser marking machine not only can marking on flat surface, but also can engraving on undulating surface, curved surface
5. The Dynamic focusing system makes each marking point at the correct focal length so the laser beam energy is stronger and more delicate and the marking effect is better.
| Model | SM-F100 3D |
| Laser power | JPT M7 100W 3 D |
| Working Area | 175*175 mm ( 300*300mm optional) |
| Cooling Mode | cooling chiller |
| Laser Wavelength | 1064nm |
| Response Time | 0.1ms |
| Frequency of pulse | 20-4000 KHz |
| Marking Depth | 0.1-5mm |
| Marking Speed | 15000mm/s |
| Marking Lines | 1-10 lines |
| Laser module life | >100000hours |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.001 mm |
| Resolution Ratio | 0.01 mm |
| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows 2000/7/8/10 |
| Control Software | EZCAD 3 Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | 1.2 KW |
| Operation Temperature | 5°C-40°C |
| Beam diameter | M2 < 1.2 |
| Dimensions(L*W*H) | 85 x 74 x 80 cm |
| Power supply requirements | 110 V/220 V |
| Warranty | 5 YEARS |
1. Foot switch
2. Hexagon wrench
3. Laser protect glasses
4. Ground wire
5. Ruler
6. U-Disk
1. 80mm rotary axis 500USD
2. 50mm rotary axis 600USD
3. 3D working table 500USD
Paypal
1. DHL, FEDEX, TNT door to door shipping is 500USD. About 3-5 days can be delivery.
2. Sea shipping is free, about 35-55 days can be delivery at your nearest sea port.
3. Once the machine was be delivery, you need to clear the custom and charge custom fee.
1. The machine warranty is five years, once the machine parts was bad, we will send you a new one free.
2. We support one year change a new one machine free.
3. 24 hours technician online service
