Rear Shock Absorber 290 291 Suspension Shocks Spring Kindshock Durable Downhill MTB Bicycle Mountain Bike

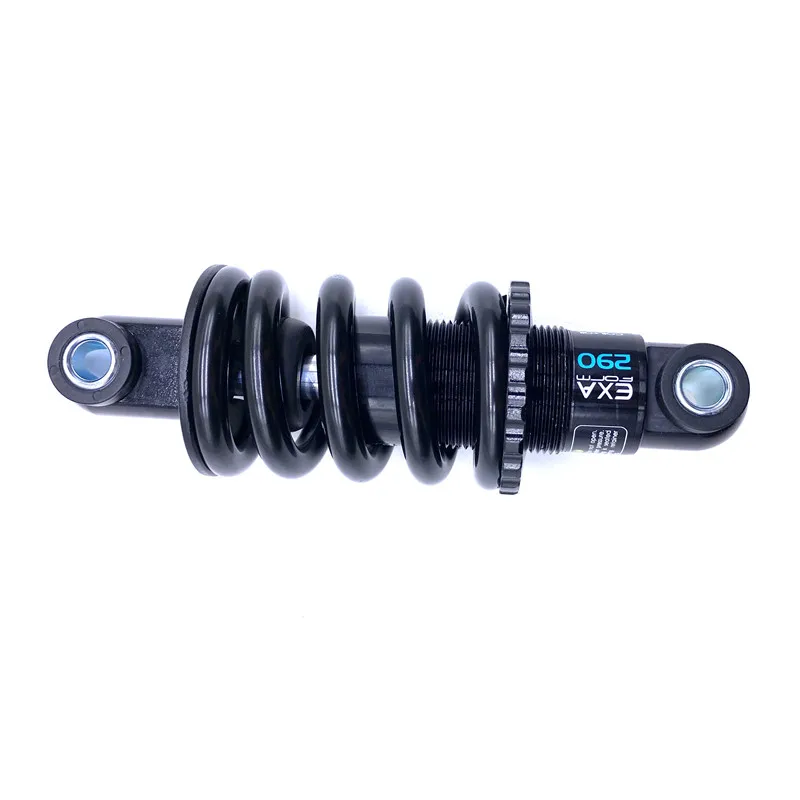

The 290 coil shocks pack in many features found on higher end shocks.Equipped with a preload adjustable coil spring, 290 also use a patented foam insert to keep the air and oil separate. Low cost does not mean low value. ExaForm's 290 rear shocks are the perfect enhancement to any value- oriented or entry level off road or youth bicycle.

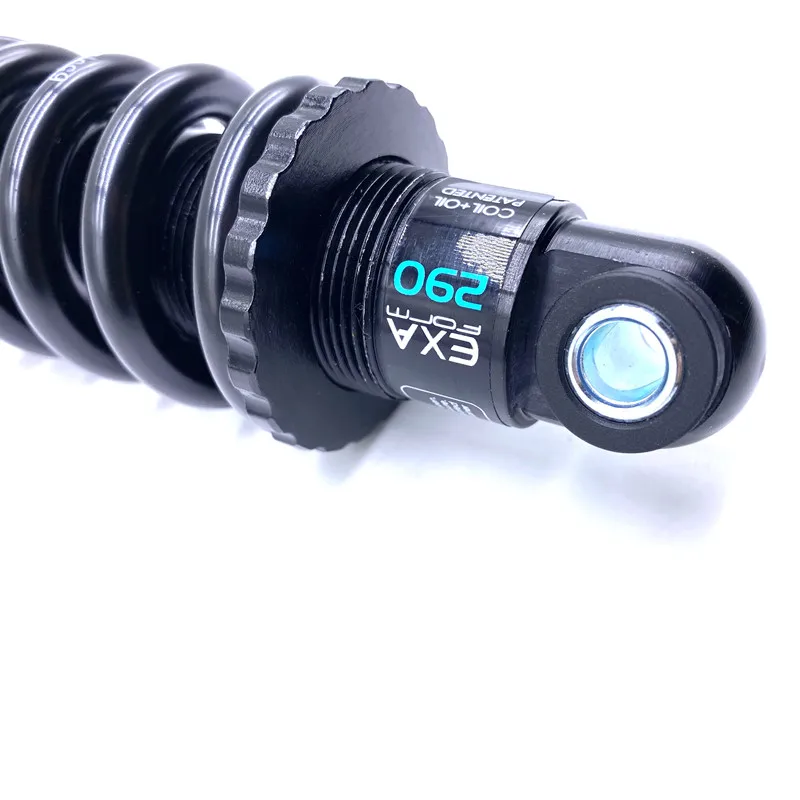

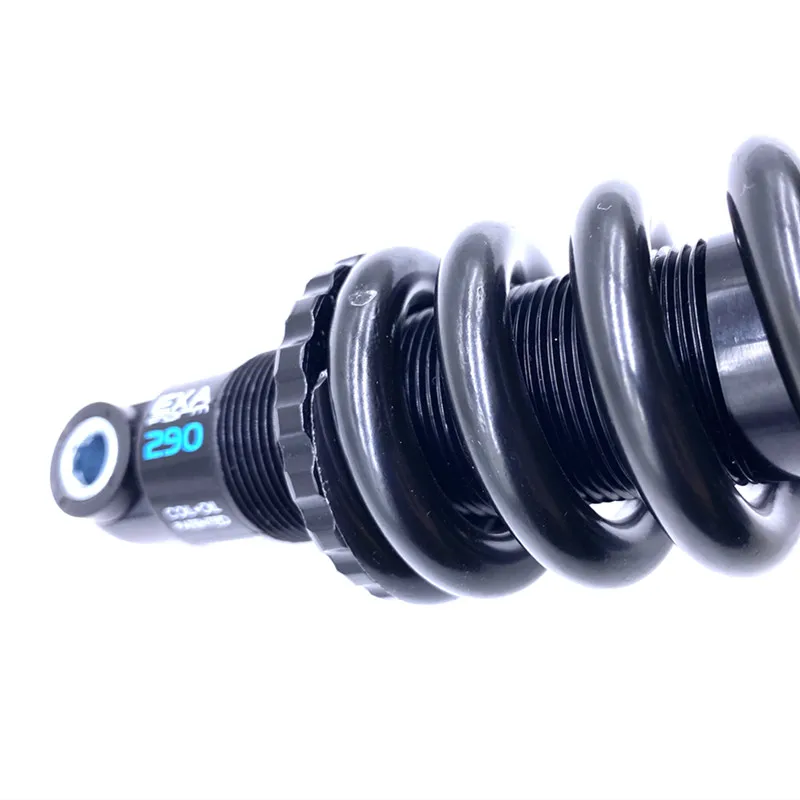

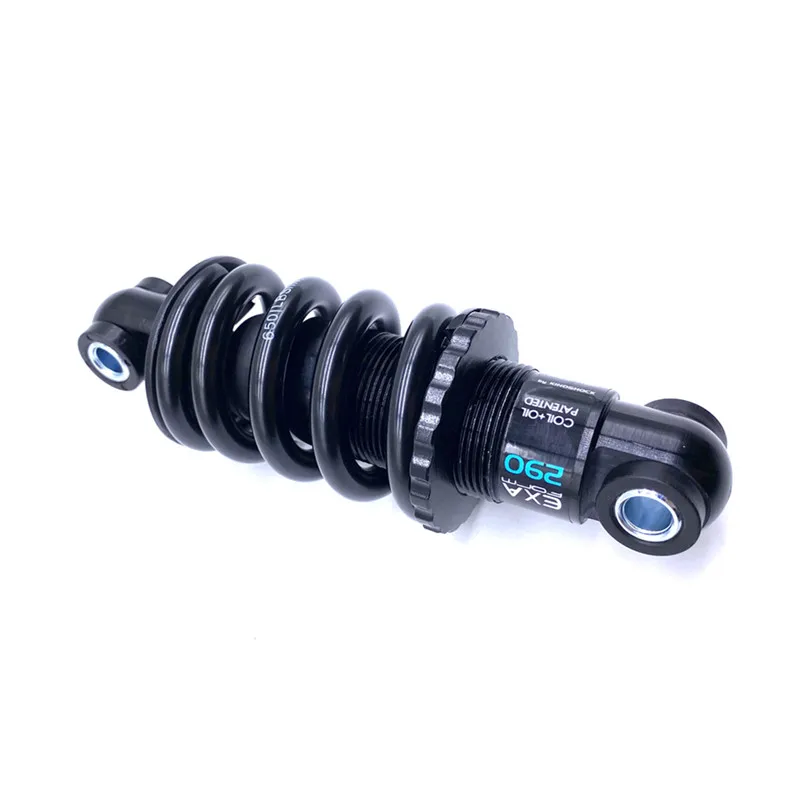

MODEL: KS ExaForm 290
ADJUSTMENT: Preload, rebound damper cannot adjustable

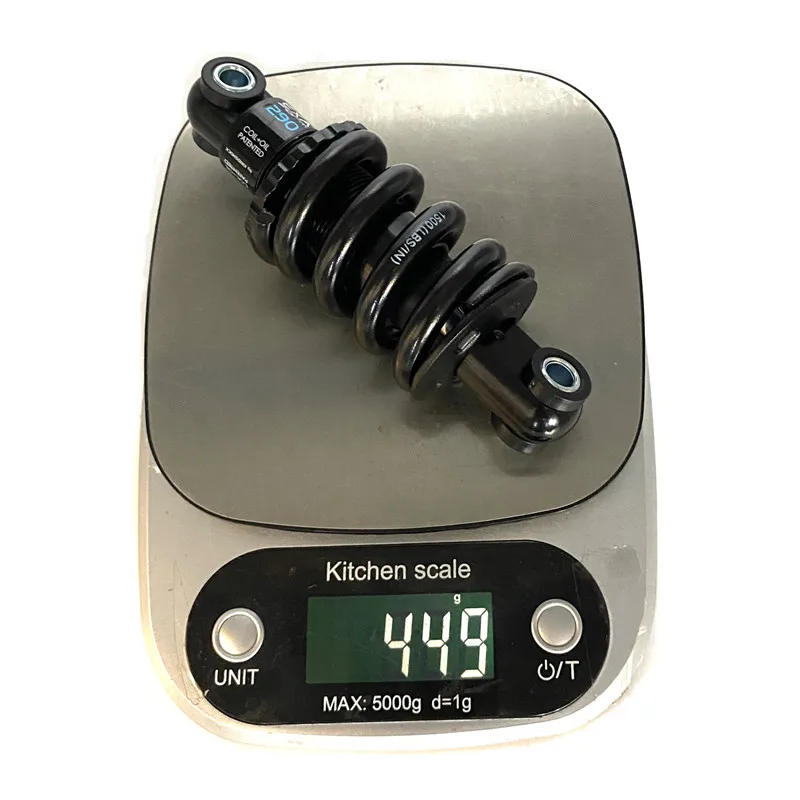

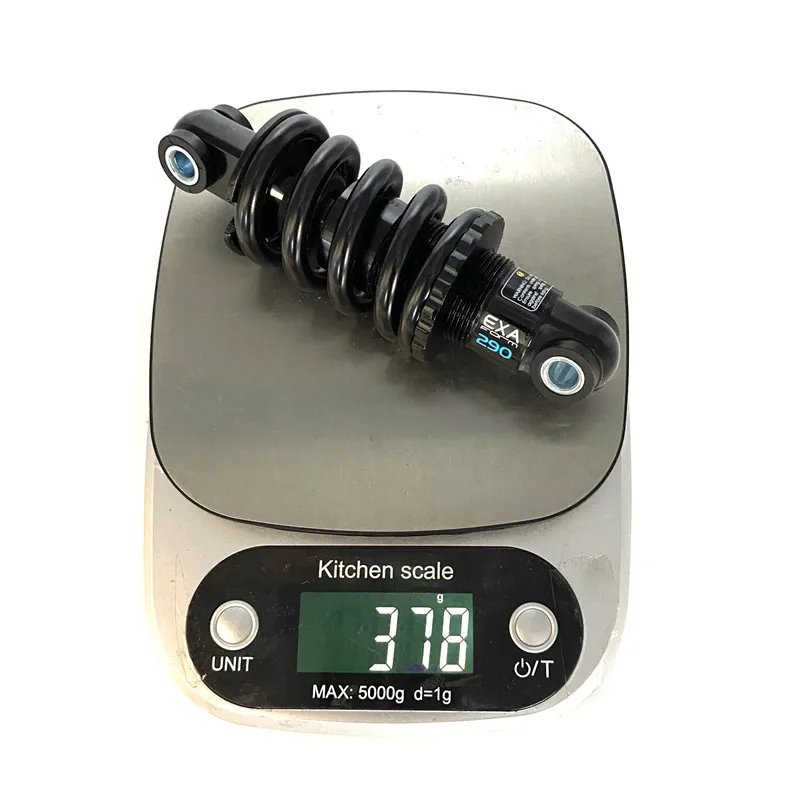

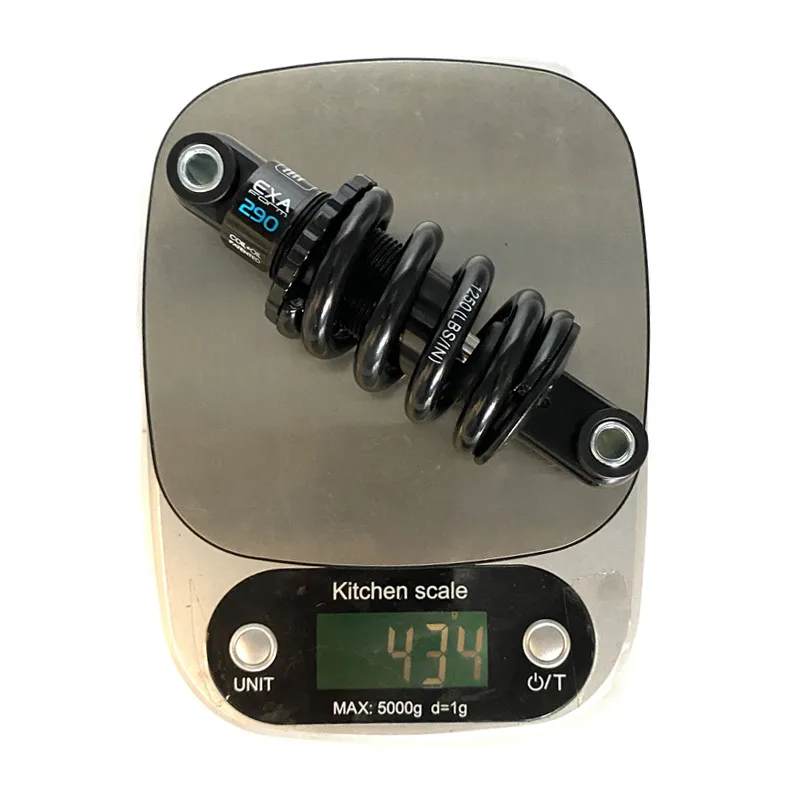

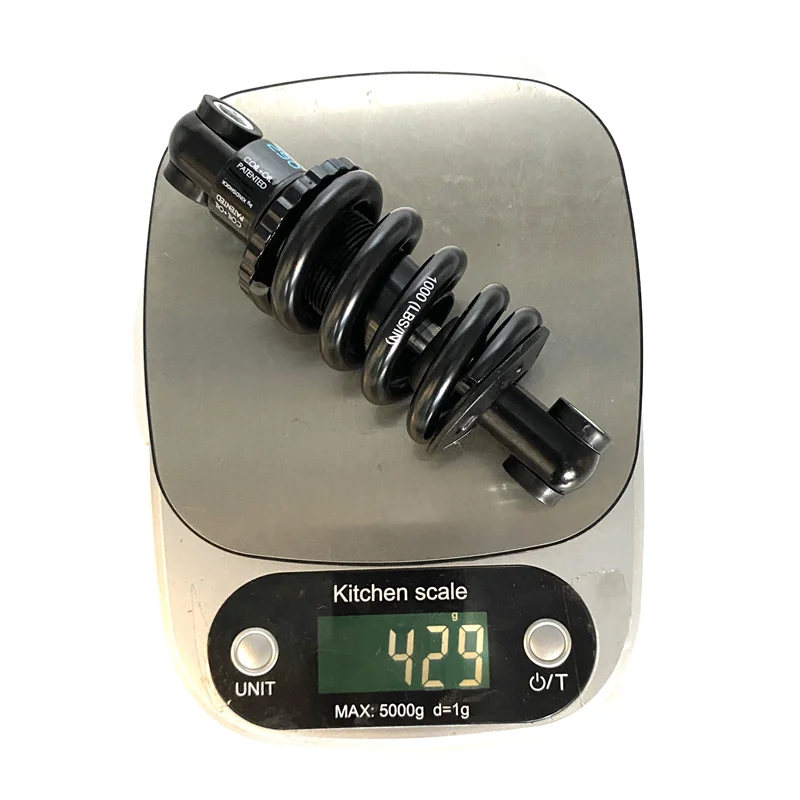

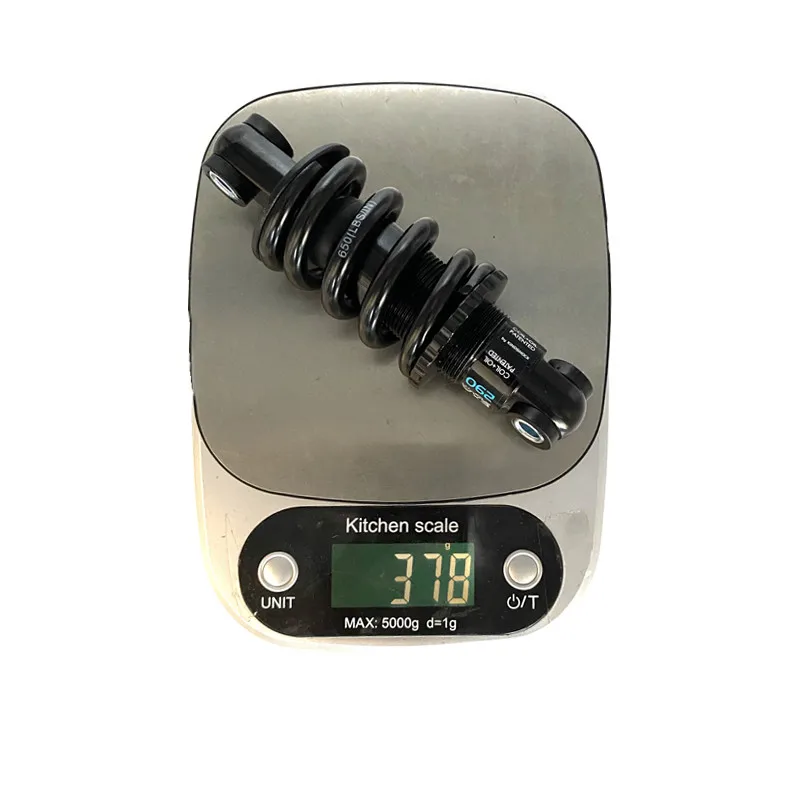

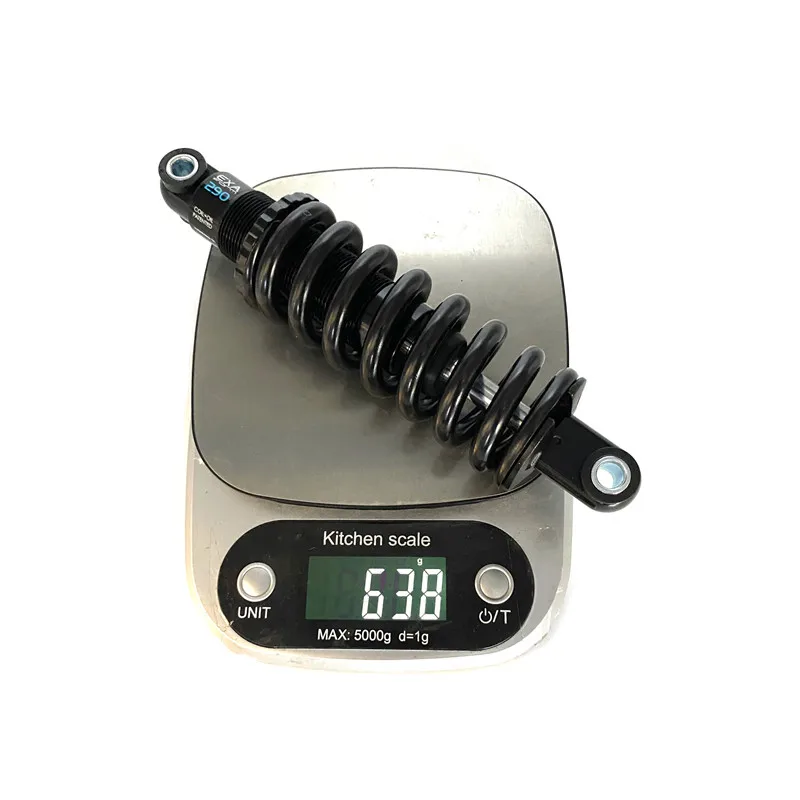

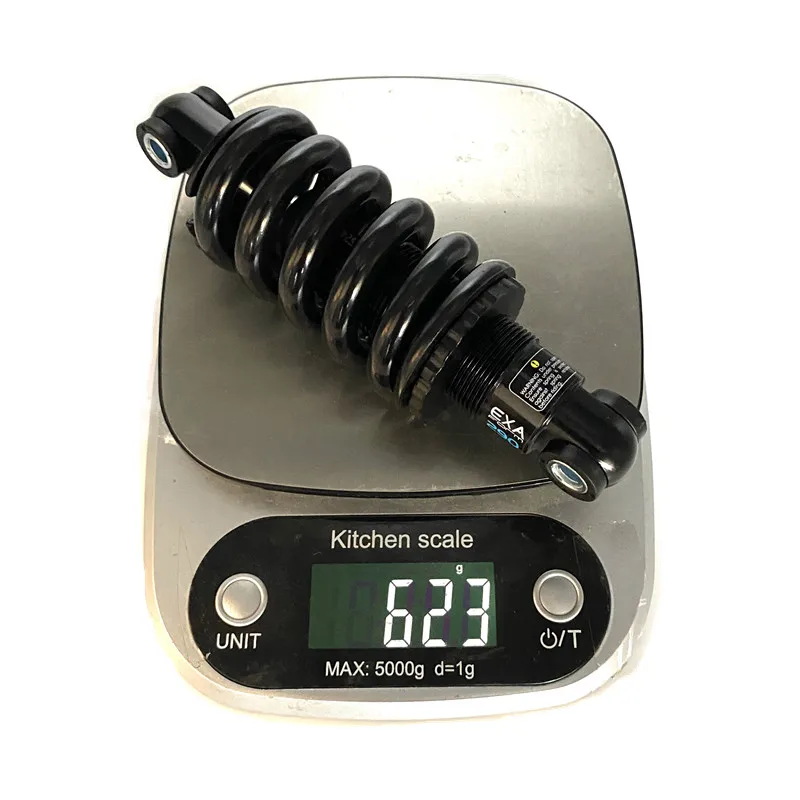

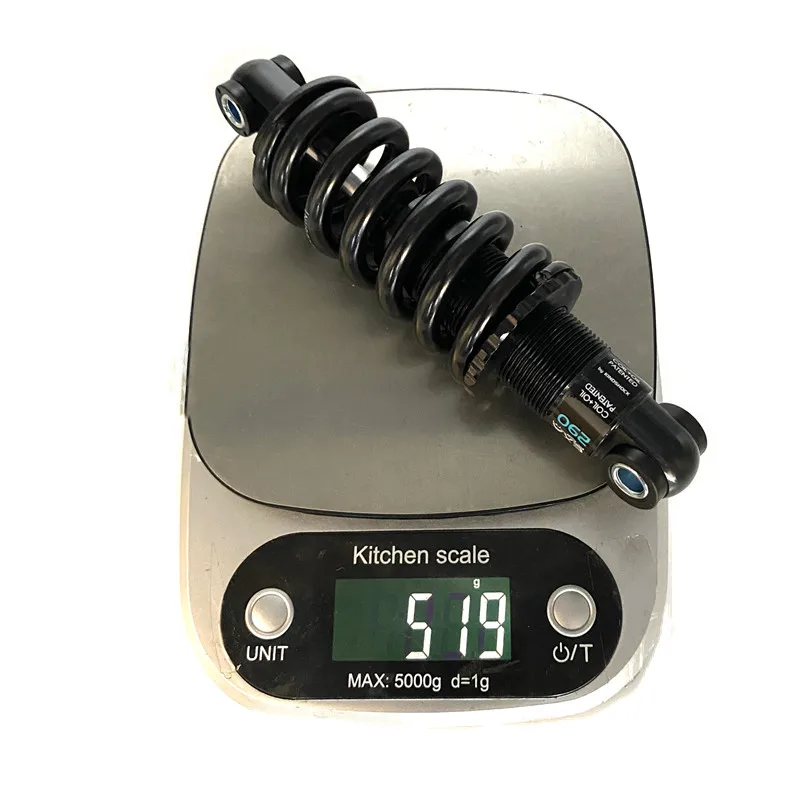

WEIGHT: 166-211g (without coil)
USE: XC / recreational / youth/MTB

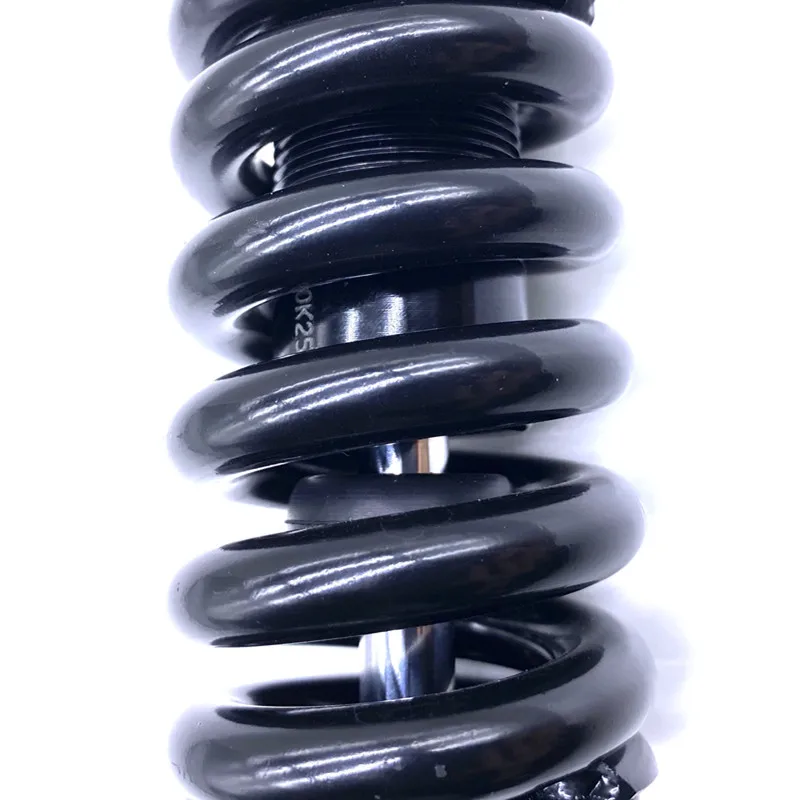

SPRING TYPE: Coil
DAMPING: Hydraulic
MATERIAL: CNC alloy
FINISH: Anodized

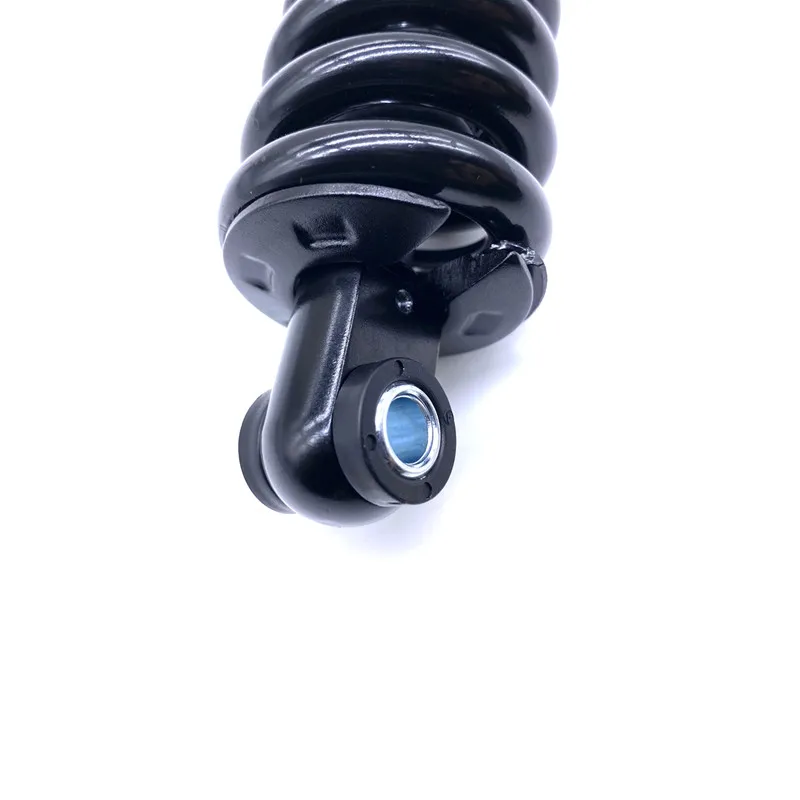

BUSHING: spherical bearing
COLOR: Black
Install angle: 70 degree
Max out diameter: 46mm
(DNM 125mm-2500lbs is 50.5mm)

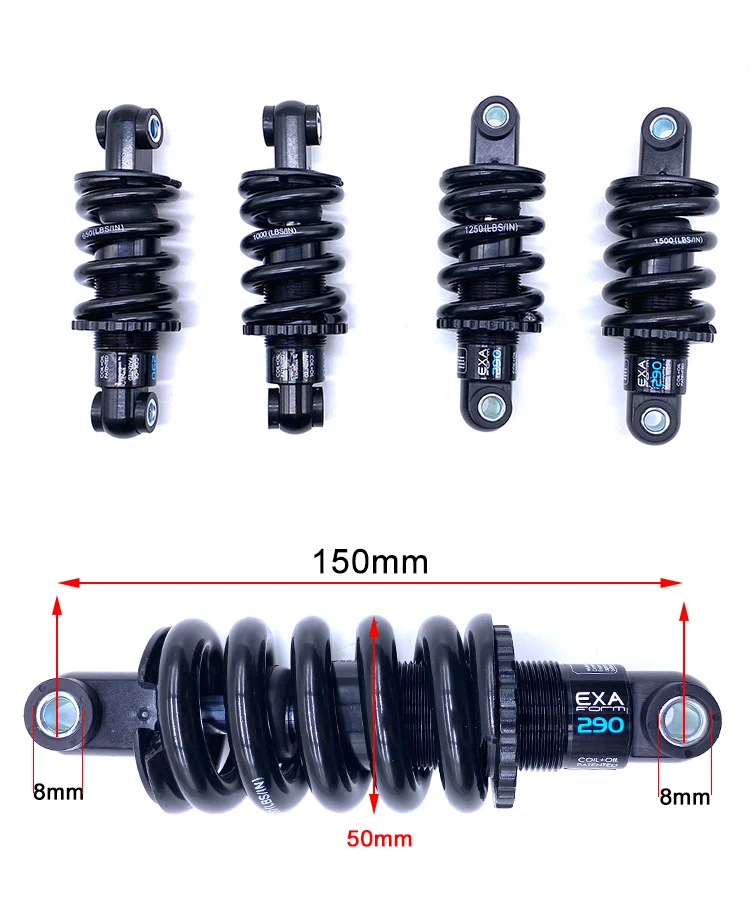

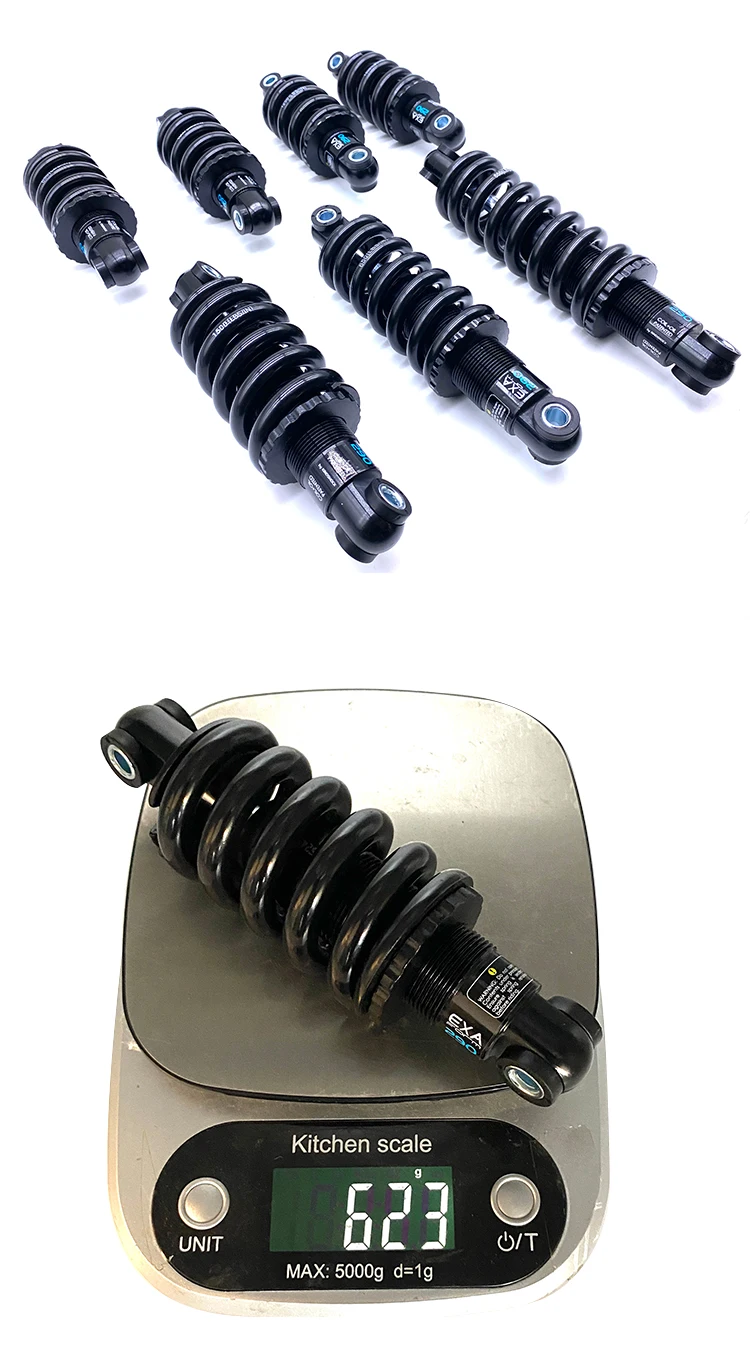

LENGTH / TRAVEL:(eye to eye, hole center to hole center)
125 / 18mm
150 / 30mm
165 / 38mm
185 / 48mm
190 / 50m

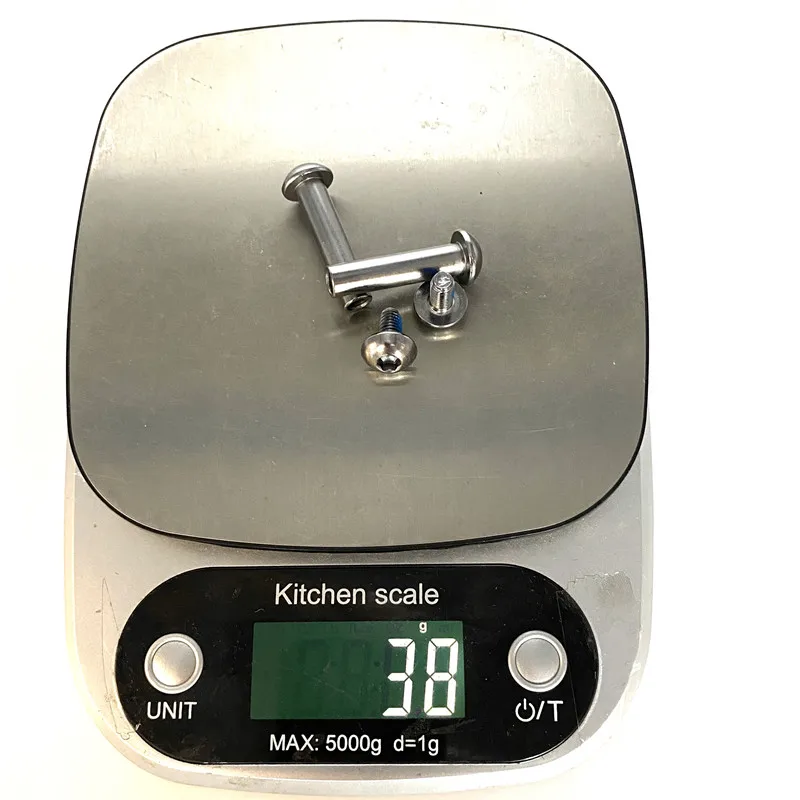

Bolt diameter: 8mm

Body diamter 45.5mm

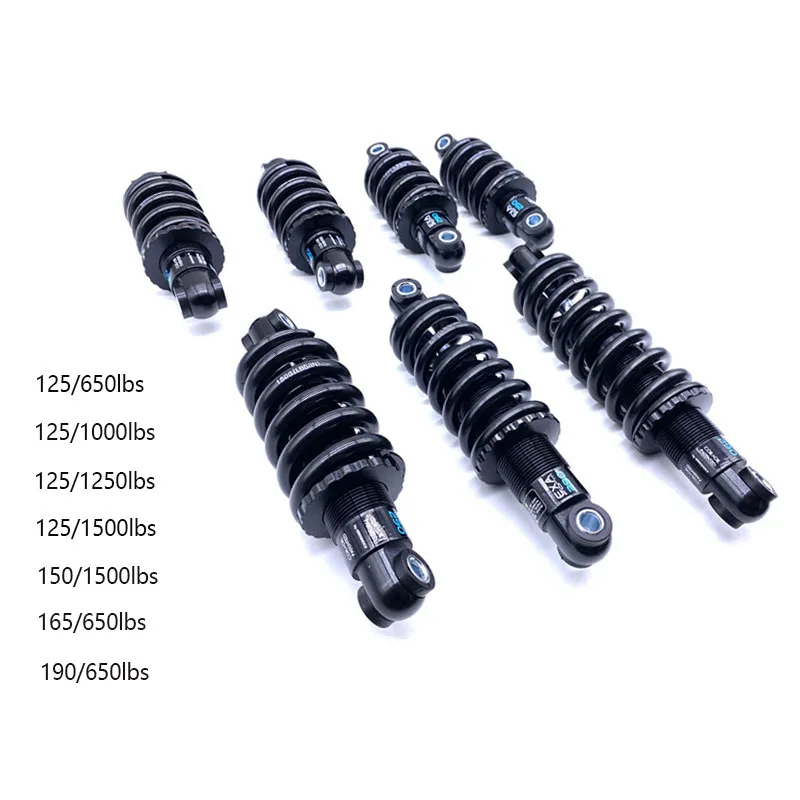

Recommended LBS:

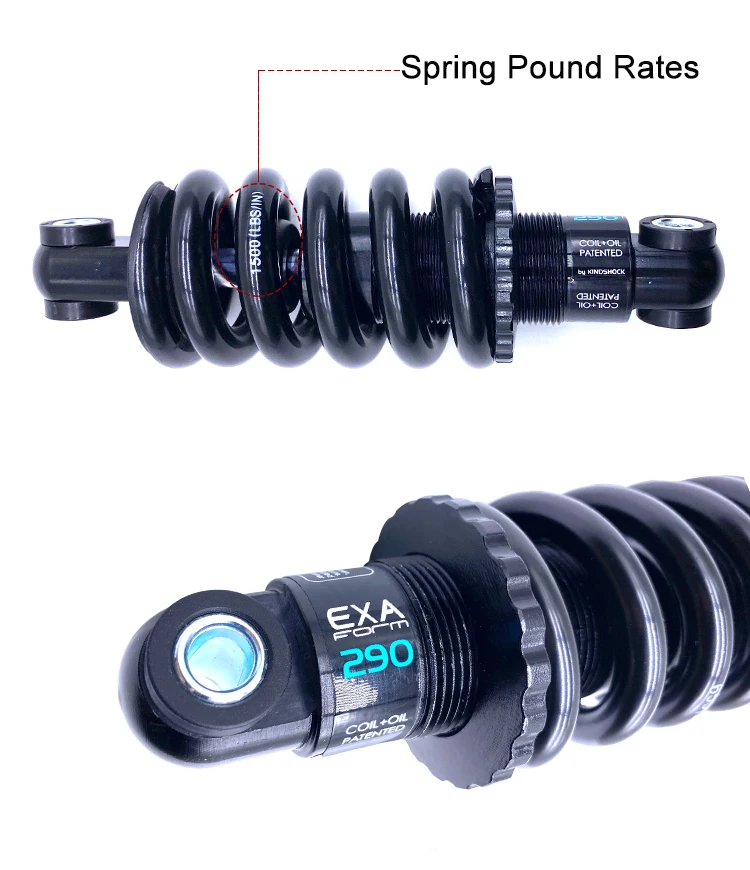

Spring Pound Rates/ Rider weight:
