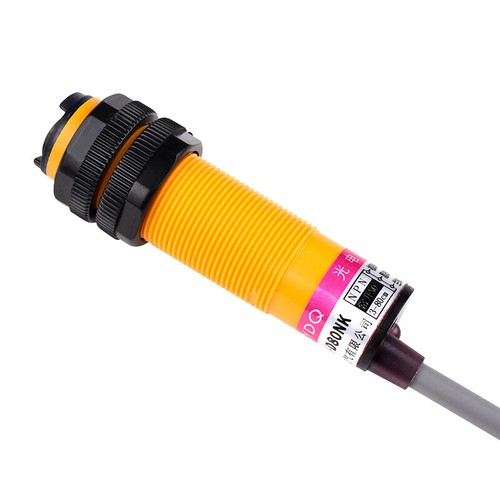

E18-D50NK/D80NK Infrared Photoelectric Obstacle Avoidance Sensor Shield Switch


E18-D50NK/D80NK Infrared Photoelectric Obstacle Avoidance Sensor Shield Switch



E18-D50NK



Electrical characteristics

Brown: positive, blue: negative, black: signal

Working voltage: 5VDC

Working current: 10-15mA

Drive current: 100mA

Sensing distance: 3-50CM

Product size

Diameter: 17MM

Sensor length: 45MM

Lead length: 120CM

Application

Automatic counting equipment for goods on production lines

Multifunctional Reminder

Labyrinth walking robot

Product Parameters

Output current DC/SCR/relay control output: 100mA/5V power supply

Consumption current: DC<25mA

Response time:<2ms

Pointing angle: ≤ 15 °

Detect objects: transparent or opaque bodies

Working environment temperature: -25 ℃~+55 ℃

Standard detection object: incandescent lamps with sunlight below 10000LX and incandescent lamps below 3000LX

Shell material: plastic

Signal output: When there is no obstruction, output a high level of 5V, and when there is obstruction, output 0V.

Note: In order to make the signal more stable, please add a pull-up resistor greater than or equal to 1K.



E18-D80NK



Electrical characteristics

Brown: positive, blue: negative, black: signal

Working voltage: 5VDC

Working current: 10-15mA

Drive current: 100mA

Sensing distance: 3-80CM

Product size

Diameter: 17MM

Sensor length: 68MM

Application Cases

Automatic counting equipment for goods on production lines

Multifunctional Reminder

Labyrinth walking robot

Product Parameters

Output current DC/SCR/relay control output: 100mA/5V power supply

Consumption current: DC<25mA

Response time:<2ms

Pointing angle: ≤ 15 °

Detect objects: transparent or opaque bodies

Working environment temperature: -25 ℃~+55 ℃

Standard detection object: incandescent lamps with sunlight below 10000LX and incandescent lamps below 3000LX

Shell material: plastic

Signal output : When there is no obstruction, output a high level of 5V, and when there is obstruction, output 0V.

Note: In order to make the signal more stable, please add a pull-up resistor greater than or equal to 1K.



E18-D80NK(Short)



Electrical characteristics:

U:5VDC

I:100mA

Sn:3-80CM

Size:

Diameter: 17MM

Sensor length: 50MM

Lead length: 70CM

Application:

Automatic counting equipment for goods on production lines

Multifunctional Reminder

Labyrinth walking robot

Photoelectric sensor (photoelectric switch) NPN normally open



Technical parameters of photoelectric switch E18:

1. Output current DC/SCR/relay control output: 100mA/5V power supply

2. Consumption current DC<25mA

3. Response time<2ms

4. Pointing angle: ≤ 15 °, effective distance 3-80CM adjustable

5. Detect objects: transparent or opaque bodies

6. Working environment temperature: -25 ℃~+55 ℃

7. Standard detection object: incandescent lamps with sunlight below 10000LX and incandescent lamps below 3000LX

8. Shell material: plastic
