●[High Compatibility]



Equipped with 4pin motor cable and 4pin aviation plug, compatible with two-axis laser engraving machines, co2 laser engraving machines, and optical fiber engraving machines on the market. Make sure the cable fits before buying.



●[Durable Construction]



Our rotating shaft is made of high quality aluminum. Thicken and widen the bottom plate, the work is more stable. It can be adjusted according to the diameter of the engraved object. Low working noise and high efficiency.



●[Double-roller rotating shaft]



The rollers are thickened and high-quality wear-resistant materials are used to increase the friction force and have a better clamping effect. Concentric and constant speed rotation, no defocusing at the cylindrical engraving. The engraved position of the cylinder is always at the focal point of the focusing mirror.



●[nema17 stepper motor]



This rotary tool accessory uses a 2-phase stepper motor with 4 leads and a 4 pin aviation plug. You just need to connect the 4 wires of this rotary tool to the dedicated port of the engraving machine and configure the settings in the software to start engraving.

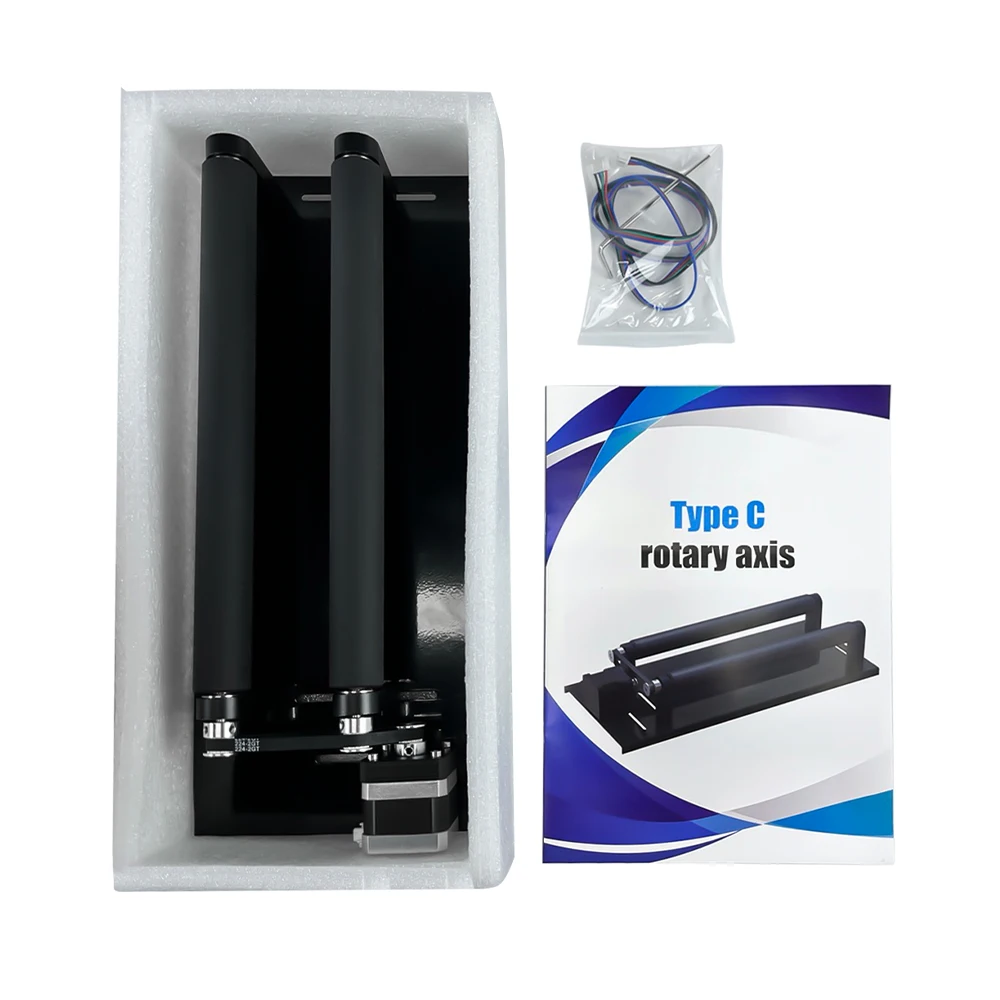

This rotary shaft attachment works perfectly with your engraving machine, allowing you to easily engrave on cylindrical surfaces or round objects such as bottles, pipes, pipes, bowls, etc. in 360 degrees.







Specification



• Minimum processing length：50mm




• Maximum processing length：400mm




• Minimum clamping diameter：10mm




• Maximum clamping diameter：100mm




• Two models are available, the color of the roller and the size of the acrylic plate base are different.










•
•
•
•
•
•



Usage：



1. Pull out the 4-pin wire on Y axis stepper motor of Engraver.



2.Then insert the wire on stepper motor of Rotate Engraving Module.



3. Place Rotate Engraving Module under the laser module and start to engrave.(Need to change parameter of Y axis on GRBL software)
