Leofoto LB-75 Quick Adjust Horizontal Head, Leveling Base for Tripod

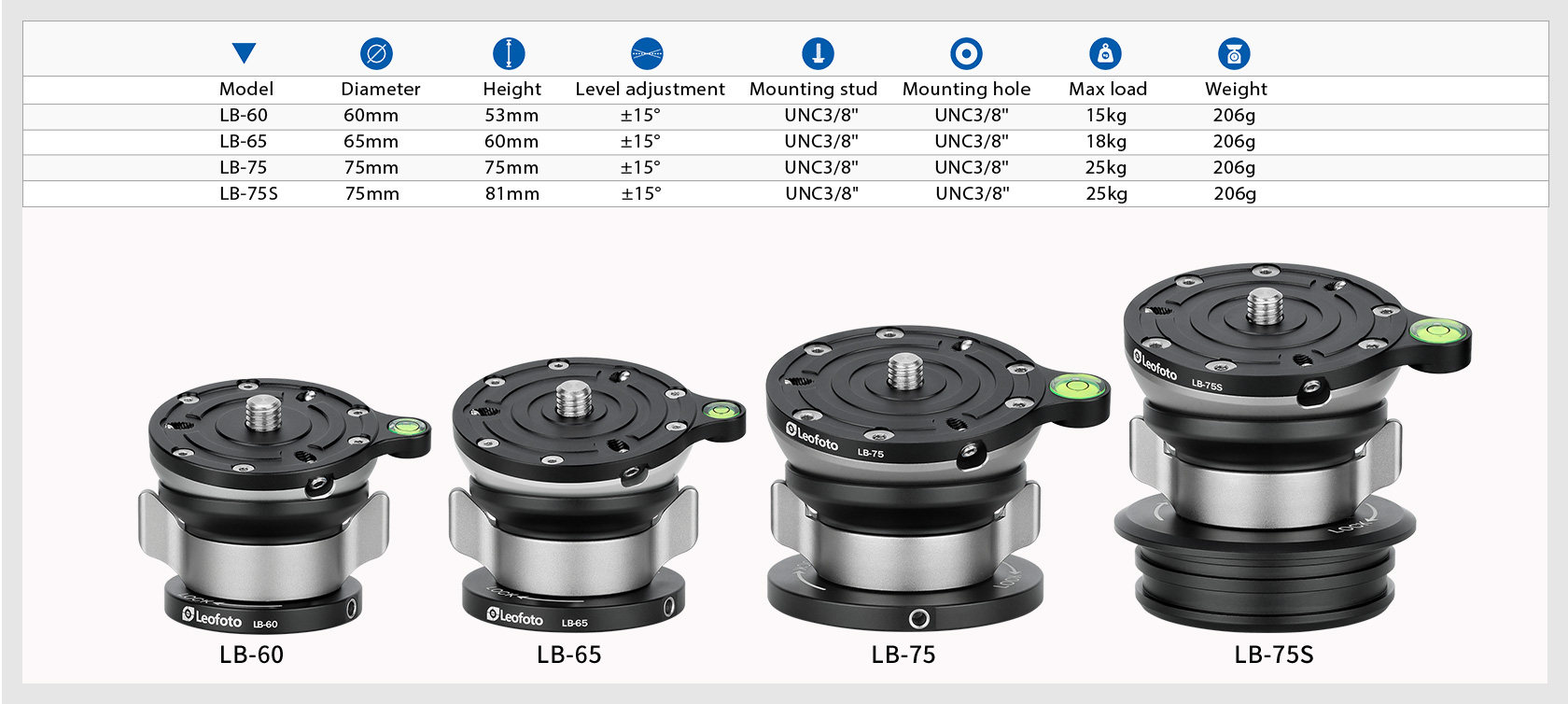

Specifications
Model: LB-75
Diameter: 75 mm / 2.95 in
Height: 75 mm / 2.95 in
Level adjustment: ±15°
Mounting stud：UNC3/8"
Mounting hole：UNC3/8"
Max load：25 kg / 55.1 lb
Weight：322g / 0.71 lb

Feature
A leveling base on your tripod is the perfect foundation for gimbal heads, fluid heads and even ballheads.
Each leveling base offers +/-15° of leveling capability and locks solidly with just a twist. Choose a leveling base with a flat platform for direct mounting of a tripod head.
CNC machined 6061-T6 Aluminum
ANTI-TWIST SAFETY SCREWS DESIGN
Included 3 set-screws on the spider to secure the ballhead mounted on the tripod(turn the set-screws upwards with the included allen wrech to secure the ballhead on top).
BETTER LOCK-UP
Screw the leveling base onto the platform of your tripod, or any mounting platform onto which you want to mount a leveling base to. Twist the handle to lock & unlock the base. The fluid motion allows smooth and fast leveling, no matter the load. Additionally, this locking ring gives the user greater leverage for better lock-up.

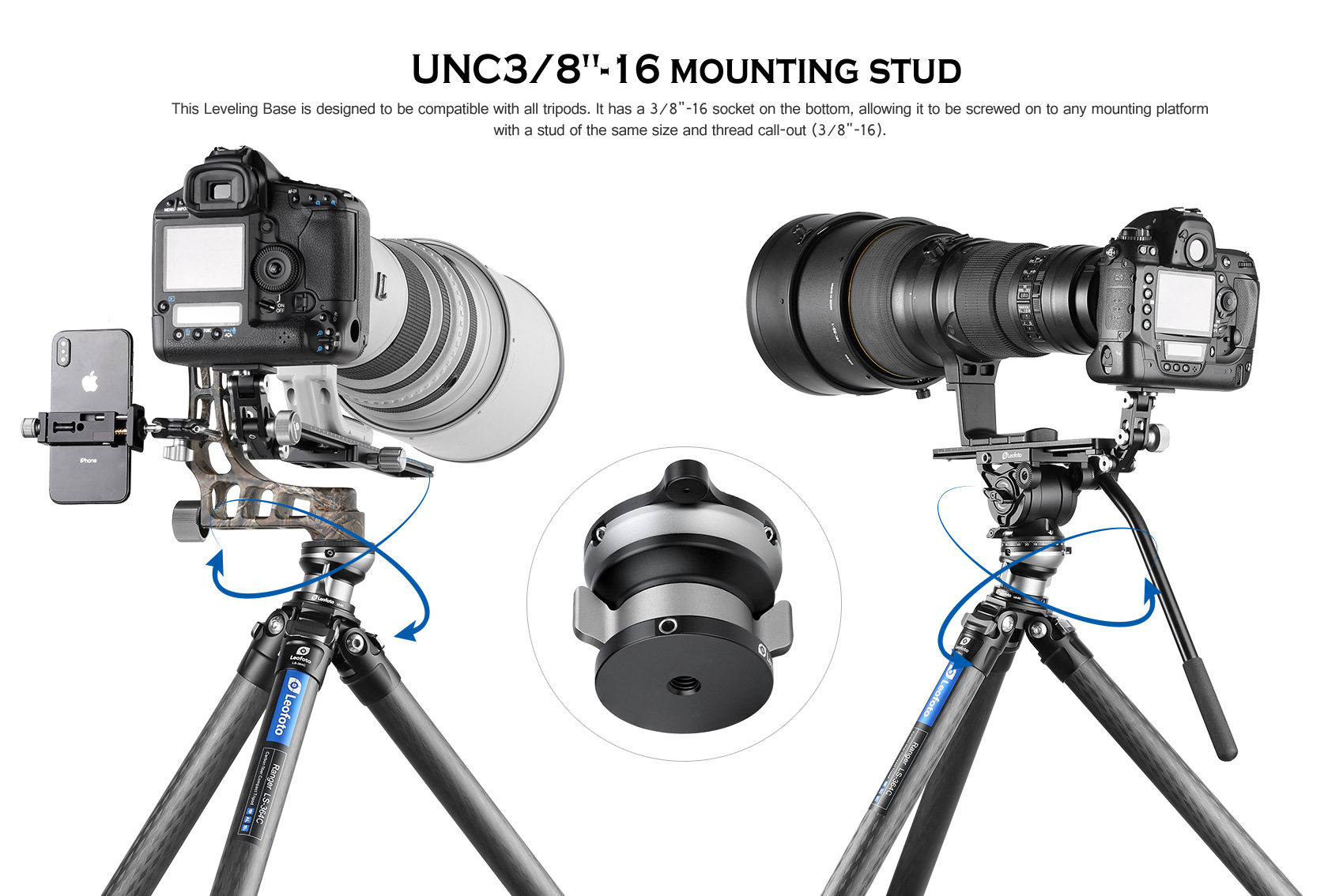

UNC3/ 8"-16 MOUNTING STUD
This Leveling Base is designed to be compatible with all tripods. It has a 3/ 8"-16 socket on the bottom, allowing it to be screwed on to any mounting platform with a stud of the same size and thread call-out (3/8"-16).
RESERVED HOLE FOR ALLEN KEY
Use included allen key to strengthen the locking when the heay-liting needed.
