18650 Battery Spot Welding Color Screen Battery Spot Welder Kit 5000mA 80 Gears
Popular
Product Introduction
Product features:
The power of 80 gears is adjustable, the welding is more accurate and the effect is good. 5000mAh large capacity, longer service time

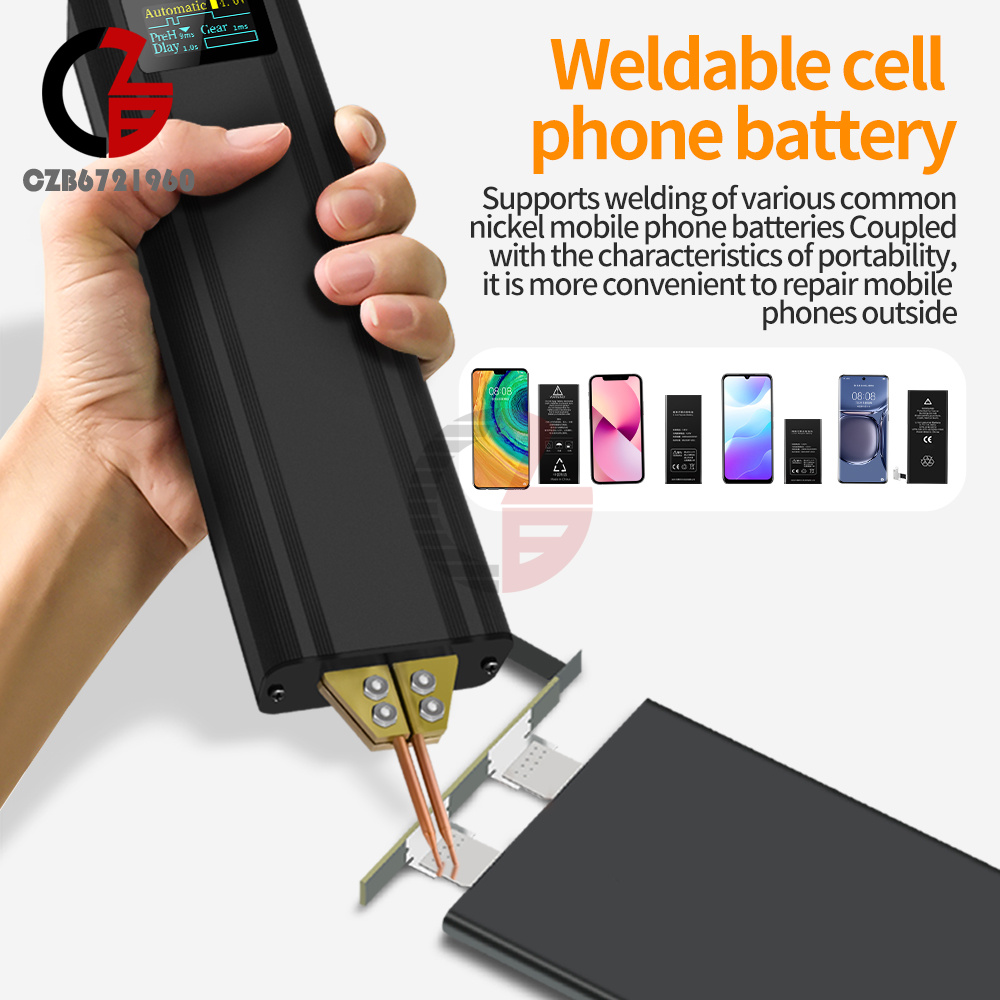

Dual mode optional, automatic and manual switching mode, can weld mobile phone batteries, support welding various common nickel-transfer mobile phone batteries, plus portable features, it is more convenient to repair mobile phones

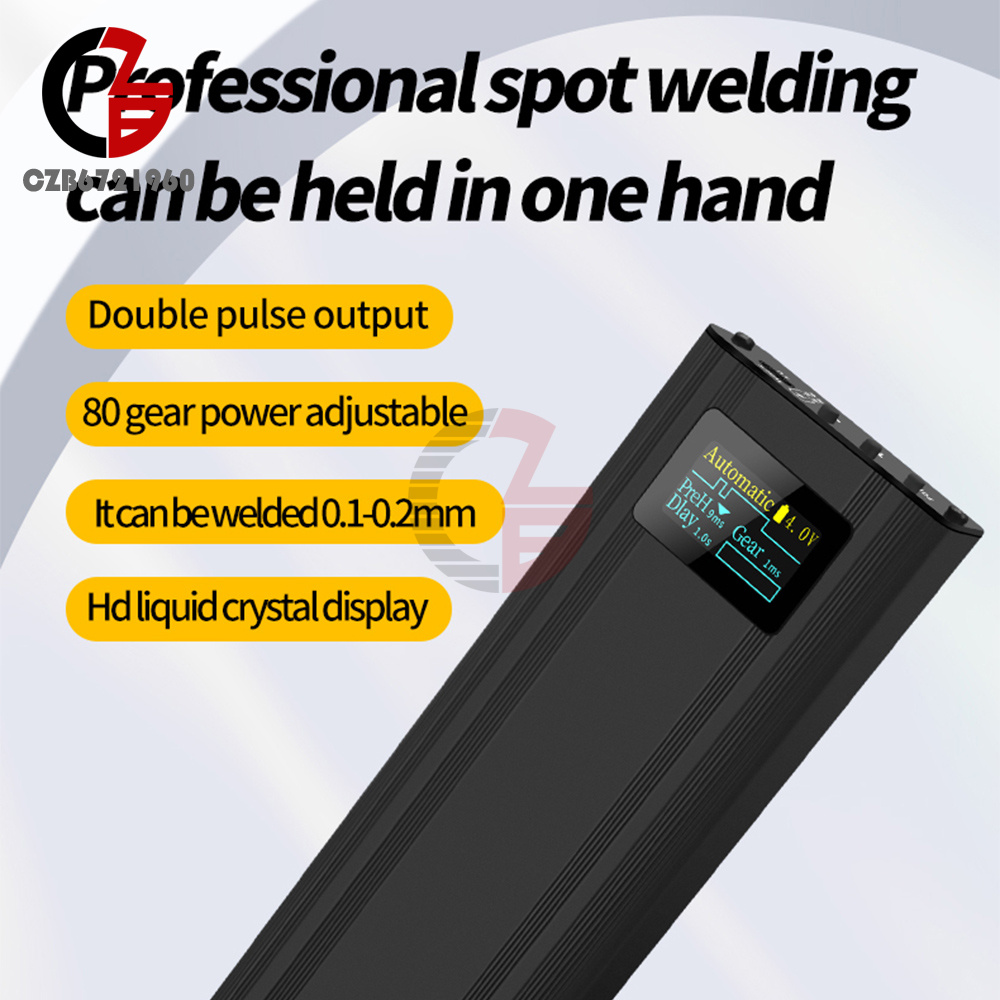

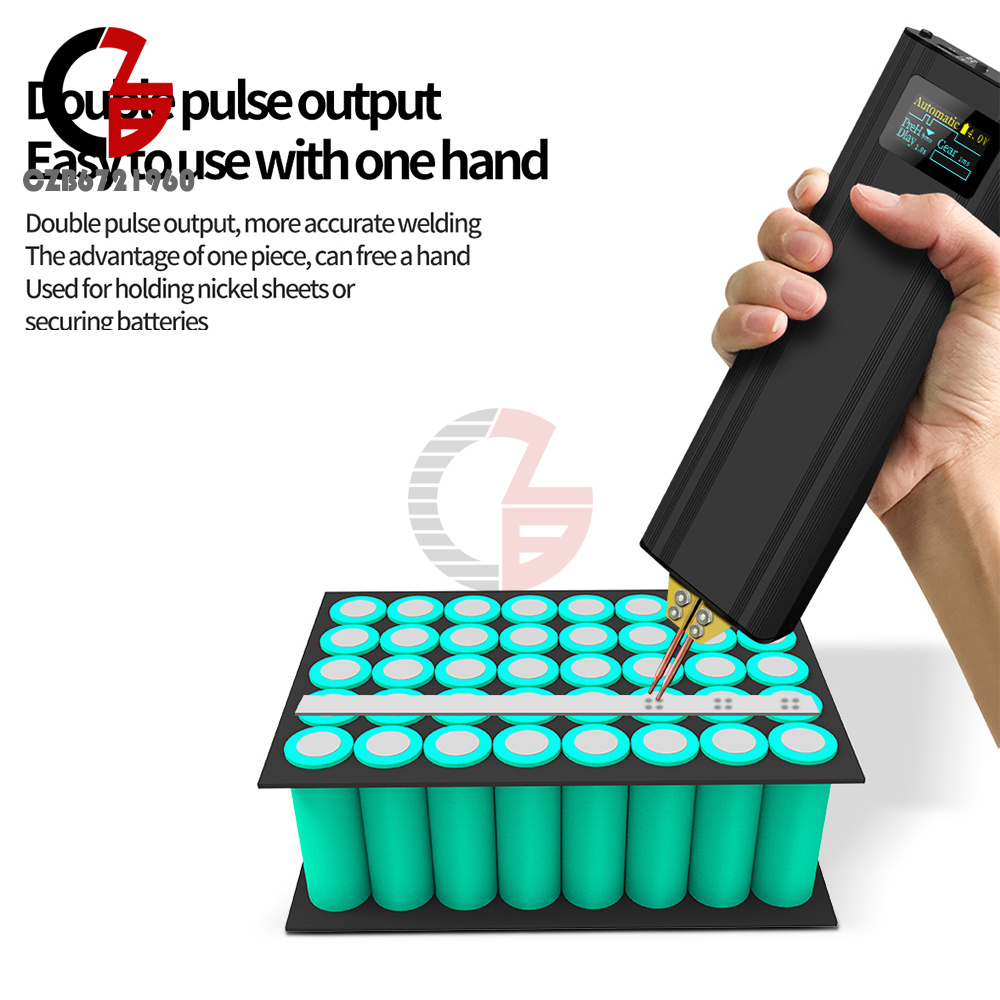

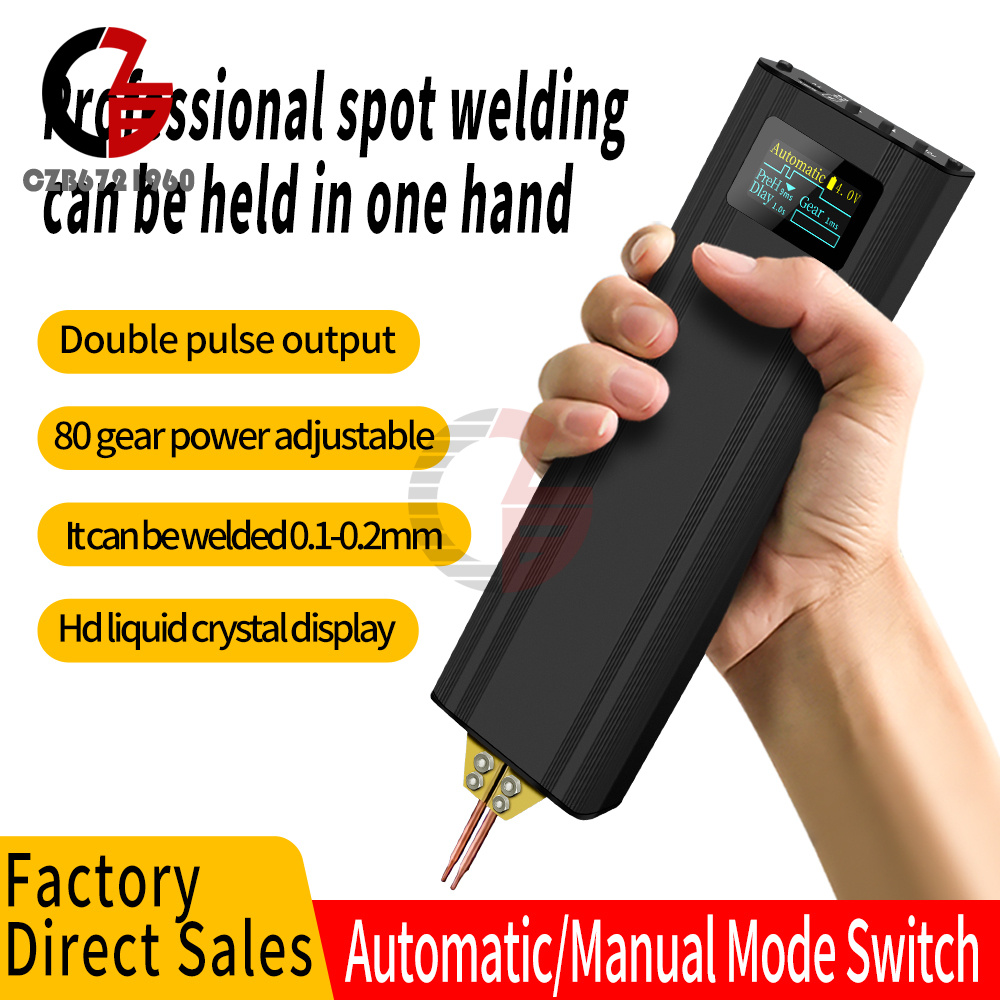

Double-pulse output, more accurate welding, one-hand operation, one-hand grip, convenient operation and use, integrated advantages, can free one hand for holding nickel sheet or fixing battery

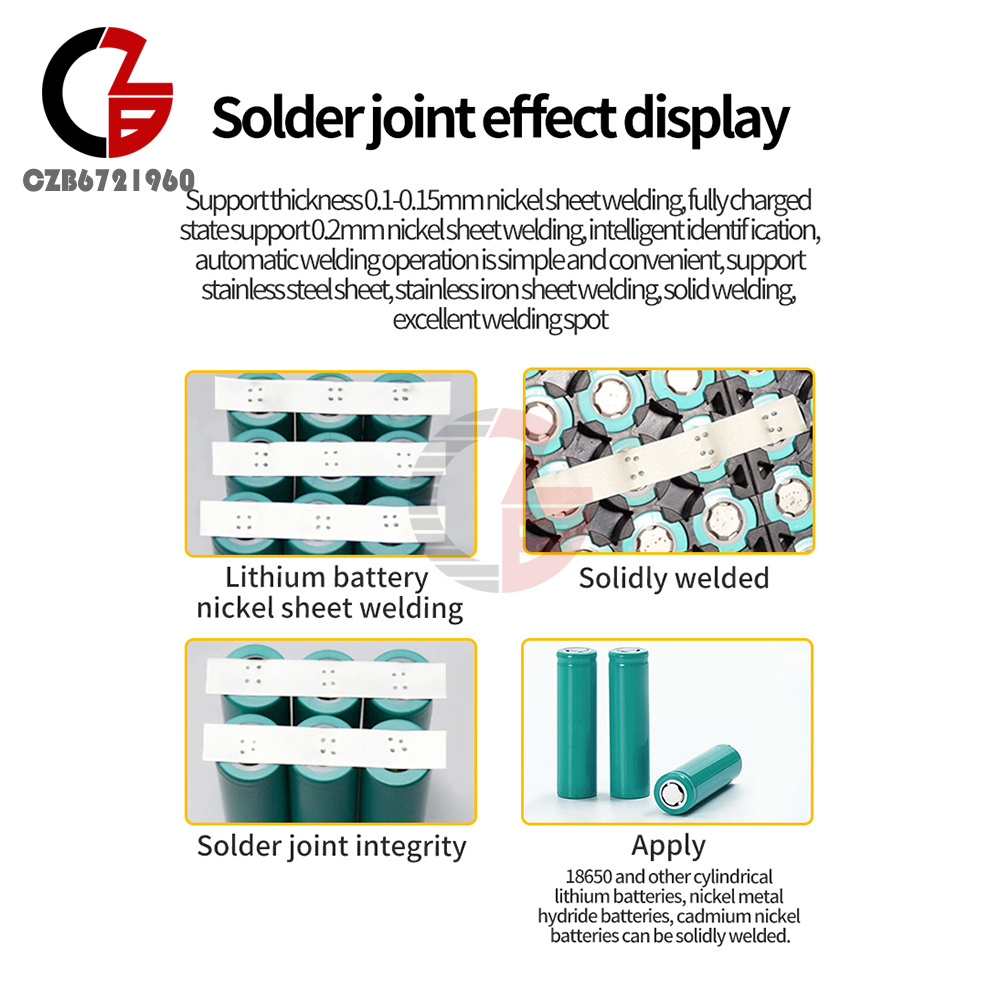

Support the welding of nickel sheet with thickness of 0.1-0.15mm, support the welding of 0.2mm nickel sheet at full power, intelligent identification, automatic welding operation, simple and convenient, support the welding of stainless steel sheet and stainless iron sheet, secure welding, and excellent welding points
HD LCD, power lithium battery, maximum output current up to 1200A
Safety protection, low voltage/overcurrent/overcharge protection, applicable to 18650 and other cylindrical lithium batteries, nickel hydrogen batteries, cadmium nickel batteries, etc., which are firmly welded.

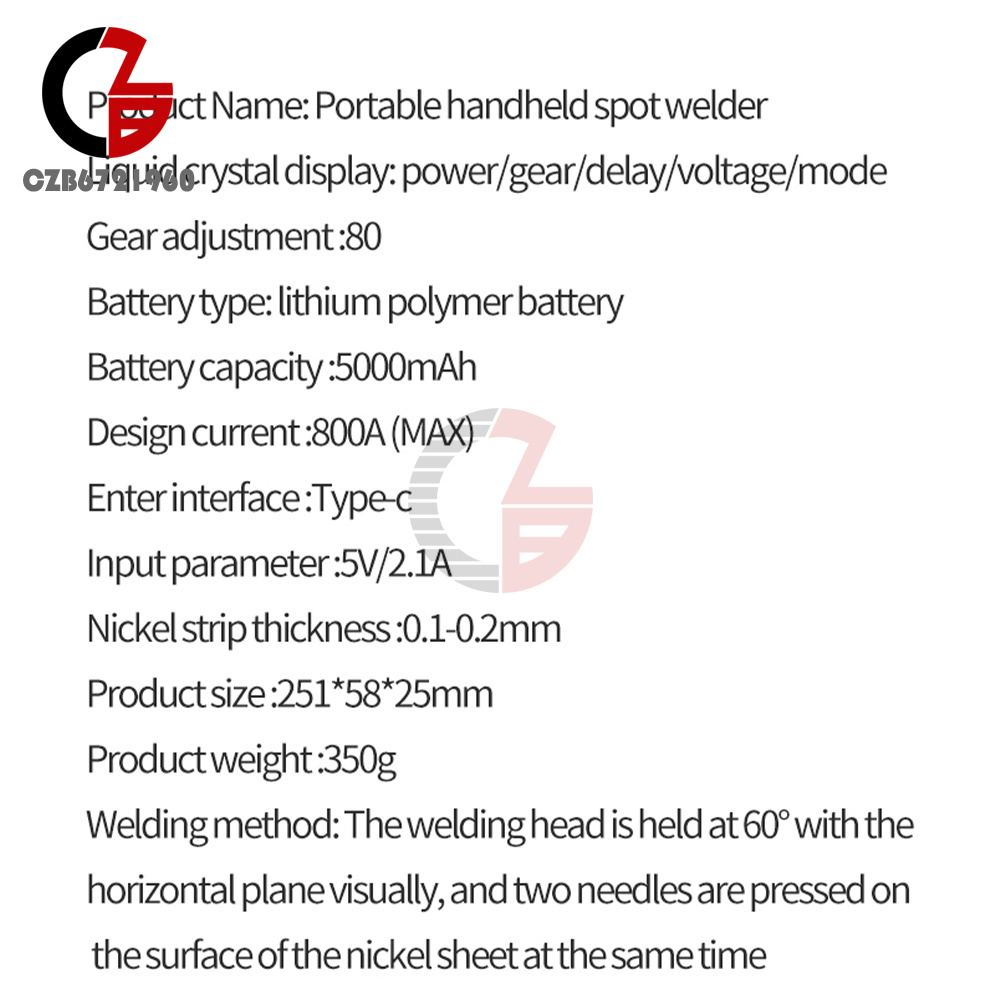

Product parameters:
Name: portable hand-held spot welder

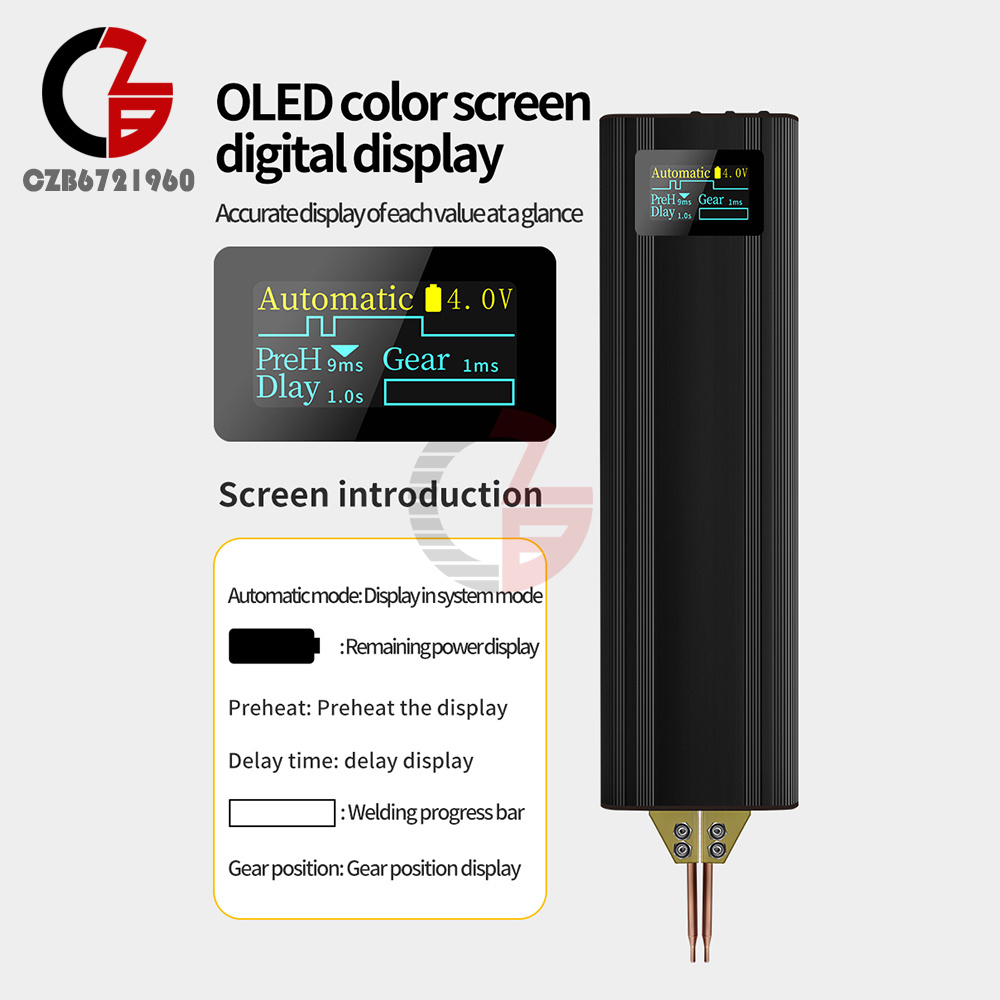

LCD display: power/gear/delay/voltage/mode
Gear adjustment: 80
Battery type: lithium polymer battery
Battery capacity: 5000mAh
Design current: 800A (MAX)

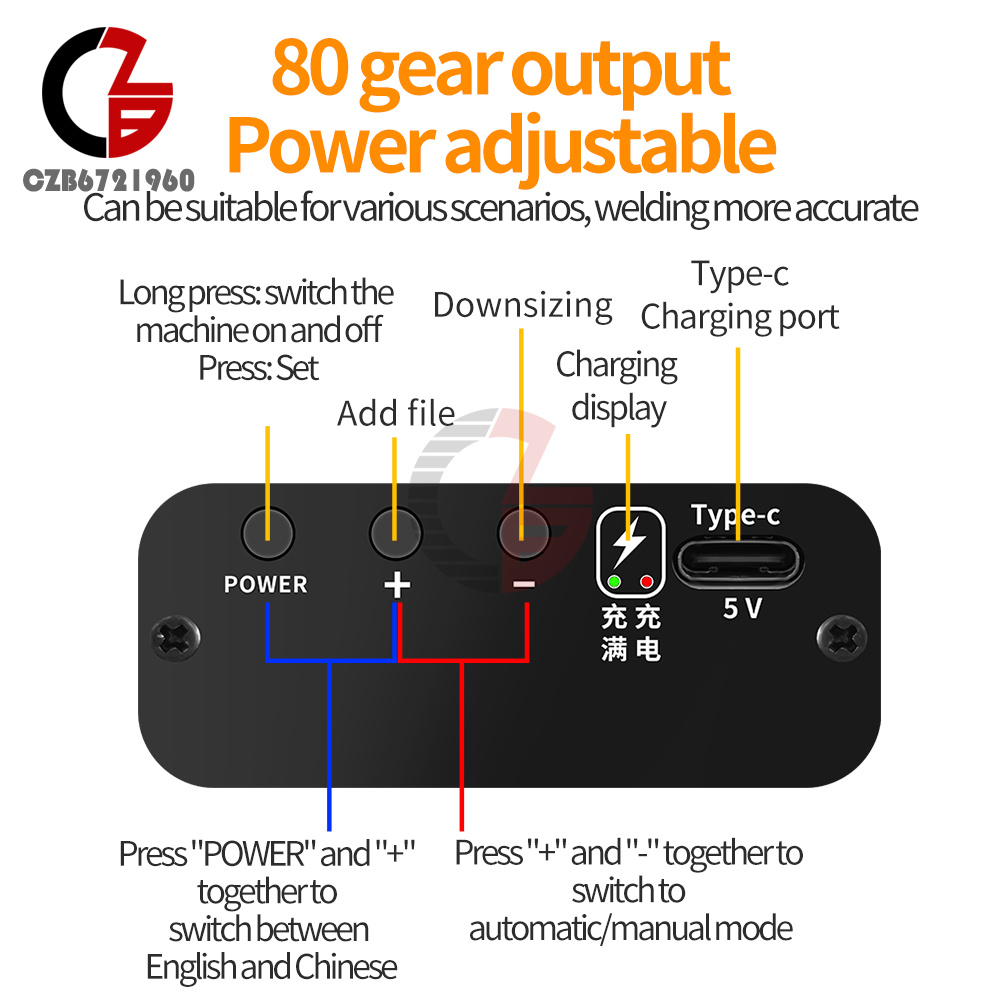

Input interface: Type-c
Input parameter: 5V/2.1A
Nickel strip thickness: 0.1-0.2mm
Product size: 251 * 58 * 25mm
Welding method: Visually weld the head, hold it at 60 ° to the horizontal plane, and press the two needles on the surface of the nickel sheet at the same time

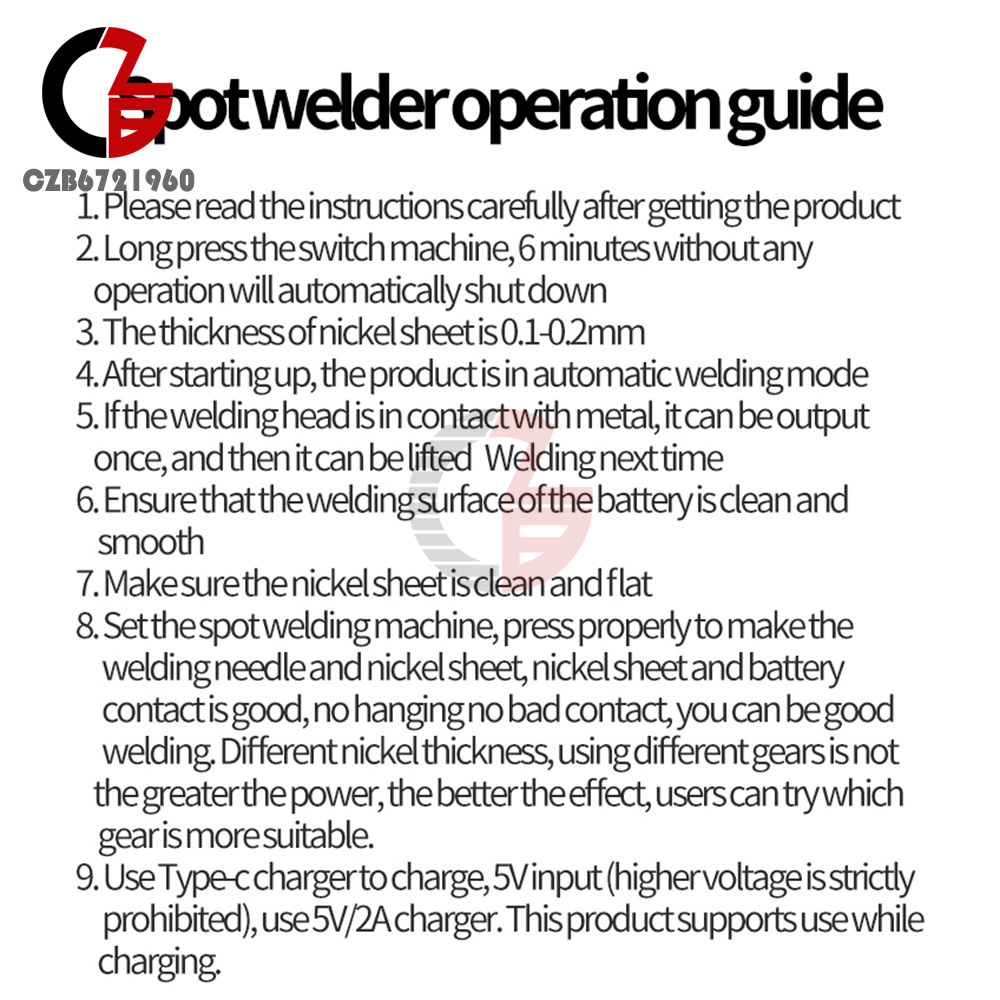

Operation guide for spot welding machine
1. Please read the instructions carefully after receiving the product
2. Press and hold the power on/off button for 6 minutes without any operation, and it will automatically shut down
3. Supported nickel sheet thickness 0.1-0.2mm
4. After startup, the product is in automatic welding mode
5. The welding head can be output once after detecting the contact with metal, and can be welded again after lifting
6. Ensure that the welding surface of the battery is clean and flat without rust
7. Ensure that the nickel sheet is clean and flat
8. Set the spot welding machine and press it properly to make sure that the welding needle and nickel sheet are in good contact with the battery, free from suspension and poor contact. Different nickel plate thicknesses and different gears are not the best. Users can try which gear is more suitable.
9. Type-c charger is used for charging, and 5V/2A charger is used for 5V input (higher voltage is prohibited). This product supports charging while using.

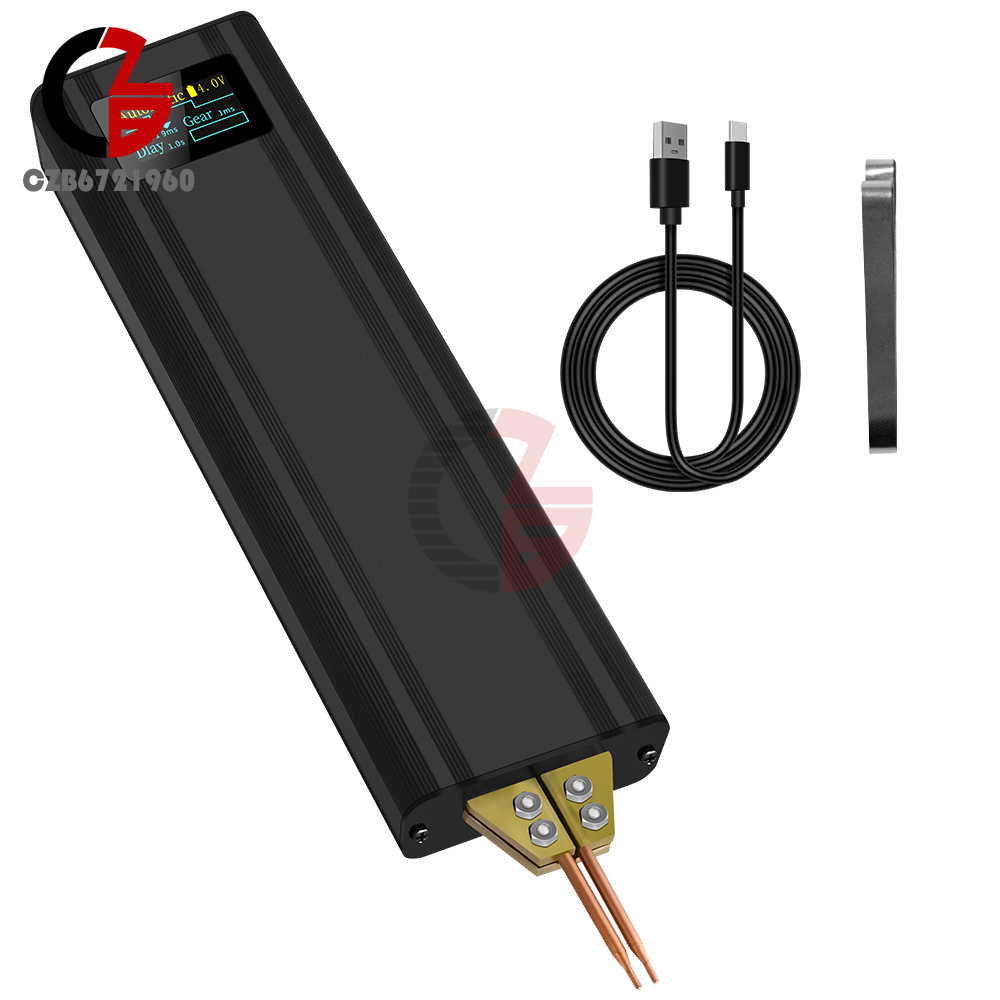

Package list
1* Spot welder
1* Type-c charging cable
1* Nickel sheet
