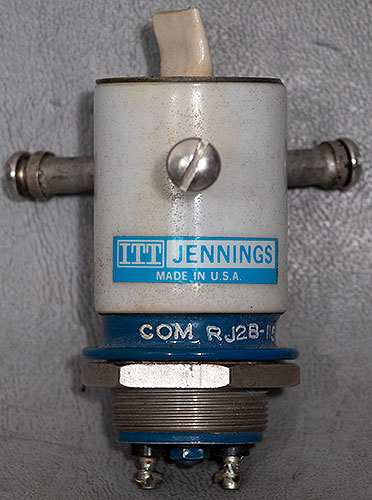

Jennings Technology RJ2B-115N922 SPDT Vacuum Relay
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Jennings and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
I don't know what the numbers & letters mean after the 115 in the part number. The 115 is the coil voltage of 115 VDC and I believe the N922 is a special type of material and configuration of the leads with threaded contacts and a threaded base. Quantity available, only 1 sold in the auction. These were pulled out of an MRC RF Sputtering System that had to be scrapped due to contract obligations.
Specifications:
Test Voltage, 60 Hz: 15 kV Peak
Rated Operating Voltage:
DC or 60 Hz: 12 kV Peak
2.5 MHz: 10 kV Peak
16 MHz: 8 kV Peak
32 MHz: 6 kV Peak
Continuous Current, Carry:
DC or 60 Hz: 50 A RMS
2.5 MHz: 30 A RMS
16 MHz: 17 A RMS
32 MHz: 10 A RMS
Contact Capacitance:
Between Open Contacts: .5 pF
Open Contacts to Ground: 1.0 pF
Contact Resistance: 12 mΩ
Operate Time: 18 ms. Max.
Release Time: 9 ms. Max.
Shock (1/2 Sine 11 ms.): 50 g Peak
Vibration (55-500 Hz): 10 g Peak
Exected Mechanical Life: 0.5 x 106
Weight: 3 oz (85 g) max.
Coil Data:
Voltage: 115 VDC
Resistance: 3700 Ω ±10%
