SDZ-III,SDZ-II,SDZ-IIA,SDZ-IIB Hwato Electro Acupuncture Stimulator Machine
Description
If you do not know how to using the machine after receive it, please contact us, we will offer you more instruction.

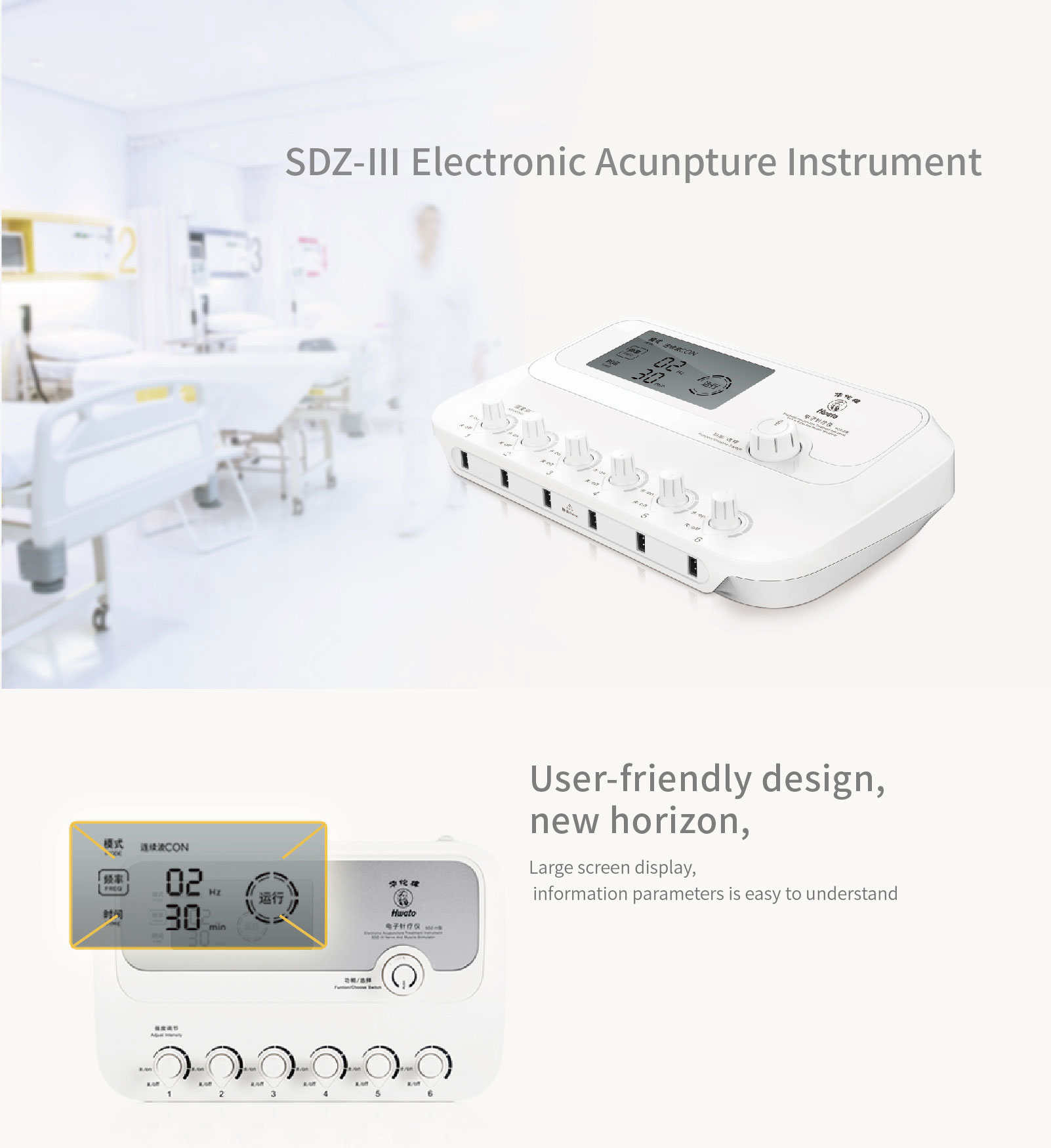

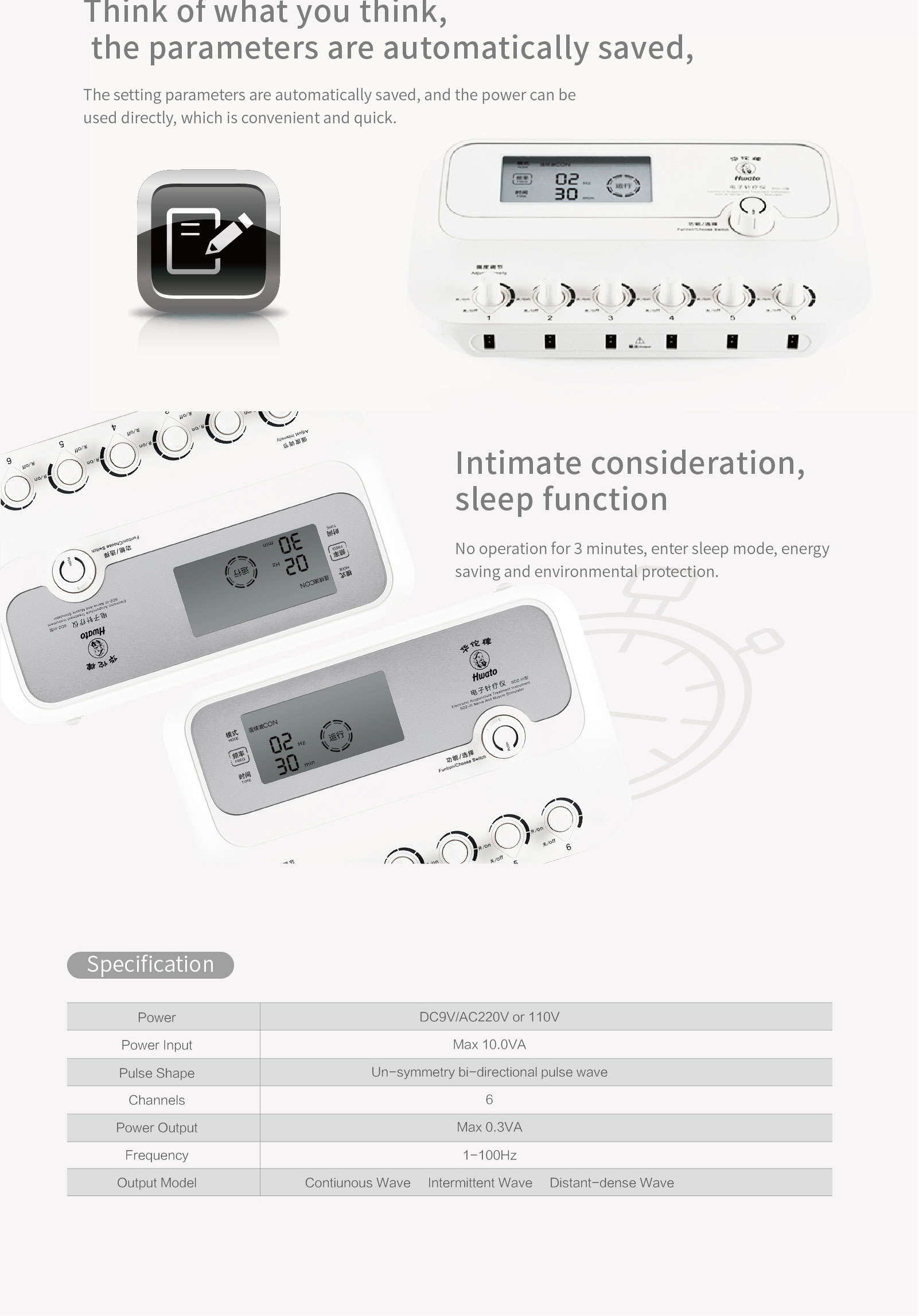

SDZ-III
Product introduction:
Electronic acupuncture instrument (SDZ - III) is using electronic technology combined with traditional Chinese medicine acupuncture meridian theory of electronic acupuncture tip therapy instrument, is SDZ - II on the basis of retrofit upgrade products.
Use scope:
Electronic ZhenLiaoYi (SDZ - III) for the human body acupuncture point for low frequency electric pulse treatment, apply to the waist sour backache, nerve paralysis, muscle aches pains, auxiliary treatment of paralysis.
Product upgrade function:
1, large screen display: check the parameter information more intuitive, accurate, mode, frequency, time, the information such as output state be clear at a glance.

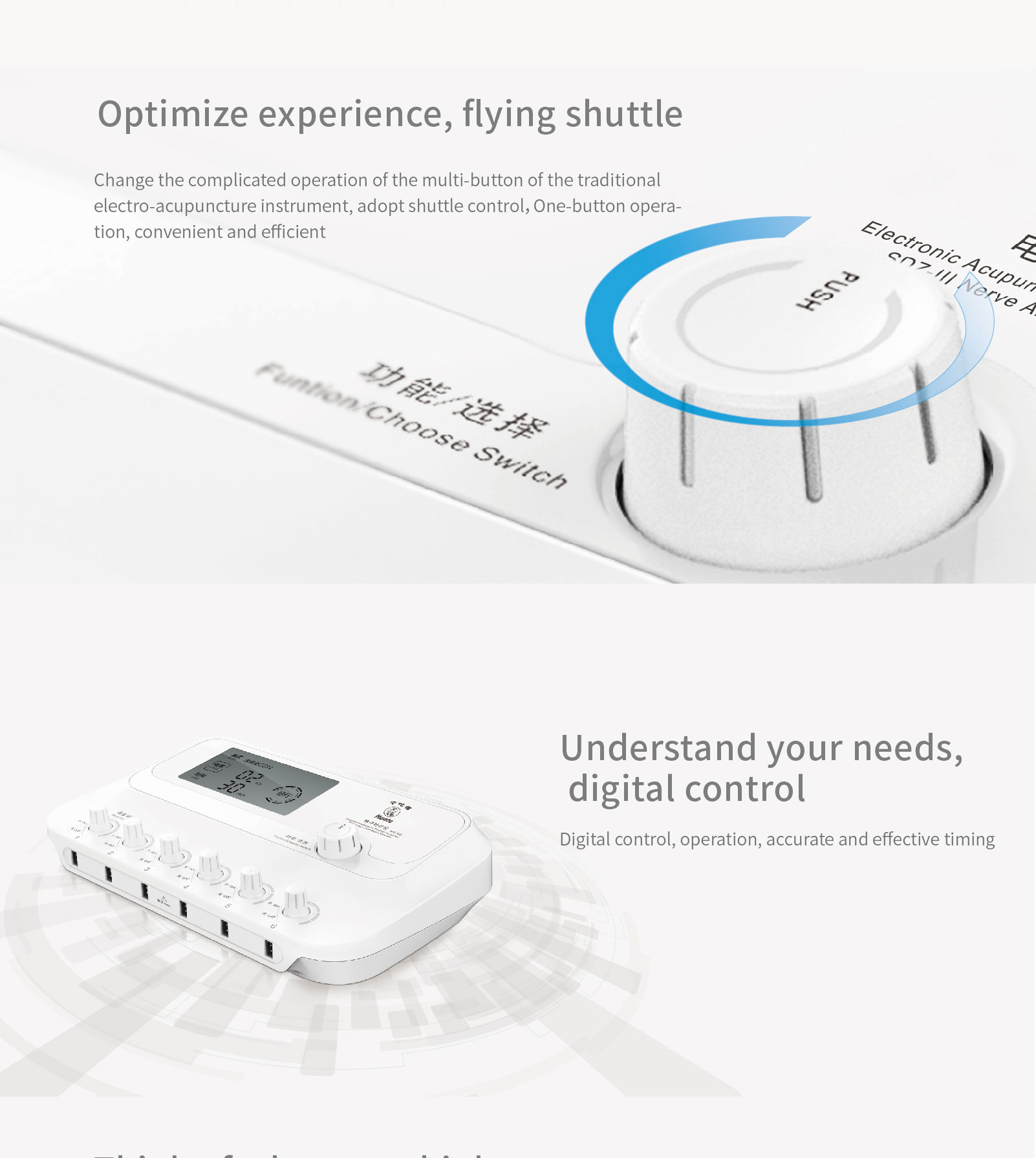

2, operation more convenient, flexible:
mode button, frequency knob, time knobs are integrated into one key, the operating interface is simple, it is more convenient to use.
3, boot from Settings, directly open the treatment:
Instrument after startup, output channel is closed, long press shuttle 3 seconds, restore the default parameters automatically.
4, parameters memory function:
Automatically save the last treatment parameters, boot can directly open to treat next time.
5, the sleep function, the use of more economy：
Through the sleep function, can save 25% of the electricity, instrument after startup, output channel is closed, more than 3 minutes without any operation, the instrument will automatically enter the sleep state, the LCD screen automatically extinguished.Operate shuttle key can awaken the instrument, the LCD screen light up automatically.
Products include:
The host * 1
Output wire * 6
Tip electrode metal clip * 6 pair
Skin electrodes * 6 pairs
The power adapter * 1
Manual * 1
Technical parameters:
1, the power supply: the internal power supply DC9V, power adapter input, 220 v / 50 hz output DC9V / 150 ma
2, the input power: 10.0 VA
3, the output pulse shape, asymmetric bidirectional pulse wave
4, the output pulse way: output
5, the maximum pulse power: 0.3 VA (250 Ω load)
6, the output pulse frequency: 1 ~ 100 hz is adjustable
Working pattern:
Continuous wave work modes: continuous
Discontinuous wave work modes: 15 s, 5 s
Dilatational wave work mode: thin wave frequency and the ratio of the dense wave frequency is 1:5, thin wave 5 s work, 10 s
Output current limit: less than or equal to 10 ma, 250 Ω load)
Output dc component: 0
Size: 210 mm * 100 mm * 300 mm
Weight: 1.5 kg

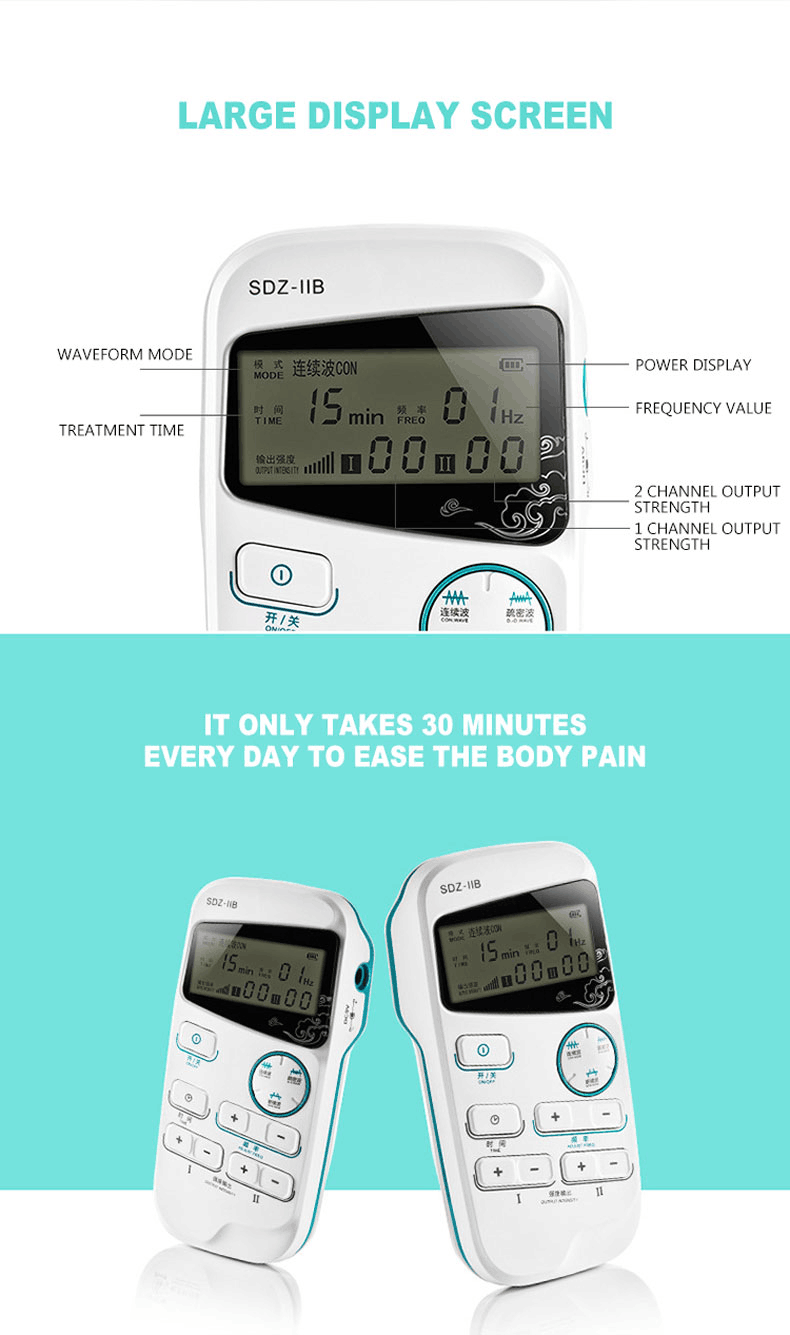

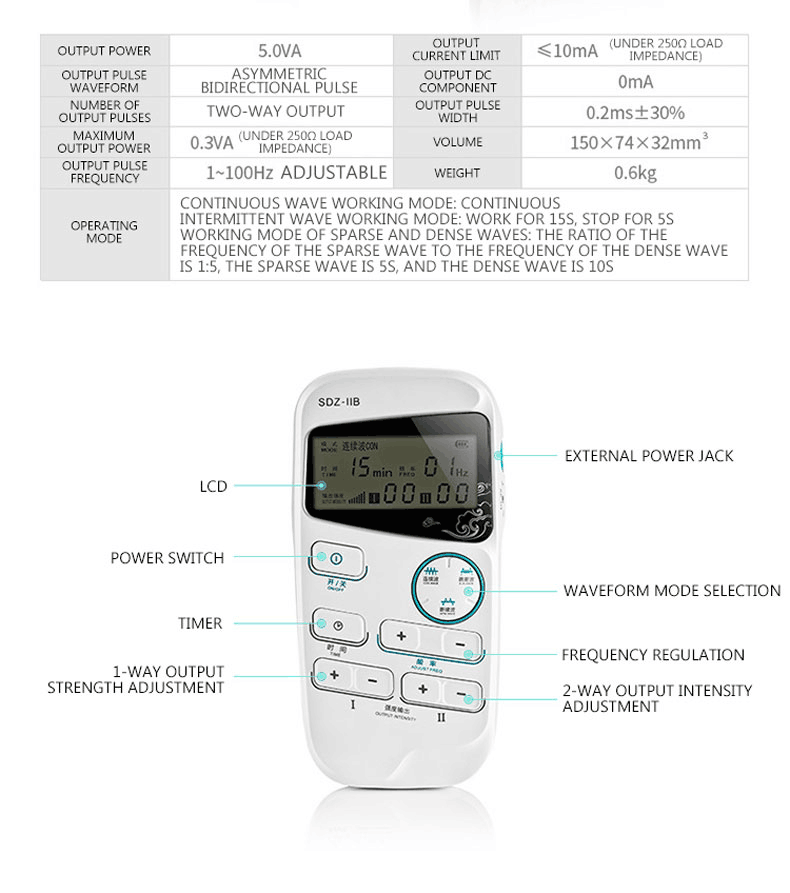

SDZ-IIB
Features
*Brand new product with novel and modern appearance
*2 output channels
*New circuitry, no cross over, no interference
*Continuous, intermit, and dense-disperse (modulated) waveforms
*Adjustable frequency: 1-100Hz
*Durable alligator clip wires
*Timer: 0-60 minutes
*Output safety alert-all outputs must be turned off before powering on the unit.
Technical specs:
*Output pulse amplitude: 0-50V (on 500 ohm load). Adjustable
*Pulse frequency
continuous wave - 1-100 Hz Adjustable,
Intermittent wave: continuous wave frequency adjustable in 1-100Hz. Break-wave time is 5 seconds, continuous wave time is 15
seconds,
Dense-clieperse wave spacing wave frequency is of density frequency, Density wave frequency adjustable in 5 - 100Hz.
*Pulse width: 1ms
*Pulse wave un-smmetry two-direction pulse wave
*Wave form: adjustable, dense-disperse, and intermittent
*Power source: DC 9V, or A/C adapter
Accessories:
2 connecting pin lead wires.
2 pairs alligator clips to connect to the pin lead wires.
2 pairs self-adhesive electrodes to connect to to the pin lead wire.
1 instruction manual.
*Brand new product with novel and modern appearance
*2 output channels
*New circuitry, no cross over, no interference
*Continuous, intermit, and dense-disperse (modulated) waveforms
*Adjustable frequency: 1-100Hz
*Durable alligator clip wires
*Timer: 0-60 minutes
*Output safety alert-all outputs must be turned off before powering on the unit.
Technical specs:
*Output pulse amplitude: 0-50V (on 500 ohm load). Adjustable
*Pulse frequency
continuous wave - 1-100 Hz Adjustable,
Intermittent wave: continuous wave frequency adjustable in 1-100Hz. Break-wave time is 5 seconds, continuous wave time is 15
seconds,
Dense-clieperse wave spacing wave frequency is of density frequency, Density wave frequency adjustable in 5 - 100Hz.
*Pulse width: 1ms
*Pulse wave un-smmetry two-direction pulse wave
*Wave form: adjustable, dense-disperse, and intermittent
*Power source: DC 9V, or A/C adapter
Accessories:
2 connecting pin lead wires.
2 pairs alligator clips to connect to the pin lead wires.
2 pairs self-adhesive electrodes to connect to to the pin lead wire.
1 instruction manual.

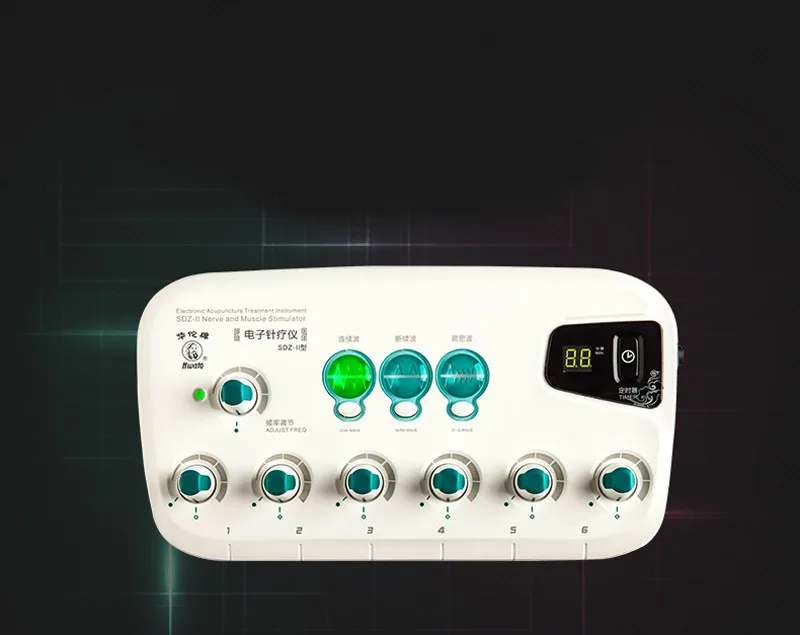

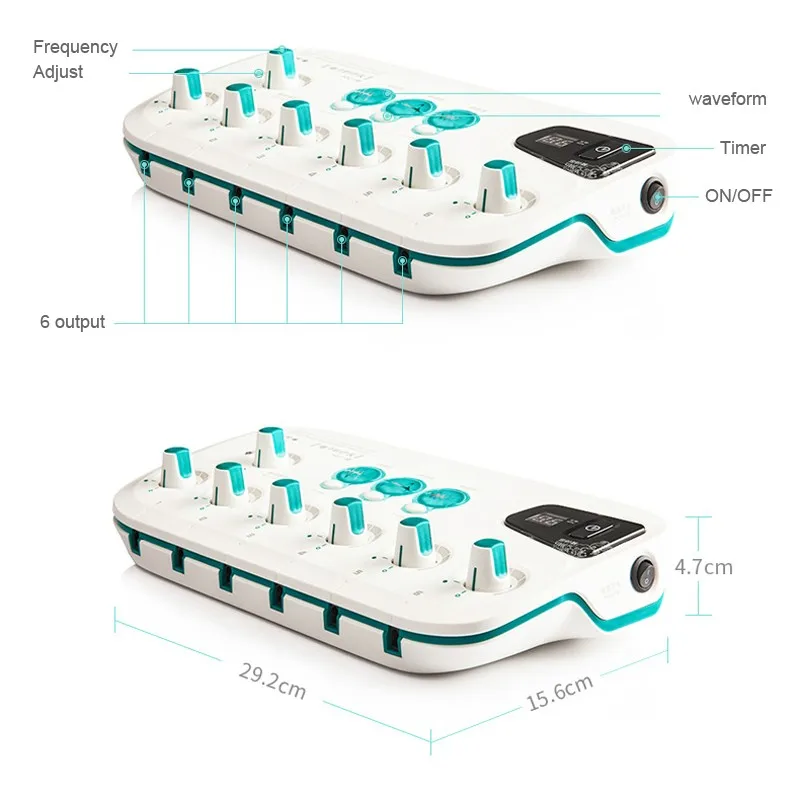

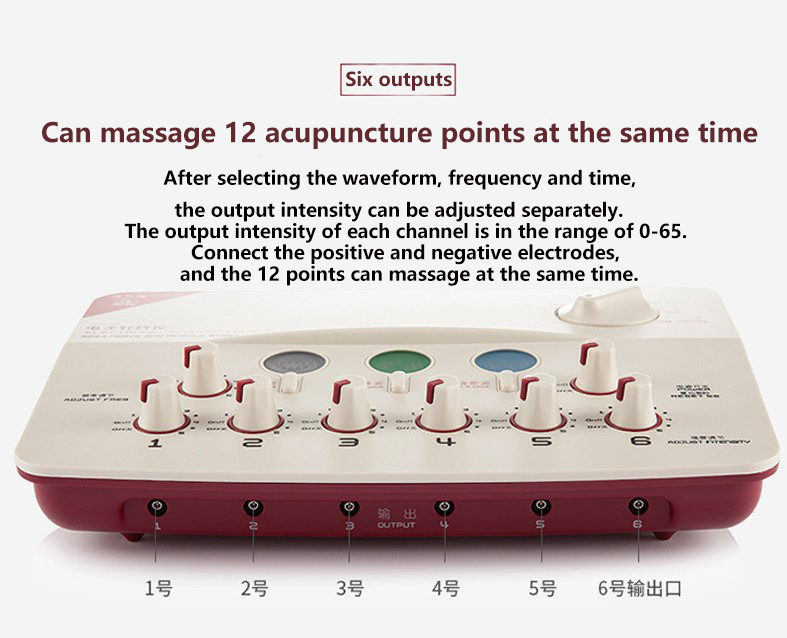

SDZ-II
Main Functions:
Replacement of hand massage
Acupuncture therapy
Six route output
Multi-pulse wave frequency LCD
Auto-timing Switch
Battery for operation
Replacement of hand massage
Acupuncture therapy
Six route output
Multi-pulse wave frequency LCD
Auto-timing Switch
Battery for operation

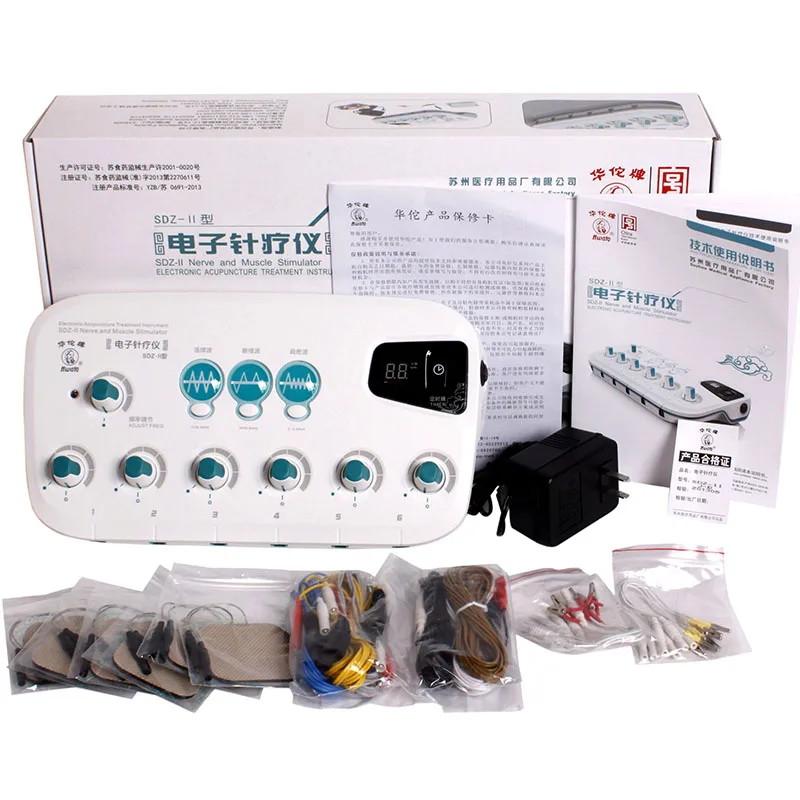

Accessories:
Six pieces of output electrode wires
One user manual
One certificate of product quality conformity
One AC adapter: Input: AC220V/110V (Output:DC9V±%)]
Six pieces of output electrode wires
One user manual
One certificate of product quality conformity
One AC adapter: Input: AC220V/110V (Output:DC9V±%)]
Functions
1. Improve the sleep quality
2. Eliminating physical fatigue caused by long-time work
3. Cleaning meridian relaxing muscles and joints
4. Pain relief enhance human immunity
5. Stay away from the sub-health
6. Enhancing circulation system of body
1. Improve the sleep quality
2. Eliminating physical fatigue caused by long-time work
3. Cleaning meridian relaxing muscles and joints
4. Pain relief enhance human immunity
5. Stay away from the sub-health
6. Enhancing circulation system of body
Techinical Data
1. Output Pulse wave: unsymmetrical dual directional pulse wave including continuous, discontinuous and uneven waves.
1. Output Pulse wave: unsymmetrical dual directional pulse wave including continuous, discontinuous and uneven waves.
2. Output pulse channels: 6 channels
3. Output Pulse Frequency:
Continuous Wave: 1-100Hz continuously adjustable.
Continuous Wave: 1-100Hz continuously adjustable.
Discontinuous Wave:continuous frequency 1-100Hz continuously adjustable.
Cutout wave duration:10 seconds, Continuous wave duration:30 seconds
Uneven Wave:Loose wave frequency is 1/5 of dense wave, Dense wave frequency:5-100Hz adjustable, loose wave duration is 10 seconds, dense wave dyration is 15 seconds
4. Output Pulse Breadth:0-50V adjustable(load 500Ω)
5. Output PulseWidth: 0.2ms
6. Power: DC9V
SDZ-II
Product synopsis:
1,Low through the eu CE certification and German TUV PS ISO9002, EN46002 quality system certification.
2,When a variety of waveform, intuitive is strong.
3,Six Way output, automatic timing.
4,Low external regulated power supply, for a variety of purposes.
Technical characteristics:
1, percutaneous electrical stimulation
2, electroacupuncture
3, frequency of ground hole (mainly for the points) :
A.the continuous wave: 1-100 hz, and 2 adjustable density wave of hydrophobic wave frequency is approximately a third of the dense wave frequency goes: output:
B. test point: all the way (output jack B) power supply: dc 9 v or external dc 9 v power consumption: less than or equal to 0.3 watts.
Hua tuo card SDZ - type II electronic needle therapy instrument is widely used in: Clinical inside and outside, gynecology, dermatology, ophthalmology, surgery, orthopedics, such as disease hundreds kinds of each system, especially for the week of common diseases such as migraine, trigeminal neuralgia, facial nerve palsy, sciatica, toothache, scapulohumeral periarthritis, tennis elbow, contusion, muscle strain, acute stomach pain, menstrual cramps, constipation, diarrhea, renal colic, biliary colic, acute appendicitis, acute tonsillitis, banded blister all have remarkable curative effect.
Technical parameters:
A, Low output pulse waveform: asymmetric two-way pulse, continuous wave, discontinuous wave and the dilatational wave
B, Low output pulse way: output
C, Low output pulse frequency:
1. Continuous wave: 1-100 hz frequency adjustable
2. The discontinuous wave: 1-100 hz continuous wave frequency adjustable, breaking wave time is 5 seconds, wave time for 15 seconds
3. The density wave: thin wave frequency is 1/5 of the dense wave frequency, dense wave frequency is 5-100 hz is adjustable, sparse wave time is 5 seconds, dense wave time for 10 seconds, the output pulse frequency allowed error of 15%
Low output current limit is not more than 50 ma (500 load)
Low output pulse width is not more than 0.175 ms
Low power output is less than 3.5 W
Low supply voltage: DC9V
Low volume: 348 mm * 222 mm * 93 mm
Low weight: 1.5 KG
Low power: input, 220 v / 50 hz output DC9V / 150 ma
Products include:
The host * 1
Output wire * 6
Needle electrode metal clip * 6 pair
Skin electrodes * 6 pairs
The power adapter * 1Manual * 1
