BSPT Hosetail - 316 Stainless Steel

150lb Hose Tail Fitting | ISO 4144 | 20 Bar | Multiple Sizes

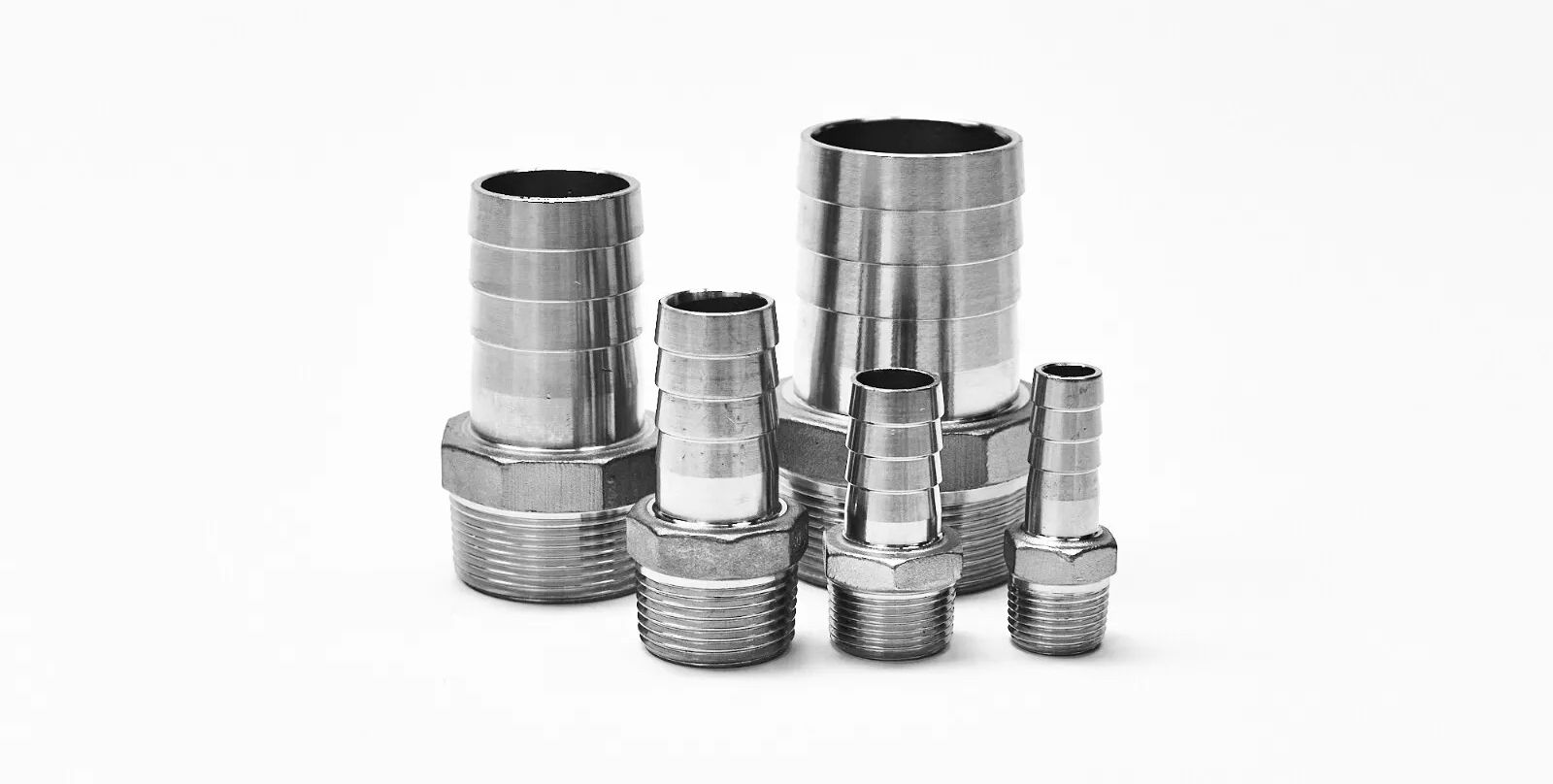

BSPT Hosetail 316 Stainless Steel Hose Fitting

Product Overview

This high-quality BSPT hosetail fitting provides a secure connection between a hose and a male BSPT threaded pipe system. Manufactured from corrosion-resistant 316 (CF8M) stainless steel and conforming to ISO 4144, it is designed for reliability in industrial, plumbing, and marine applications. The barbed hosetail ensures a tight grip on the hose (use with appropriate clamp recommended), while the BSPT thread (ISO 7-1) provides a standard tapered connection. Rated for 150lb class and up to 20 bar (300 psi) working pressure.

Note on Sizing: Select the size where the 'Hosetail Size' matches your hose's internal diameter (ID) and the 'BSPT Male Thread' matches your pipe connection thread size. See guide below for details.

BSPT hosetail, hose tail fitting, stainless steel hosetail, 316 hosetail, hose barb fitting, male hose tail, threaded hose connector, ISO 4144 hosetail, 150lb hosetail, 20 bar hose fitting, 300 psi hose tail, CF8M hosetail, stainless hose fittings UK, hose adapter BSPT, water hose fitting, oil hose connector, chemical hose fitting, marine grade hosetail, brewery hose fitting, food grade hose tail compatible, male threaded hose barb, barbed hose connector, hose pipe fitting, Air System Controls fittings UK. Size variations: 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4 inch hosetail / BSPT thread.

Key Features

  • Premium 316 Stainless Steel: Offers excellent corrosion resistance, suitable for harsh environments and various fluids.
  • Secure Hose Connection: Barbed hosetail design provides a strong grip on compatible hoses (clamping recommended).
  • BSPT Male Thread: Standard tapered thread (ISO 7-1) for reliable connection to female ports.
  • High Pressure Rating: 150lb class, suitable for working pressures up to 20 bar (300 psi).
  • ISO 4144 Compliant: Manufactured to international standards for quality and dimensions.
  • Versatile Application: Suitable for water, oil, gas, chemicals (check compatibility), and use in industrial, marine, and plumbing systems.

Product Specifications

  • Product Type: Hosetail / Hose Barb Fitting (Male Threaded)
  • Material: Stainless Steel Grade 316 (CF8M Casting Grade)
  • Thread Type: BSPT Male Taper Threads (conforming to ISO 7-1 & ISO 228-1)
  • Pressure Class: 150lb / 150#
  • Maximum Working Pressure: 20 bar / 300 psi (Subject to temperature derating)
  • Manufacturing Standard: Conforms to ISO 4144
  • Available Size Combinations: See 'Sizes Available' section
  • NPT Option: Available upon request (conforming to ANSI B2.1)

Sizes Available

Listed as: Hosetail Size (Hose ID) × BSPT Male Thread Size

  • 1/8" (3.5mm) Hosetail × 1/8" BSPT Male
  • 3/16" (5mm) Hosetail × 1/8" BSPT Male
  • 1/4" (6.35mm) Hosetail × 1/4" BSPT Male
  • 5/16" (8.00mm) Hosetail × 1/4" BSPT Male
  • 3/8" (9.53mm) Hosetail × 3/8" BSPT Male
  • 1/2" (12.7mm) Hosetail × 1/2" BSPT Male
  • 5/8" (16mm) Hosetail × 1/2" BSPT Male
  • 3/4" (19.05mm) Hosetail × 3/4" BSPT Male
  • 1" (25.4mm) Hosetail × 1" BSPT Male
  • 1-1/4" (31.75mm) Hosetail × 1-1/4" BSPT Male
  • 1-1/2" (38.1mm) Hosetail × 1-1/2" BSPT Male
  • 2" (50.8mm) Hosetail × 2" BSPT Male
  • 2-1/2" (63.5mm) Hosetail × 2-1/2" BSPT Male
  • 3" (76.2mm) Hosetail × 3" BSPT Male
  • 4" (101.6mm) Hosetail × 4" BSPT Male

How to Select the Right Size

  • Measure the Internal Diameter (ID) of your hose. Match this to the 'Hosetail Size' listed (e.g., 1/2" ID hose requires a 1/2" hosetail).
  • Identify the required Male BSPT thread size for connecting to your pipe system or equipment port.
  • Example: For a 1/2" ID hose connecting to a 1/2" BSP female port, select the "1/2" (12.7mm) Hosetail × 1/2" BSPT Male" option.
  • Note: Some fittings combine different hose and thread sizes (e.g., 5/8" hosetail × 1/2" BSPT). Choose based on your specific requirements. Always use a suitable hose clamp for a secure connection.

Common Applications

  • Connecting flexible hoses to rigid pipework
  • Industrial fluid transfer lines (water, oil, fuel, compatible chemicals)
  • Marine plumbing and fluid systems
  • Agricultural spraying and irrigation equipment
  • Brewery and food processing transfer lines (ensure material compatibility)
  • Compressed air hose connections (check pressure suitability)
  • General plumbing and hydraulic systems

Technical Dimensions

Technical Drawing for BSPT Hosetail Dimensions

Dimensional Reference (mm): A = Hex Width, B = Overall Length, C = Hosetail OD, D = Hosetail Length

Hosetail Size Thread (BSPT) A B C D Weight (kg)
1/8" 1/8" 13.9 34.9 3.5 20 0.02
3/16" 1/8" 13.9 40 5 25 0.03
1/4" 1/4" 15 38 6.3 20 0.03
5/16" 1/4" 14.5 47.2 8 29.2 0.03
3/8" 3/8" 19 51.5 9.53 32 0.06
1/2" 1/2" 23.2 63 12.7 38.5 0.06
5/8" 1/2" 23.2 63 16 38.8 0.06
3/4" 3/4" 29 66 19.05 38 0.10
1" 1" 34.8 71 25.4 42.2 0.21
1-1/4" 1-1/4" 45 77.8 31.8 46 0.25
1-1/2" 1-1/2" 50 89.5 38.1 55 0.38
2" 2" 61.3 96.2 50.8 59.5 0.61
2-1/2" 2-1/2" 78.5 116.5 63.5 72 0.93
3" 3" 93.5 128 76.2 80.6 1.39
4" 4" 118.5 138 101.6 84 2.23

Pressure-Temperature Rating (316 SS / 150lb Class)

Temperature (°C) No-Shock Maximum Working Pressure (Bar)
-20 to 4020
10016.5
15015
20014
22013.5

Note 1: Pressure for intermediate temperatures may be determined by the interpolation method.

Note 2: Temperatures indicated are those of the internal fluid.

Note 3: Piping loads, stresses, and moments are not taken into account in these ratings. Hose compatibility and clamping method may limit the actual safe working pressure.
