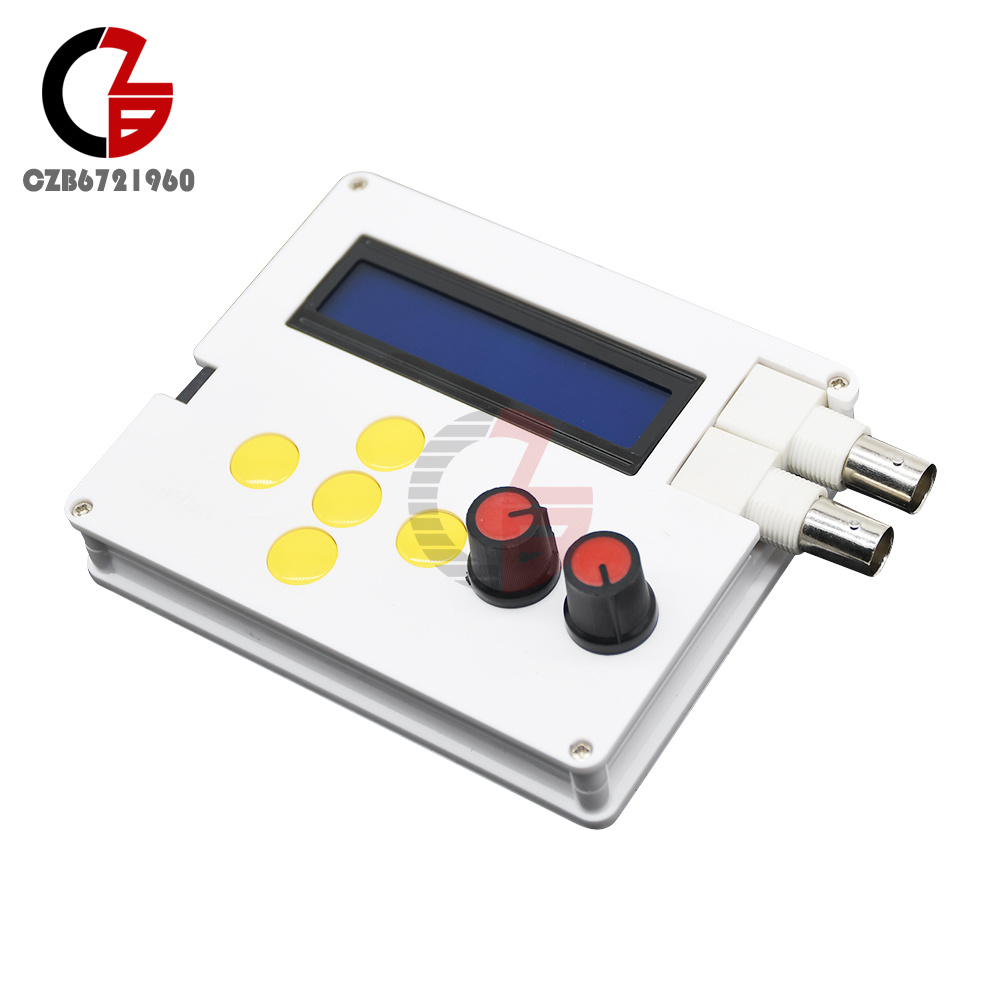

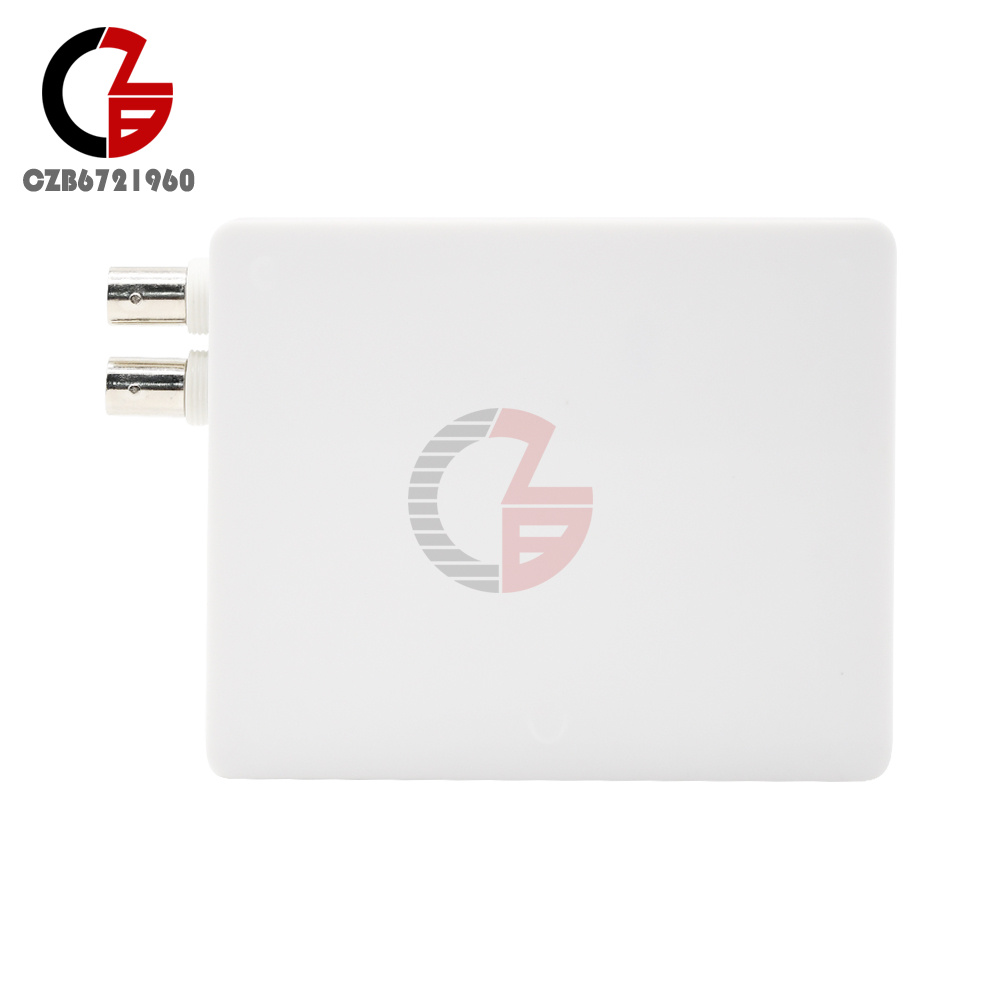

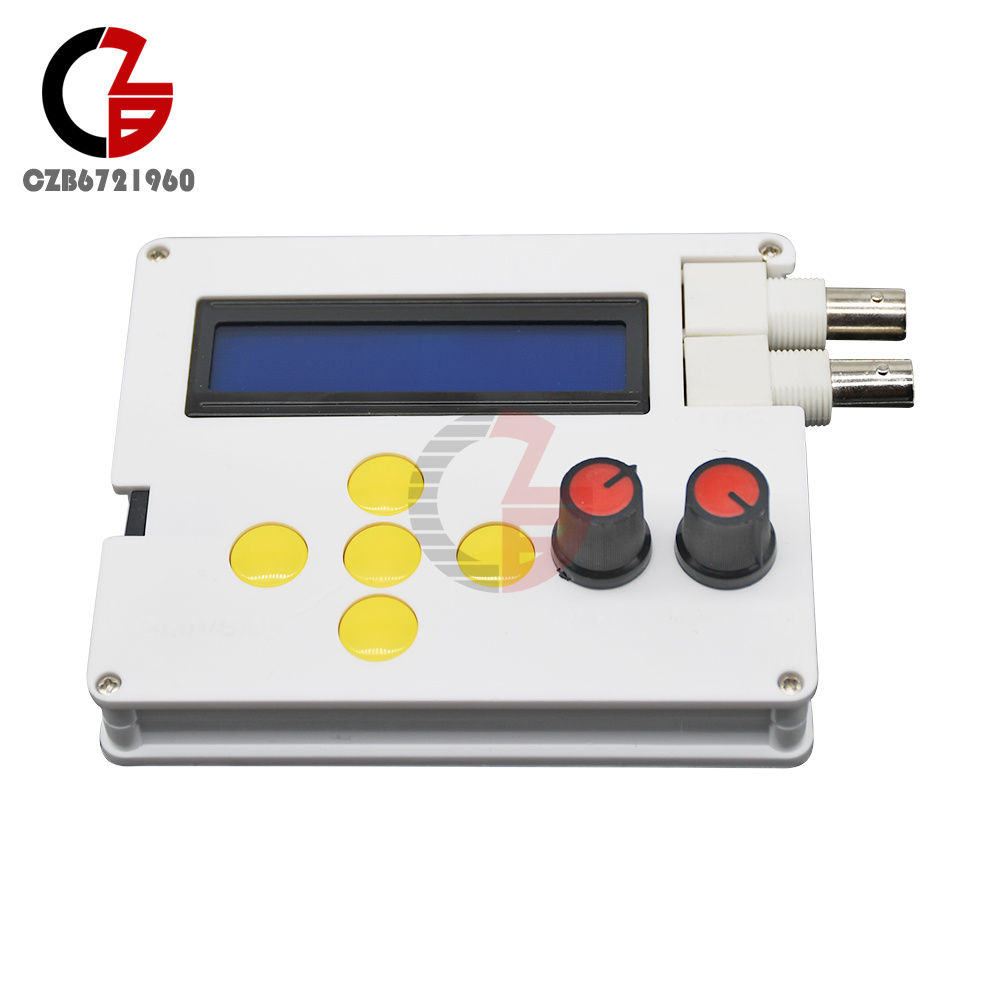

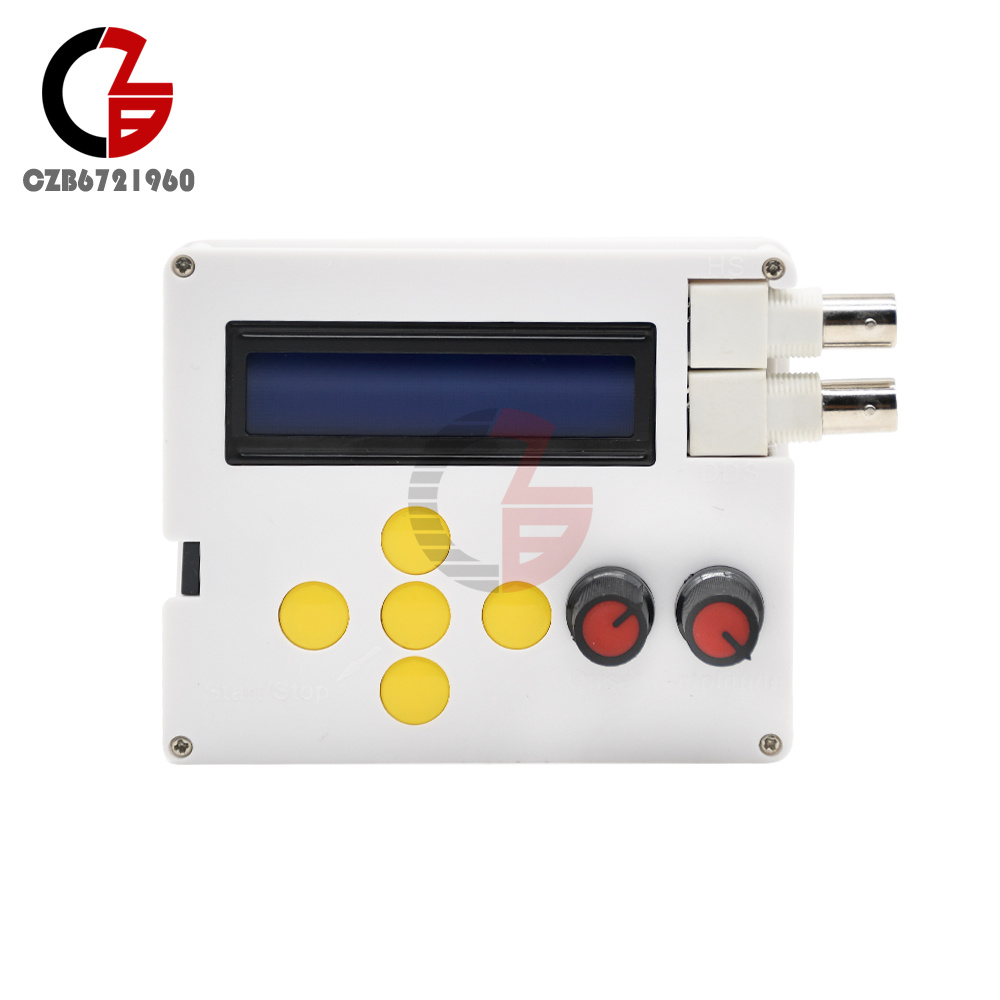

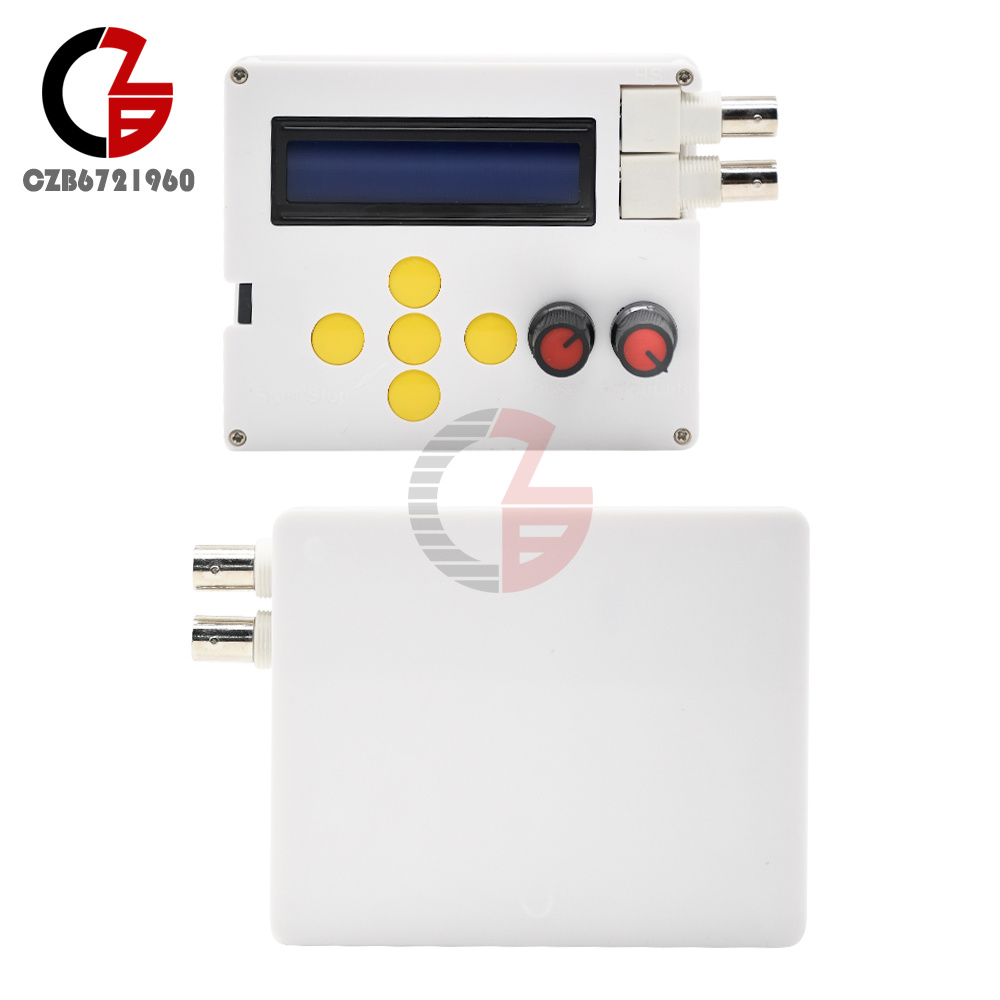

DDS Function Signal Generator Square Wave Adjustable LCD DC 4V-10V 1Hz-500KHz
Popular
Product Introduction
Description:
DDS function (waveform) signal generator. It can generate some specific periodic time function waveform (sine wave, square wave, triangle wave, sawtooth wave and pulse wave, etc.) signals, the frequency range can range from several microhertz to ten of megahertz. Function signal generator in circuit experiment and equipment It has a very wide range of uses in detection. So learning and developing circuits will also be used.
DDS frequency range: 1Hz-500KHz
High-speed frequency (HS) square wave: 1MHz / 2MHz / 4MHz / 8MHz, 16Hz signal
The offset and amplitude of the DDS generated signal can be set separately using two potentiometers
Signals generated by DDS: sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, electrocardiogram wave and noise wave
1602 LCD screen
5 keyboard.
Step frequency value: 1, 10, 100, 1000, 10000Hz
Automatically the last used configuration after power on
The offset is: 0.5 pp-15Vpp
The amplitude is: 0.5 Vpp-20Vpp
Output impedance: 51 ohms

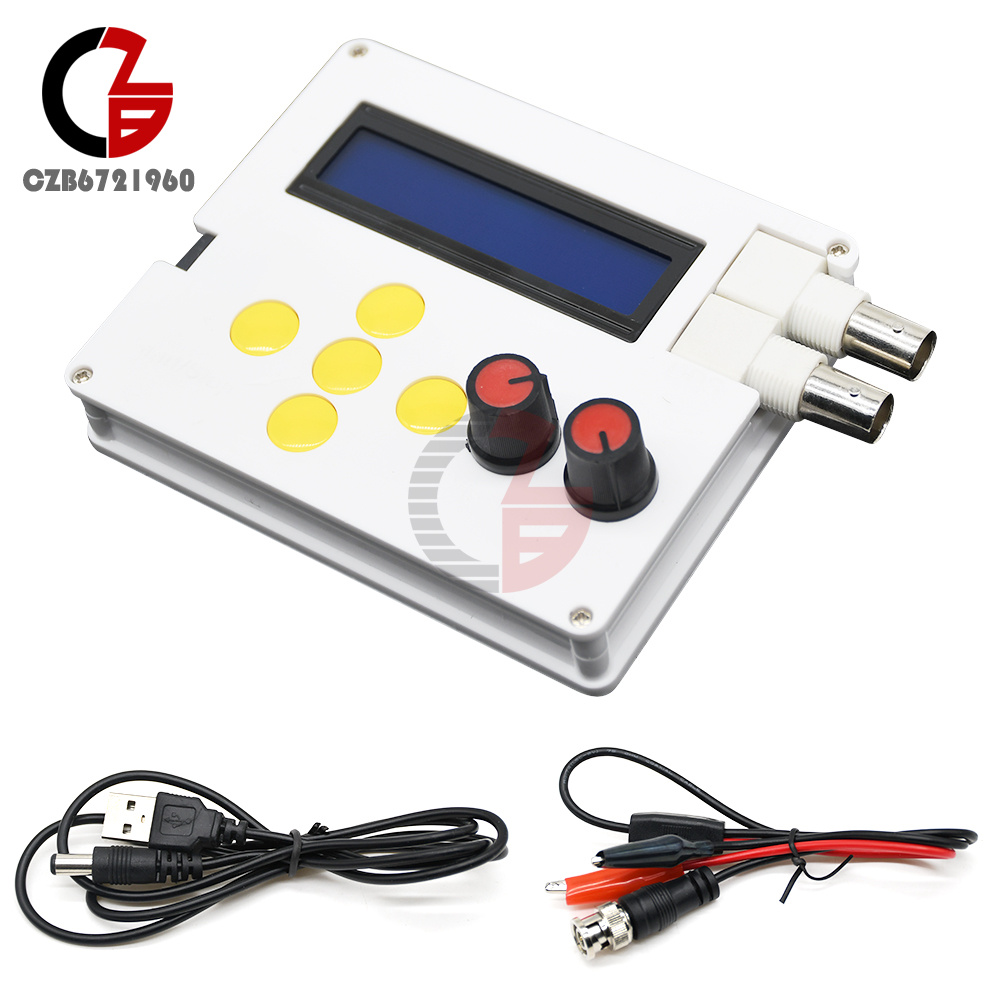

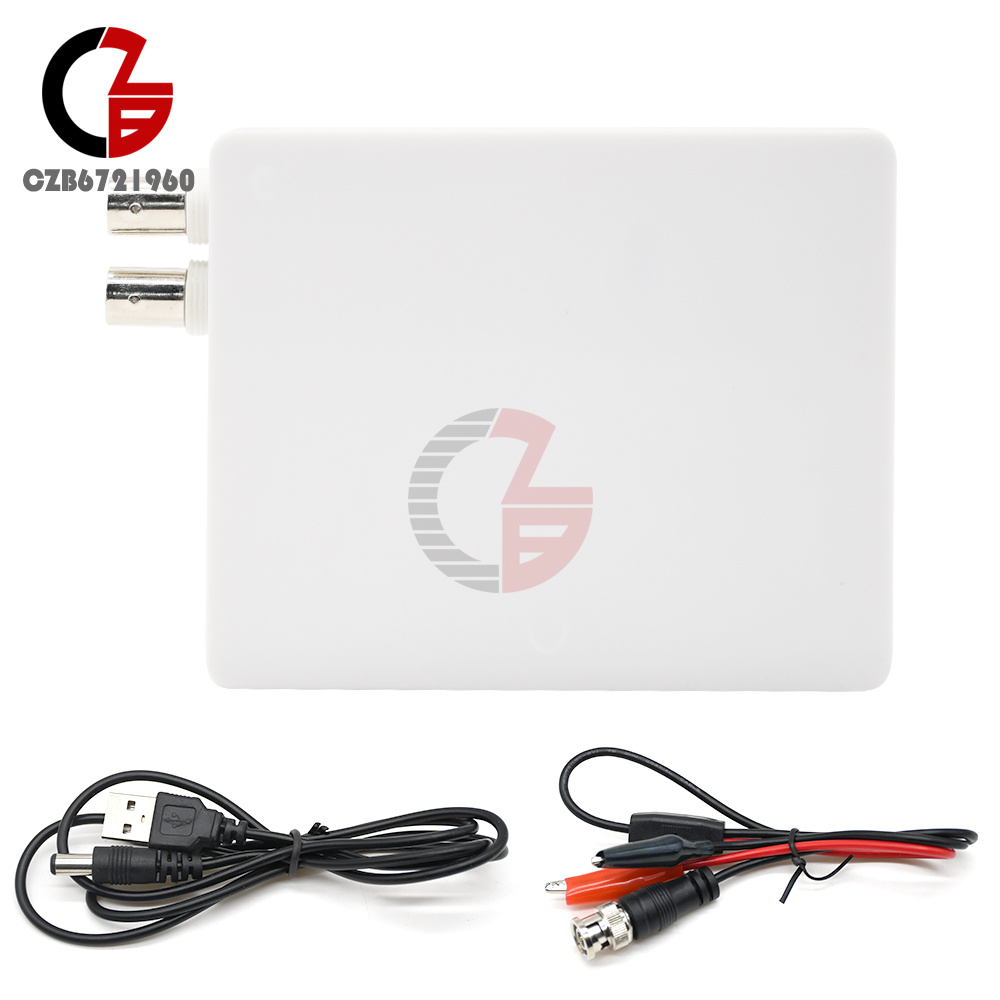

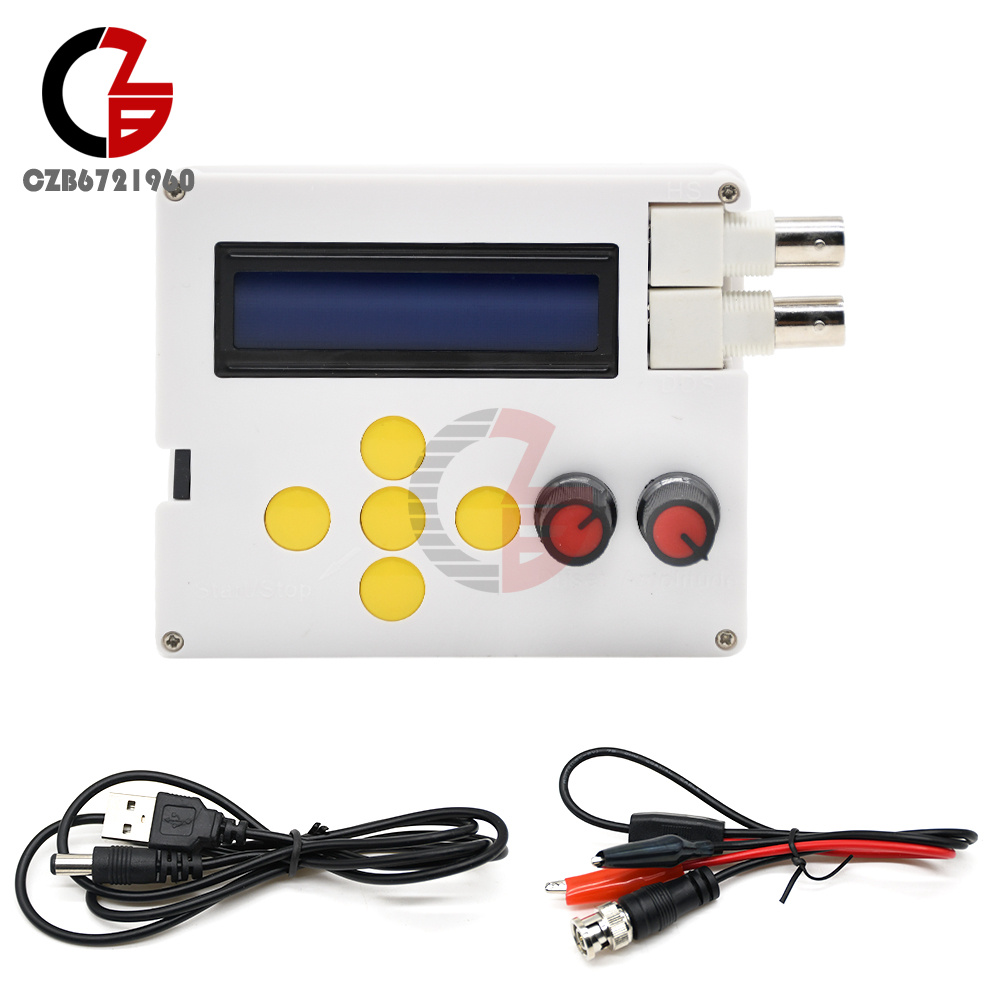

Package Included:
1 x DDS signal generator
1 x BNC signal cable
1 x manual
1 X USB power cable
High-speed frequency (HS) square wave: 1MHz / 2MHz / 4MHz / 8MHz, 16Hz signal
The offset and amplitude of the DDS generated signal can be set separately using two potentiometers
Signals generated by DDS: sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, electrocardiogram wave and noise wave
1602 LCD screen
5 keyboard.
Step frequency value: 1, 10, 100, 1000, 10000Hz
Automatically the last used configuration after power on
The offset is: 0.5 pp-15Vpp
The amplitude is: 0.5 Vpp-20Vpp
Output impedance: 51 ohms
Package Included:
1 x DDS signal generator
1 x BNC signal cable
1 x manual
1 X USB power cable
