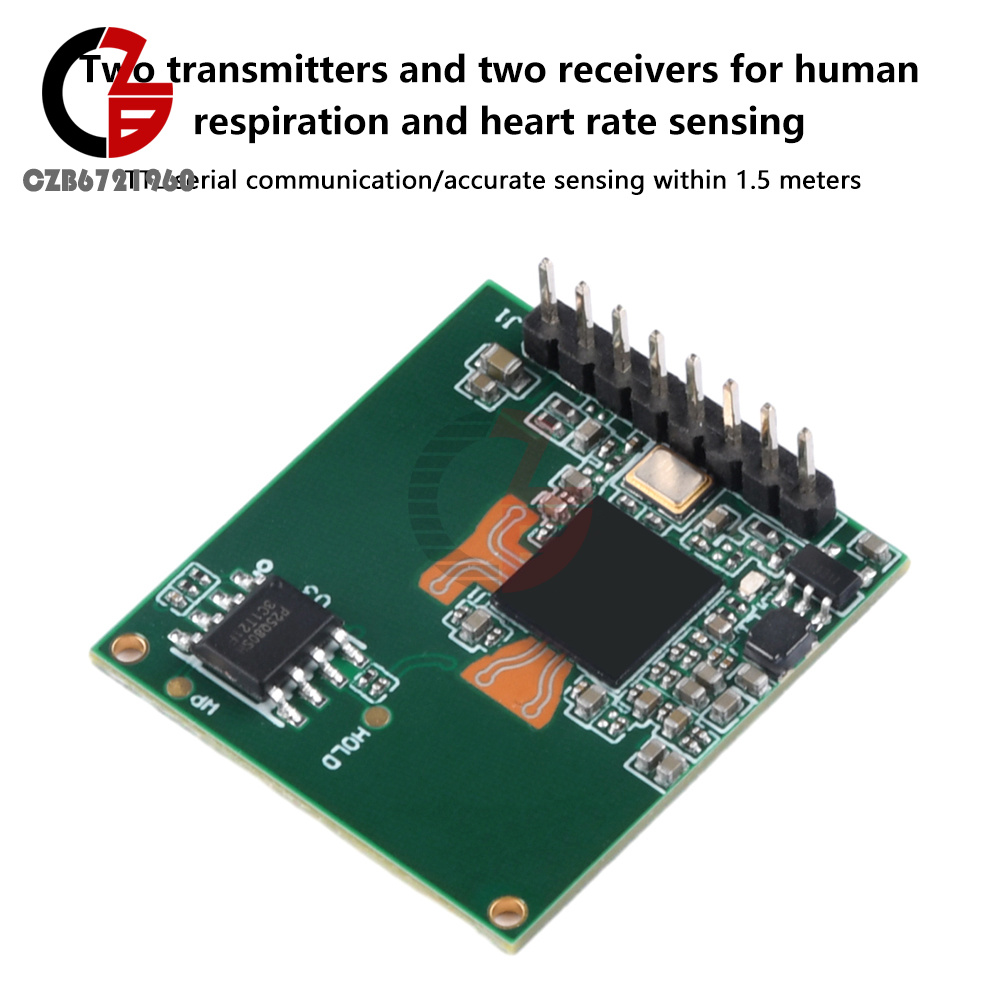

HLK-LD6002 60GHz FMCW Radar Module Breathing Alarm Heart Rate Detection Sensor
Popular
Product Introduction
Product Features.
1. Radar detection based on FMCW FM continuous wave signal
2.Achieve contactless sensing of human respiration and heart rate.

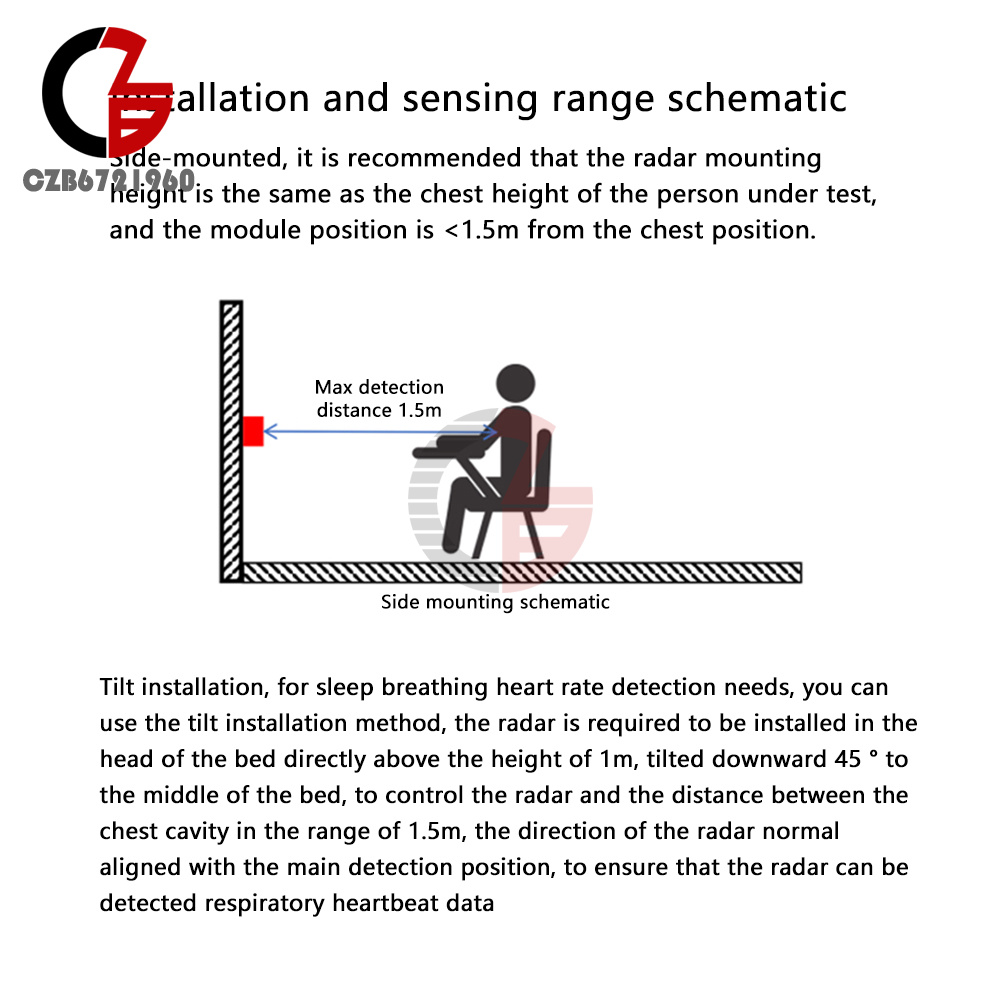

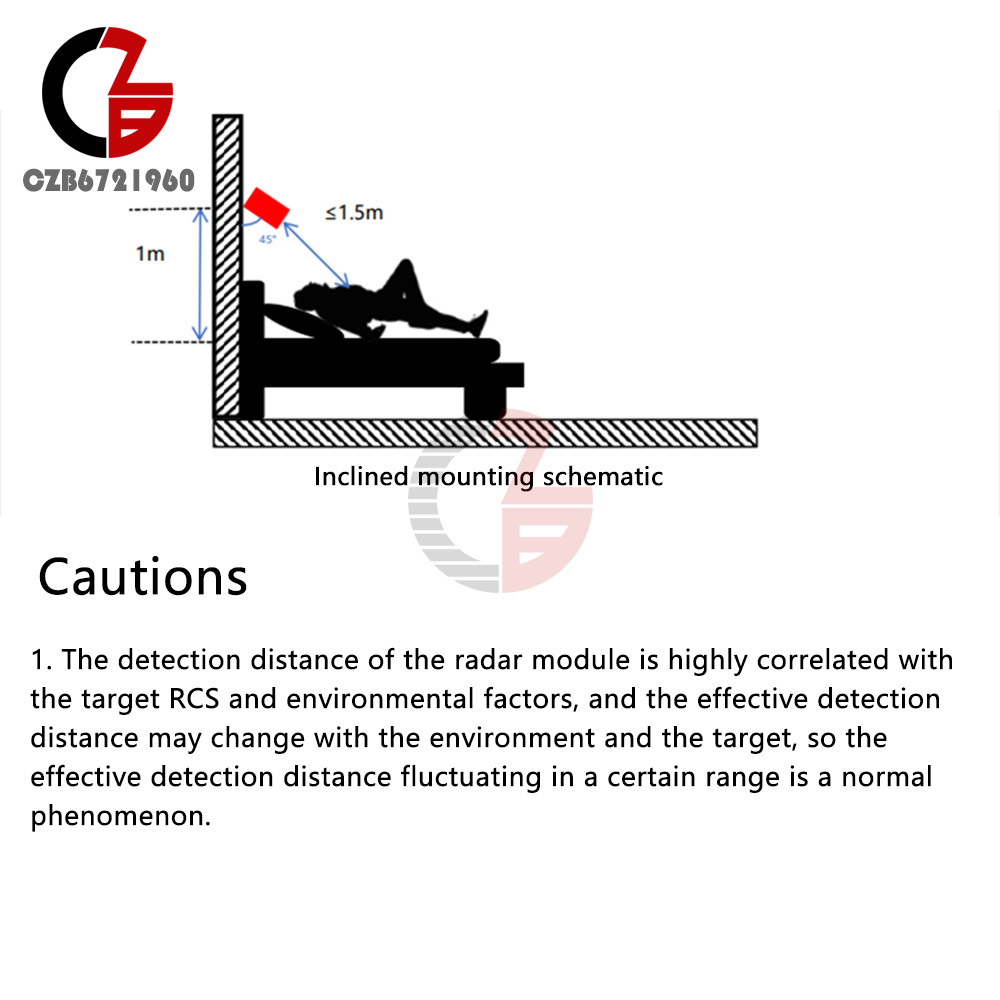

3. Maximum detection distance of human respiration and heart rate is 1.5m.

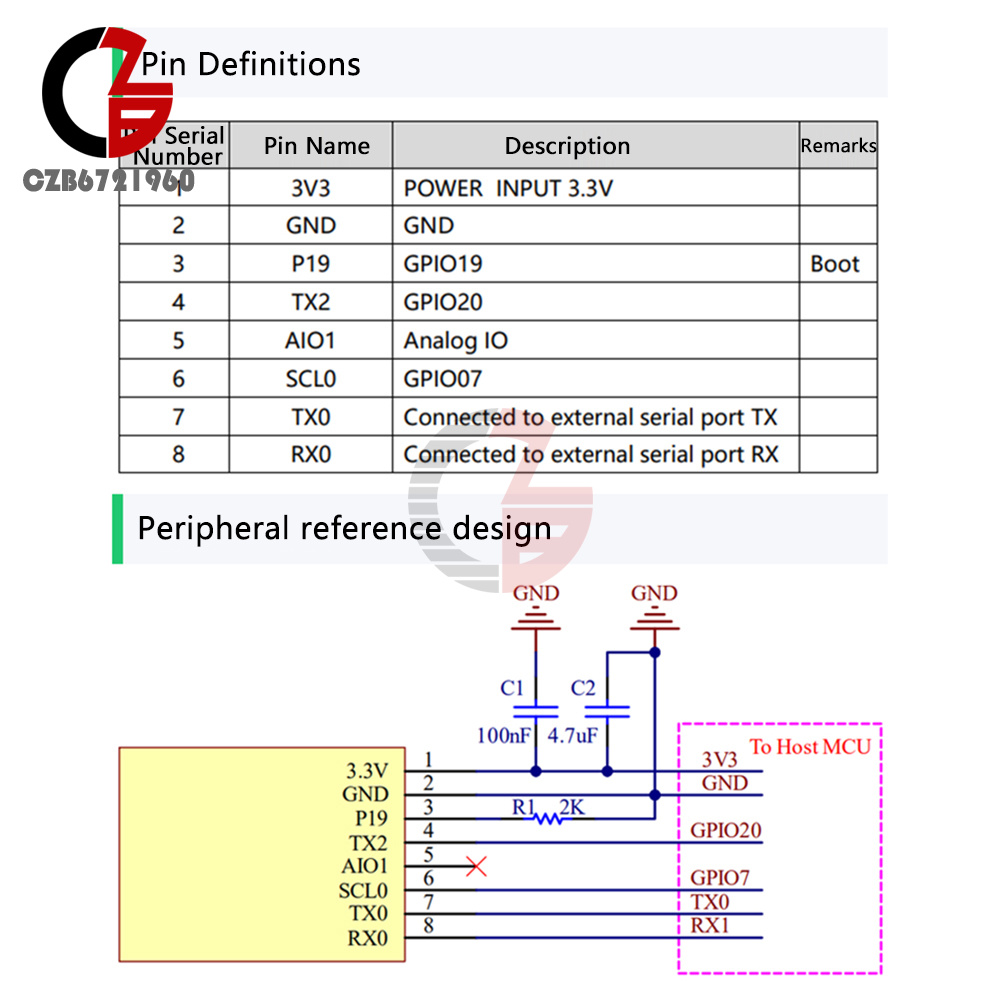

4. Universal UART interface, provide communication protocols
5. Reserve a number of IO ports and a variety of communication interfaces to support the secondary development of the customer, suitable for multiple scenarios.
6. Compact size, support the row of pins plug and patch connection two ways
7. Not affected by temperature, humidity, noise, airflow, dust, light and other environmental impacts.
1. Radar detection based on FMCW FM continuous wave signal
2.Achieve contactless sensing of human respiration and heart rate.
3. Maximum detection distance of human respiration and heart rate is 1.5m.
4. Universal UART interface, provide communication protocols
5. Reserve a number of IO ports and a variety of communication interfaces to support the secondary development of the customer, suitable for multiple scenarios.
6. Compact size, support the row of pins plug and patch connection two ways
7. Not affected by temperature, humidity, noise, airflow, dust, light and other environmental impacts.

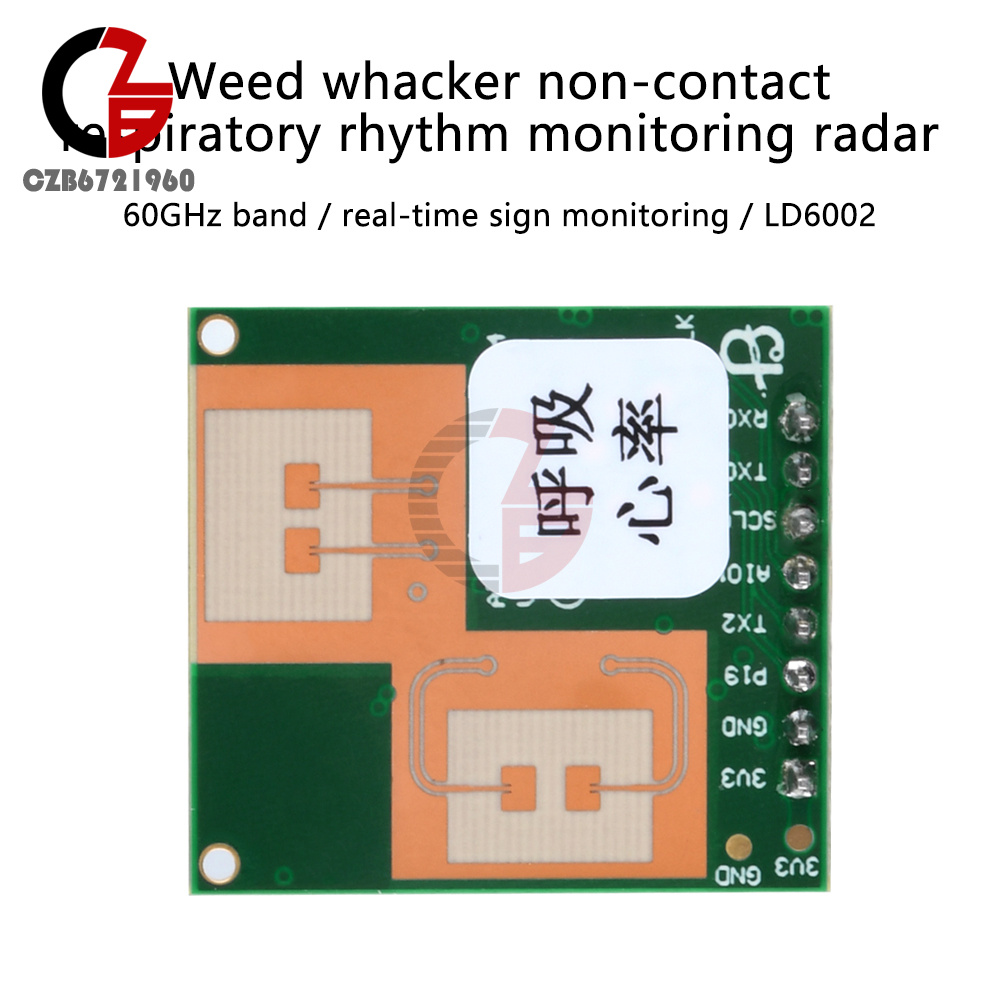

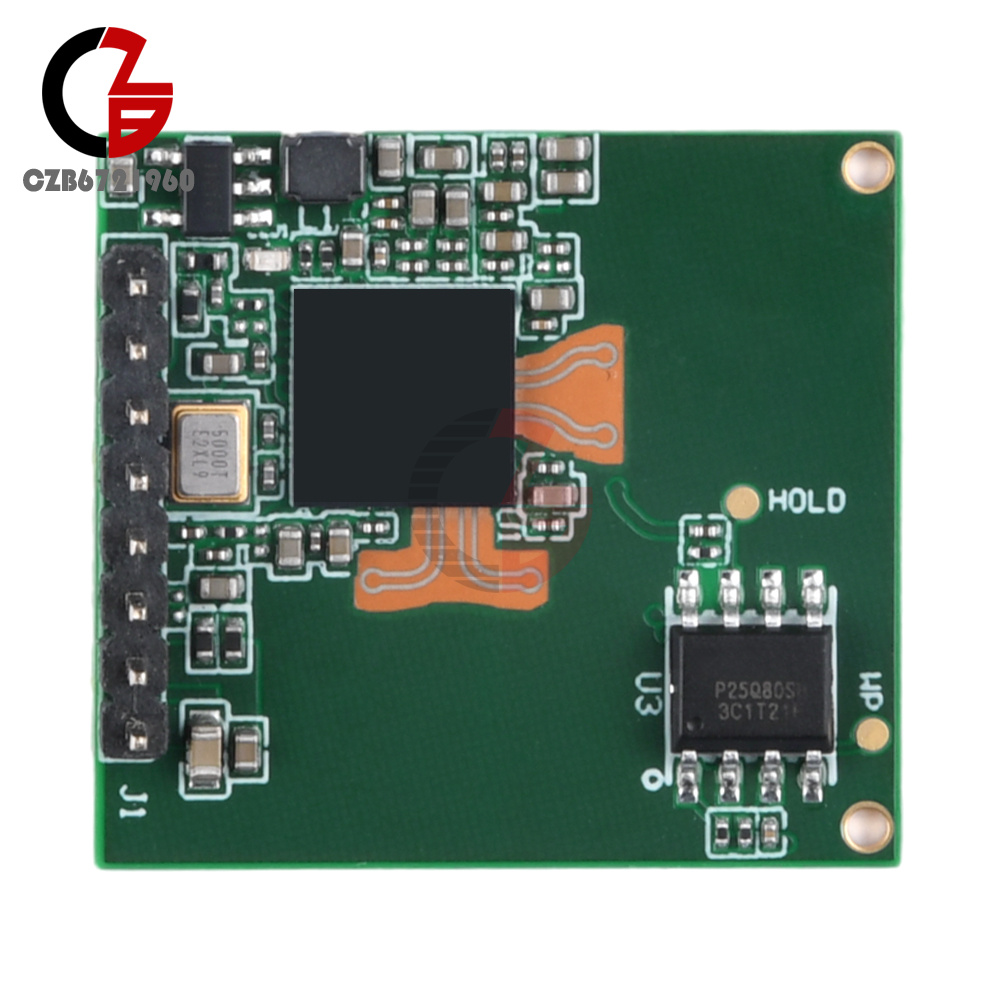

Product Description
LD6002 is a 60Ghz radar module, based on the FMCW radar mechanism, detecting the surface of the human body reflected radar echoes, combined with radar signal processing algorithms, to achieve real-time respiratory heart rate frequency measurement of a single person. It is mainly used in smart home, health management and intelligent recreation scenarios to achieve non-contact respiratory heart rate measurement.
LD6002 is a 60Ghz radar module, based on the FMCW radar mechanism, detecting the surface of the human body reflected radar echoes, combined with radar signal processing algorithms, to achieve real-time respiratory heart rate frequency measurement of a single person. It is mainly used in smart home, health management and intelligent recreation scenarios to achieve non-contact respiratory heart rate measurement.
Product Parameter
Operating frequency: 60Ghz (58-62GHz)
Transmit power: 12dBm
Modulation mode: FMCW
Antenna gain: 4dBi
Detection angle: azimuth earth 60°/pitch earth 60°
Detection distance: 0.4~1.5m (respiratory heartbeat/thorax)
Breathing measurement accuracy: 90%(Typ)
Breath measurement times range: 9~48bpm
Heartbeat Measurement Accuracy：90%(Typ)
Breath measurement times range: 60~150bpm
Refresh time: 50ms
Establishment of detection time: 1min
Maximum number of detectors: 1 person
Power Requirement: 3.3V(Typ)/> 1A
Operating Temperature: -20°C~+85°C
Ambient temperature: -40°C~+85°C
Data format: Serial ASCIl output
Package Format: 2.0mm X 8Pin Pin

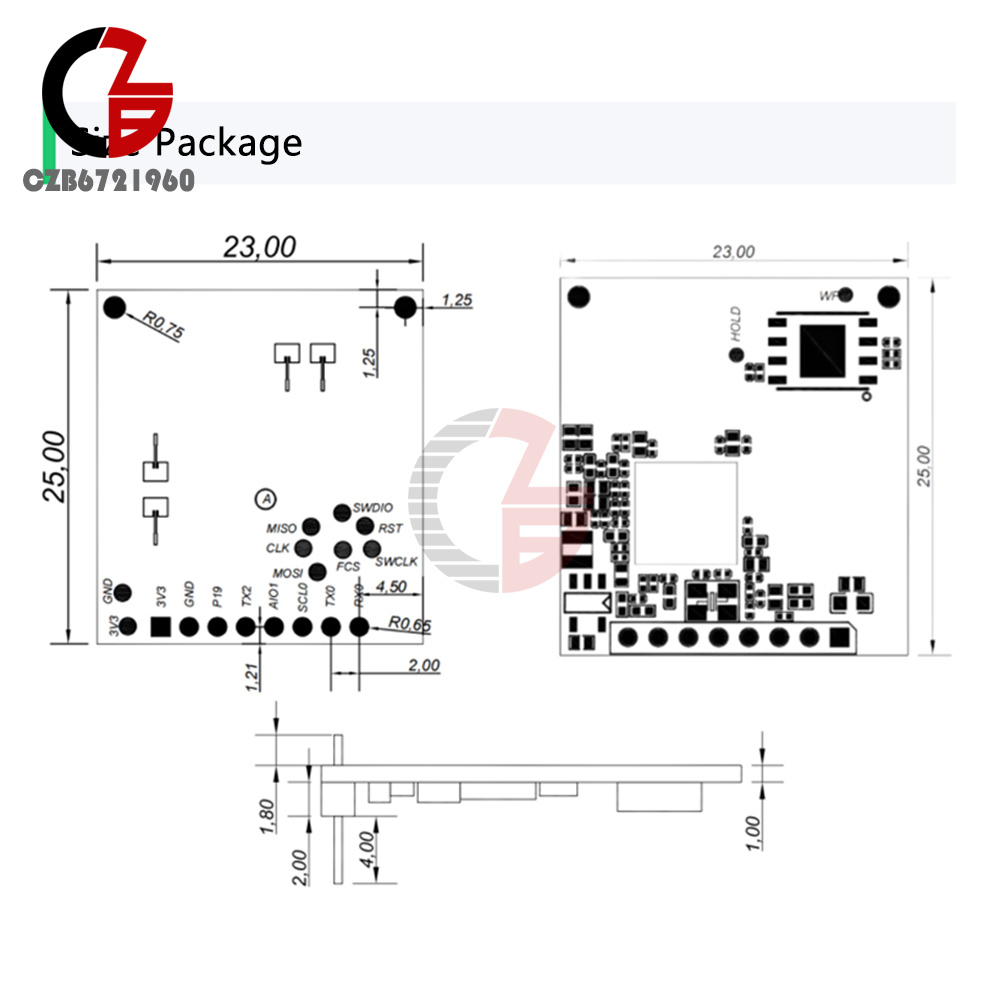

Module Size: 2.6*2.4*0.8MM
Base board size: 7.8*4.4*1.1MM
Operating frequency: 60Ghz (58-62GHz)
Transmit power: 12dBm
Modulation mode: FMCW
Antenna gain: 4dBi
Detection angle: azimuth earth 60°/pitch earth 60°
Detection distance: 0.4~1.5m (respiratory heartbeat/thorax)
Breathing measurement accuracy: 90%(Typ)
Breath measurement times range: 9~48bpm
Heartbeat Measurement Accuracy：90%(Typ)
Breath measurement times range: 60~150bpm
Refresh time: 50ms
Establishment of detection time: 1min
Maximum number of detectors: 1 person
Power Requirement: 3.3V(Typ)/> 1A
Operating Temperature: -20°C~+85°C
Ambient temperature: -40°C~+85°C
Data format: Serial ASCIl output
Package Format: 2.0mm X 8Pin Pin
Module Size: 2.6*2.4*0.8MM
Base board size: 7.8*4.4*1.1MM

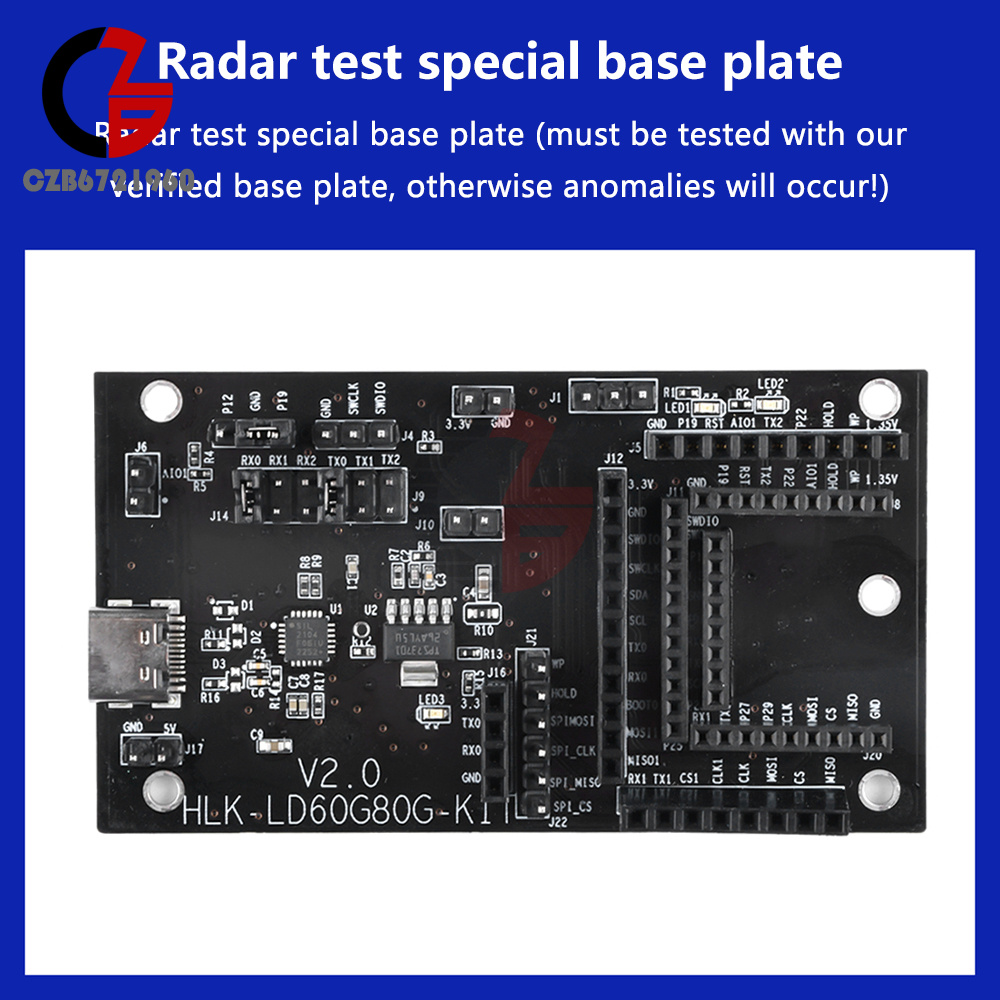

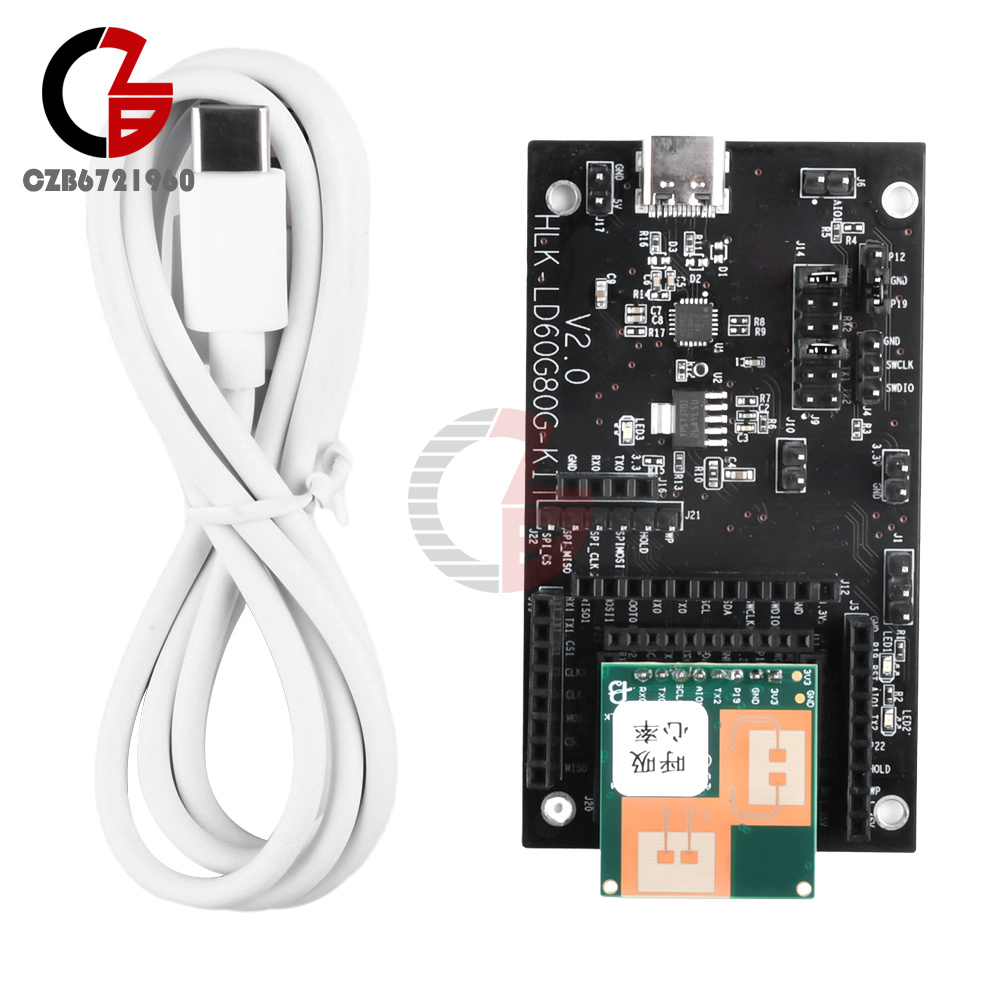

Configuration tool description
The module can directly use UARTO to output test results according to the specified protocol, the serial data contains total phase, respiratory phase/heartbeat phase results, respiratory rate/heartbeat rate results, the user is flexible to use according to the specific application scenario.
Attention.

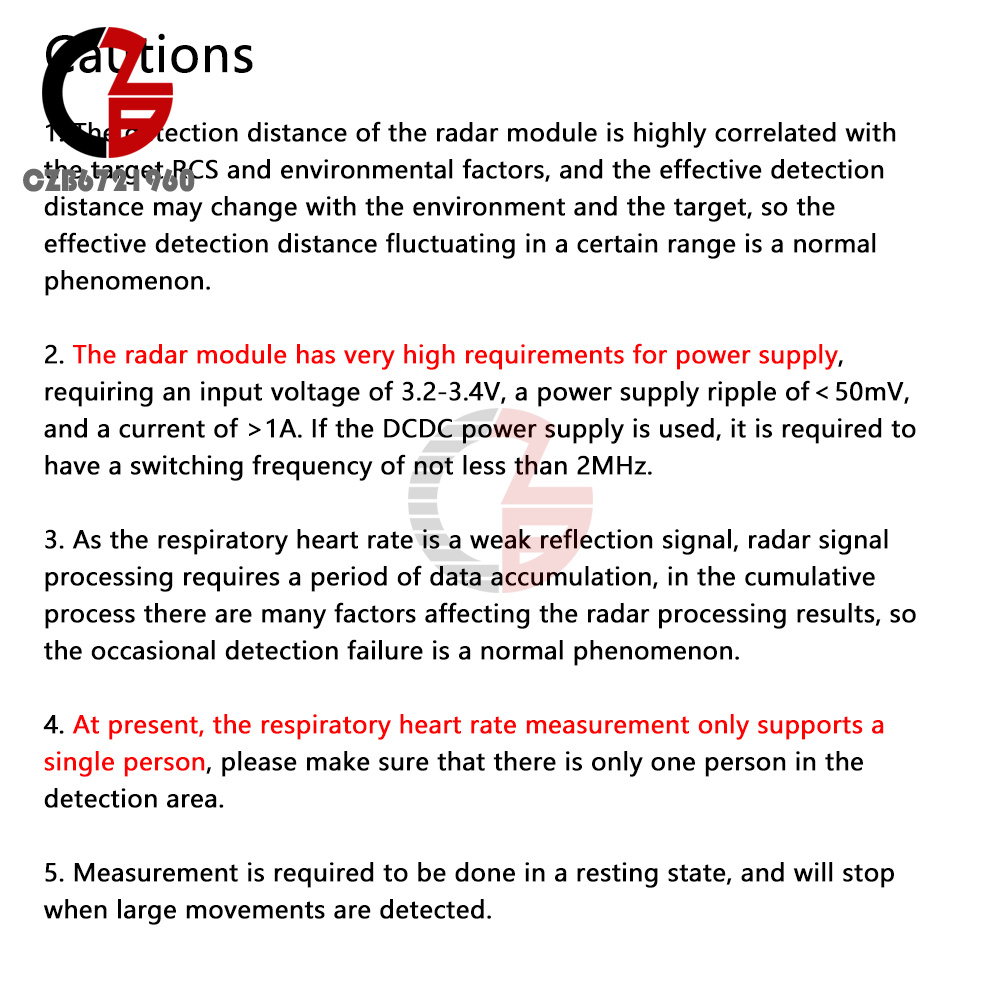

1. Module power supply 3.3V, the input power supply capacity is required to be greater than 1A, the output voltage of module I0 port is 3.3V.
2. The default baud rate of the serial port is 1382400 without parity.
The module can directly use UARTO to output test results according to the specified protocol, the serial data contains total phase, respiratory phase/heartbeat phase results, respiratory rate/heartbeat rate results, the user is flexible to use according to the specific application scenario.
Attention.
1. Module power supply 3.3V, the input power supply capacity is required to be greater than 1A, the output voltage of module I0 port is 3.3V.
2. The default baud rate of the serial port is 1382400 without parity.

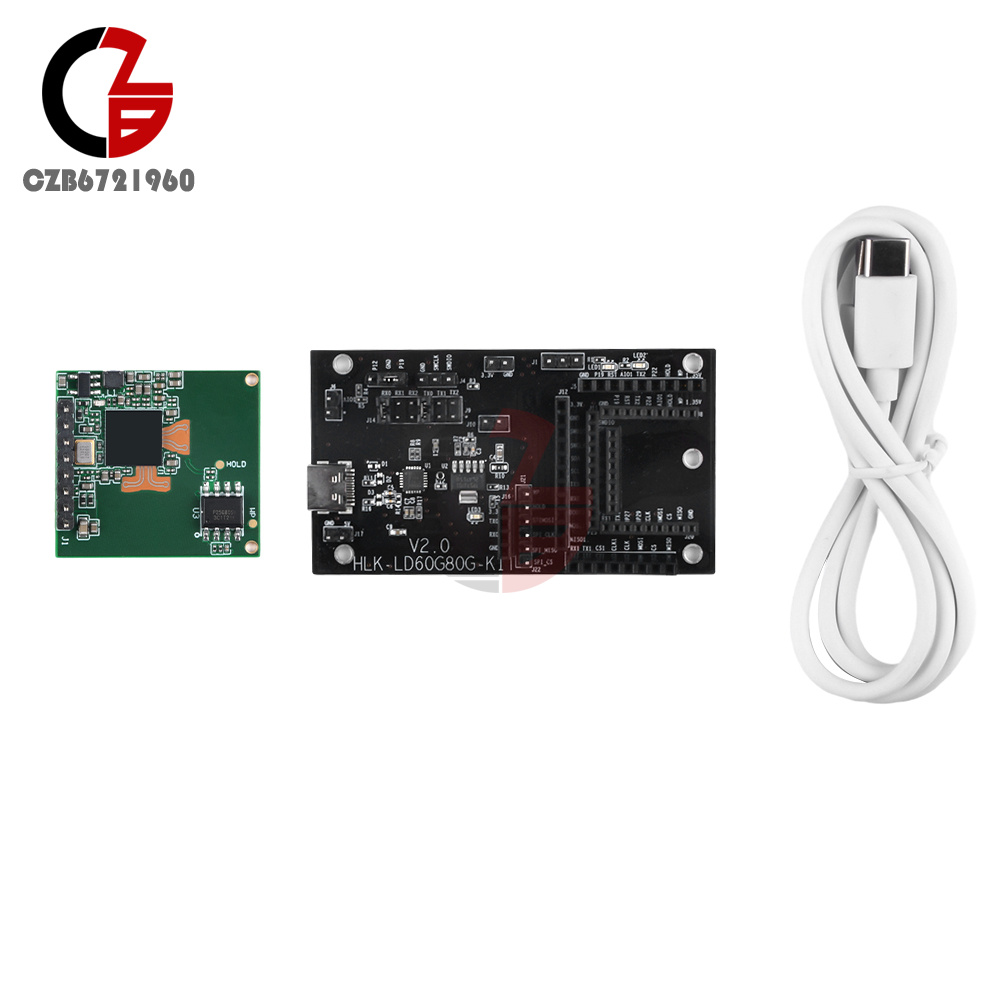

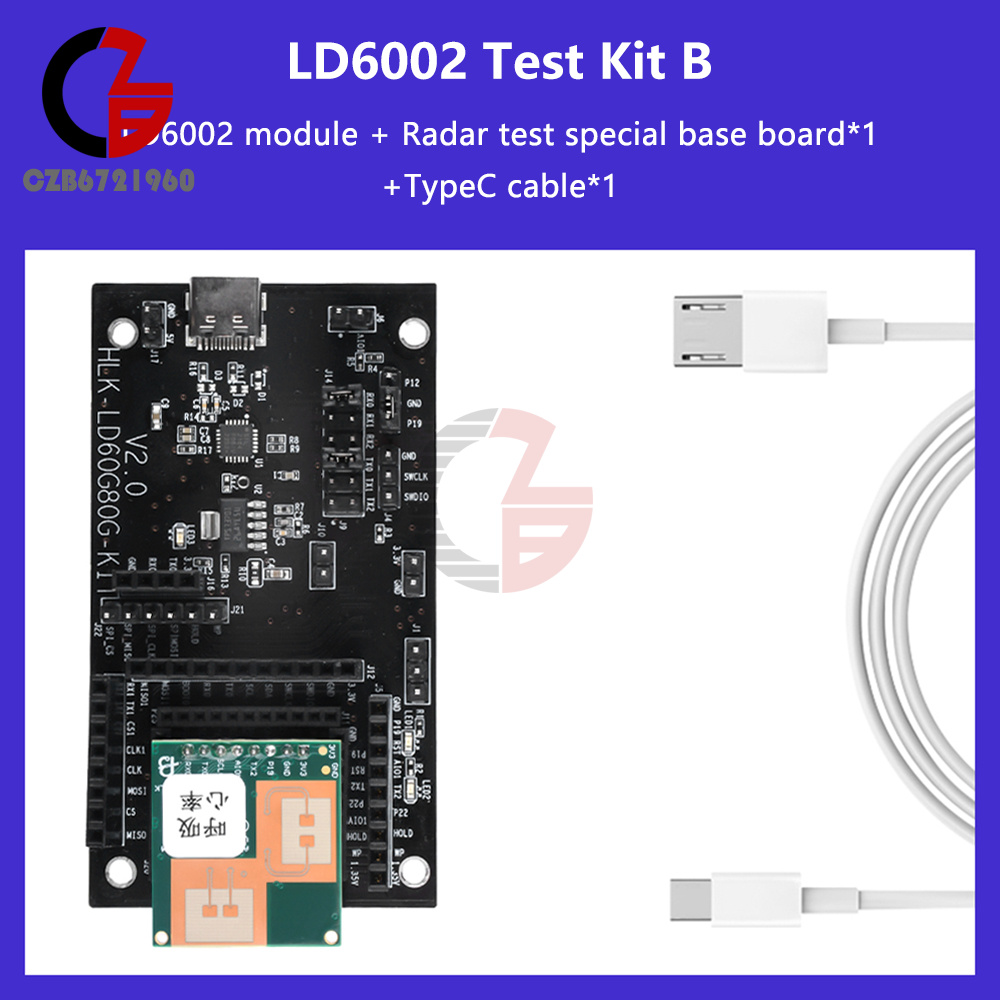

Shipping List.( according buyer choose)
