Features:

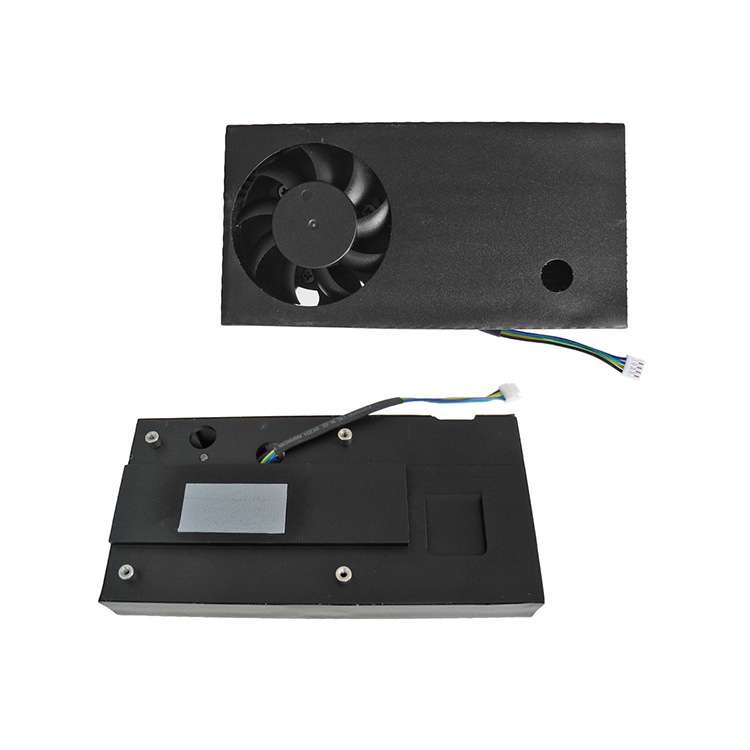

l Aluminum alloy chip radiator, with a fan on the radiator, the main body is made of aluminum alloy
l The fan is very quiet, the fan speed can be controlled by PWM, with speed signal output

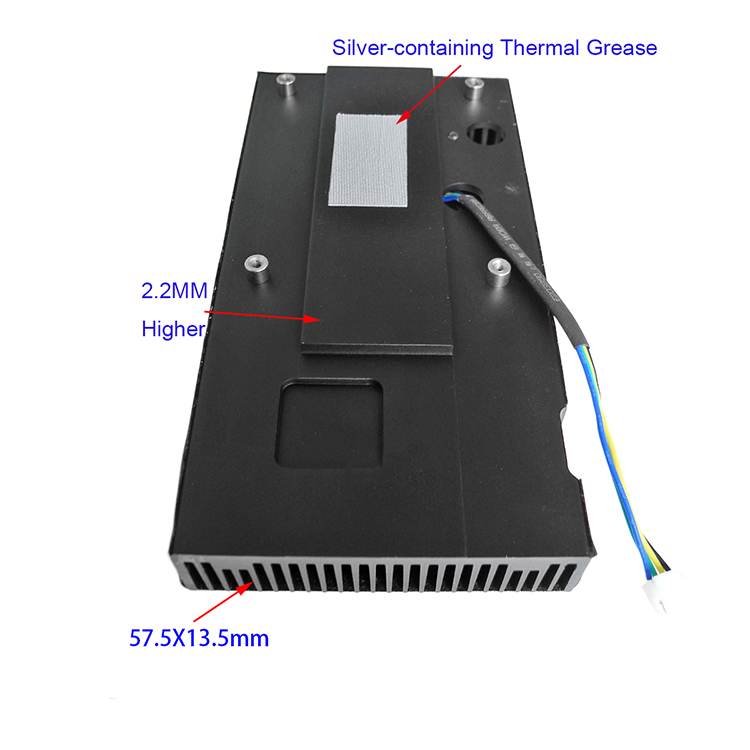

l The contact area on the back of the radiator is large, and it can be DIY for various occasions to dissipate heat, such as: LED lamp bead heat dissipation, chip heat dissipation, etc.
l The fan has 4 wires: yellow is the 5V positive pole of the power supply, black is the negative pole, blue is the PWM speed control line, and green is the speed feedback line
l Directly connect the positive and negative poles of the fan to run at the highest speed. If you want to adjust the speed, connect the blue line. into the PWM signal
Specification:
l Material: Aluminum Alloy
l Voltage: DC 5V
l Full Speed Running Current: 0.11A
l Quantity: 1 PCS
Package:
l 1x Radiator
