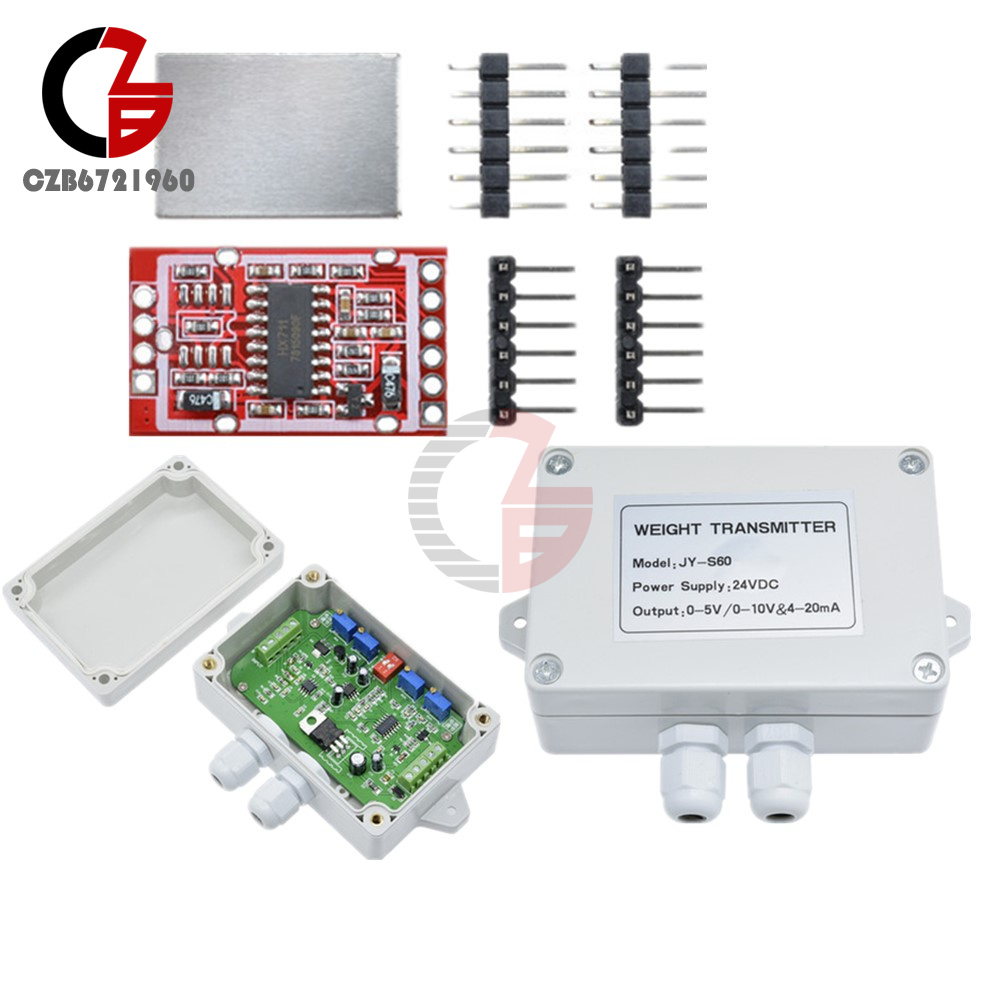

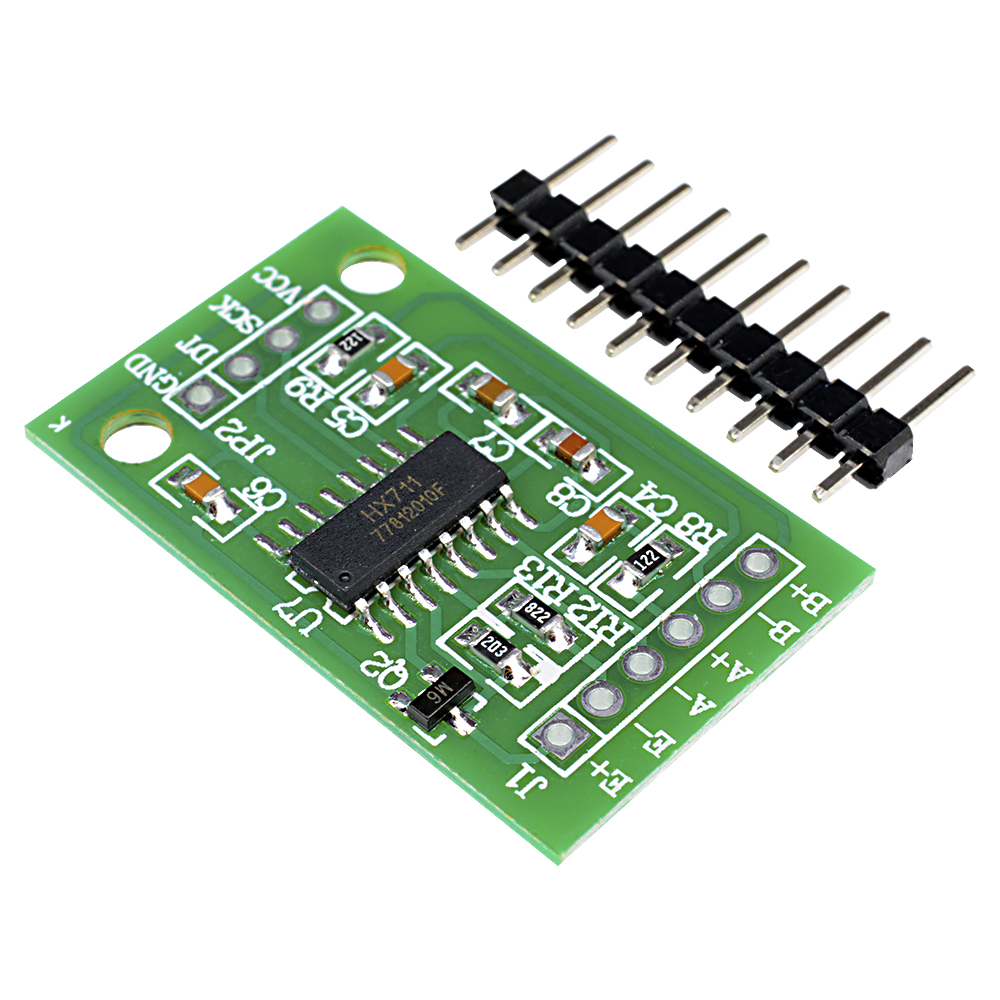

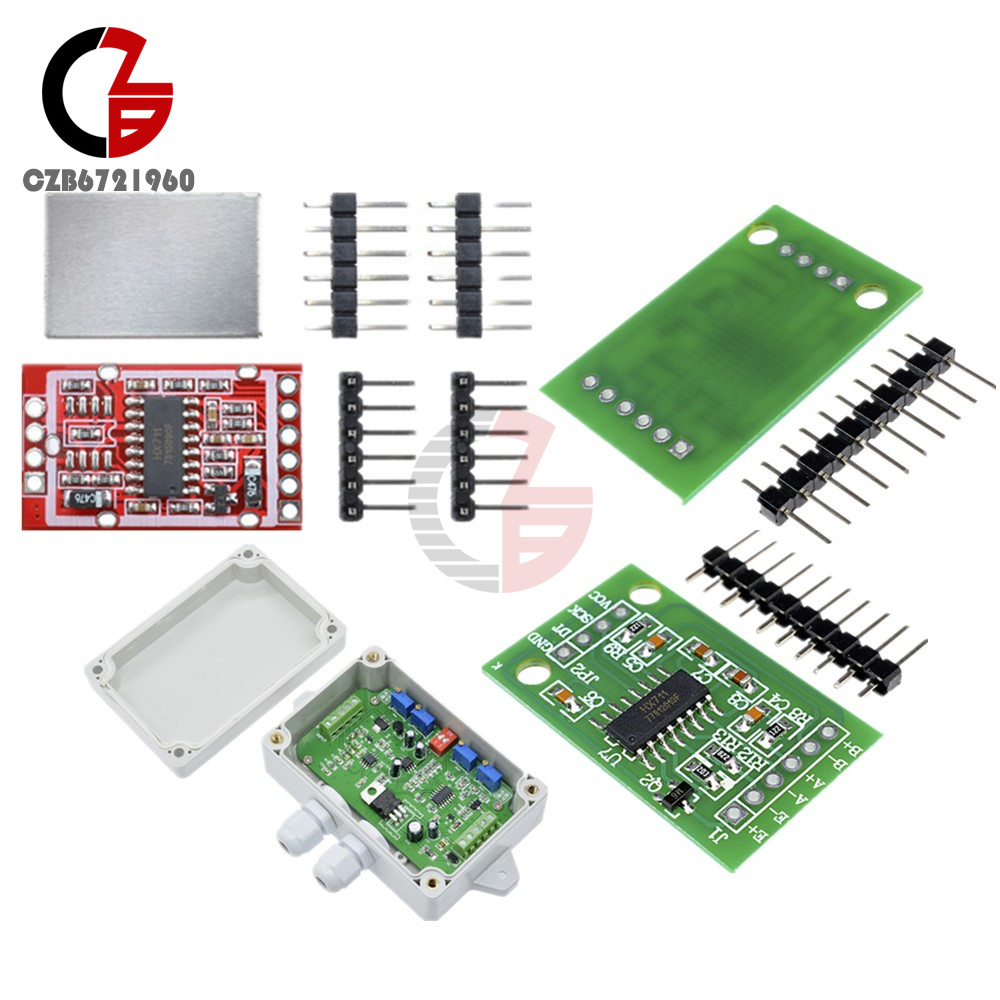

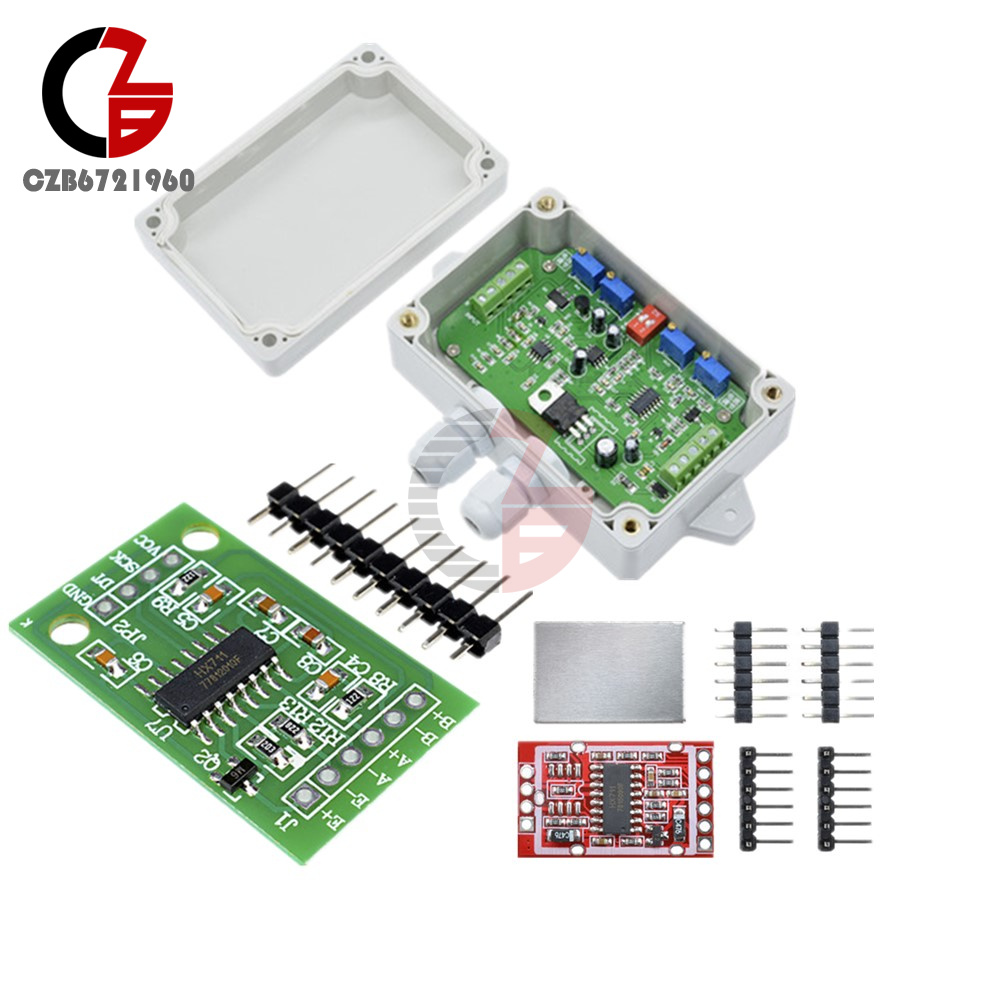

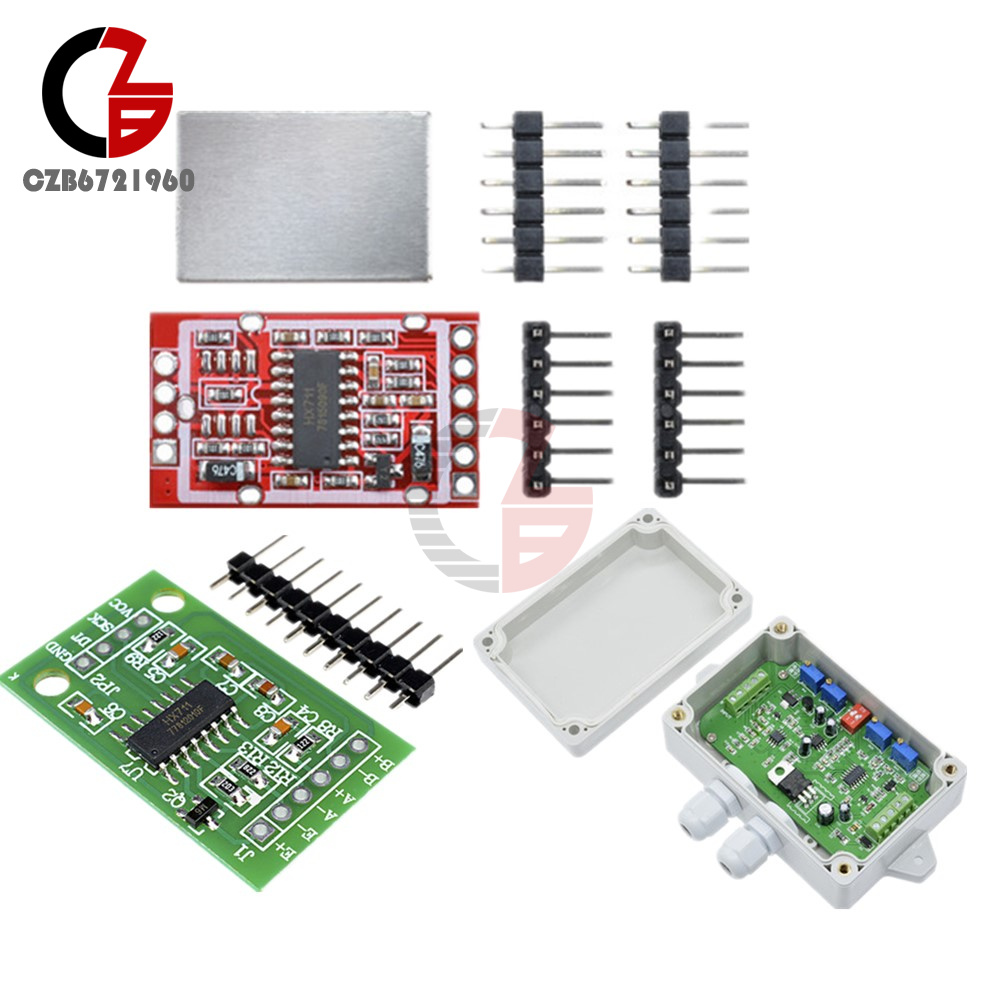

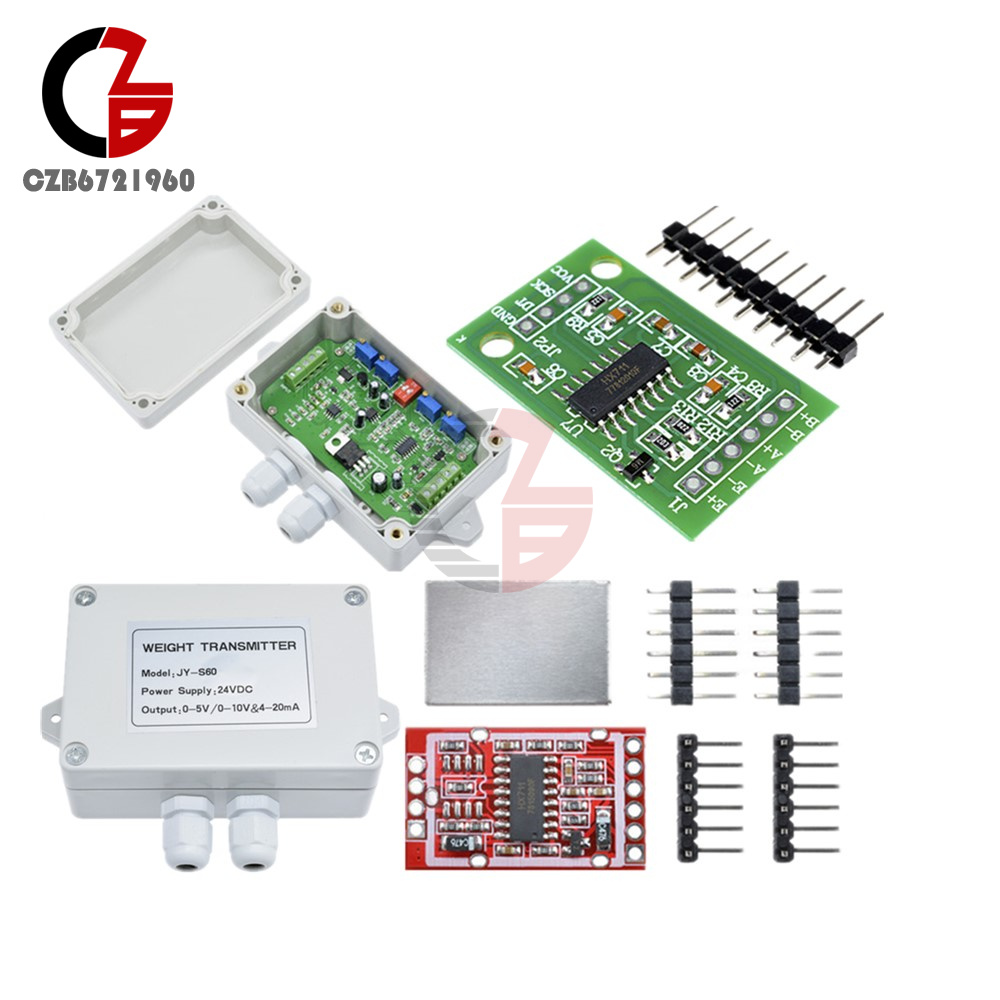

HX711 Weighing Sensor
Features:
This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module• Two selectable differential input channels
• On-chip active low noise PGA with selectable gain of 32, 64 and 128
• On-chip power supply regulator for load-cell and ADC analog power supply
• On-chip oscillator requiring no external component with optional external crystal
• On-chip power-on-reset
• Simple digital control and serial interface: pin-driven controls, no programming needed
• Selectable 10SPS or 80SPS output data rate
• Simultaneous 50 and 60Hz supply rejection
• Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85℃
This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module• Two selectable differential input channels
• On-chip active low noise PGA with selectable gain of 32, 64 and 128
• On-chip power supply regulator for load-cell and ADC analog power supply
• On-chip oscillator requiring no external component with optional external crystal
• On-chip power-on-reset
• Simple digital control and serial interface: pin-driven controls, no programming needed
• Selectable 10SPS or 80SPS output data rate
• Simultaneous 50 and 60Hz supply rejection
• Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85℃
• 16 pin SOP-16 package
Package Included：
1 x AD Module HX711 Weighing Sensor Dual-channel 24-Bit A/D Conversion

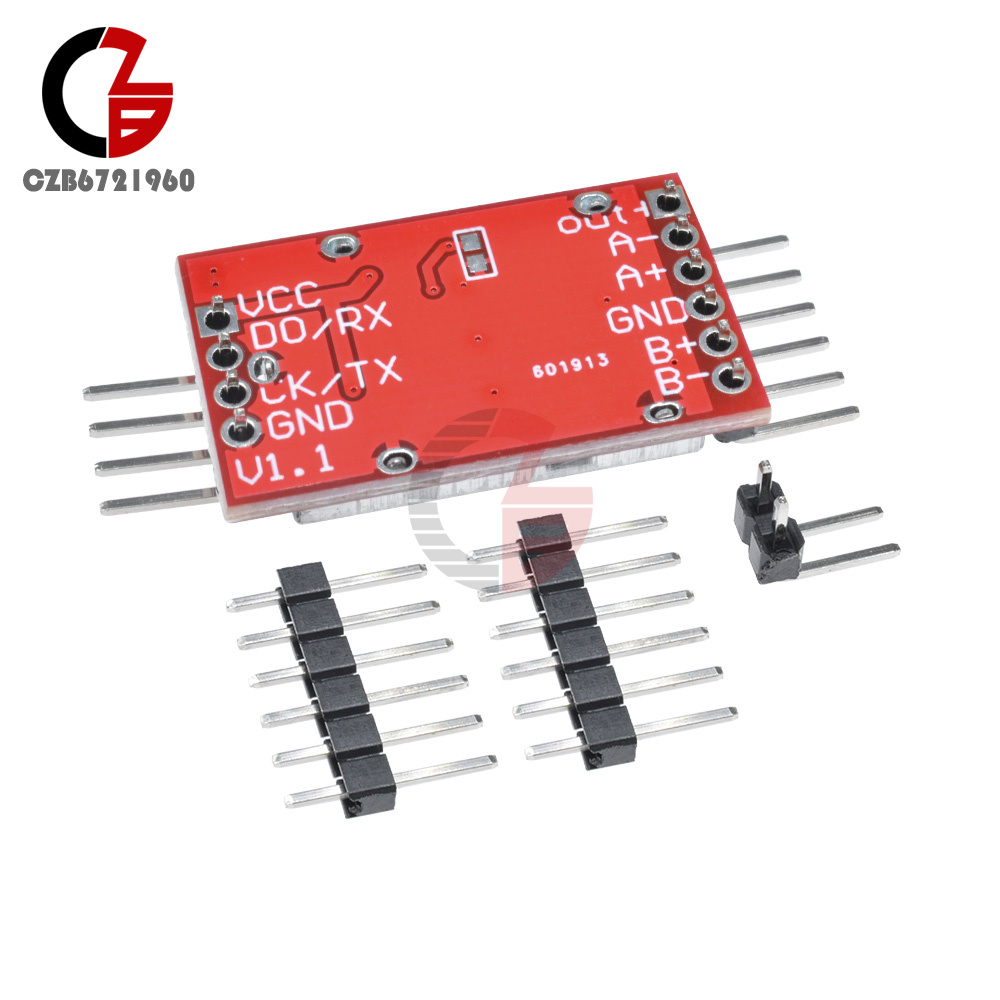

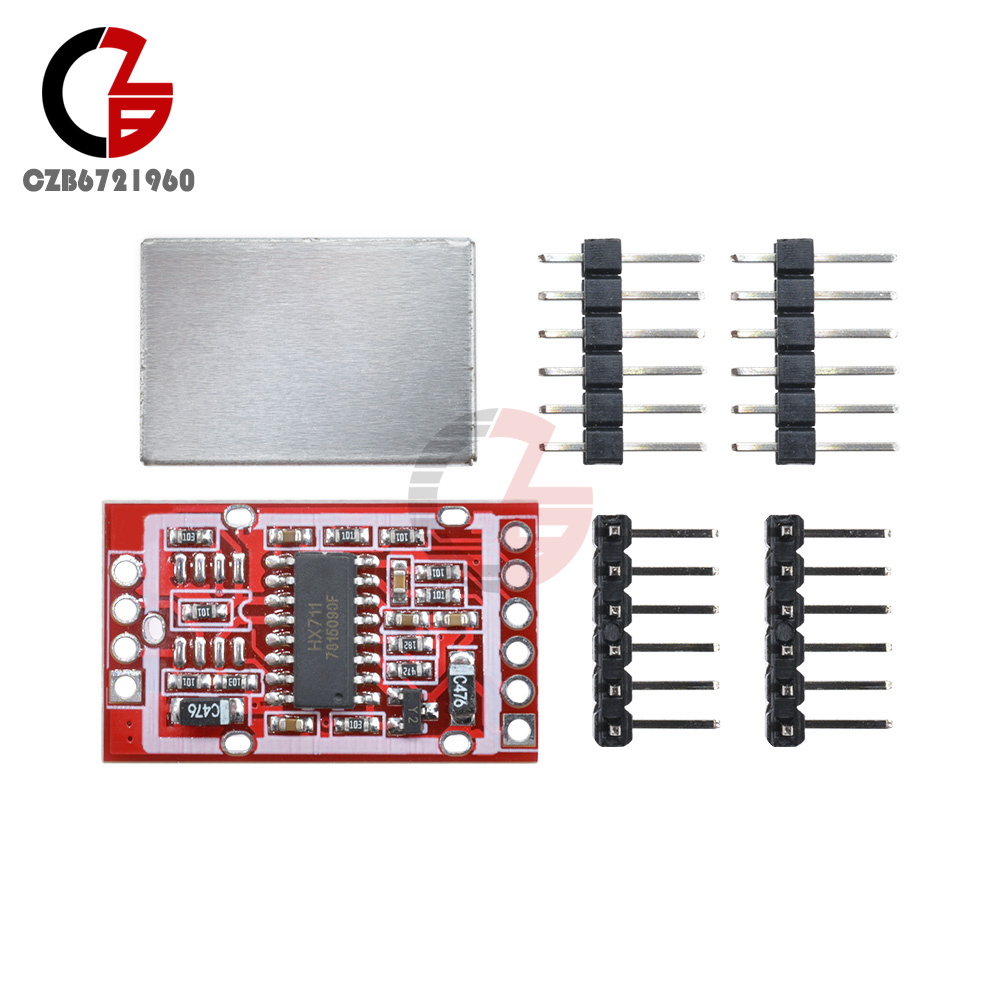

HX711 Weighing Sensor+Shielding
Description:
• Two selectable differential input channels
• On-chip active low noise PGA with selectable gain of 32, 64 and 128
• On-chip power supply regulator for load-cell and ADC analog power supply
• On-chip oscillator requires no external component with optional external crystal
• On-chip power-on-reset
• Simple digital control and serial interface: pin-driven controls, no programming needed
• Selectable 10SPS or 80SPS output data rate
• Simultaneous 50 and 60Hz supply rejection
• Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85°C
• 16 pin SOP-16 package
• Two selectable differential input channels
• On-chip active low noise PGA with selectable gain of 32, 64 and 128
• On-chip power supply regulator for load-cell and ADC analog power supply
• On-chip oscillator requires no external component with optional external crystal
• On-chip power-on-reset
• Simple digital control and serial interface: pin-driven controls, no programming needed
• Selectable 10SPS or 80SPS output data rate
• Simultaneous 50 and 60Hz supply rejection
• Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85°C
• 16 pin SOP-16 package
Package Included:
1PC*Weighing Sensor AD Module Dual-channel 24-bit A/D Conversion HX711 Shieding
1PC*Weighing Sensor AD Module Dual-channel 24-bit A/D Conversion HX711 Shieding

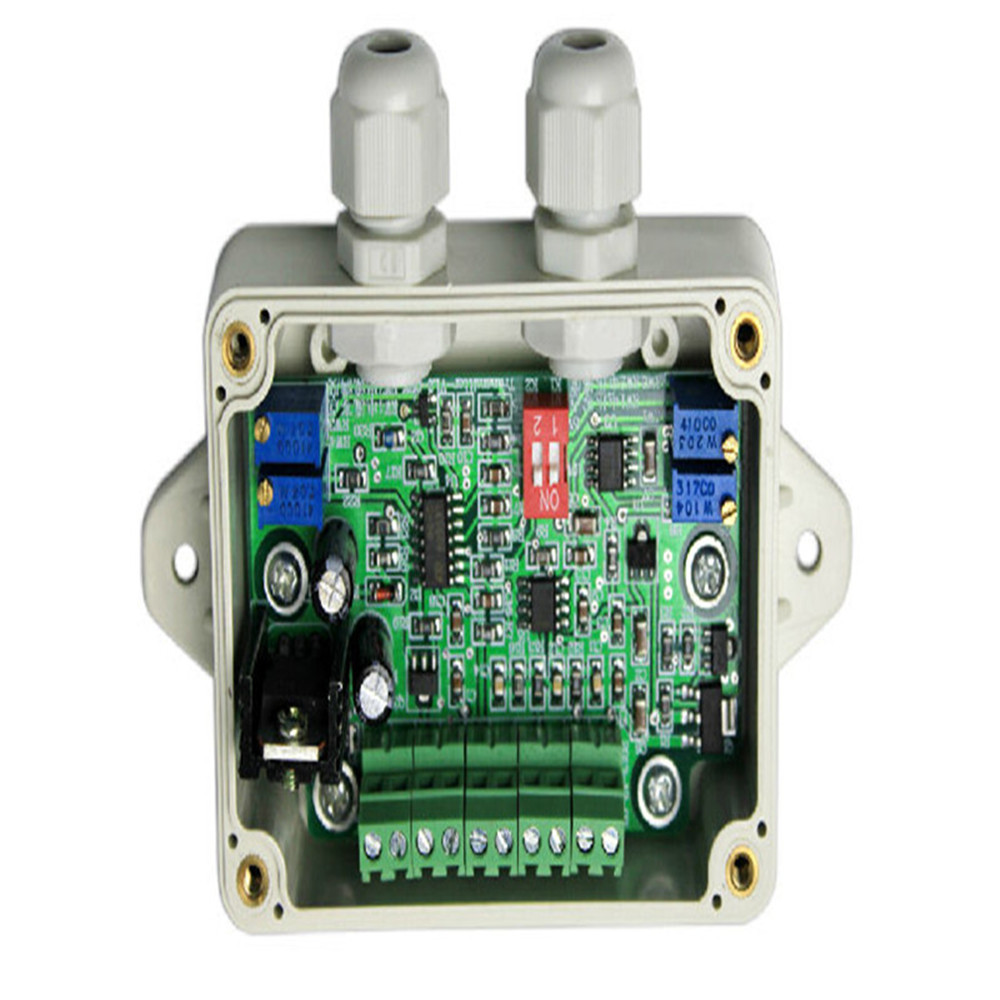

Load Cell Amplifier Sensor
Descrition:
Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
Look beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Technical Parameters:
Working voltage: DC 12-24V
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive: 5V (E+)
Operating temperature range: -20 ~ 80°C
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S
Gear selection:dial switch turn OFF , V0 output 0-5V , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5V IO output 4-20MA
About debugging：
1) zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2) gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3) the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.
Package included:
1 x Load Cell Amplifier Sensor
Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
Look beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Technical Parameters:
Working voltage: DC 12-24V
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive: 5V (E+)
Operating temperature range: -20 ~ 80°C
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S
Gear selection:dial switch turn OFF , V0 output 0-5V , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5V IO output 4-20MA
About debugging：
1) zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2) gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3) the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.
Package included:
1 x Load Cell Amplifier Sensor

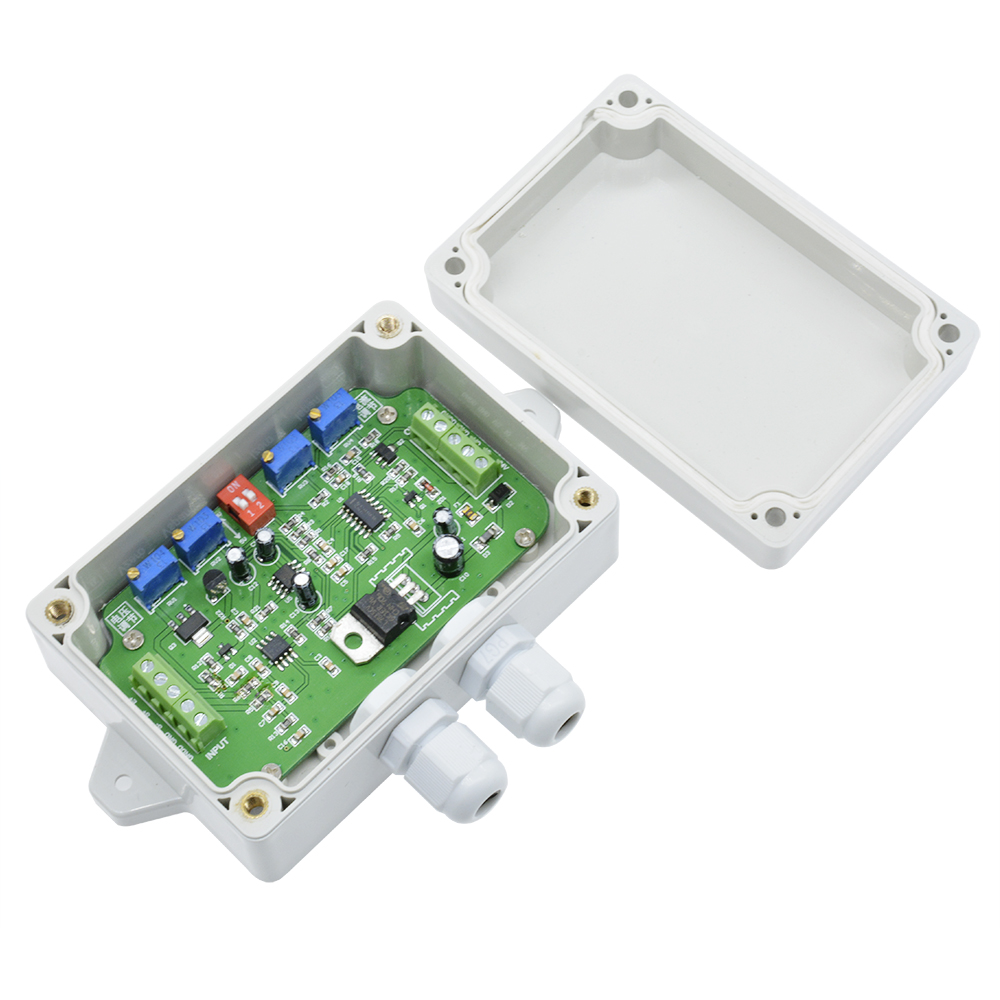

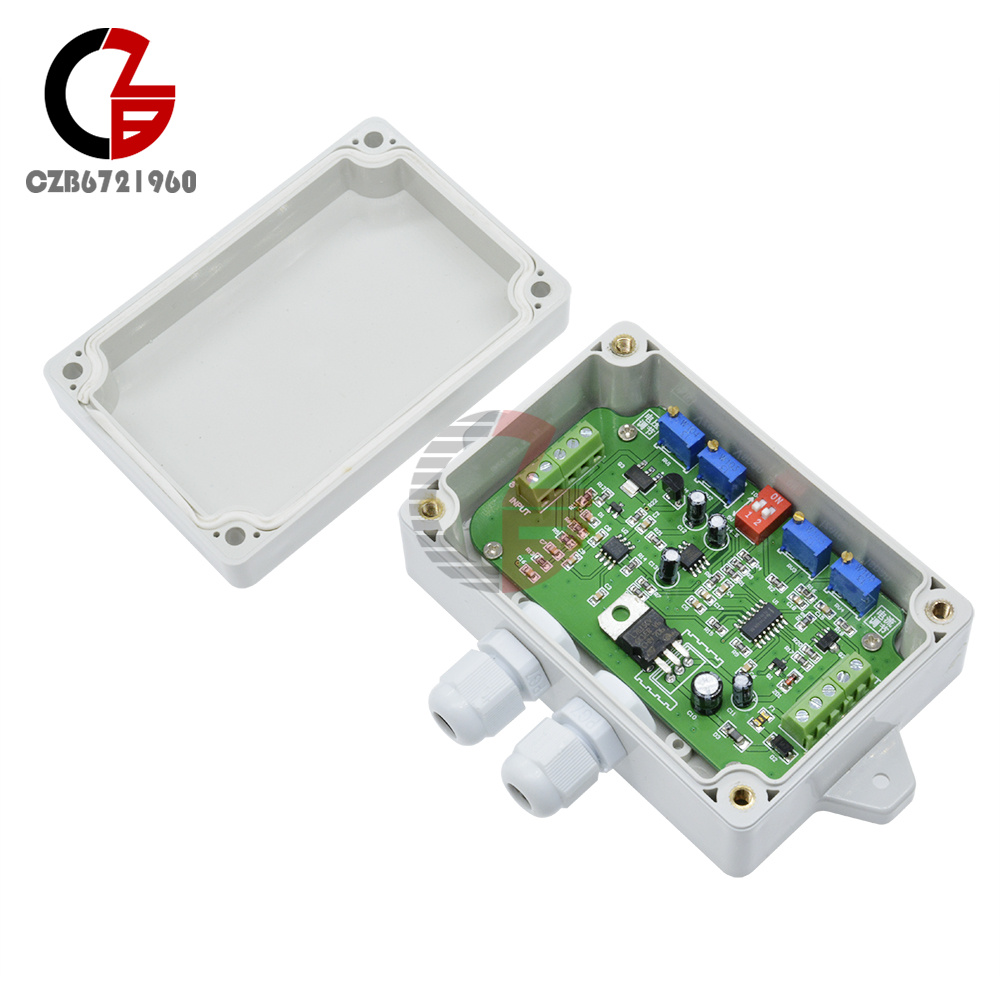

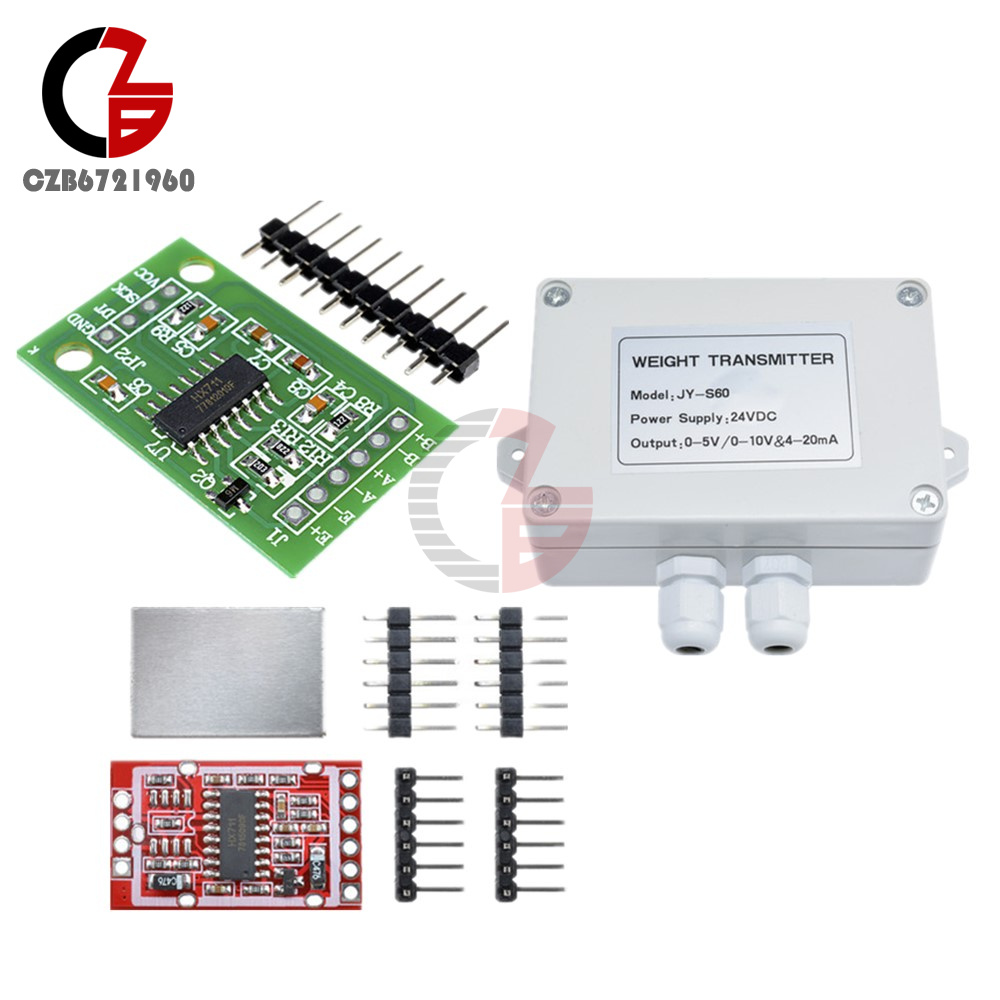

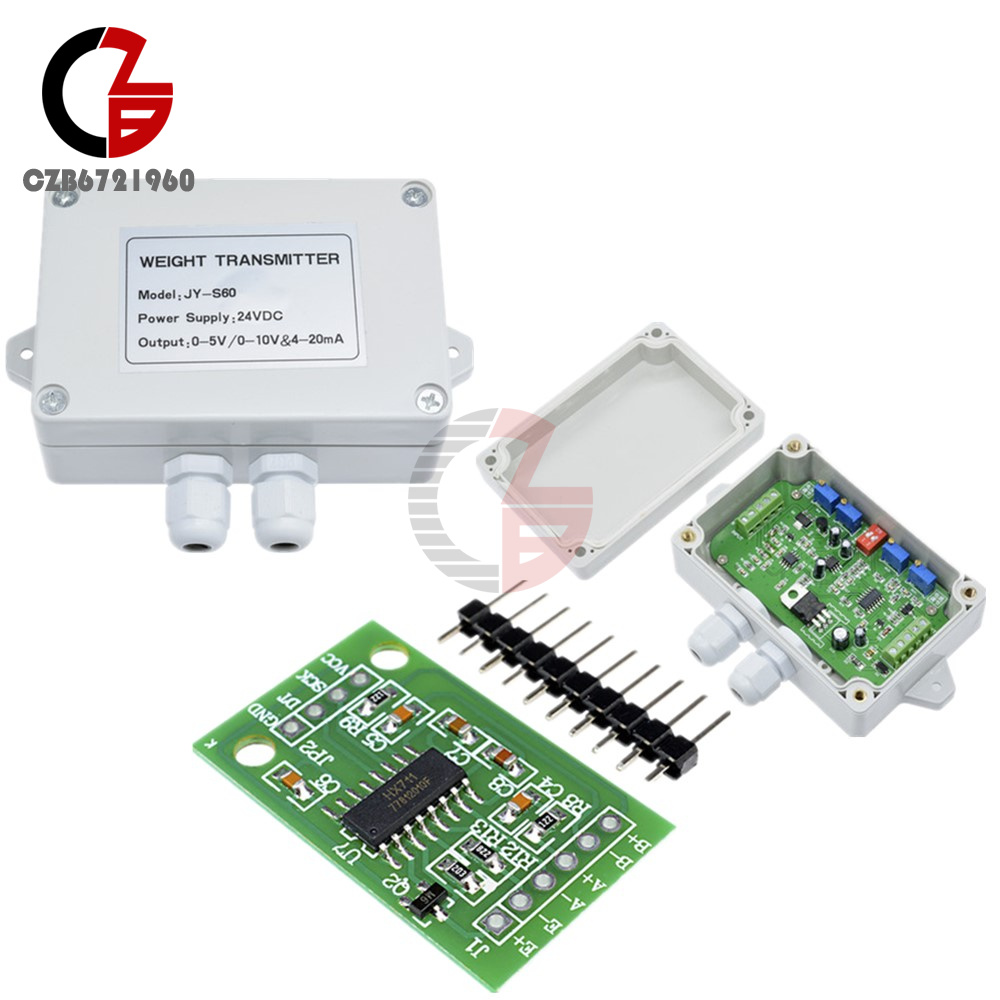

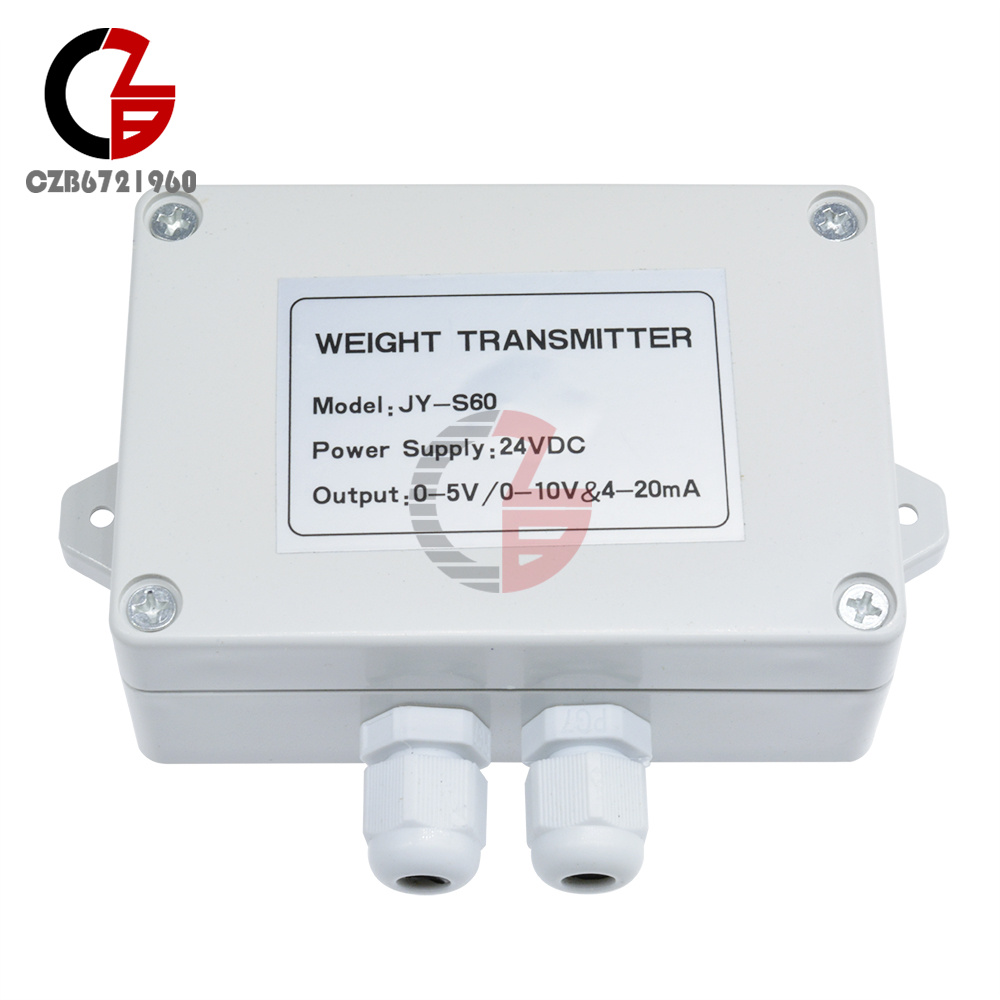

Load Cell Amplifier Transmitter
Description:
Suitable for all kinds of load sensor signal is converted to 0-5V, 0-10V or 4-20mA
You can pick up 1-4 sensors, can output 0-5V/0-10V or 4-20mA
The bridge road input impedance: 2KΩ
Input sensitivity: 1.5~2.1 MV/V
Sensor excitation voltage: 5V DC
Load capacity : 87 Ω (four 350 ohm sensor parallel)
The working power supply : 18~26V DC
Precision: 0.3%FS
Temperature characteristics: Better than 100 PPM
Working temperature: 0~50C
weight : 90G
Size and shape:115*80*34 (the center of the mounting hole distance: 97)mm
Suitable for all kinds of load sensor signal is converted to 0-5V, 0-10V or 4-20mA
You can pick up 1-4 sensors, can output 0-5V/0-10V or 4-20mA
The bridge road input impedance: 2KΩ
Input sensitivity: 1.5~2.1 MV/V
Sensor excitation voltage: 5V DC
Load capacity : 87 Ω (four 350 ohm sensor parallel)
The working power supply : 18~26V DC
Precision: 0.3%FS
Temperature characteristics: Better than 100 PPM
Working temperature: 0~50C
weight : 90G
Size and shape:115*80*34 (the center of the mounting hole distance: 97)mm
Package Included:
1PC*DC 5V 4-20mA Load Cells Scale Amplifier Indicator Transmitter Sensor Transducer
