CNC 3018/2418/1610 3 Axis Stepper Motor Double Y Axis USB Driver Board Controller Laser board for GRBL CNC Router

Product Description：

AnnoyTools/CRONOS LOGO Random delivery！

Upgrade to 32-bit control board Runs faster, runs smoother, and remains stable even when the machine is running fast

Friendly reminder: our control board is updated and upgraded quickly, the picture is for reference, please refer to the specific product you have received, please rest assured that the picture is the same as the whole, but the module location will be slightly different.
--Double y-axis, all-round use

--Integrated 3pcs A4988 drivers, directly connect to four wire stepper motor.

--Support Laser or Spindle.

--Support 12V, 5V with TTL and without TTL laser.

--Adjustable driver subdivision.（only 4.0 version）

--Support the x/y/z limit switch, probe interface.

--Support external Offline Controller(Optional).

--A4988 can be replaced with 8825 driver.

--Support X,Y,Z limit switch

Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used

for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.

New chip upgrade, using 32-bit chip

Packing List：

1*Controller

1*USB cable

1*775 motor line

PS: Please leave the email box I will send software to you .

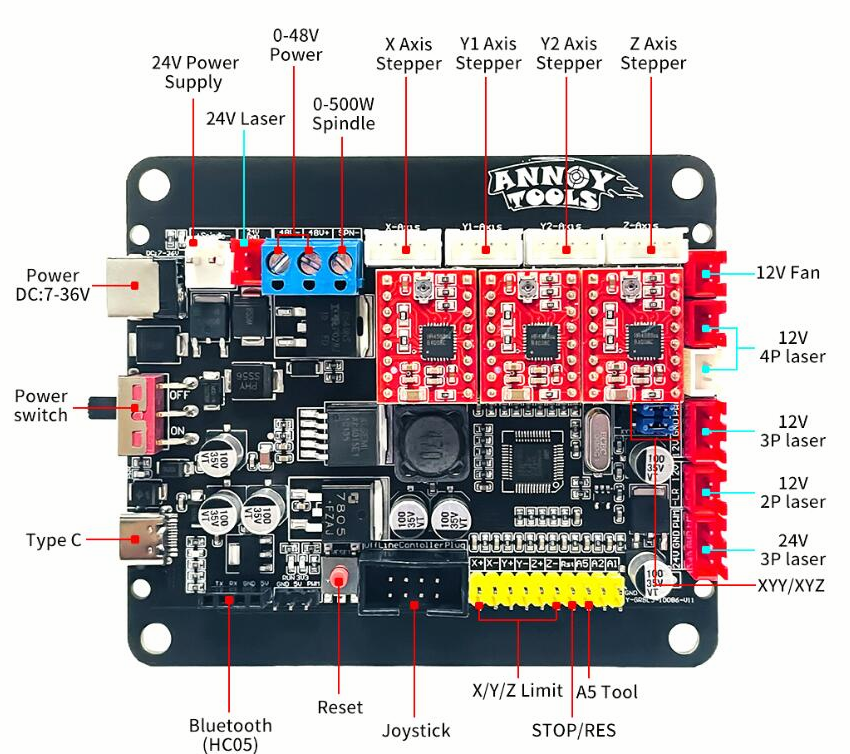

Product Details：

3axis 4.0V

1. support XYZ axis, double Yaxis

2. install GRBL 1.1 firmware

3. Support XYZ limit

4. Support 2pin/3pin/4pin laser(all the tpye laser in Martket)

5. Can work of Offline controller

6. Support  Bluetooth

7. Stepping subdivision

8. Can use Probe

9. Support connect servo(writting)

10. Support voltage: 0-48v (300W/400W/500w spindle)

Please Note： The positive and negative poles, make the right connection.

Its not seller's responsibility if the fault was from this.
