VDMA/ISO 15552 Pneumatic Cylinder

Technical Specification & Ordering Information

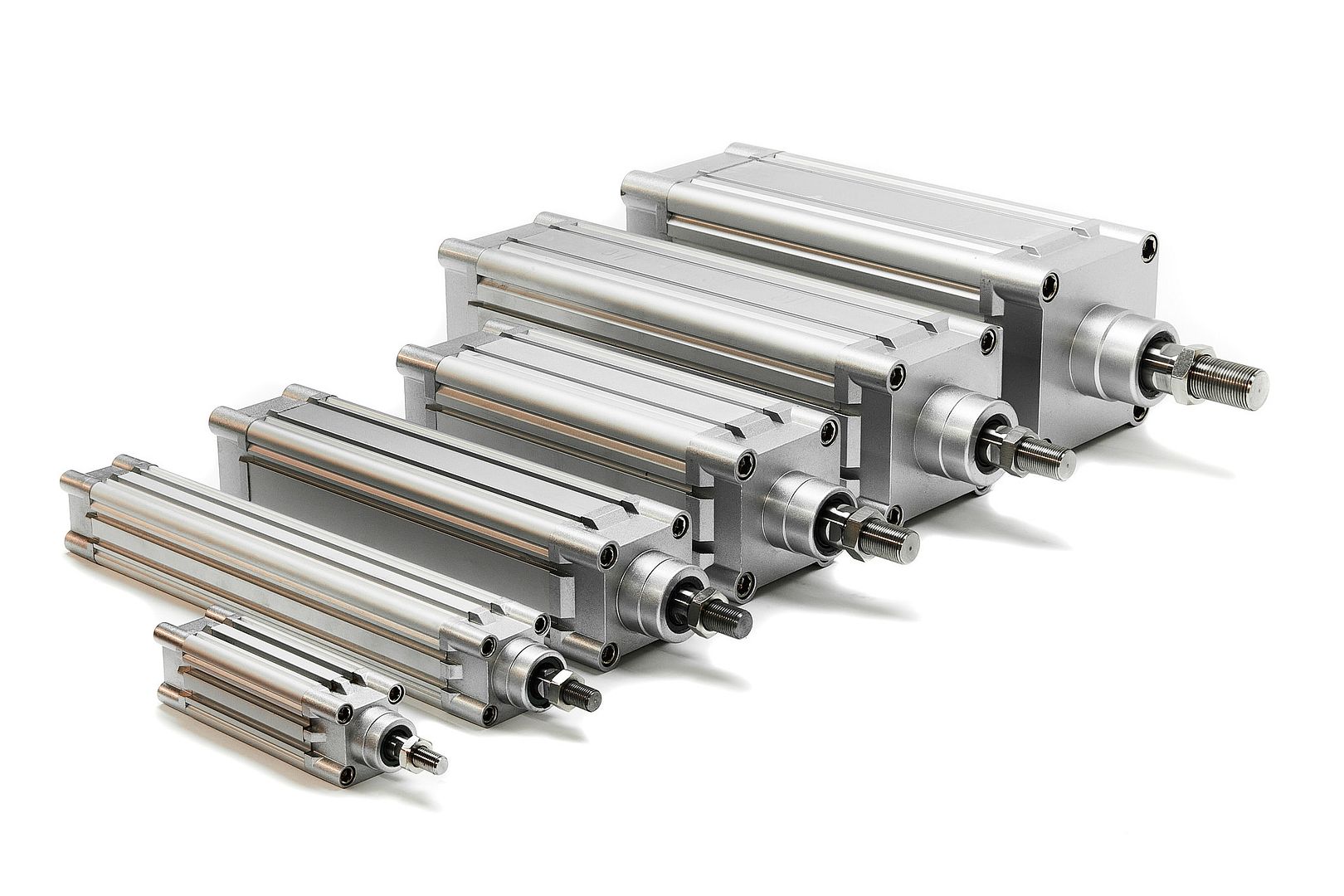

VDMA/ISO 15552 Pneumatic Cylinder - Main View

High-performance pneumatic cylinders manufactured in the UK to ISO 15552 standards. Customised bore sizes and stroke lengths available. Direct replacements for major brands.

Product Overview & UK Manufacturing

Air System Controls specialises in the design and manufacture of high-quality VDMA/ISO 15552 compliant pneumatic cylinders. Operating from our dedicated facility in Telford, Shropshire, we leverage over 30 years of experience to produce cylinders that meet the rigorous demands of modern industrial automation.

Our cylinders feature premium materials, including standard stainless steel piston rods and high-grade aluminium bodies, ensuring longevity and reliable performance even in challenging environments. Adjustable cushioning comes as standard for smooth operation. We offer extensive customisation options, allowing engineers to specify the exact configuration needed for their machinery or application, providing a superior alternative to off-the-shelf components.

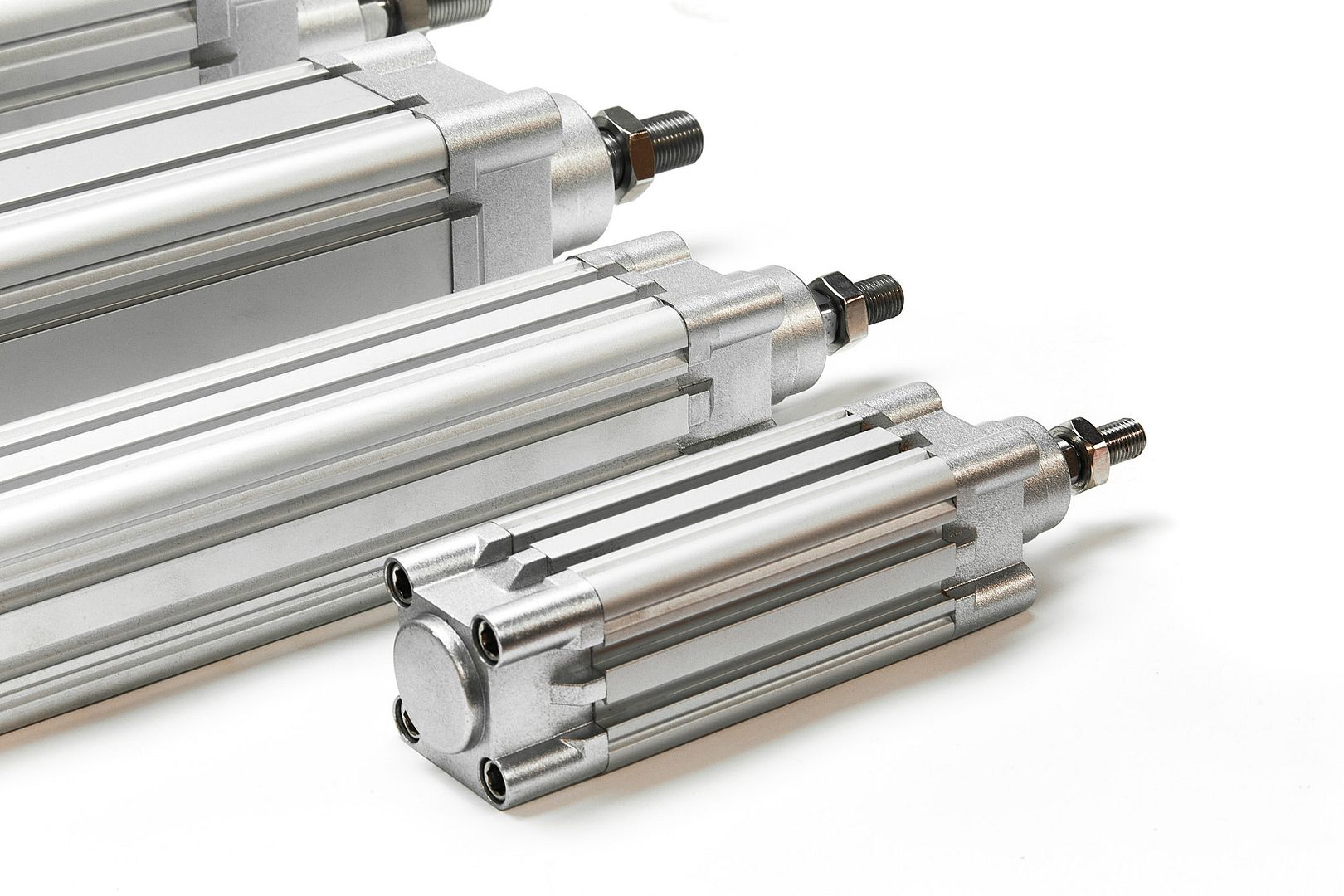

VDMA/ISO 15552 Cylinder End Cap and Ports Detail
Manufactured VDMA Cylinders

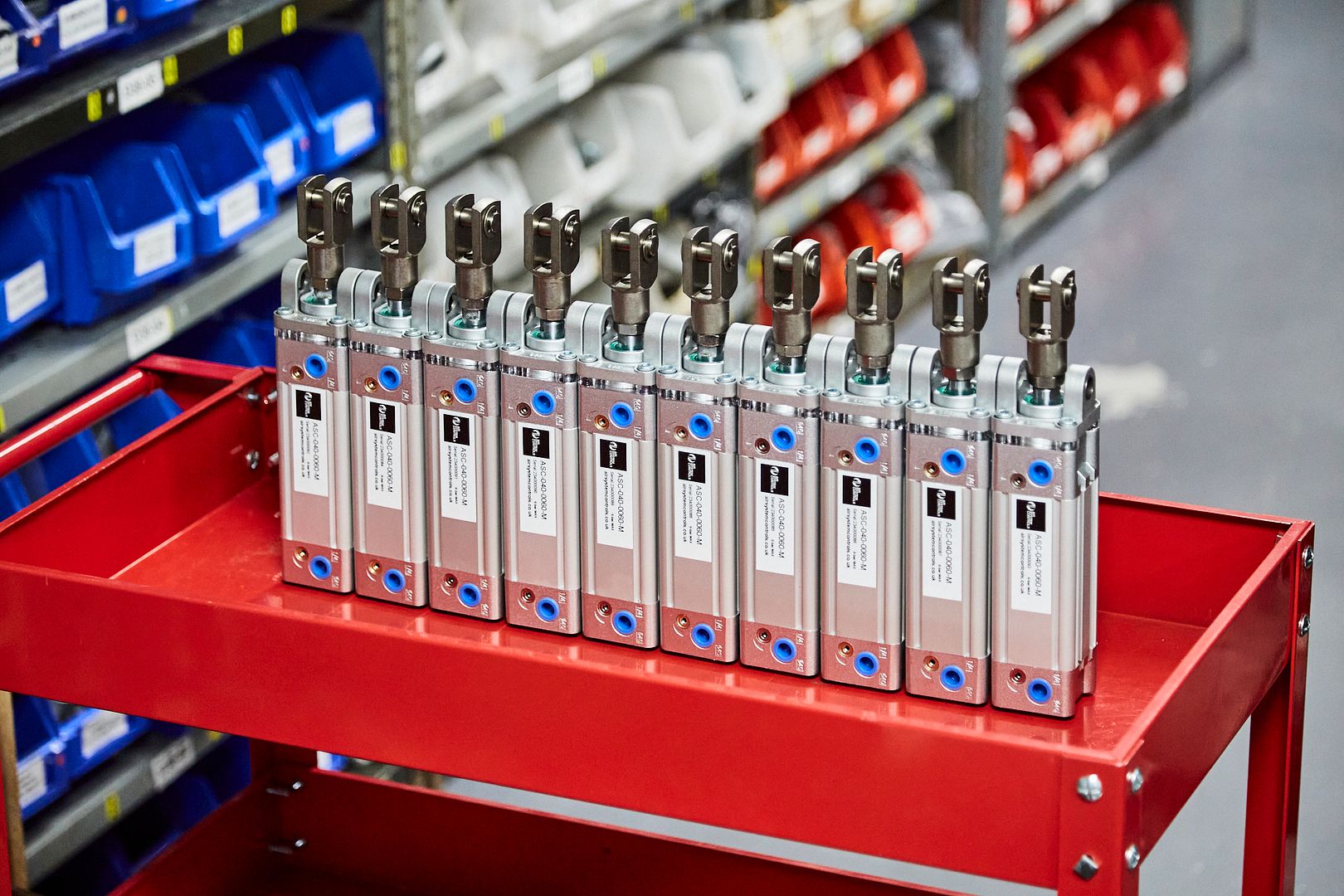

Manufactured VDMA/ISO 15552 cylinders awaiting dispatch from our Telford trade counter.

Order Configuration

  • Standard:ISO 15552 / VDMA 24562
  • Bore Size:32mm - 400mm (Specify required)
  • Stroke Length:Custom up to 2000mm (Specify required length in mm)
  • Operation:Double Acting
  • Cushioning:Adjustable Pneumatic (Standard)
  • Rod Material:Stainless Steel (Standard)
  • Seals:NBR/TPU [-20°C to +80°C] (Viton optional)
  • Magnetic Piston:Optional (Specify if required)
  • Build Time:Typically 3-5 Working Days (Standard)

How to Order

Select the nearest size options from the listing dropdowns and provide your EXACT required stroke length (in mm) in the 'Note to seller' during checkout or send us an eBay message immediately after ordering. Contact us for options like Viton seals, non-standard mountings, or priority build requests.

Key Features & Benefits

  • UK Precision BuiltManufactured to spec in Telford, Shropshire, ensuring quality and efficient dispatch.
  • ISO 15552 CompliantGuaranteed compatibility and interchangeability (supersedes VDMA 24562).
  • Durable MaterialsStainless steel rods, aluminium bodies, quality seals for long service life.
  • Adjustable CushioningStandard adjustable pneumatic cushioning for smooth operation.
  • Brand CompatibilityDirect replacements for Festo, SMC, Norgren, Parker, Camozzi, etc.
  • Expert Support30+ years expertise. Contact UK team for advice or custom solutions.
Air System Controls - Every size, Every application - Serving industry across the UK and internationally since 1989

Proven Across Diverse Applications

Leveraging over 30 years of UK design and manufacturing expertise, our ISO 15552 cylinders provide reliable, precise, and powerful motion control for a vast range of demanding applications – from standard industrial machinery to highly specialised systems.

  • Industrial Automation & Robotics
  • Manufacturing & Production Lines
  • Material Handling & Conveyor Systems
  • Automotive Assembly & Tooling
  • Food & Beverage Processing / Packaging
  • Agricultural Machinery Control
  • Test & Measurement Equipment
  • Heavy Machinery & Vehicle Systems (e.g., Tail Lifts)
  • Marine Stabilisers & Deck Equipment
  • Renewable Energy (Solar Tracking, Turbines)
  • Medical & Laboratory Automation
  • Flight & Driving Simulators / Motion Platforms
  • Theatrical / Entertainment Effects & Staging
  • Theme Park Attractions / Roller Coaster Mechanisms
  • Bespoke Projects (e.g., Drone Launchers)

If your application requires robust, customisable pneumatic actuation, contact our engineering team.

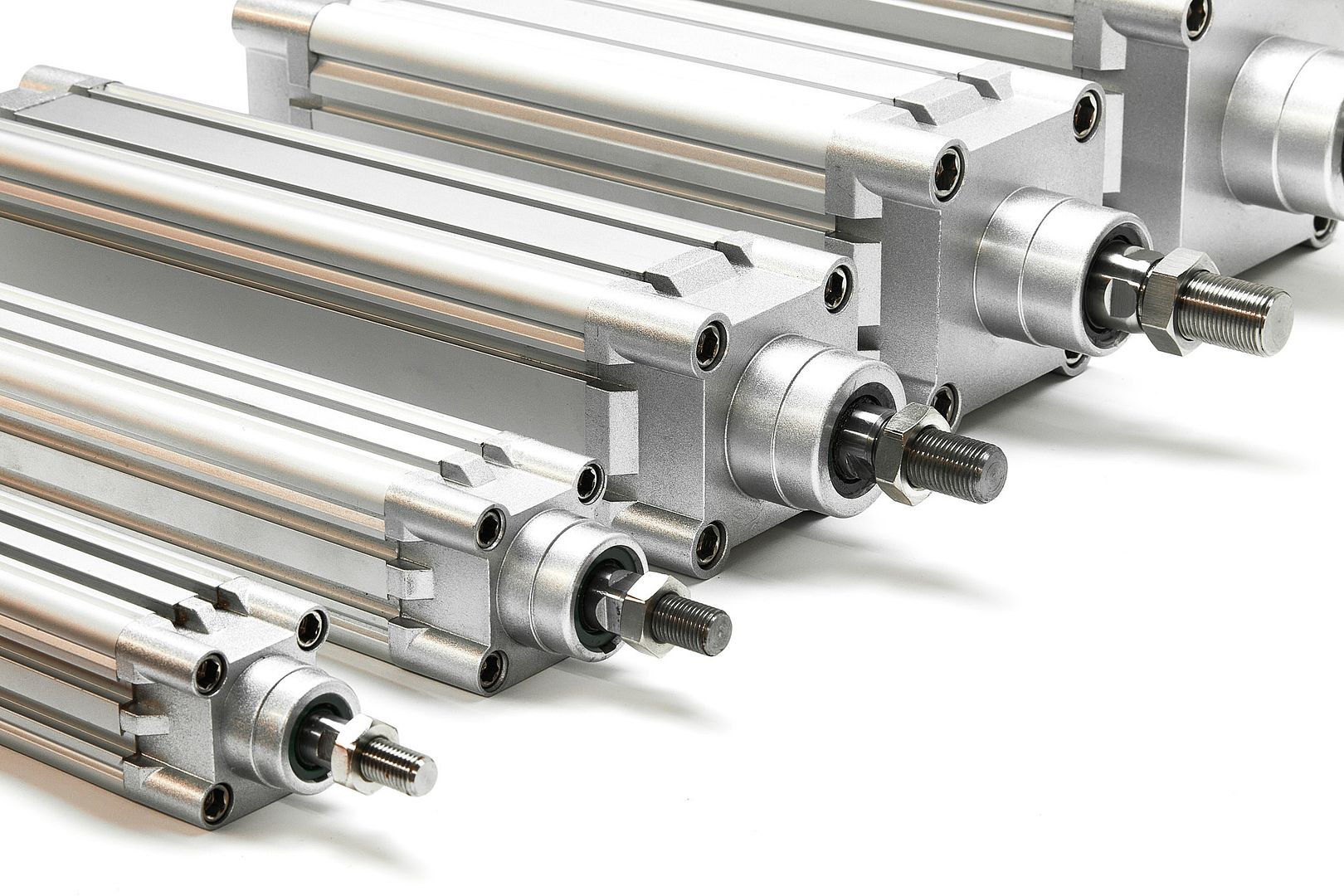

VDMA/ISO 15552 Cylinder Profile View

Technical Dimensions

Technical Drawing of BSPP Full Bore Gas Ball Valve with Blue Butterfly Handle

VDMA/ISO 15552 Pneumatic Cylinder - Technical Drawing

NO.ItemMaterial
1Rod nutCarbon steel / Stainless steel
2Piston rodStainless steel (Standard)
3Front cover packingTPU / NBR
4BushingWear resistant material
5Front coverAluminum alloy
6Cushing O-ringNBR
7BarrelAnodized Aluminum alloy
8PistonAluminum alloy
9O-ringTPU / NBR
10Wear ringWear resistant material
11MagnetPlastic (Optional)
12Buffer gasketTPU / NBR
13BoltCarbon steel
14Back coverAluminum alloy
15ScrewCarbon steel
Bore (mm)Max Std. Stroke (mm)Max Total Stroke (mm)Port Size (BSP)
32mm1000mm1500mmG1/8
40mm1200mm1500mmG1/4
50mm1200mm1500mmG1/4
63mm1500mm1800mmG3/8
80mm1500mm1800mmG3/8
100mm1500mm1800mmG1/2
125mm1500mm1800mmG1/2

Note: Contact us for non-standard stroke or larger bore size requirements.

Dimensions Diagram VDMA Cylinder
BoreAABADBDEFFAHKP
32mm142mm48mm27.5mm46.5mm12mmM10×1.2517mm6mm10mmM6G1/8
40mm159mm54mm32mm54mm16mmM12×1.2517mm7mm13mmM6G1/4
50mm175mm69mm31mm64mm20mmM16×1.523mm8mm17mmM8G1/4
63mm190mm69mm33mm75mm20mmM16×1.523mm8mm17mmM8G3/8
80mm214mm86mm33mm93mm25mmM20×1.526mm10mm22mmM10G3/8
100mm229mm91mm37mm110mm25mmM20×1.526mm10mm22mmM10G1/2
125mm279mm119mm46mm134mm32mmM27×241mm13.5mm27mmM12G1/2

Dimensions are nominal (mm). Contact us for full drawings.

VDMA Cylinder Durability Demonstration

Before & After: Customers' old cylinders next to newly manufactured replacements.

Customer Feedback Highlights

Need Help or a Custom Quote?

Our experienced technical team is ready to assist with application support, cylinder matching, or bespoke requirements.

Please contact us via eBay Messages for the fastest response.

Shipping Information

  • Stock Status: UK STOCK – all valves are held and dispatched locally
  • Dispatch: Same working day for orders placed before 1pm (Monday - Friday)
  • Delivery: 2 - 3 working days from dispatch
  • Documentation: VAT Invoice provided with all orders
  • Packaging & Delivery: Items are carefully packed to prevent damage during transit using a tracked delivery service.

Fast tracked delivery from our UK warehouse means you can rely on quick turn around for urgent gas valve installations.

Air System Controls Engineering Services

Why Choose Air System Controls?

Since 1989, Air System Controls has been providing pneumatic, hydraulic and valve components to industries across the UK. Our engineering team brings decades of expertise to every product we sell, and we are trusted suppliers of ball valves and other fittings.

Need Technical Support?

Should you have any technical queries about this BSPP gas ball valve or any of our range, please contact us. Our engineering team is happy to provide technical guidance.

Returns Policy

We aim to provide a 5-star service with every purchase. Items can be returned within 14 days from the date of purchase.

Return Postage:

  • Faulty or Defective Products: We will cover the return postage costs
  • Other Returns: The buyer is responsible for return postage costs

We aim to resolve any issues within 1-2 working days to meet your needs.

Contact Information

Air System Controls

Unit 10, Stafford Park 12

Telford, Shropshire TF3 3BJ

Opening Times

Monday - Thursday: 8:30am - 5:00pm

Friday: 8:30am - 3:00pm
