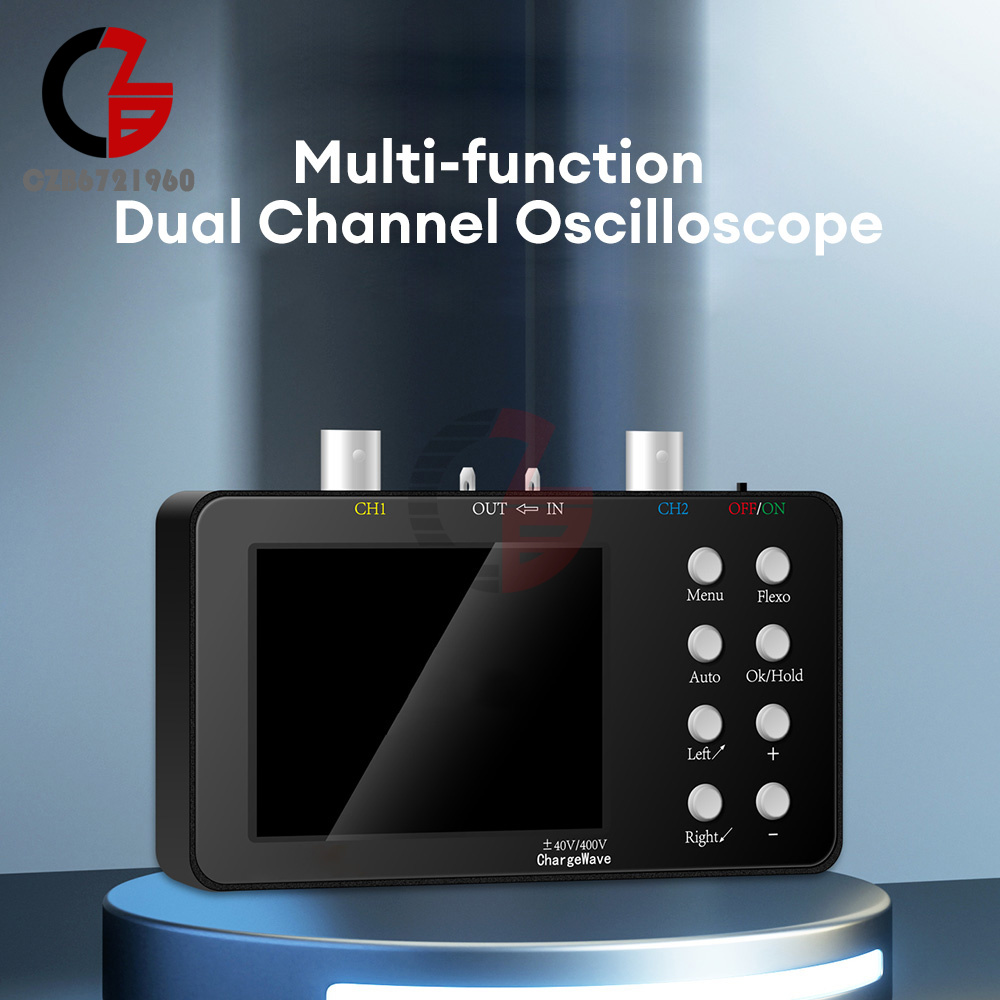

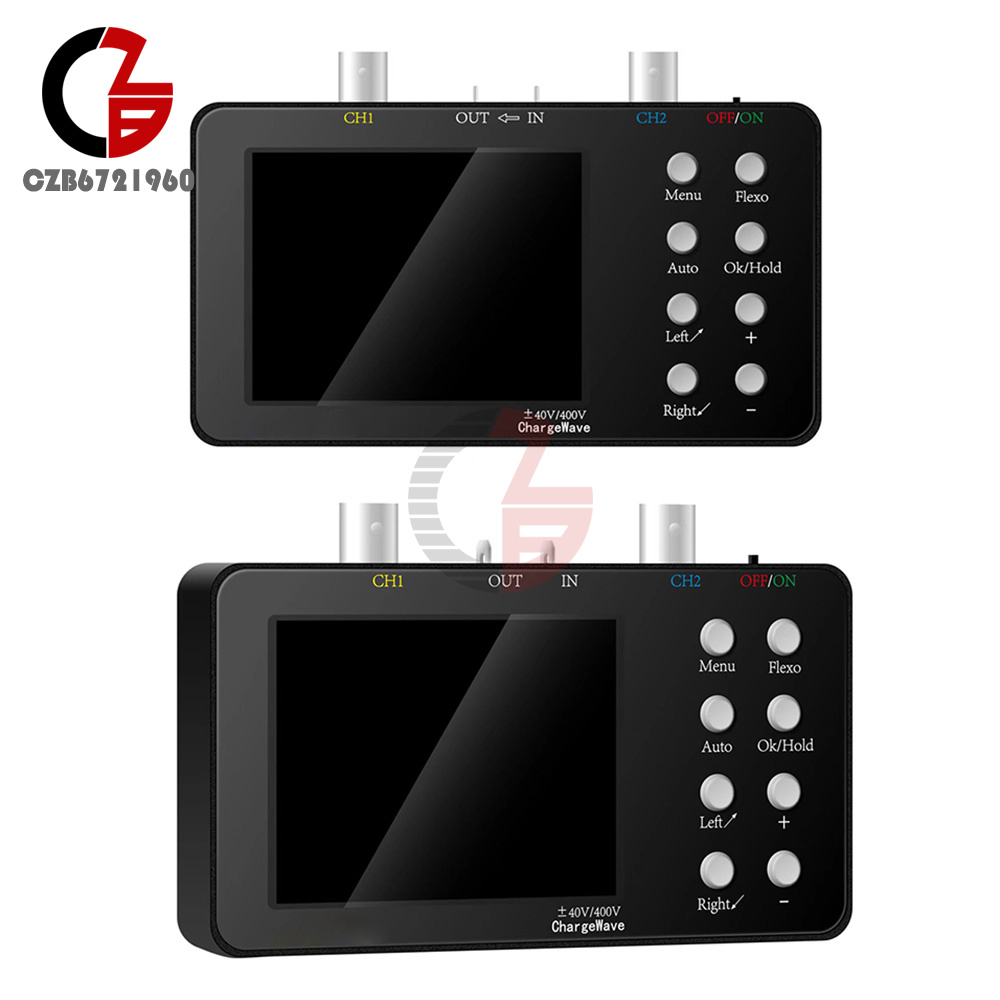

Digital Oscilloscope 10MHz Bandwidth Dual Channel Oscilloscope Signal Generator
Popular
Product Introduction

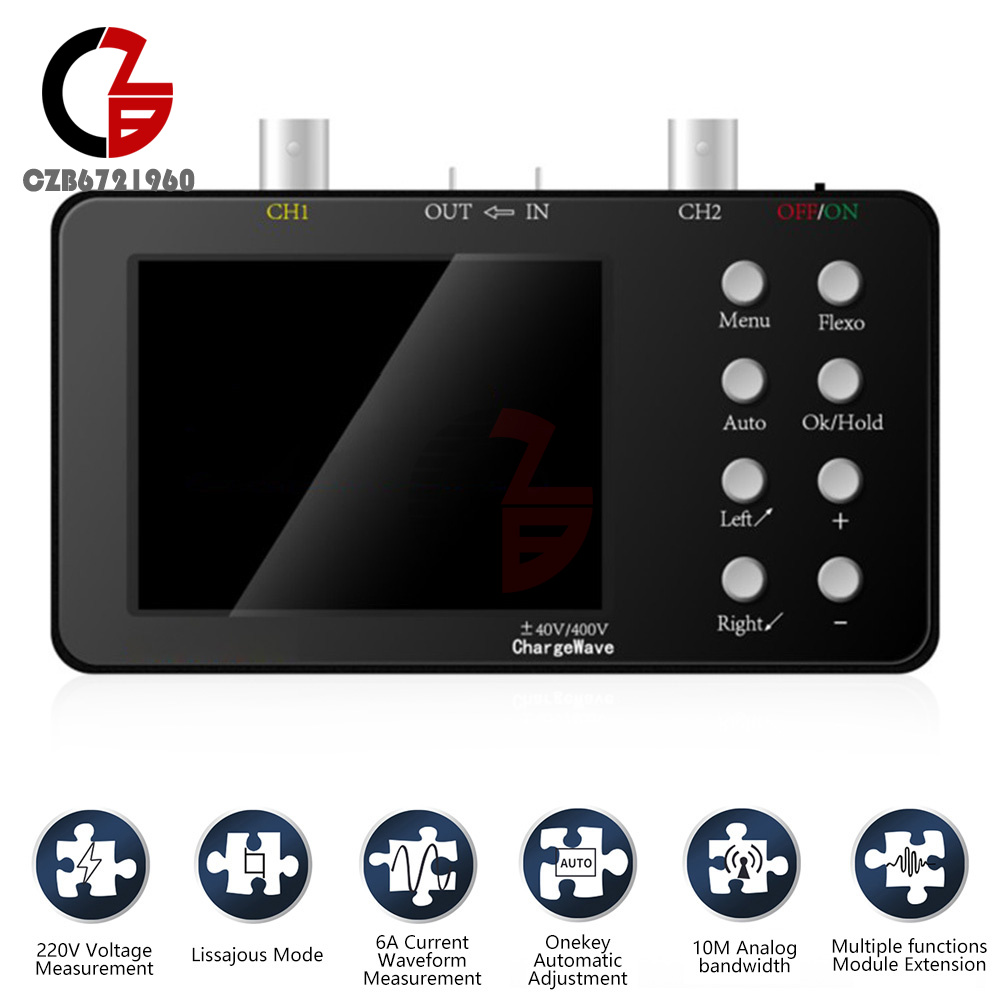

Features:
1.20K storage depth, support waveform compression expansion

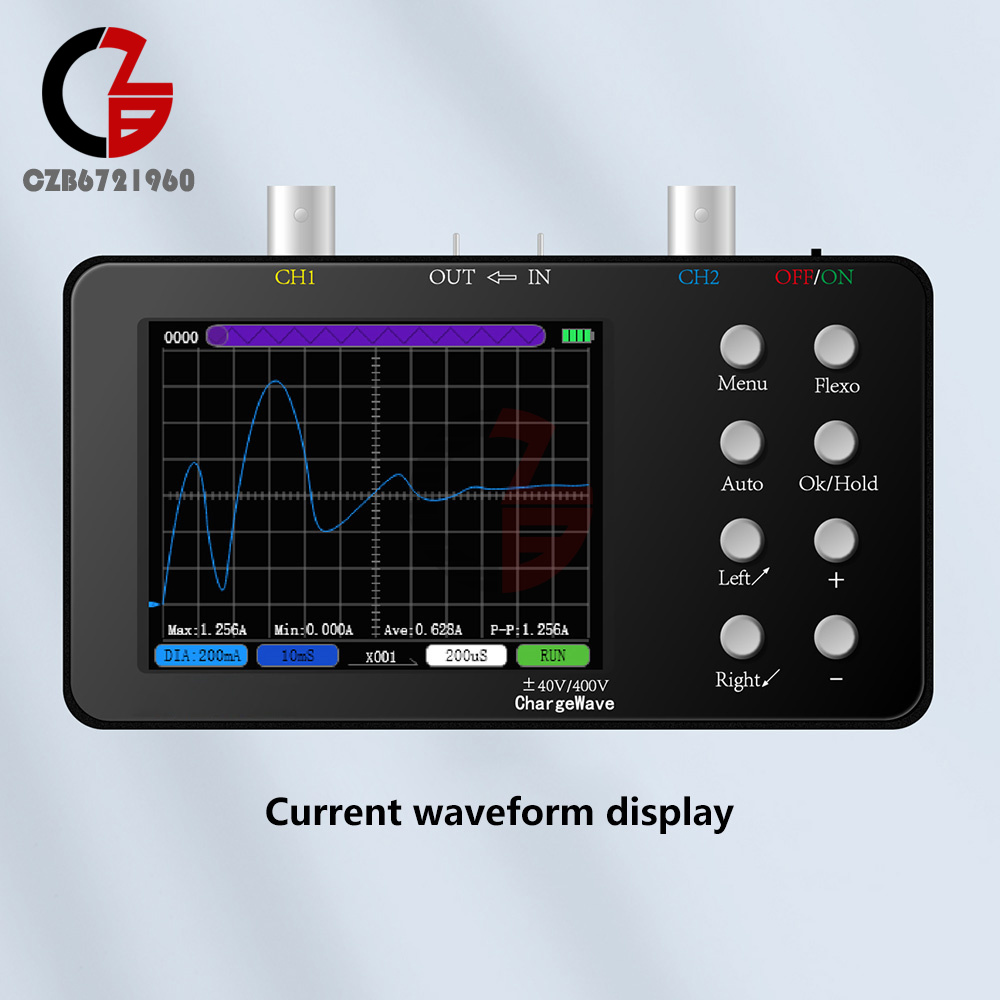

2. Current waveform stepless compression, maximum compression times 100 times, can be arbitrarily compressed to view the current change curve
3.50M sampling rate, analog bandwidth 10MHz
4. With a complete trigger function (single, normal, automatic), whether for the cycle of analog signals or non-periodic digital signals can be used freely
5. Can measure voltage signals up to ± 400V.
6. Equipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms.

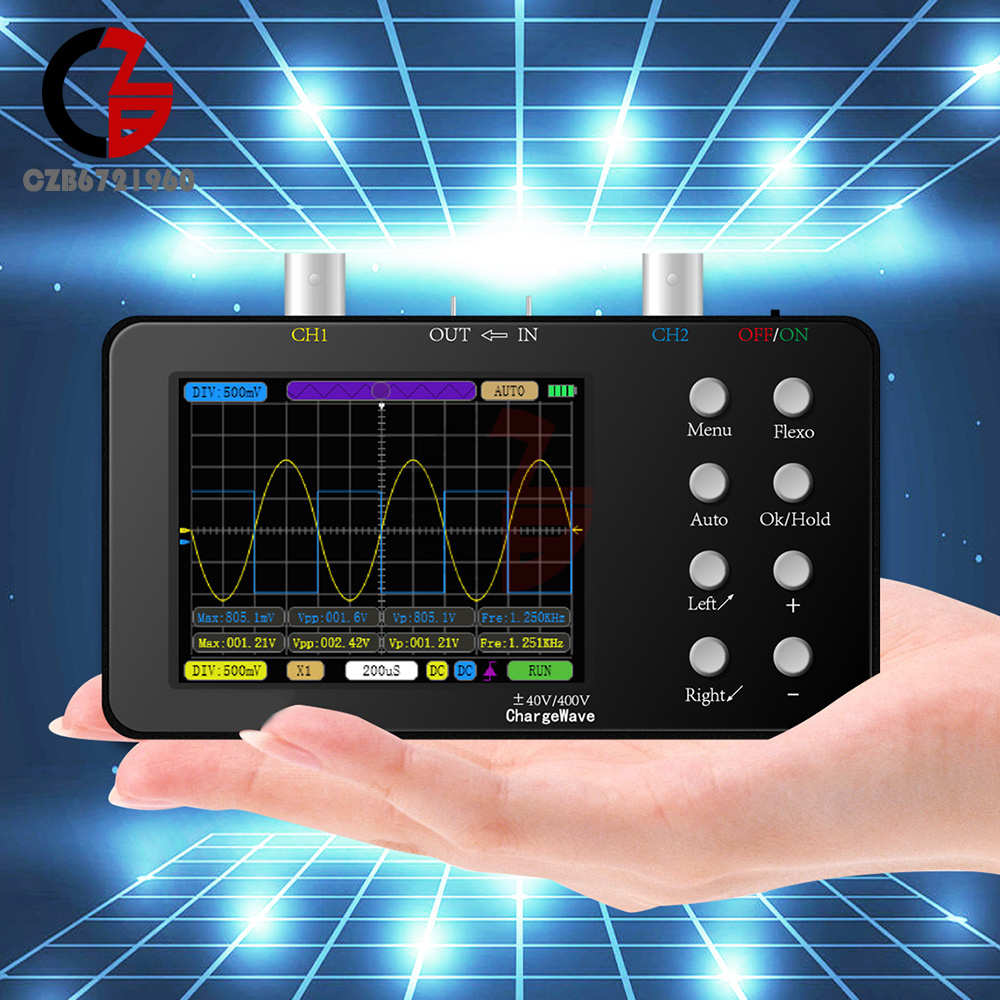

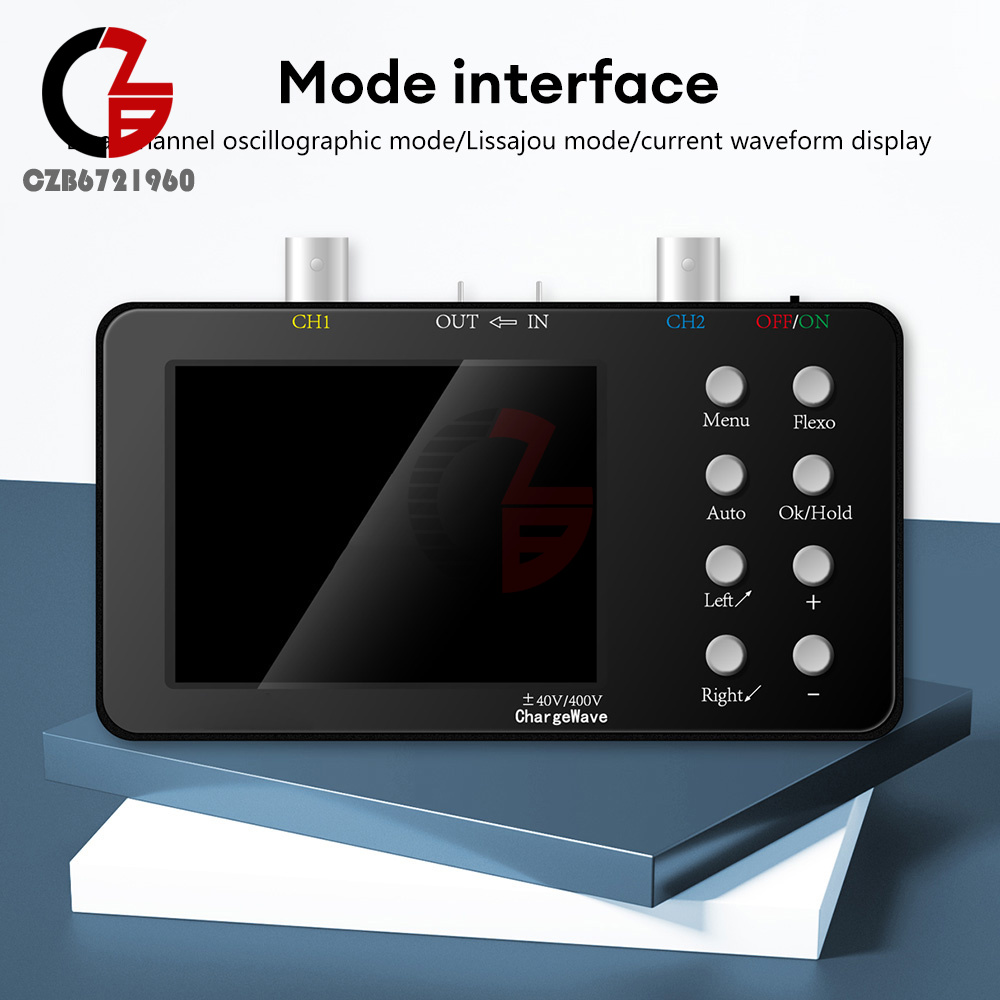

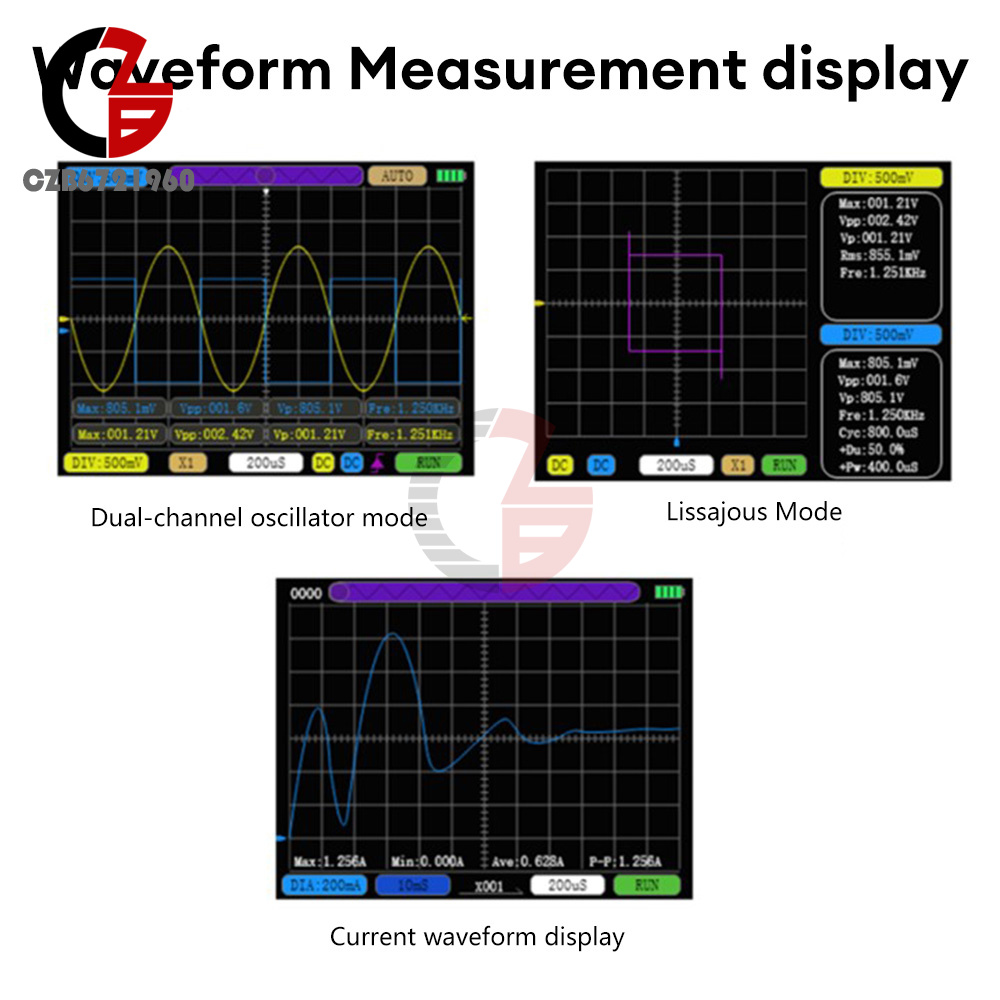

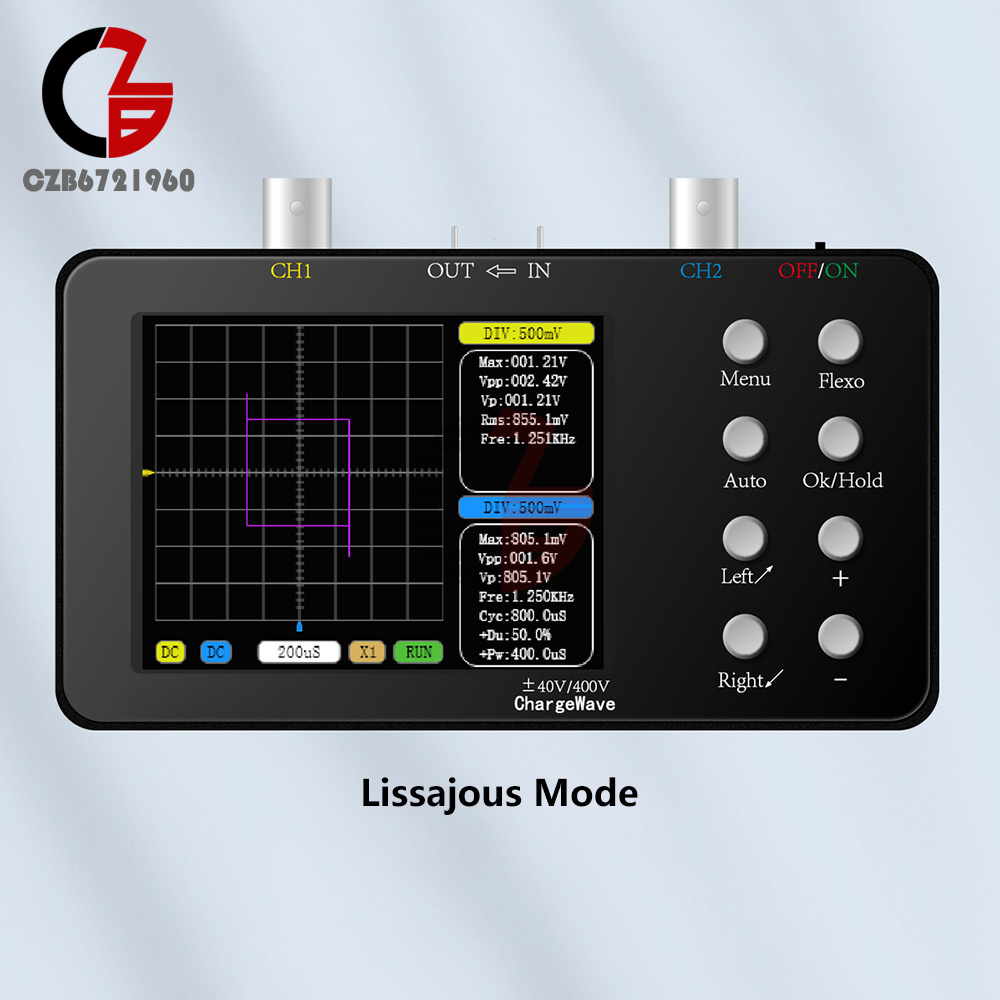

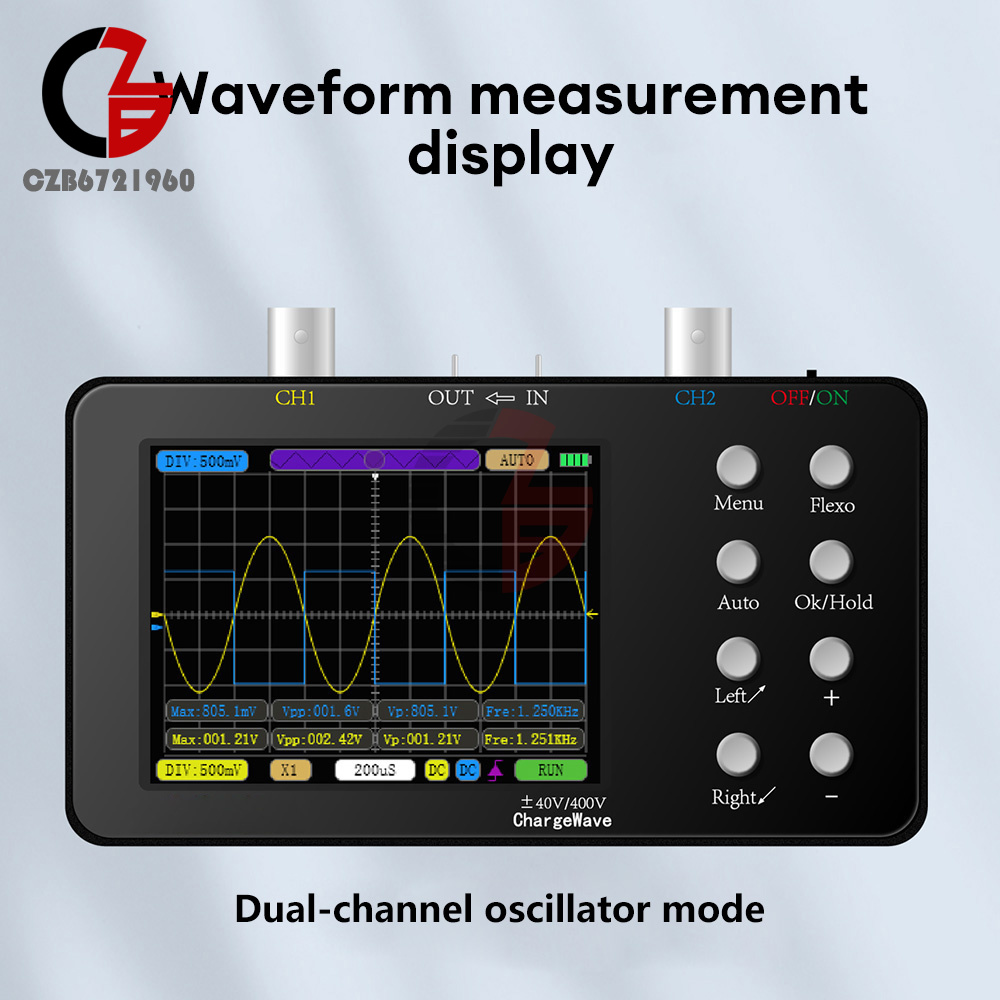

7. Dual-channel oscillator mode: Lissajous mode/current waveform display.
1.20K storage depth, support waveform compression expansion
2. Current waveform stepless compression, maximum compression times 100 times, can be arbitrarily compressed to view the current change curve
3.50M sampling rate, analog bandwidth 10MHz
4. With a complete trigger function (single, normal, automatic), whether for the cycle of analog signals or non-periodic digital signals can be used freely
5. Can measure voltage signals up to ± 400V.
6. Equipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms.
7. Dual-channel oscillator mode: Lissajous mode/current waveform display.

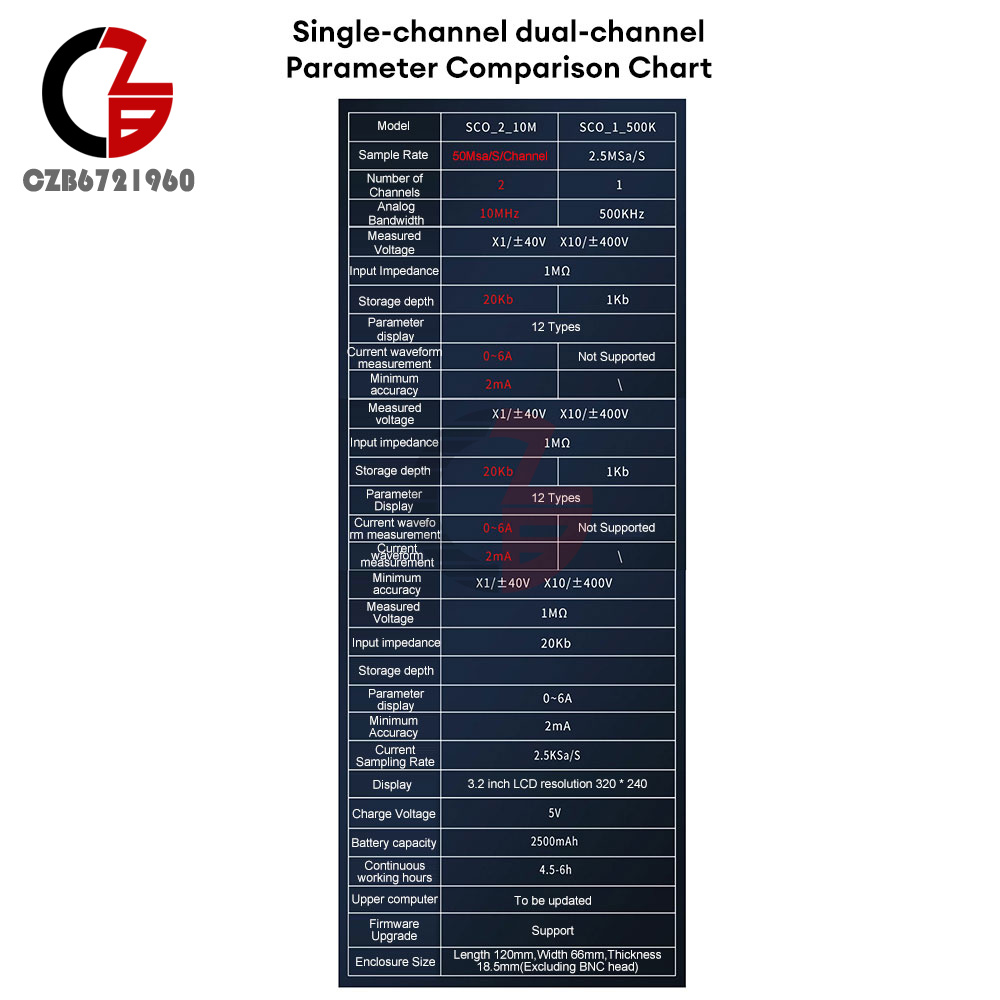

Parameter:
Model: SCO_ 2_ 10M
Sampling rate: 50M/channel
Number of channels: 2
Analog bandwidth: 10MHz (per channel)
Measuring voltage: X1/+40V X10/ earth 400V
Input impedance: 1MQ
Memory depth: 20Kb
Parameter display: 12 types
Current measurement: 0~6A
Minimum accuracy: 2mA
Current sampling rate: 2.5KSa/S
Display: 3.2 inch LCD
Resolution: 320*240
Charging voltage: 5V
Battery capacity: 2500mAh
Continuous working hours: 4.5-6h
Upper computer: to be updated
Firmware upgrade: Support
Case size: L120mm*W66mm*Thick18.5mm (excluding BNC head)
Sampling rate: 50M/channel
Number of channels: 2
Analog bandwidth: 10MHz (per channel)
Measuring voltage: X1/+40V X10/ earth 400V
Input impedance: 1MQ
Memory depth: 20Kb
Parameter display: 12 types
Current measurement: 0~6A
Minimum accuracy: 2mA
Current sampling rate: 2.5KSa/S
Display: 3.2 inch LCD
Resolution: 320*240
Charging voltage: 5V
Battery capacity: 2500mAh
Continuous working hours: 4.5-6h
Upper computer: to be updated
Firmware upgrade: Support
Case size: L120mm*W66mm*Thick18.5mm (excluding BNC head)
Notes:
1. When measuring voltages over 40V, be sure to toggle the probe gear to X10.
2. When measuring high voltage (more than 36V AC voltage), do not touch the metal part of the instrument, especially the BNC connector position.
3. Charging voltage should not exceed 6.8V, so as not to burn the charging chip.
4. Only when measuring the utility power, absolutely prohibit the connection with the computer, it will lead to zero line ground short circuit!
1. When measuring voltages over 40V, be sure to toggle the probe gear to X10.
2. When measuring high voltage (more than 36V AC voltage), do not touch the metal part of the instrument, especially the BNC connector position.
3. Charging voltage should not exceed 6.8V, so as not to burn the charging chip.
4. Only when measuring the utility power, absolutely prohibit the connection with the computer, it will lead to zero line ground short circuit!

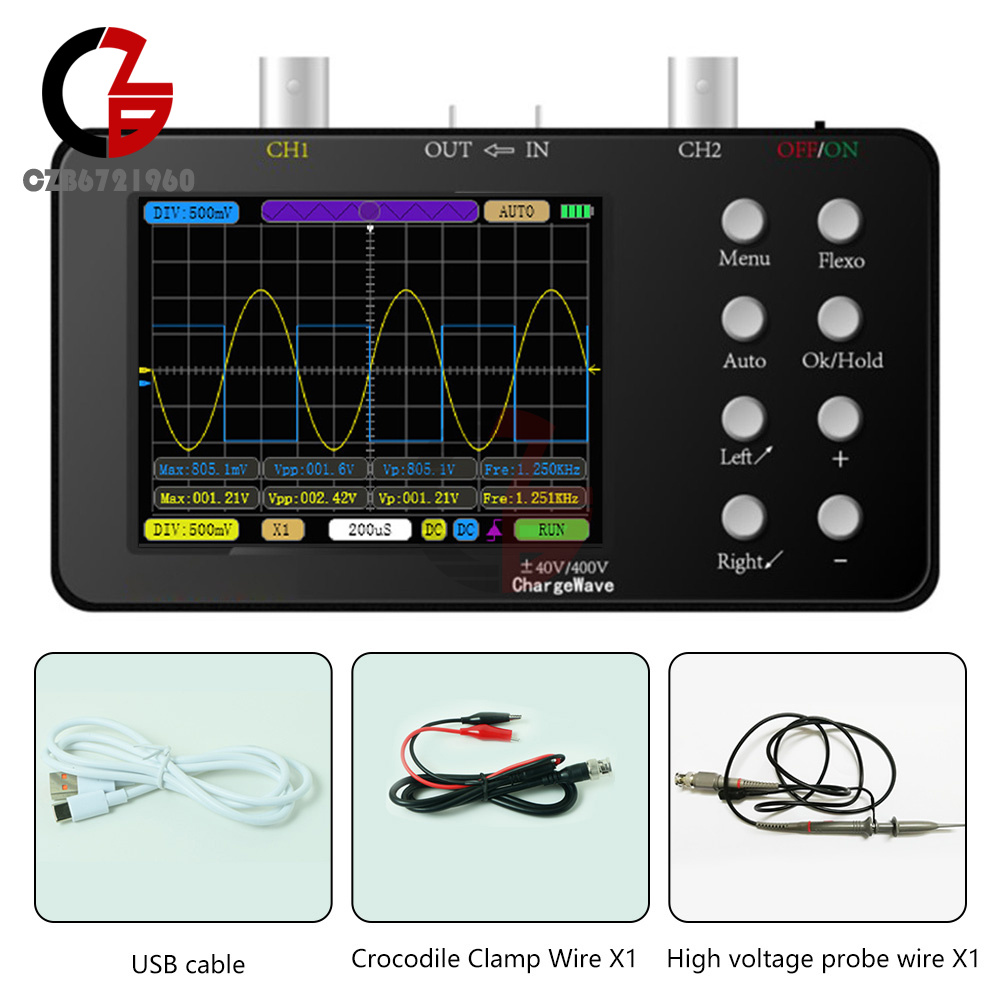

List:
Package 1 (standard version):
1 X Host
1 X USB cable
2 X crocodile clip cable
Package 1 (standard version):
1 X Host
1 X USB cable
2 X crocodile clip cable
Package 2 (high-compatibility version):
1 X Host
1 X USB Cable
1 X Alligator Clip Cable
1 X High Voltage Probe Cable
1 X Host
1 X USB Cable
1 X Alligator Clip Cable
1 X High Voltage Probe Cable
