Descriptions:

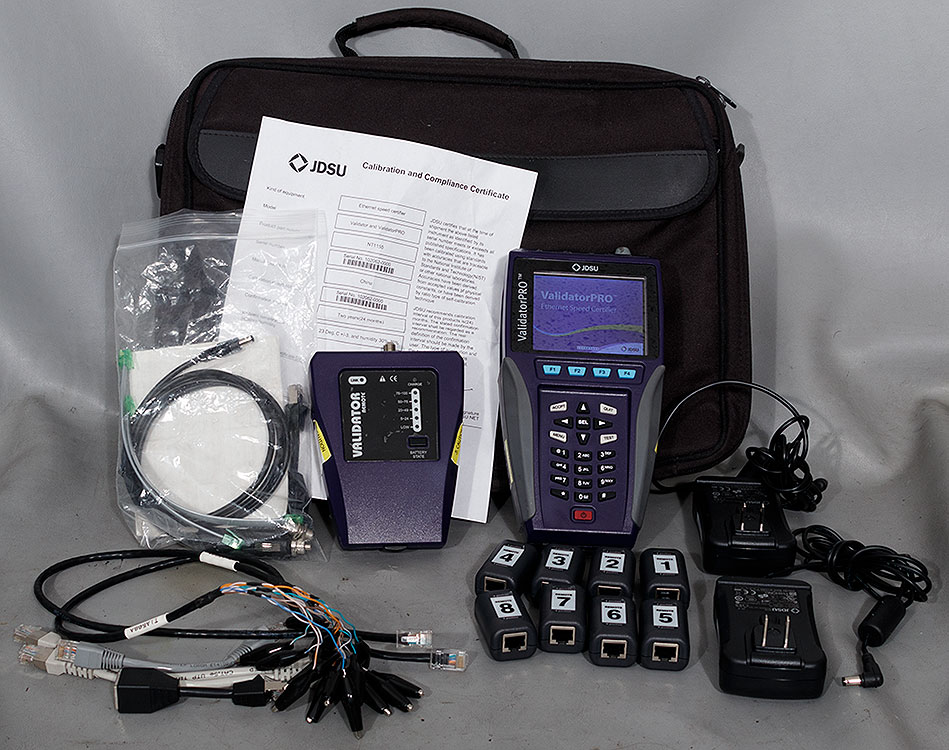

Building on the capabilities of the JDSu Validator and Validator-NT, the JDSU ValidatorPRO seeries of Ethernet Network Management Tools offers a complete solution to test copper and fiber Ethernet cables. The ValidatorPRO Ethernet speed certifier with integrated optical power meter and Plan-Um (not included) cable management software delivers the power to test obth copper and fiber cabling., determine if cable can support Gigabit Ethernet, and perform troubleshooting for cable installations. The ValidatorPRO performs all tests offered by the Validator and Validator-NT, including speed certifying the data-carrying capabilities of copper Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cabling wiring, and ensuring that cables can support the speed capabilities of active equipment.

To certify Ethernet speed performance of cable runs, the VBalidatorPRO series of handheld testers conducts bit error rate (BER) tests by sending data packets down specified cable runs at defined data rates to check for errors at the maximum throughput of the link. The ValidatorPRO also reports on signal quality that can impact high-speed data transmission by measuring signal-to-noise ratio (SNR). Skew measurements provide the signal time delay between pairs that can impact Ethernet data transmission. The ValidatorPRO also provides continuity testing that detects opens, shorts, miswires, split pairs, reversales, and high-resistance faults while accurately meaursing distance to faults and total cable length.

The ValidatorPRO includes an integrated optical power meter that measures optical power at 850/1300/1310/1490/1550 nm on multi-mode or single-mode fiber to address an increasing number of Ethernet networks that now include optical links.

The ValidatorPRO-NT version includes a comprehensive set of features for testing a network's active network capabilities: measure Power over Ethernet (PoE) to ensure the correct power is available on the correct pins, use port discovery to ensure the correct speed and duplex capability are available; connect at gigabit Ethernet and run ping tests to verify connectivity to IP hosts; discover network devices using Cisco Discovery Protocol (CDP) or Link Layer Discovery Protocol (LLDP), discovery and display essential information regarding functionality and configuration of 802.11 b/g/n networks.

Specifications:
Display: Color back-lit FSTN liquid crystal display (LCD)
Operating System: Linux
Keypad: Full naviations set with alphanumeric data entry and soft-key functions
Memory:
  Non-volatile Memory: Internal NAND flash memory
  Volatile Memory: 128 MByte DDR2 SDRAM memory
Languages Supported (GUI): English, French, Italian, German, Spanish, Portuguese, Korean, and Simplified Chinese
Interfaces:
  USB 2.0 Host Port: For external memory sticks.   Optical Power Meter: For 850/1300/1310/1490/1550 nm wavelengths. -45 to +10 dBm dynamic range for 850 nm and -50 to +10 dBm for all other frequencies. ±0.20 dB accuracy. ±0.06 dB linearity. Measured in dB or dBm. Auto wavelength selection with 270, 330, 1 k, 2 kHz modulation
  Wi-Fi: 2.4 GHz 802.11 b/g/n standards with MIMO technology. Support 64/128-bit WEP encryption, WPA, WPA2, and CISCO CCX security
Test Connections: 8-position shielded modular jack (data), 6-position modular jack (telephone), F-coax (video) Male connector w/sacraficial adapter, 2.5 mm universal push pull (UPP)(Fiber)
Cable Types: Shielded or unshielded twister pair network cable, Telephone, Coax, Single-mode and multimode fiber cable
Cable Length:
  Maximum Cable Length: 2,000 ft (600 meters)
  Maximum Cable Length for Testing of Split Pairs: Up to 100 meters (327 ft), depending upon cable type
  Cable Length Accuracy: ±5% (after performing both unit and cable calibration)
Electrical:
  Power Sources: AC adapter; auto cigarette lighter power adapter; lithium-ion rechargeable, removable batteries
Environmental:
  Operating Temperature: 0°F to 50°C (32°F to 122°F) - normal operation, not charging battery. 0°C to 45°C (32°F to 113°F) - charging battery
  Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  Operating Humidity: 10% to 85% RH, non-condensing
  Shock & Vibration Minimum: 2 ft drop (free fall from stationary) on concrete
  Safety: EN 61010-1
  EMI/EMC: EN 61326-1:2006
  Altitude: 4000 m
Agency Certifications and Compliance:
  Main and Remote Units: CE
  Battery: CE
  AC Wall Adapter: CE, PSE, UL
  Auto Cigarette Lighter Power: CE
Calibration:
  Traceable Calibration Period: 2 years (we are not a calibration lab and do not include calibration)
  Self-Calibration Period: 30 days for unit calibration. Perform cable calibration whenever changing cable type being measured.
Physical:
  Main Unit Size: 22.9 cm x 11.4 cm x 5.3 cm (9" x 4.5" x 1.8")
  Main Unit Weight: 710 gm (1 lb. 9 oz.) with battery
  Remote Unit Size: 14.2 cm x 11.2 cm x 4.4 cm (5.6" x 4.4" x 1.8")
  Remote Unit Weight: 341 gm (12 oz) with battery
