Features:
- Accuracy: designed to ensure repetitive accuracy.
- Quickly and easily installed on a lathe engine, bench or tower for a wide range of operations.
- Size stud M-10 and perfect for most mini machines, although modifications may be necessary for some machines (sleeve or a new center rod for a smaller hole may be necessary).
- Reduce installation time: instant change from one operation to another.
- Fully interchangeable with Aloris, Dorian, Phase II, Yuasa and most of the other components of the manufacturer.
- All working parts are accurate and hardened.
- Completely sealed for maintenance-free work.
- Rotate: the unequaled rigidity of this pillar of tools and holders ensures smoother turning without chatter or vibration.
- Drilling: allows you to drill with the power of your carriage, instead of manual work or tailstock.
- Hard cuniform tool post design, easily centered.
Specifications:
- Material: steel
- Color: black
- Lathe swing: 6-9"
- Application: turning tool
- Usage: CNC machine tool accessories

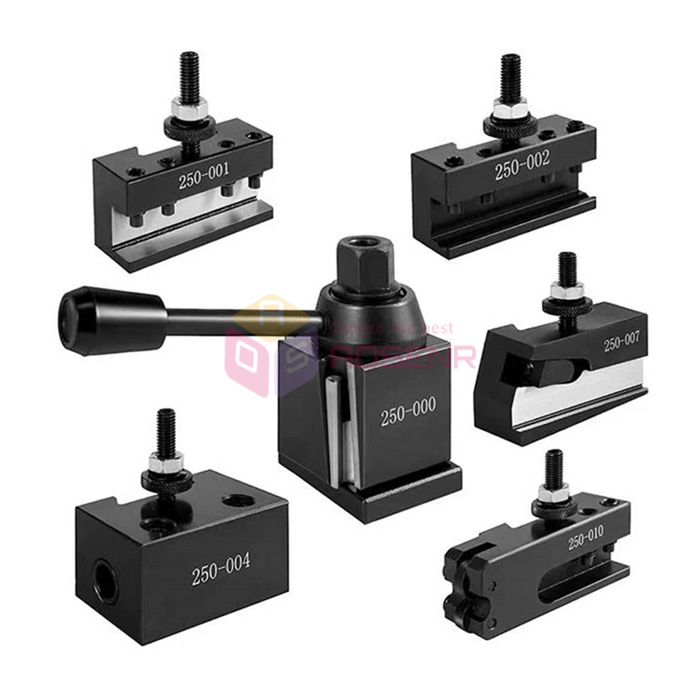

- Type: 250-000, 250-001, 250-002, 250-004, 250-007, 250-010
- Capacity of the tool:

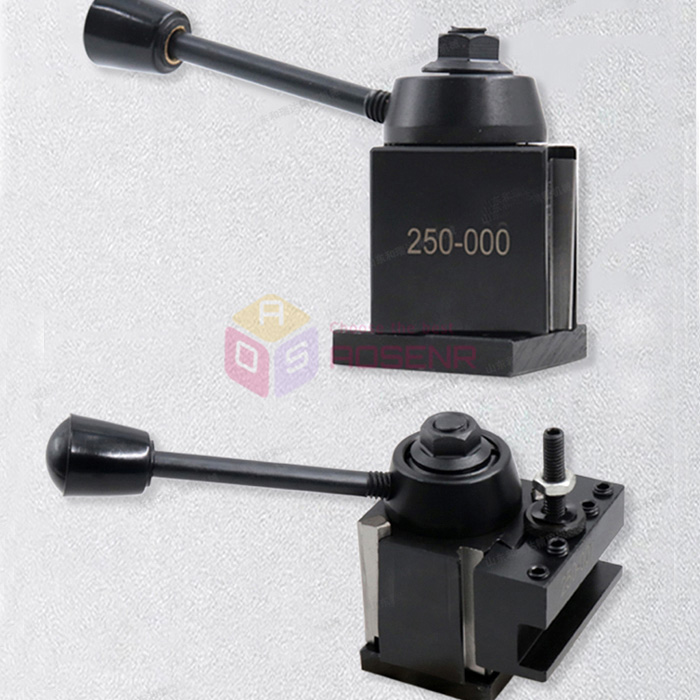

- 250-000: 1/2" cuniform type tool post
- 250-001: 1/2" turning tool holder
- 250-002: 1/2" boring, turning tool holder
- 250-004: 3/8" and 1/2" heavy duty boring bar holder
- 250-007: 1/2" parting blade tool holder
- 250-010: 1/2" knurling and turning tool holder
Usages:

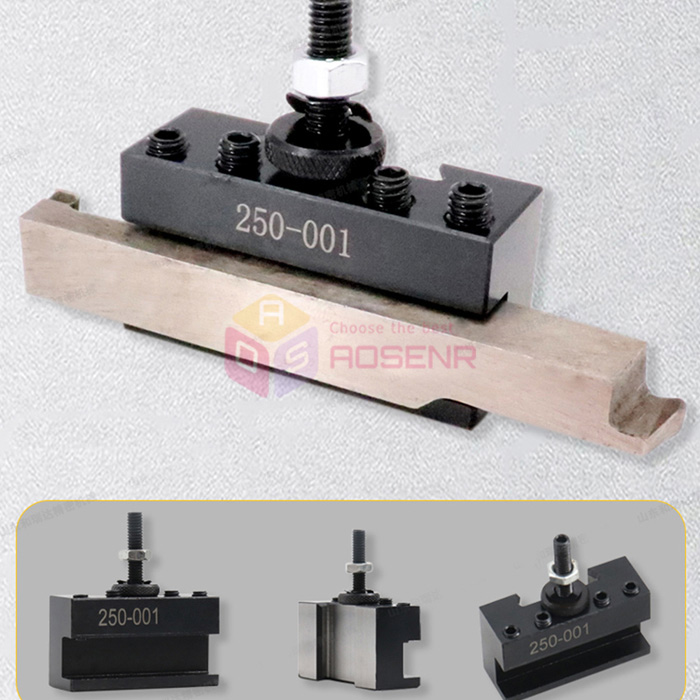

- 250-001: quick tool change holder for lathe cutting tool bits, range up to 1/2 inch. This holder is suitable for working with cuniform type 250-000.

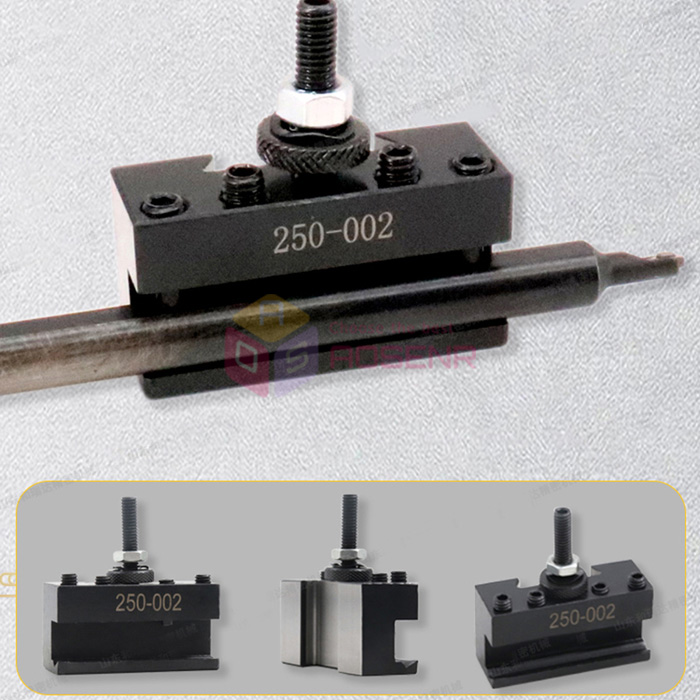

- 250-002: V groove hold round shank boring bars and tools as well as square tool bits to machine end face, external, cutting, boring, etc.

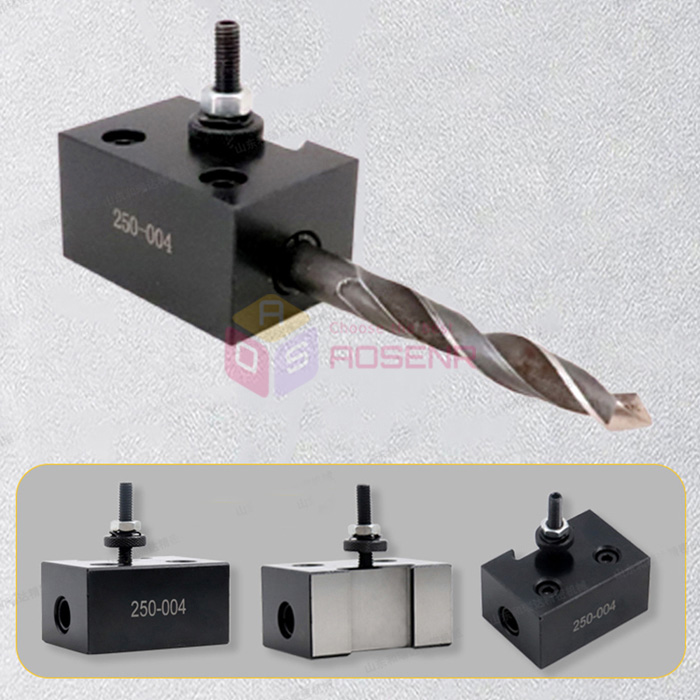

- 250-004: use straight shank drilling and reaming, boring, etc. Equipped with a split bushing to accommodate a boring bar of small diameter. It grips with extreme rigidity. Cuts smoothly without chatter.

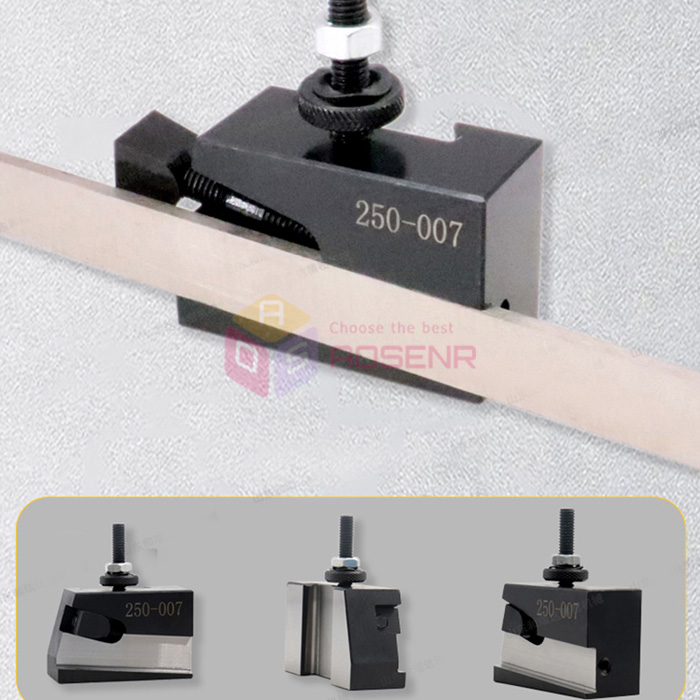

- 250-007: use square tool to make slot cut off etc.

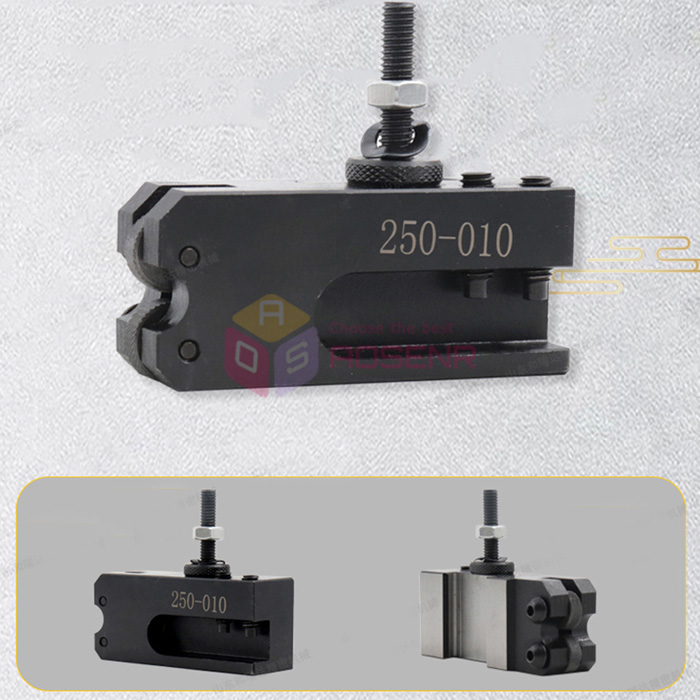

- 250-010: it may be used for knurling, if square tool is used, it may process end face, extered cutting, boring etc.
Package Includes:
1 x Tool Post / Tool Holder
|
|
