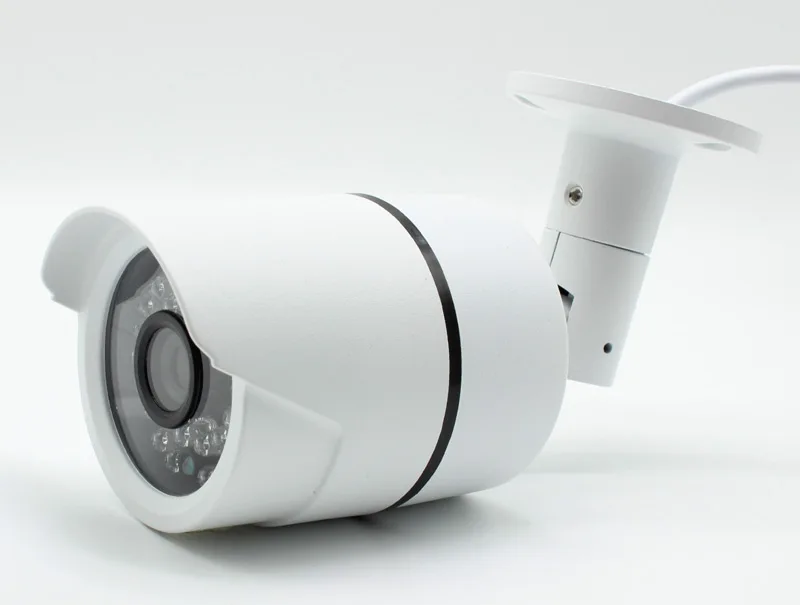

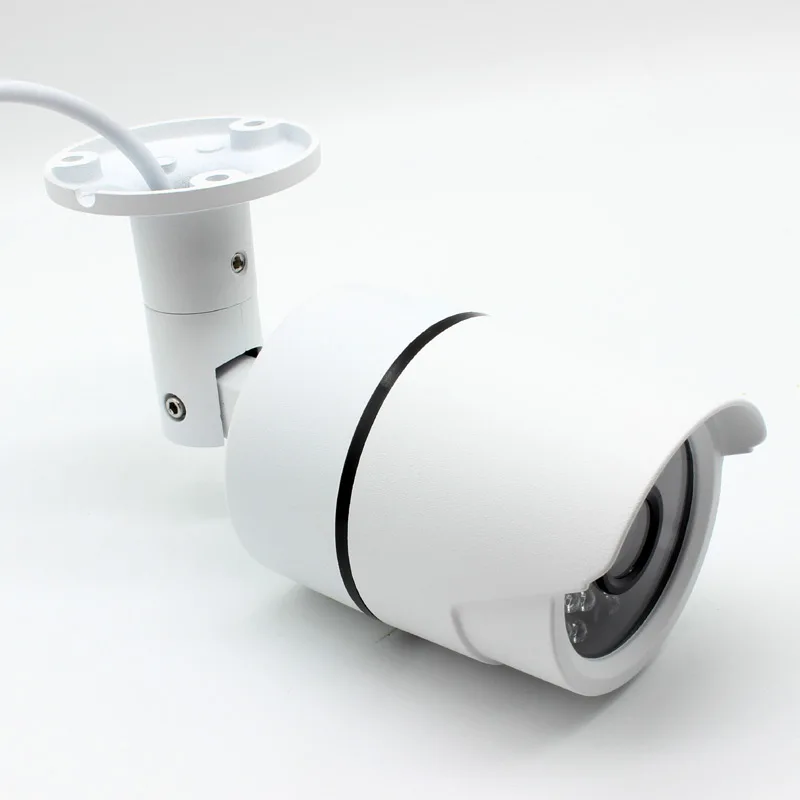

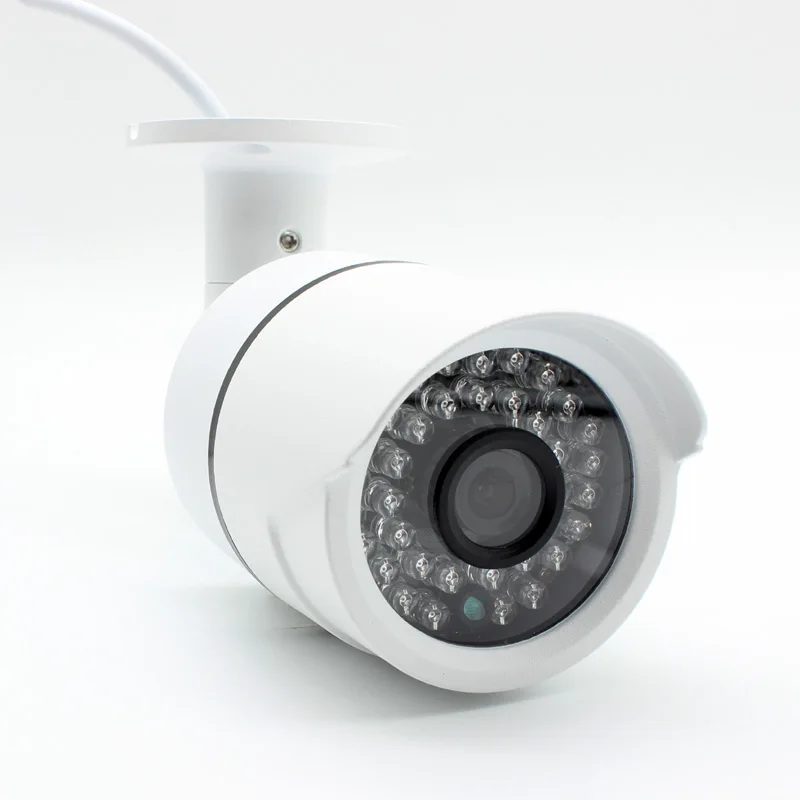

1/2.8" 5.0mp Low illumination H.265 AI POE IP Outdoor Camera;

The POE camera can be powered via DC 12V/2A Power, 48V PoE Switch or POE NVR.

Features:

Supporting human detection, face detection, and support to customize other intelligent functions

5.0MP HD Low illumination resolution,clear and fine images;

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265+ (Compatible with H.265/H.264)  video compression,Super low rate,high definition quality of image;

Professional anti-lightning,conform to GB/T17626.5 and  IEC61000-4-5。

Support ONVIF;access third party;

Support various mobile monitoring(iPhone,Android);

Provide web、CMS、center platform management software MYEYE,provide SDK development

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

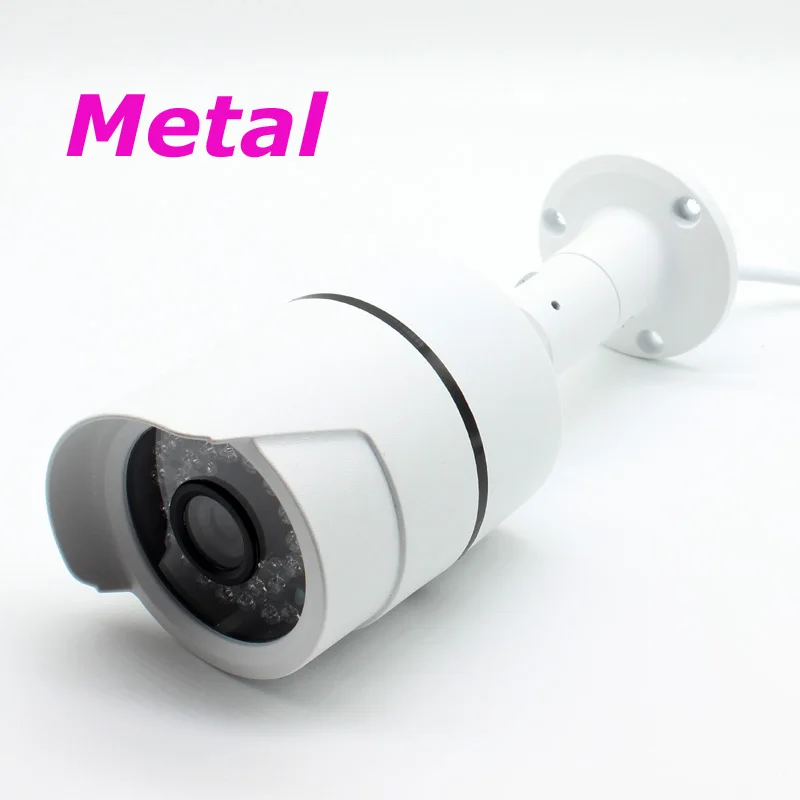

Weatherproof: Yes,  Material: Metal

Support POE power supply and POE NVR, it will reduce the trouble of cable arrangement. and this POE meet to  802.3AF/AT standard, it is very stable and reliable for use.

Day and night Surveillance, 20M IR distance, 36 IR LEDs see in the dark up to 50ft


Lens: 3.6mm Lens,

Optional: 3.6mm/4mm/6mm/8mm/12mm
(If you need to choose the lens, please Leave a message when you buy)

Specifications:

Sensor

5.0MP 1/2.8" Low illumination CMOS sensor

System structure

Embedded RTOS,dual-core 32bit DSP, pure hard compression,watch dog

Minimum Illumination

color 0.01Lux/F1.2,black/white 0.001Lux/F1.2

Video compression

H.265AI/H.265+ (Compatible with H.265/H.264), support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable

Image output

Main stream: 5MP: 2880*1616/15fps, 4MP: 2560*1440/25fps, 3MP: 2304*1296/25fps, 1920*1080/25fps;

sub-stream: 800*448/25fps.

Wide dynamic
Noise reduction

Day and night

Support digital
Support 2D/3D
Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V

Reliability

Comprehensive lightning protection, 7 * 24 hours -10℃ ~ 65℃ high temperature stable and reliable testing

Network interface

1*RJ45 10/100M adaptive Ethernet port;
support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Singal interface

One photo resistance interface,one IR-CUT interface,
support photo resistance signal and IR-CUT links to IR

Shutter

1/50(1/60)s to 1/10,000s

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Other function

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIF

Intelligence analysis

Supporting human detection, face detection, and support to customize other intelligent functions

Mobile monitoring

Support multiple mobile monitoring (iOS, Android)

Power

Standard POE Switch, POE NVR or DC 12V/2A

Weight

0.5kg



Note:

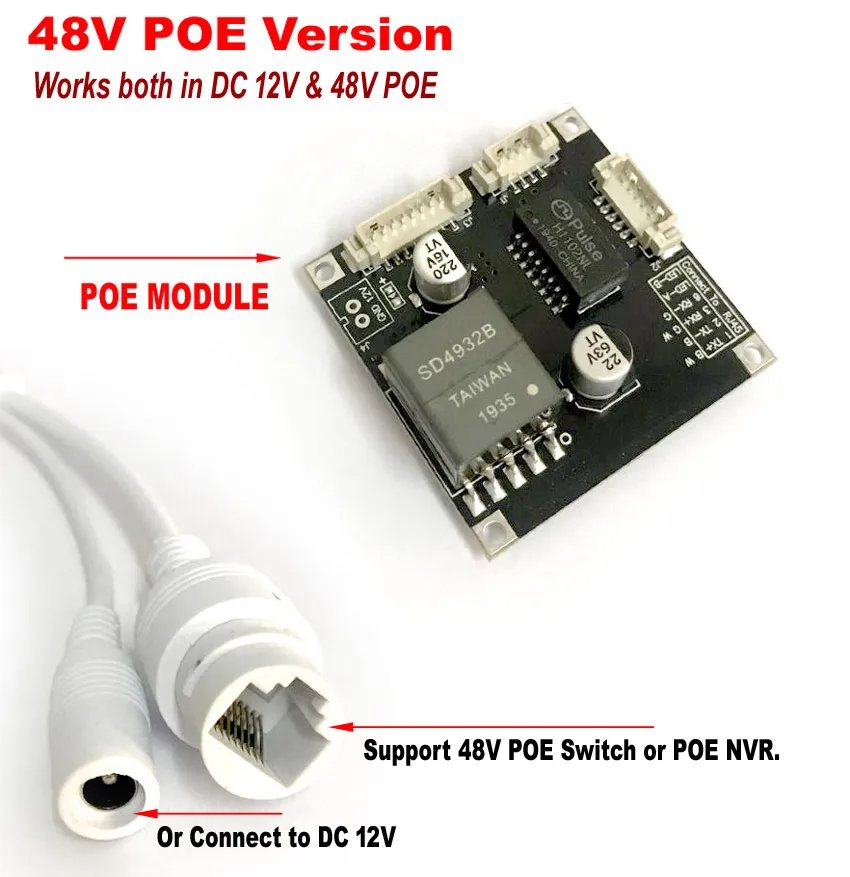

1. This product power from 48V POE Switch or POE NVR.

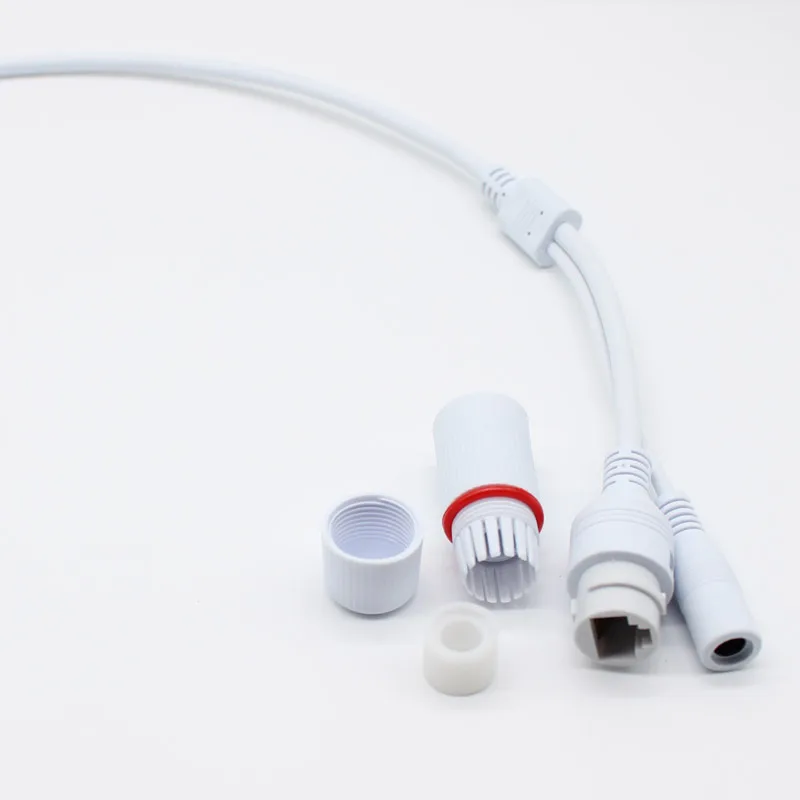

2. It has auxiliary power supply connecter, can be used like a Non-POE IP camera (connect with a 12V/2A adapter), But it will not include the power adapter.


Integrated Monitoring System

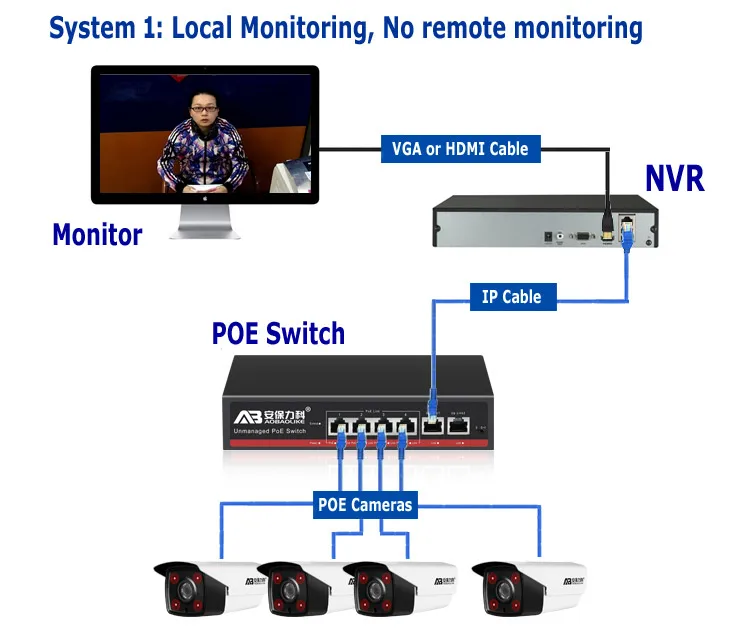

System 1: Camera + POE Switch + Router + Computer/Laptop/Smartphone

NOTE: System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.

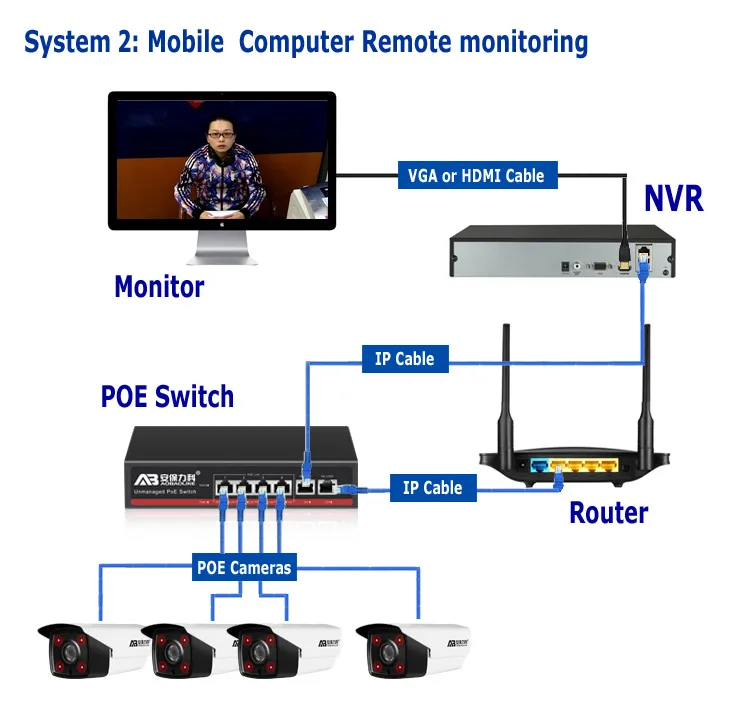

System 2: Camera + POE Switch + Router + NVR + Monitor

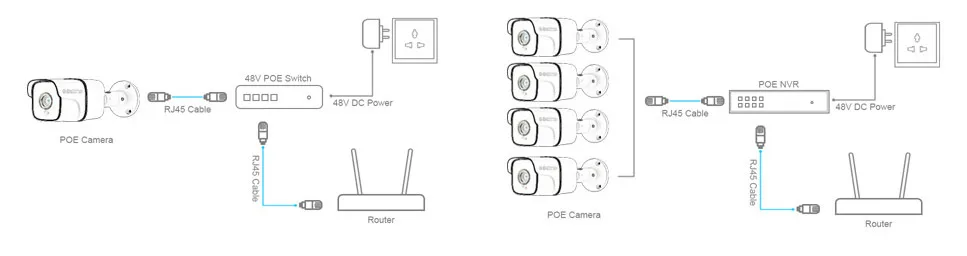

POE IP Camera + POE NVR + Router + Monitor:

Packaging included:
1x HD CCTV POE IP Outdoor Camera
1x Manual

Warranty Term:  One Year Warranty
