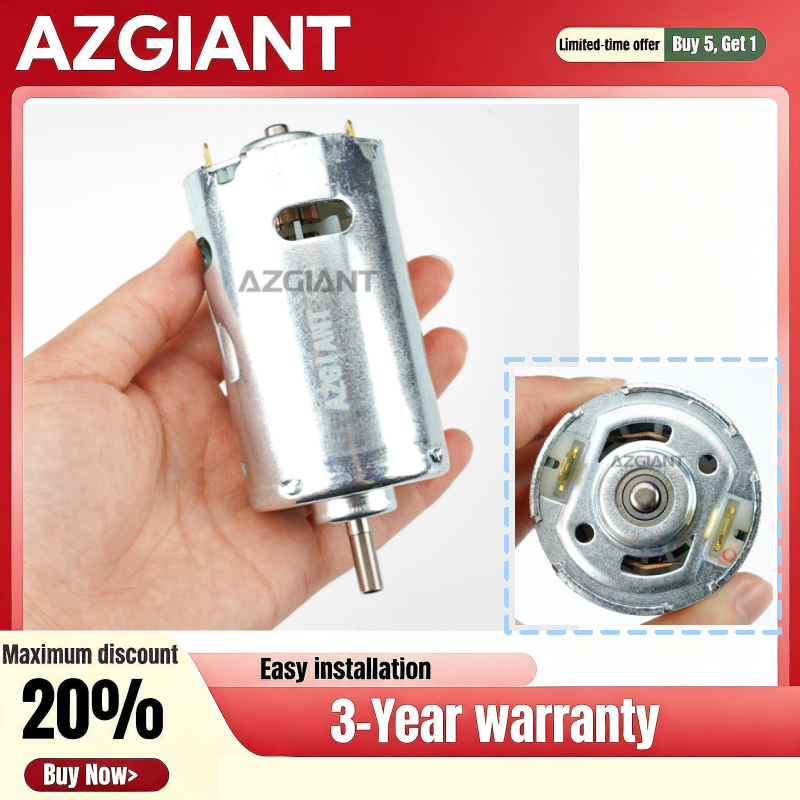

For Mercedes Benz W230 W231 SL300 350 400 Car Central Locking Vacuum Pump Motor
Product Description
Feature:

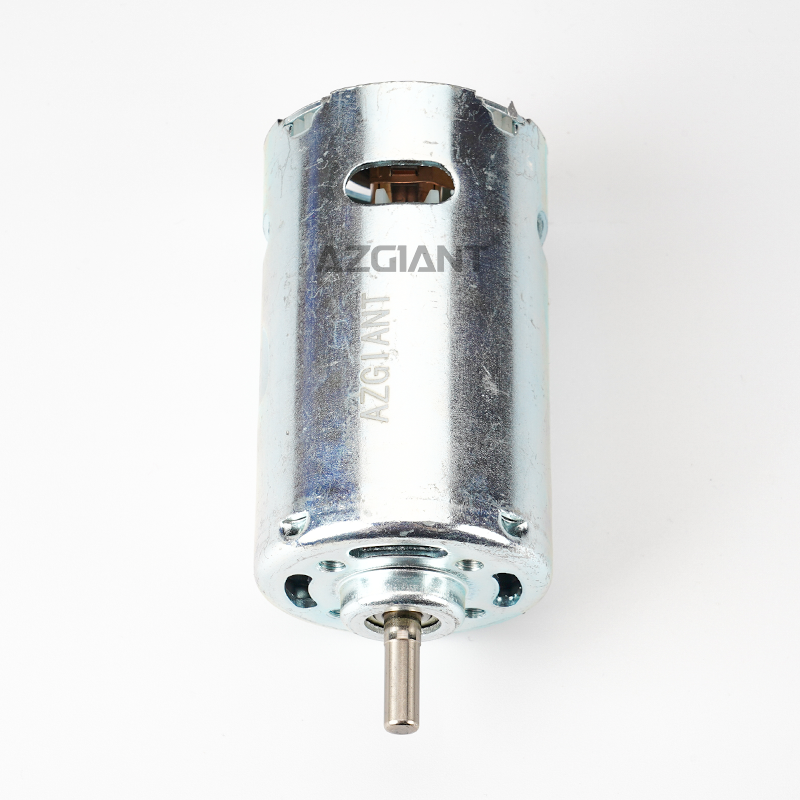

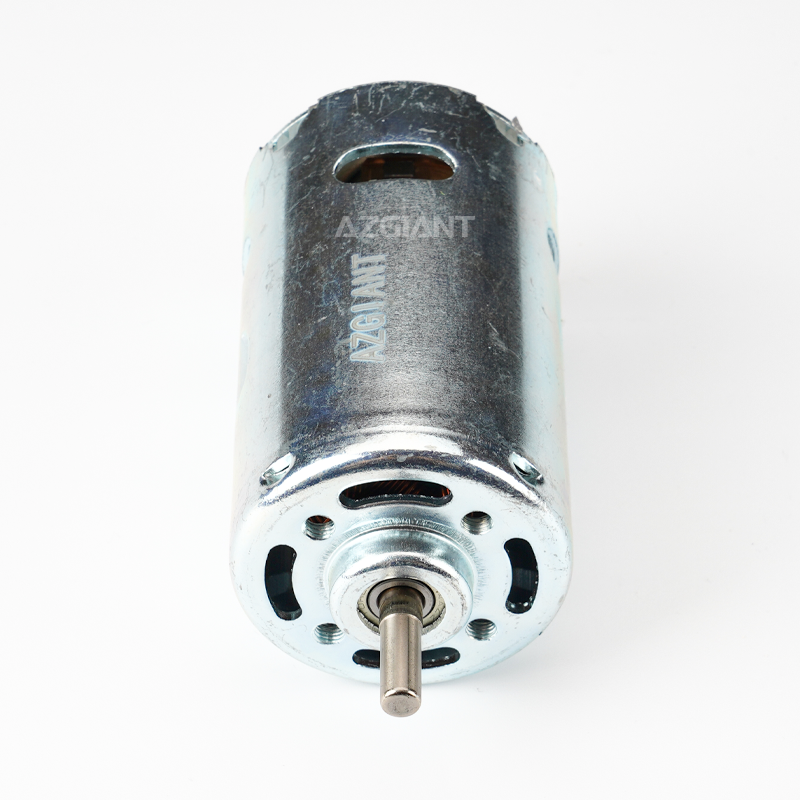

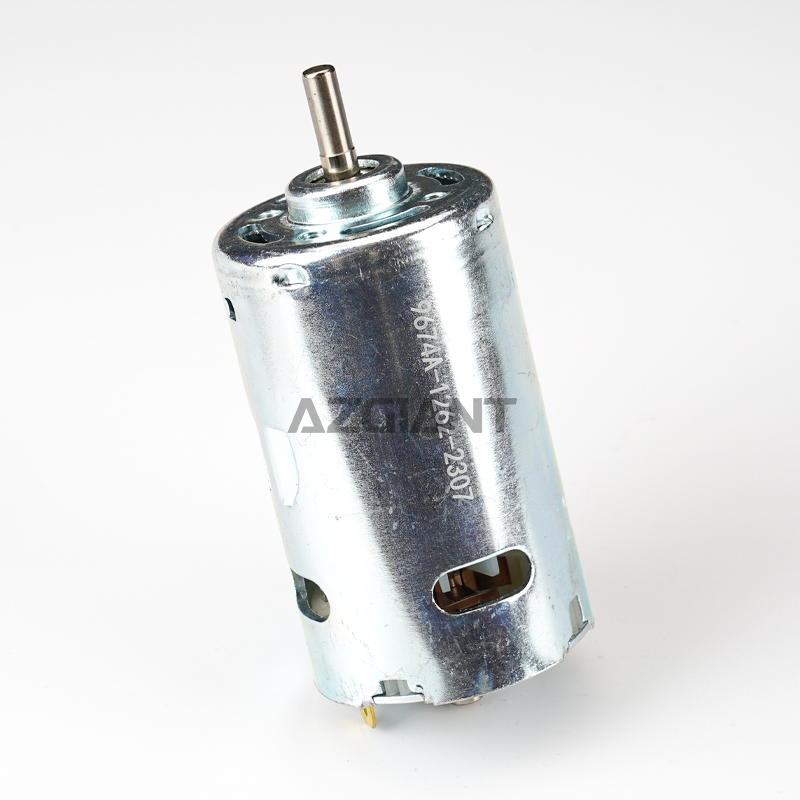

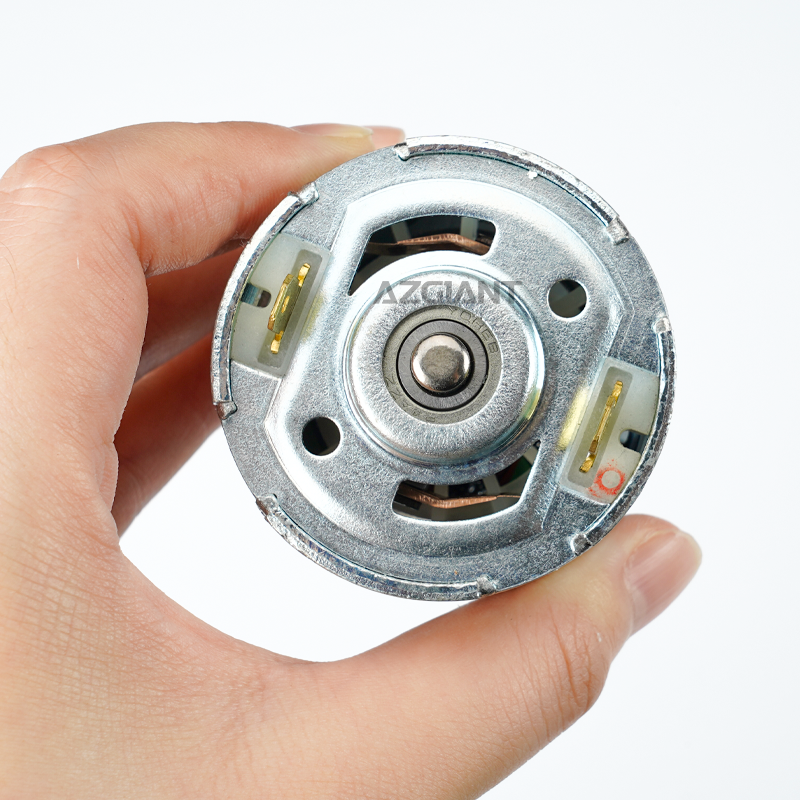

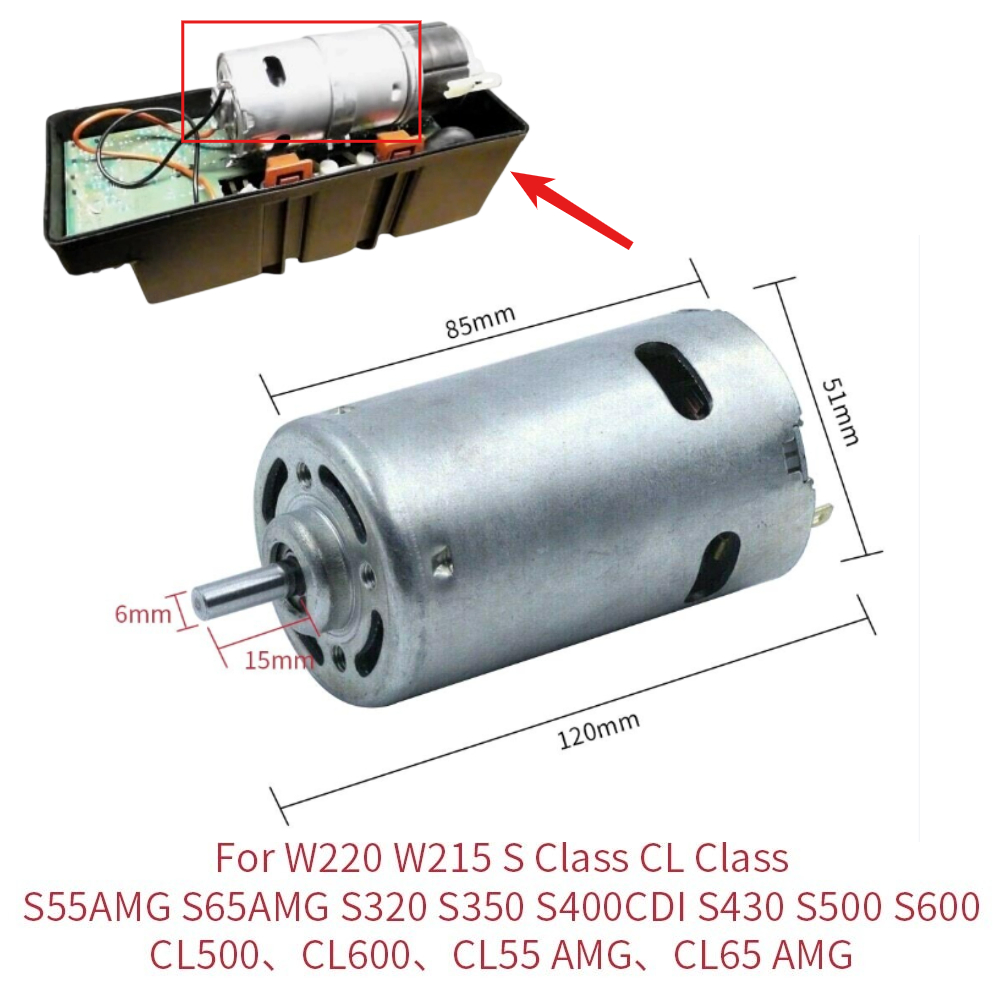

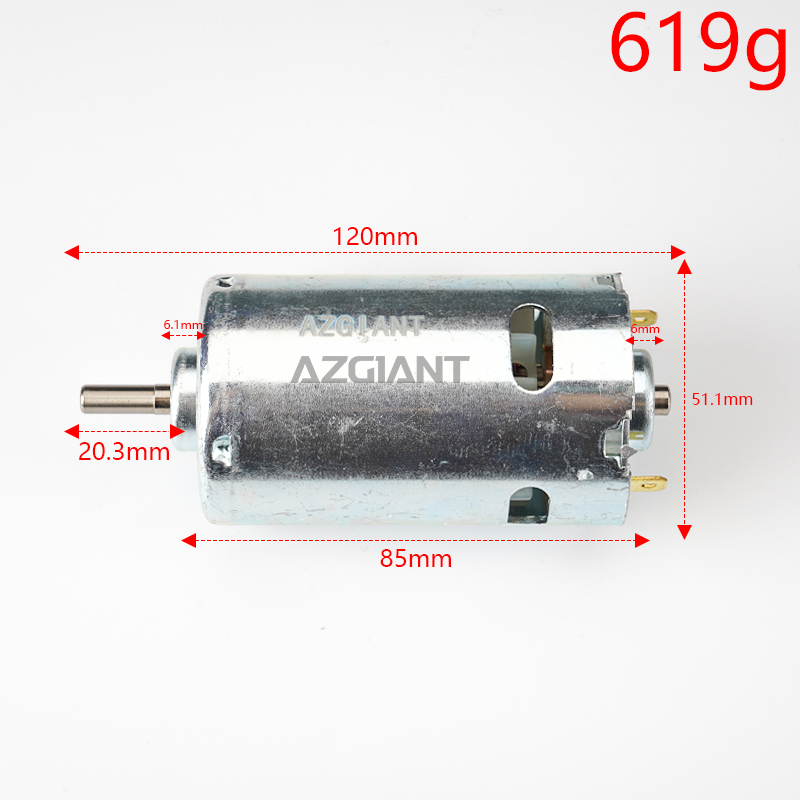

Motor length: 85mm
Motor diameter: 51.8mm
Voltage : 12v
Shaft length: 20mm
Shaft diameter: 6mm
Product No. HGB1002

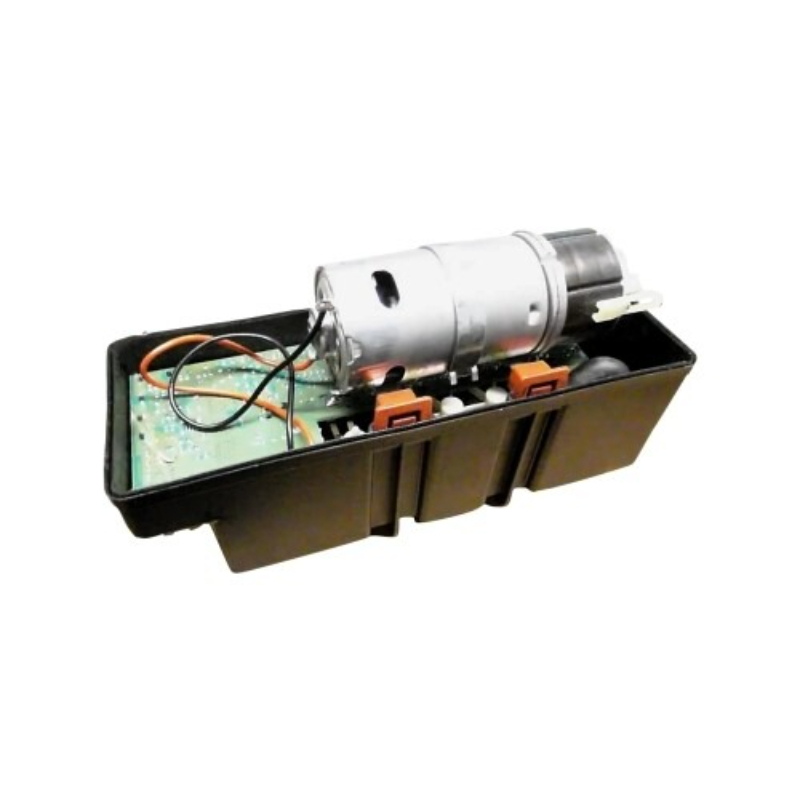

The motor is completely identical to the original electric motor, it allows you to restore the PSE W220 S-class vacuum pump, and an additional cooler is installed to cool the collector and brushes.
Fit for
Closing Assist Vacuum Pump Motor for Mercedes BENZ W220 S320, S420, S500, S600 (1994~2015)
Recommendations for repairing the PSE Mercedes W220 block:
In order to remove the key ring from the motor shaft, it is necessary to heat the ring with a construction hair dryer to approximately 70-80 ° C. Then, carefully using two slotted screwdrivers, begin to separate the graphite case (around the circumference between the holes) from the metal base of the electric motor, thereby removing the graphite case from the shaft together with the key ring.
Attention!
Before pressing the ring onto the shaft, you need to measure the inner diameter of the ring and fit the motor shaft under the ring by grinding the shaft with a fine sandpaper.
So that the loosened ring is pressed again and held firmly on the shaft, the shaft should be 0.03 mm larger than the ring .
If you have a loose ring that fits on the shaft loosely, it can be seated on the red anaerobic retainer. After assembling the graphite pump, be sure to check the rotation of the engine through the holes in the motor housing. The shaft should spin freely without biting or braking.
After replacing the motor, check the tightness of the vacuum system (door tubes, diaphragm valves in the locks, etc.).
Check impeller for wedging.
Moisture is not allowed in the graphite pump.
Do not allow continuous operation of the pump, more than 7 seconds - BURN OUT!

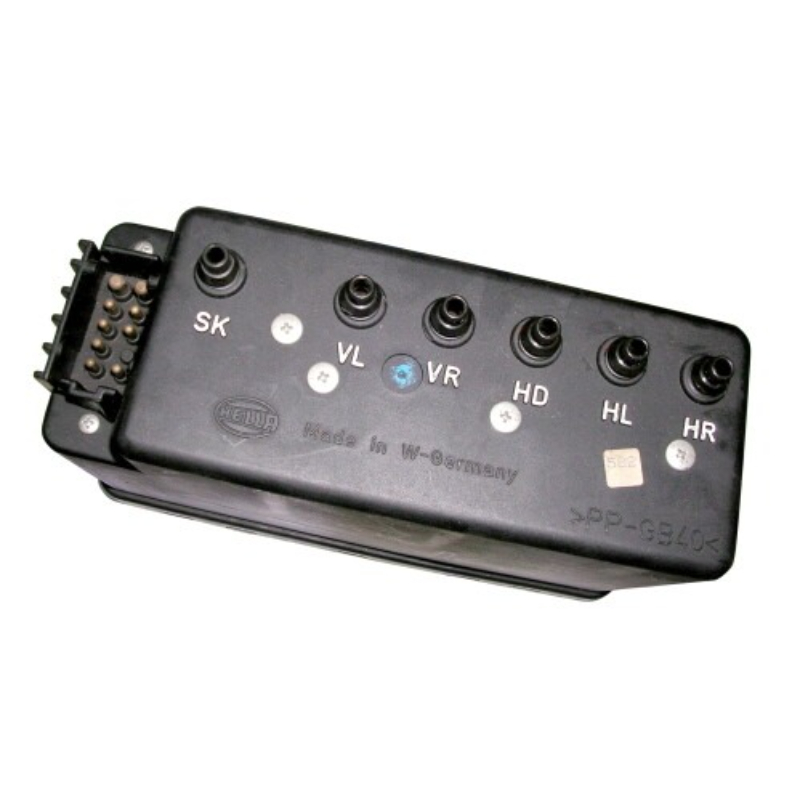

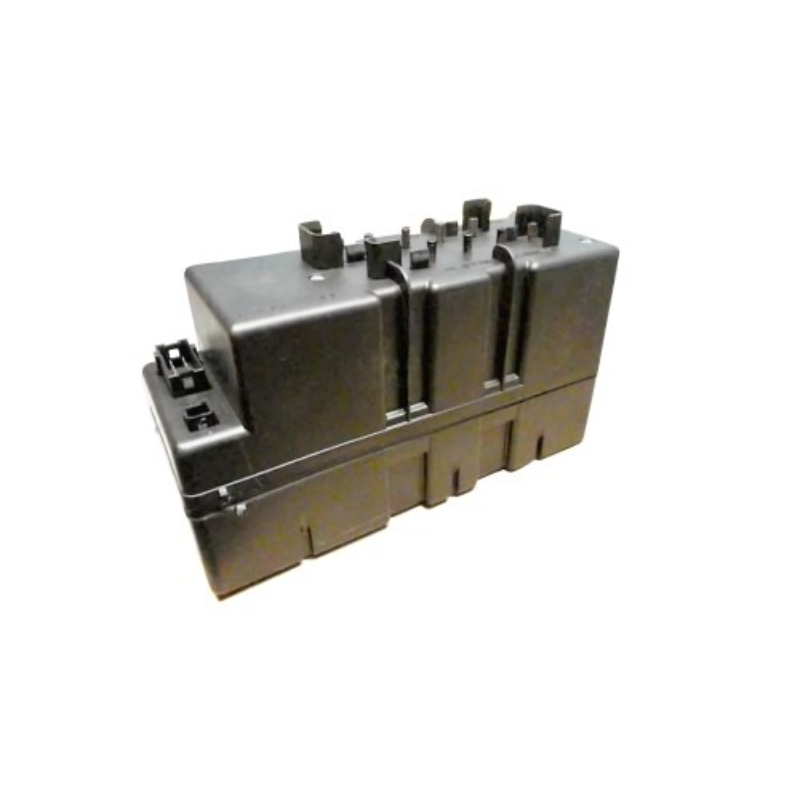

The motor is suitable for PSE compressors:
A2208000048
A2208000148
A2208000248
A2208000348
A2208000448
A2208000548
A2208000648
A2208000748
A2208000848
A2208000948
A2208001048
A2208001148
A2208001248
A2208200248
Bosch 0132006359
Bosch 0132006370
Bosch 0132006373
Bosch 0132006384
Bosch 1397220291
98150 JOHNSON 153761
Motor length: 85mm
Motor diameter: 51.8mm
Voltage : 12v
Shaft length: 20mm
Shaft diameter: 6mm
Product No. HGB1002
The motor is completely identical to the original electric motor, it allows you to restore the PSE W220 S-class vacuum pump, and an additional cooler is installed to cool the collector and brushes.
Fit for
Closing Assist Vacuum Pump Motor for Mercedes BENZ W220 S320, S420, S500, S600 (1994~2015)
Manufacturer Part Number (W220) : 1397220291 (Brand Hella)
Closing Assist Vacuum Pump Motor for Mercedes W220 S320, S350, S430, S500, S600, S65 AMG, S55 AMG(2000~2006)
Closing Assist Vacuum Pump Motor for Mercedes C215 CL500, CL600, CL65AMG, CL55 AMG (2000~2006)
Manufacturer Part Number (W220): A 220 800 02 48, A 220 800 03 48, A 220 800 06 48, A 220 800 07 48, A 220 800 08 48, A 220 800 11 48, A 220 800 12 48
What you get:
1 X motor(not include other accessories)
1 X motor(not include other accessories)
3 Year warranty
About the shipment
We will send the item in 1 day after your payment and ship from China.We will tell you how to track the item when we sent the item. The speedpack shipping need 8-12 days arrive in European and USA .Other country need 15-25 days. Recommendations for repairing the PSE Mercedes W220 block:
In order to remove the key ring from the motor shaft, it is necessary to heat the ring with a construction hair dryer to approximately 70-80 ° C. Then, carefully using two slotted screwdrivers, begin to separate the graphite case (around the circumference between the holes) from the metal base of the electric motor, thereby removing the graphite case from the shaft together with the key ring.
Attention!
Before pressing the ring onto the shaft, you need to measure the inner diameter of the ring and fit the motor shaft under the ring by grinding the shaft with a fine sandpaper.
So that the loosened ring is pressed again and held firmly on the shaft, the shaft should be 0.03 mm larger than the ring .
The key ring is pressed onto the motor shaft using a large vise and a 6mm hex head. It is necessary to rest the motor shaft on the vise lip on one side, and the hex head on the vise lip on the other sid and press the ring on slowly while heating it with a construction hairdryer.
If you have a loose ring that fits on the shaft loosely, it can be seated on the red anaerobic retainer. After assembling the graphite pump, be sure to check the rotation of the engine through the holes in the motor housing. The shaft should spin freely without biting or braking.
After replacing the motor, check the tightness of the vacuum system (door tubes, diaphragm valves in the locks, etc.).
Check impeller for wedging.
Moisture is not allowed in the graphite pump.
Do not allow continuous operation of the pump, more than 7 seconds - BURN OUT!
The motor is suitable for PSE compressors:
A2208000048
A2208000148
A2208000248
A2208000348
A2208000448
A2208000548
A2208000648
A2208000748
A2208000848
A2208000948
A2208001048
A2208001148
A2208001248
A2208200248
Bosch 0132006359
Bosch 0132006370
Bosch 0132006373
Bosch 0132006384
Bosch 1397220291
98150 JOHNSON 153761
-
