Product Description
Note: This lising Only included LED strips, don't included others
Note : WS2812B strip must connect DC 5V Pixel Controller and DC5V Power Supply, otherwise it will burn out .
Note: Power supply and LED controller don't included, please buy DC 5V 3A power supply for 5M 150LEDs LED strips, DC 5V 5A power supply for 5M 300LEDS

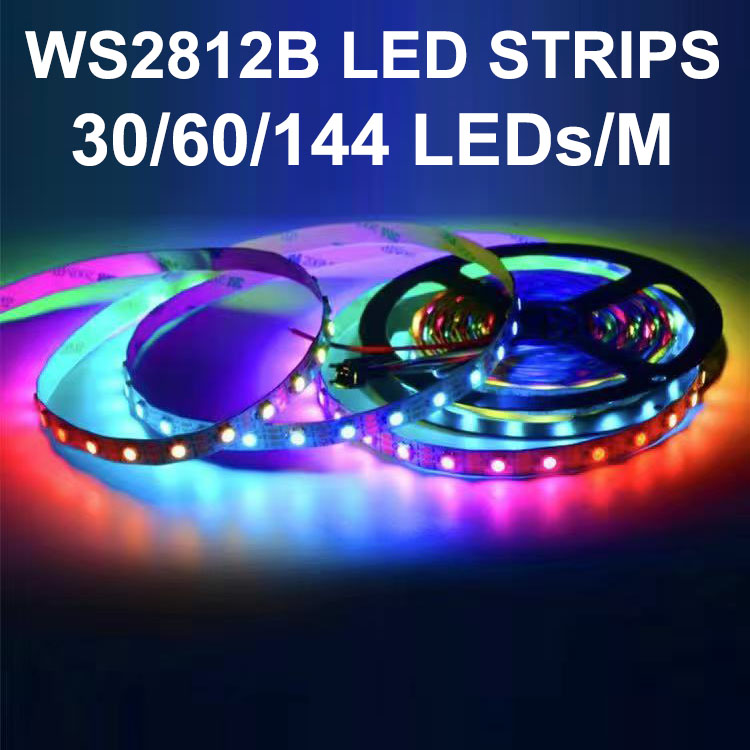

WS2812B LED strips Item Detail:

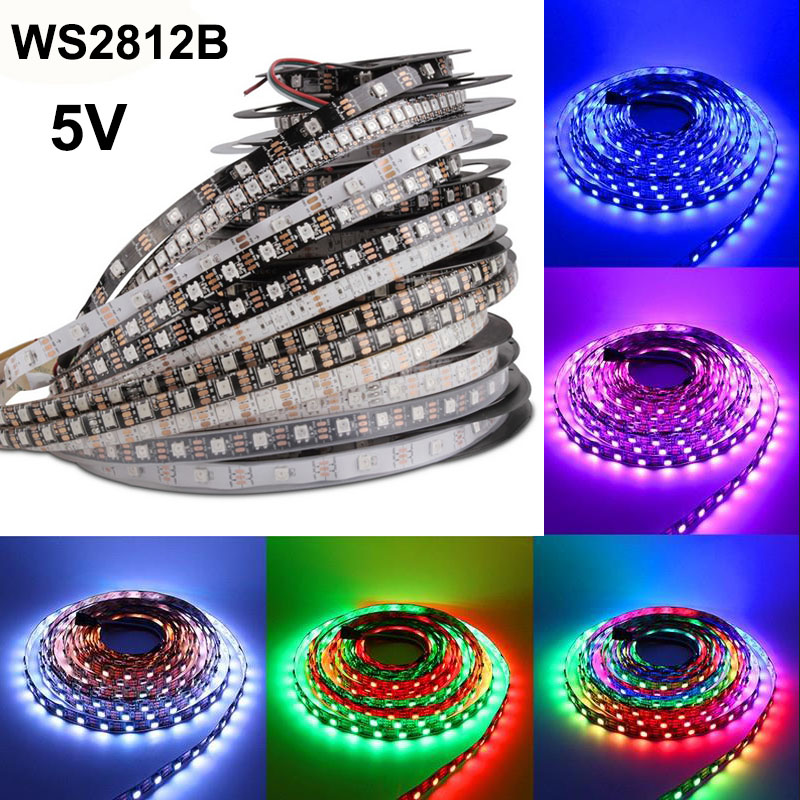

Input voltage : DC5V
Power : 1 leds chip = 0.3Watt !!!
30leds =9W, 60leds=18W,
150 leds= 45 Watt
300 leds = 90 Watt .

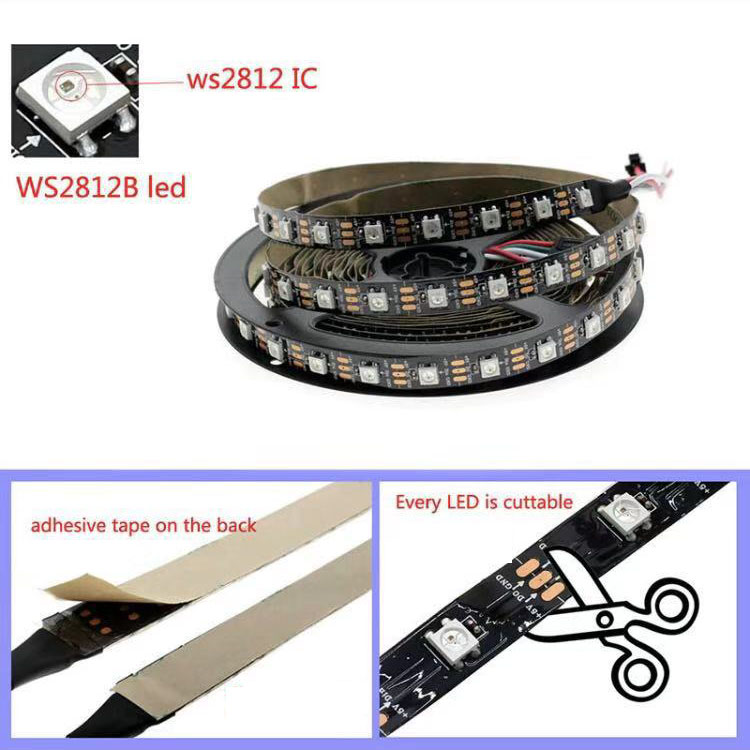

LED resource : WS2812B led(5050 SMD RGB LED with built-in WS2812B IC chip)
LED: Each LED is separately controlled , it is cutable .
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led) of IC: (1 IC drives 1 led chip);

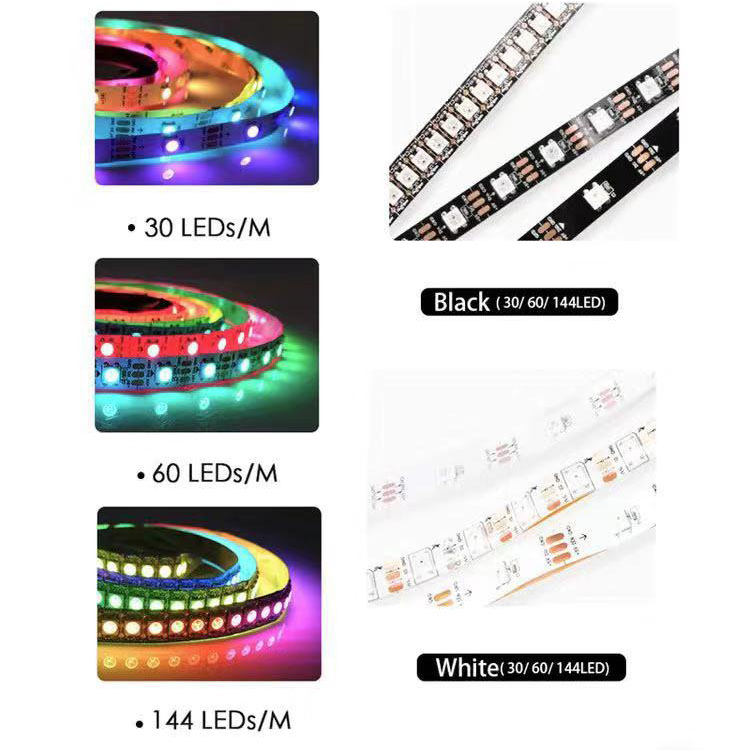

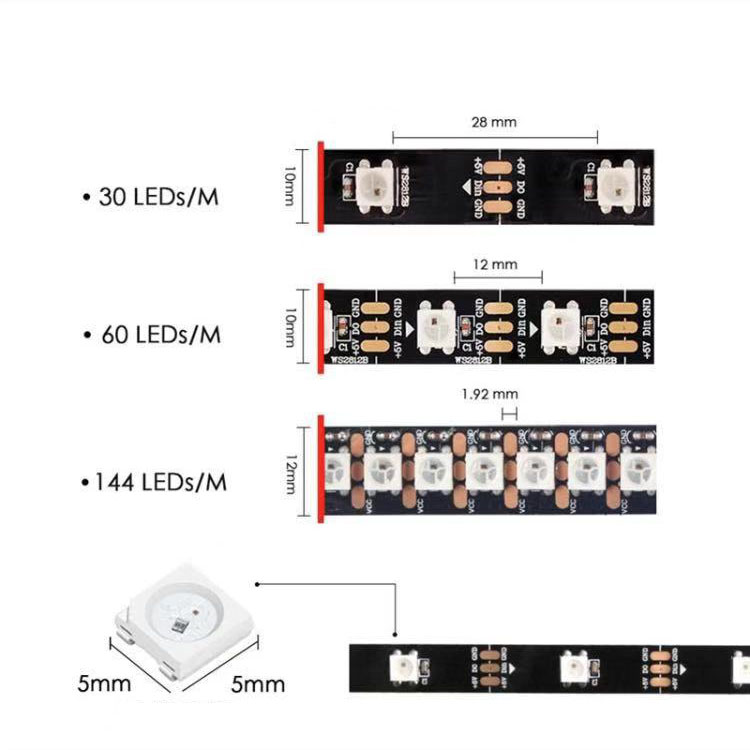

Pixels: 30 leds/60leds per meter;
Pitch : 16.6mm(1000/64);
Grey scale : 256;
Bits/color: 8-bits/color;
FPC size : Width: 10mm, High: 2.5mm;
FPC color : BLACK / White

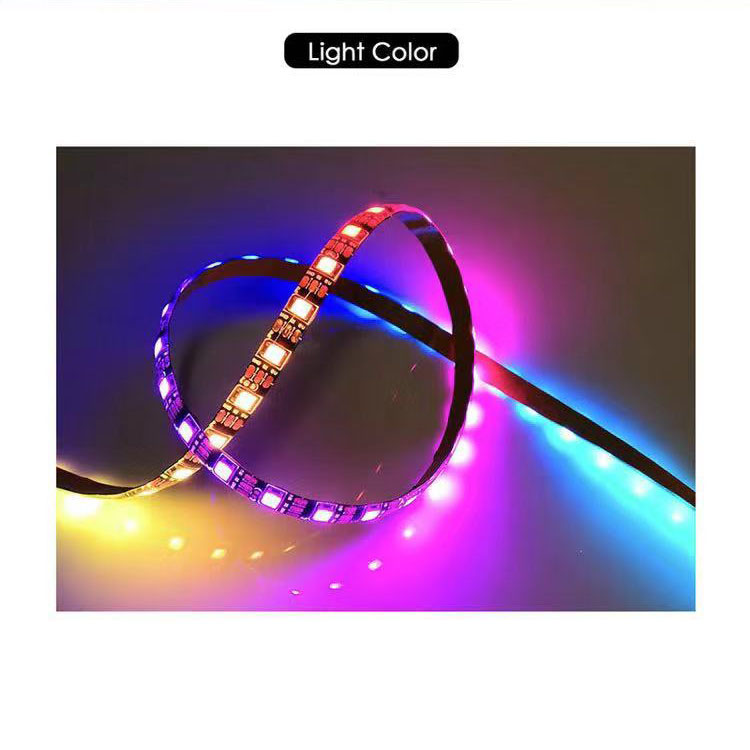

Colors: Full color RGB, dream color changing;

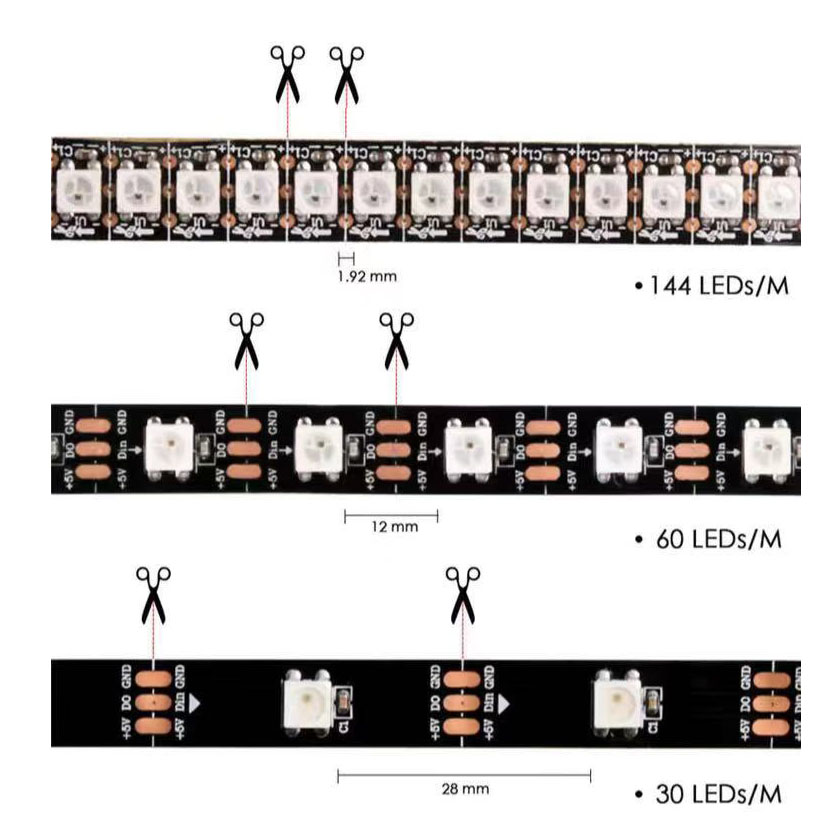

Cuttable: Every LED is cuttable;
Lighting angle: 120degree
Life time: 50,000hours
Working mode: External pixel controller and power supply

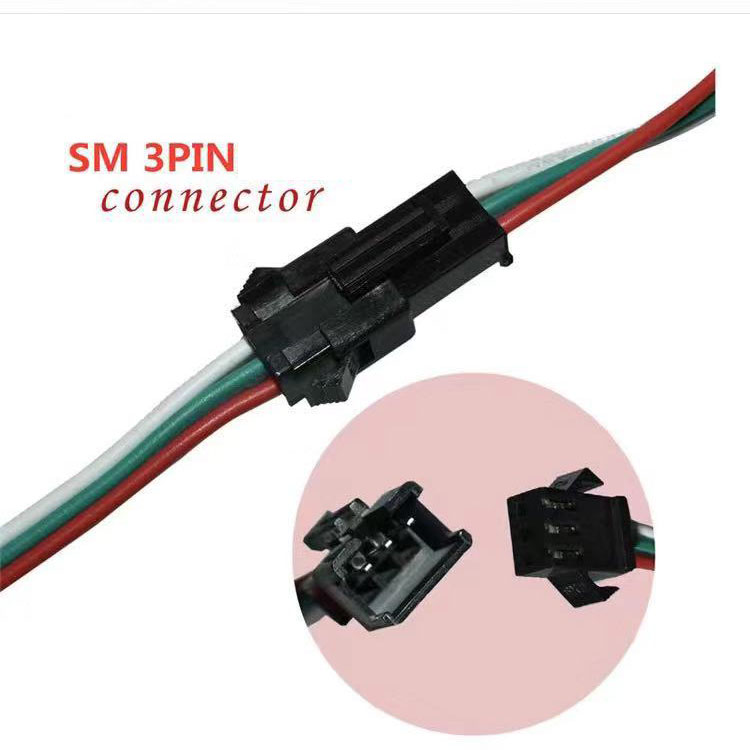

Connection: VCC : RED; GND: BLACK; DAT: BLUE
Package : In anti-static bag,with 3M adhensive tape on the back(Except the Waterproof in SiliconTube)

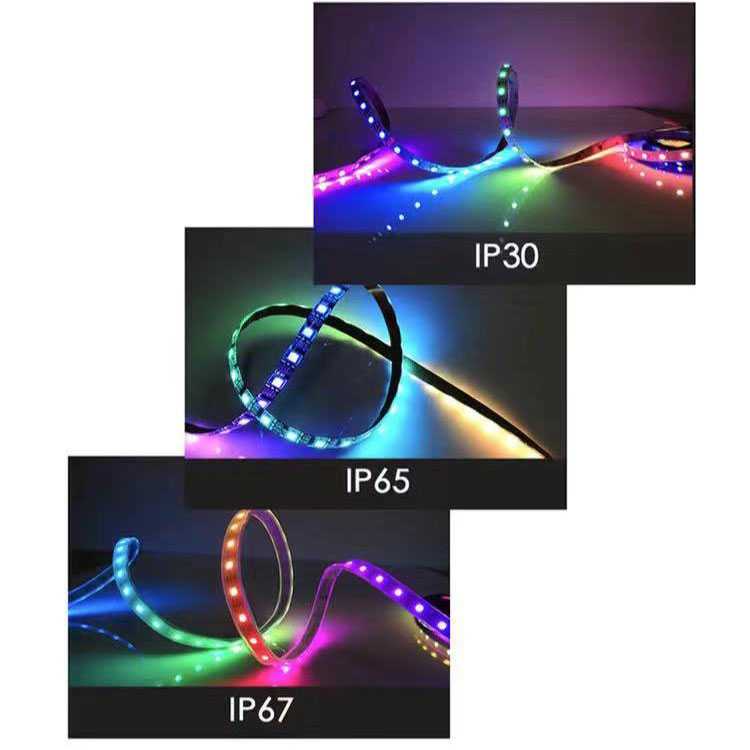

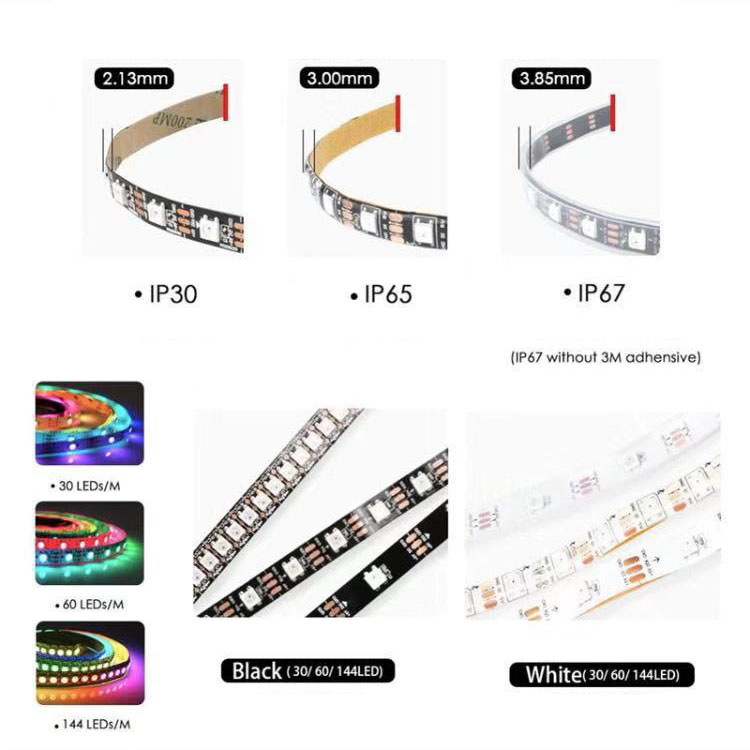

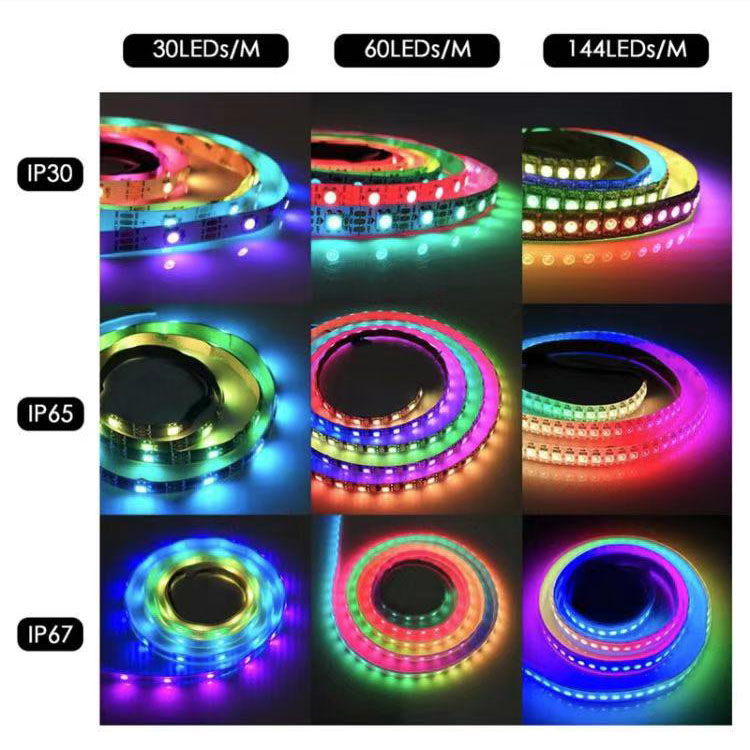

IP20 = Non- waterproof
IP65 = Waterproof in Silicon Coating
IP67 = Waterproof in SiliconTube
Cable length: 5M/16.4FT
Package List :
1 X WS2812B Pixels Strip
