DESCRIPTION

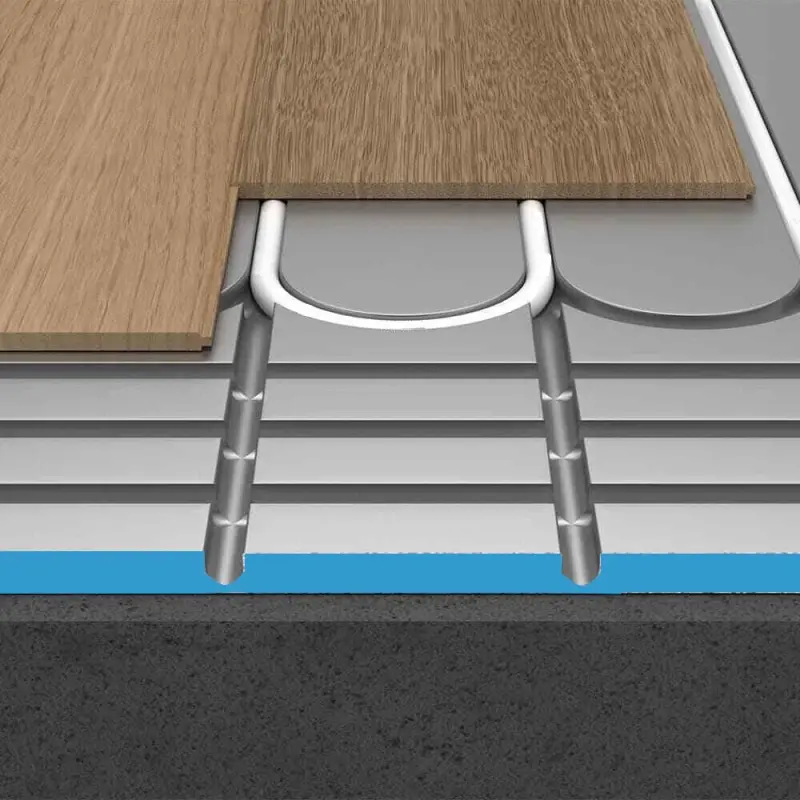

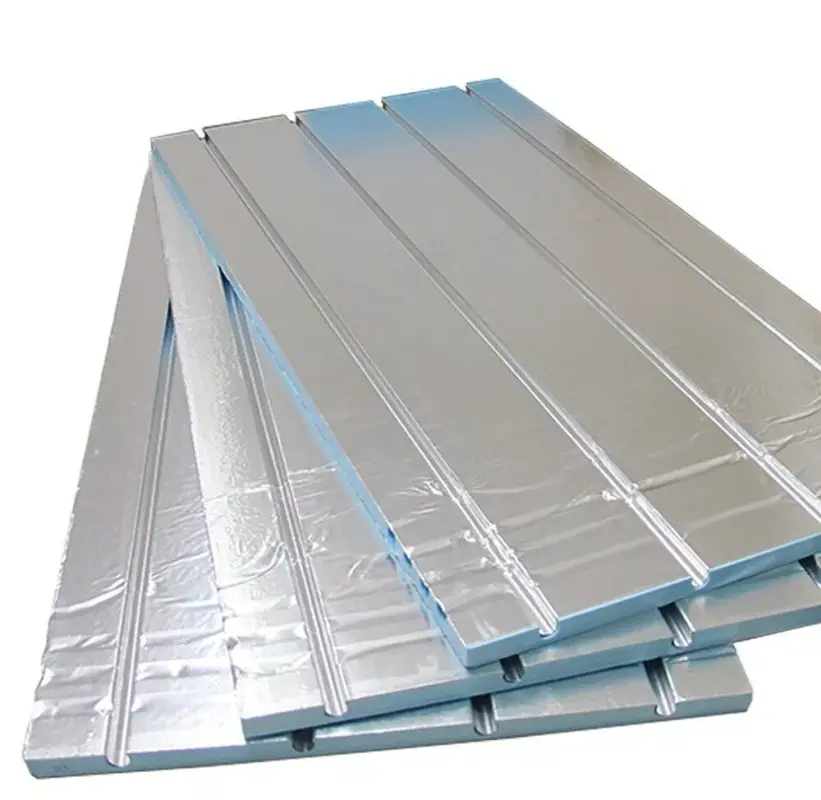

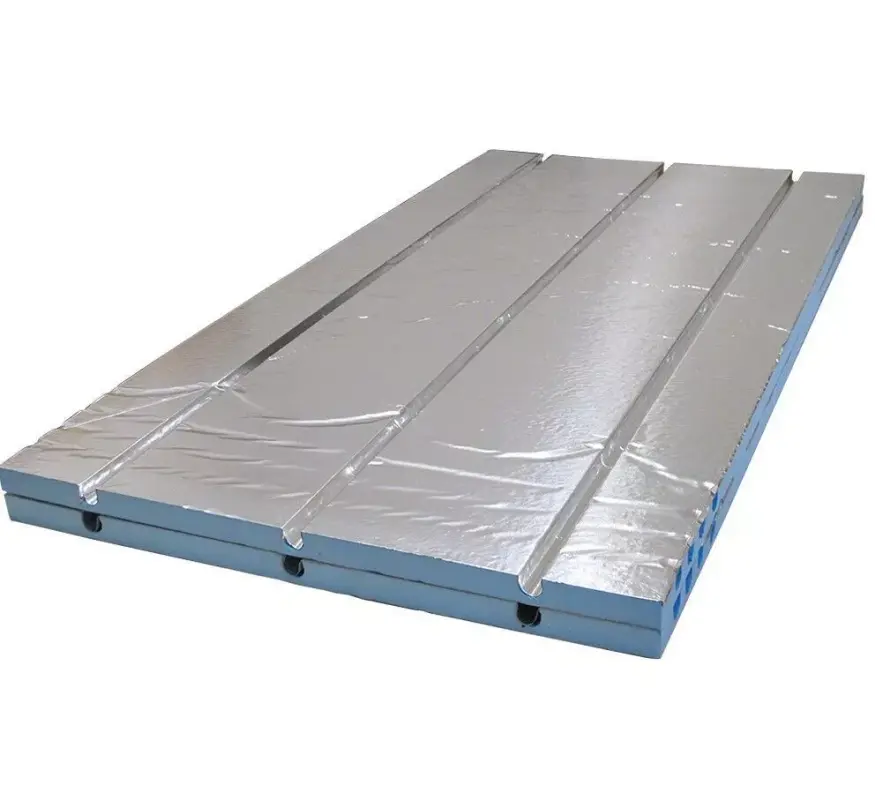

GB Home has developed a special XPS based insulation panel for water heating called Grooved Underfloor Heating Insulation Panel. This insulation panel is used as an alternative to a screed type system when using water under floor heating systems. It is only 25mm thick and comes with the pipework grooves cut out ready to fit the pipe inside, an 16/20mm floating chipboard sub floor can then be laid directly on top of the panels ready for floor covering such as carpets, tiles etc, or an 16/20mm engineered click wood flooring can be installed straight on top of these panels.
Item Specifics:
- Area covered: One board covers 0.72 m2 of an area.
- Length: 1200mm
- Width: 600mm
- Thickness: 25mm
- OD: 16mm (Maximum Pipe Thickness)
- Gap Between Grooves: 150mm
Characteristics of Board
- Stable Performance and Anti-aging
- Resistance to Compression
- Water Resistant
- Lightweight
- Resistance to Deformation
- Resistance to Impact
- Versatile
- Recyclable
Technical Data
- Density: 38–40 Kg/m³
- Thermal Conductivity (90 days, 10°C): 0.027–0.03 W/m·K
- Compressive Strength (10% deflection): >300 kPa
- Tensile Strength: >300 kPa
- Water Absorption: ≤1.00% Vol
- Capillarity: Nil
- Linear Thermal Expansion: 0.07 mm/m·K
- Temperature Limits: -50°C to +75°C
OTHER PRODUCTS

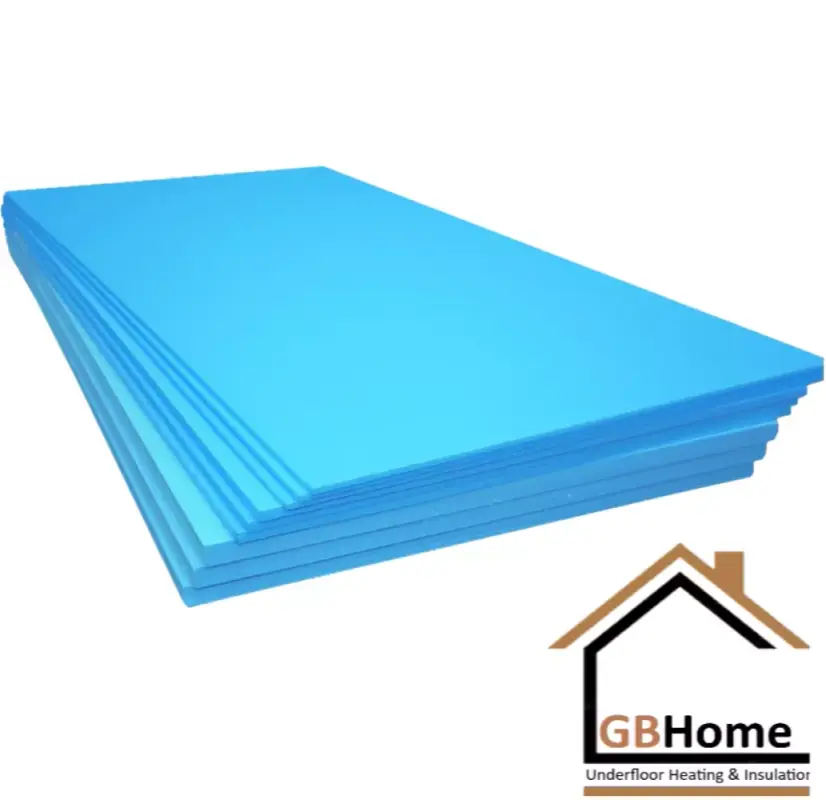

XPS Insulation Boards
★★★★★
Aluminium Foil Tape
★★★★★
Grooved heating board
★★★★★

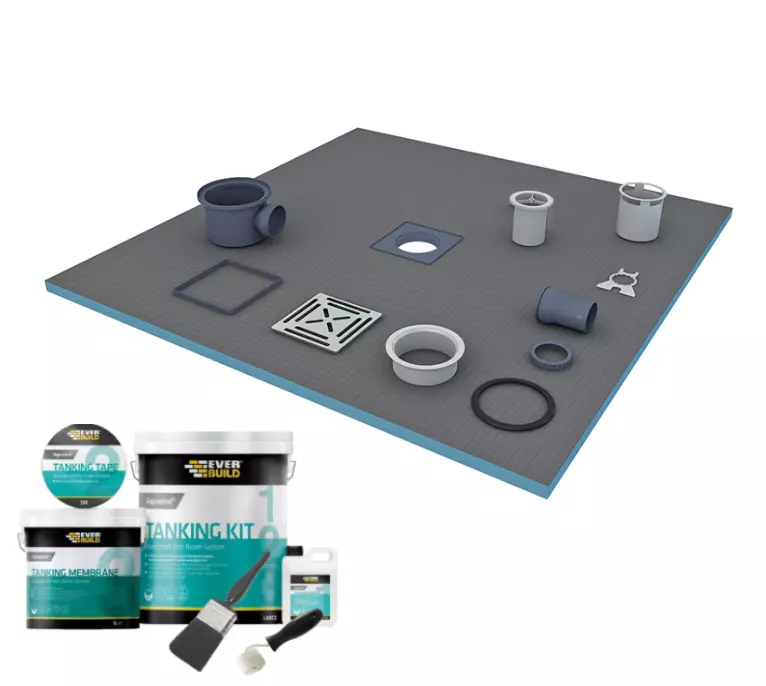

Shower Tray Kit
★★★★★
