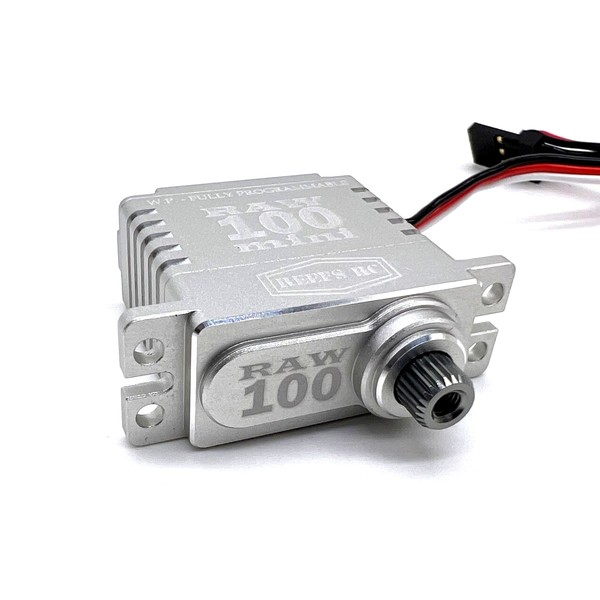

Raw 100 Mini Servo Programmable Radio Accessories SEHREEFS134
Part number: SEHREEFS134
Brand new – factory sealed
High Torque High Speed
Mini Coreless Servo
SUBMARINE WATERPROOF
Magnetic Angle Sensor
Pulse Width Modulation Control
REEFS LINK required for Programming
(Optional)
Voltage: 6v-8.4v
All Metal Gears
CNC Aluminum Casing w/ Heat Sink
Bearing Type: 2BB
Temp Rate: -15C*~ +70C
Weight: 1.05oz / 30g
Dimension: (LWH)
1.16 x .55 x 1.14 in
29.5 x 14 x 29 mm
Torque: 85oz @ 6.0v
95oz @ 7.4v
103oz @ 8.4v
Speed: .11sec @ 6.0v
.10sec @ 7.4v
.08sec @ 8.4v
Spline: 25T Standard
Dead Band width: 2s
Unload Current:
180mA @ 4.8V 200mA @ 6.0V 230mA @ 7.4V 260mA @ 8.4V
Load Current:
1200mA @ 4.8V 1400mA @ 6.0V 1500mA @ 7.4V 1800mA @ 8.4V
BEC Not Required, Recommended
for Max Perf.
Item details
| Part number | SEHREEFS134 |
| Brand | Reefs RC |
| SKU | 164063 |
| UPC | 602024523567 |
| Weight | 2.37 lbs |
