Trinity Audio Solutions is honored to introduce the H Series of subwoofers. These subs are based off a great performing price point without giving up a shred of performance. If the only thing holding you back from buying new subwoofers are the cost, let us introduce you to the H Series.

The new H Series Subwoofers are the culmination of science and art, designed to exceed all expectations while providing an unmatched value. H Series subwoofers prove you don't need to break the bank for high quality performance. We've invested years into R&D on these products to ensure that you get a great subwoofer for an incredible price.

The H Series Subwoofers feature:

Cast aluminum high excursion baskets with an optimized air flow design.

FEA enhanced motor with Cooling Flow Technology allows for increased thermal dissipation and heat sink capacity resulting the motor structure running cooler for longer playing periods resulting in less failures due to overheating.

Rigid composite paper cones along with carbon fiber dustcaps.

BASV high temp aluminum dual voice coil.

The H Series boasts an incredible power handling and xmax making it a heavy hitter in the field of 8" Subwoofers.

FEATURES

• Cast aluminum high excursion basket with optimized air flow design.
• Triple stacked high density ferrite magnets.
• FEA enhanced motor structure.
• CF tech (Cooling Flow) vented pole & backplate for increased heat dissipation.
• Rigid composite paper cones with increased stability.
• High gloss carbonfiber dustcaps.
• Soft compliance triple layer stretch foam surround.
• 5.3" ~6.3" Quad layer progressive roll spider pack.
• 2.5" BASV high temperature dual voice coil. (TAS H65 = 2")

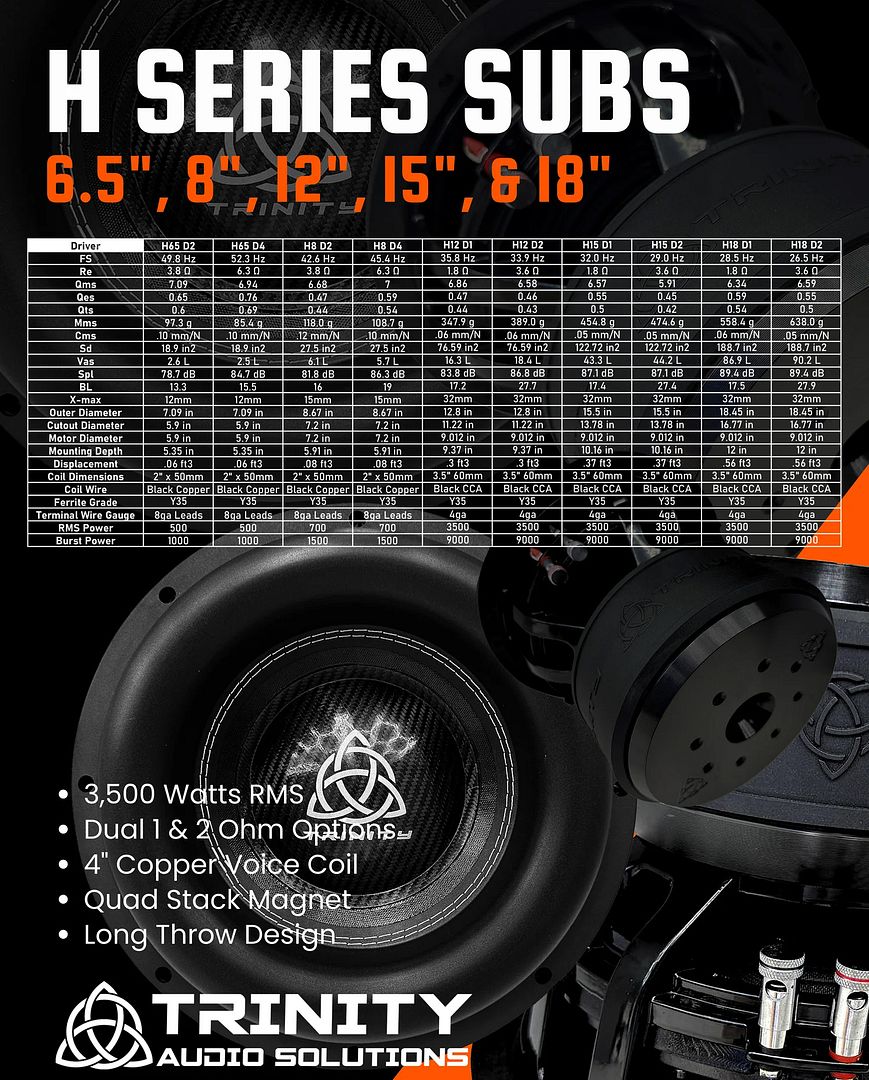

SPECIFICATIONS

• Sensitivity: 86.3 dB
• Norminal Impedance: Dual 4 ohm
• DC Resistance: 6.3 ohms
• Voice Coil Dim: 2.5"
• Power Handling: 700 watts
• Peak Dynamic Power: 1500 watts
• XMAX one way: 0.6"
• Xmech one way: 1.2"
• VAS: 5.7L
• FS: 45.4 Hz
• QES: 0.59
• QMS: 7
• QTS: 0.54
• Motor Assembly: 280 Oz
• Displacement: .085 cu.ft
