Efratom FRS-C 10 MHz Rubidium Frequency Reference
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Ball/Efratom and may vary slightly due to upgrades, revisions or options this unit may or may not have.

Quantity available, only 1 sold in auction. It does come with an Operation and Maintenance Manual (for the standard only). We believe the 2 boards with this unit are a distribution amplifier. We have sold several of these with no complaints but we did have 1 customer who said this unit has a square wave output and not a sine wave. The specifications listed below are directly out of the manual from Efratom so I am not sure.

Rubidium Standard Information:

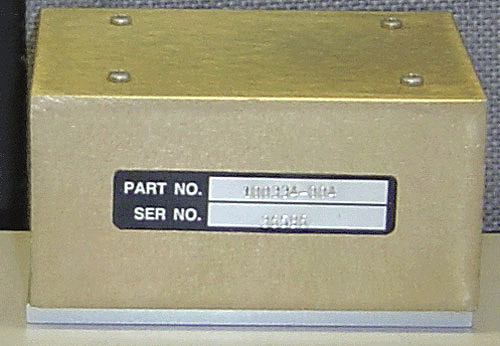

Part Number: 100334-004

Board 1:
55761ASSY101874-002 Rev B
55761-101886-001 Rev A
Pc 1 94V-0

Board 2:
55761ASSY101720-002 Rev 4
55761-101719-001 Rev E

Casing the Unit Goes in:
ASSY 101707-001

Introduction:
The Efratom Model FRS Rubidium Standard is a subminiature, atomic resonance-controlled oscillator which provides an extremely pure and stable sinusoidal signal of 10 MHz at 0.5 Vrms into a 50 ohm load. The FRS-C may be utilized in equipment requiring an extremely stable and precise frequency and under more benign environmental conditions such as the time base of frequency counters.

Connections:
All necessary connections for input and output signals are externally accessible. Output signal, power, frequency adjustment, and built-in-test (BIT) functions are provided by a Cannon connector which mates with Cannon P/N DAM11WIS.

Features:

  • For Time Base Applications
  • For Use in Instruments, Receivers, Test Equipment, and Networks
  • Small Package
  • Low Power Consumption

    • Electrical Specifications:
    Output: 10 MHz Sine Wave, 0.5 ±30/10 % Vrms into 50 Ohm, set to 10 MHz ±5x10-11 from factory.
    Input Power: After warm-up, 10 W at 24 VDC at 25 °C ambient.
      Reg. Pwr.: 22 to 30 VDC, (< 350 mA)
      Htr. Pwr.: 22 to 30 VDC, (1.7A max during warm-up)
    Warm-Up Characteristics: < or = to 4 min. to reach 1x10-9 at +25 °C ambient.
    Long-term Drift: < or = to 5x10-11/mo*, < or = 5x10-10/first year, < or = to 2x10-10/year thereafter.
    1-Day Stability: 4x10-11/day**
    Short-term Stability: oy(t)= < or = to 1x10-10 t-1/2;; for 1s < or = to t < or = to 100s
    Frequency Accuracy: 1x10-9/yr
    Phase Noise (SSB 1 Hz BW): -65 dB at 1 Hz, -110 dB at 100 Hz, -125 dB at 1 KHz
    Harmonic/Non-Harmonic: -40 dB (sine wave) / -70 dB
    Trim Range: ±2x10-9 max.
    Retrace: ±2x10-11
    Magnetic Field: < or = to 4x10-13 / am-1 (< or = to 3x10-11 / 0.1 milliTesla)
    Voltage Variation: < or = to 2x10-11 for ±10% input voltage change
    Electrical Protection: An internal diode and fuse protects against reverse-polarity connection. Output is short-circuit protected.

    Environmental Specifications:
    Operating Temperature: < or = to 3x10-10 from -5 °C to 55 °C Amb. (65 °C max baseplate)
    Storage Temperature: -55 °C to 75 °C
    Overall Environment Effects (Altitude, Vibration, Shock): Meets or exceeds MIL-T-28800B for Type III, Class 5 equipment.
    Humidity: < or = to 95% RH

    Physical Specifications (Just oscillator, not boards. Does not include shipping.):
    Size: 2" x 3" x 4" (50 x 75 x 100 mm)
    Weight: < or = to 1.2 lbs (0.55 kg)
    Baseplate Threads (std): 4-40

    * After 1 month of continuous operation.
    ** After 1 hour stabilization and operated within (25 ±3) °C ambient temperature.
