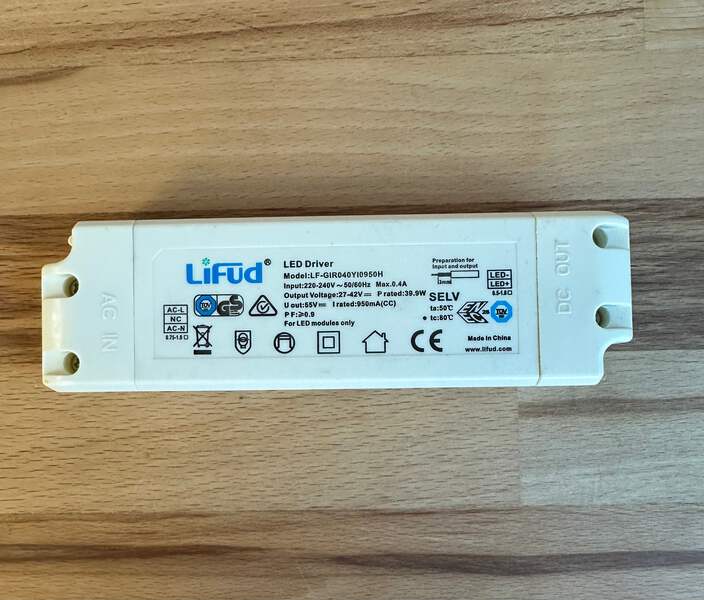

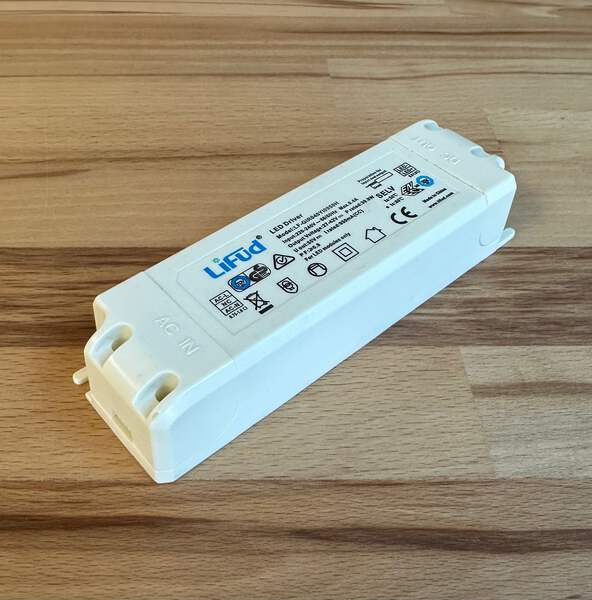

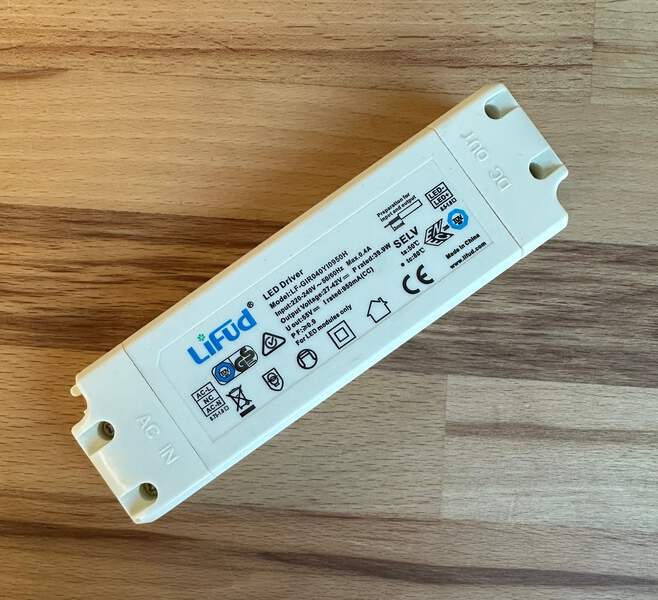

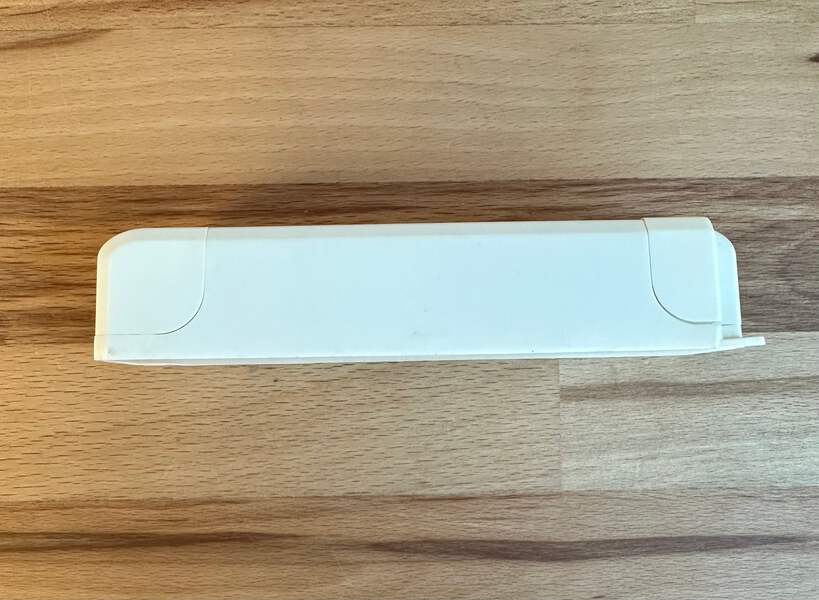

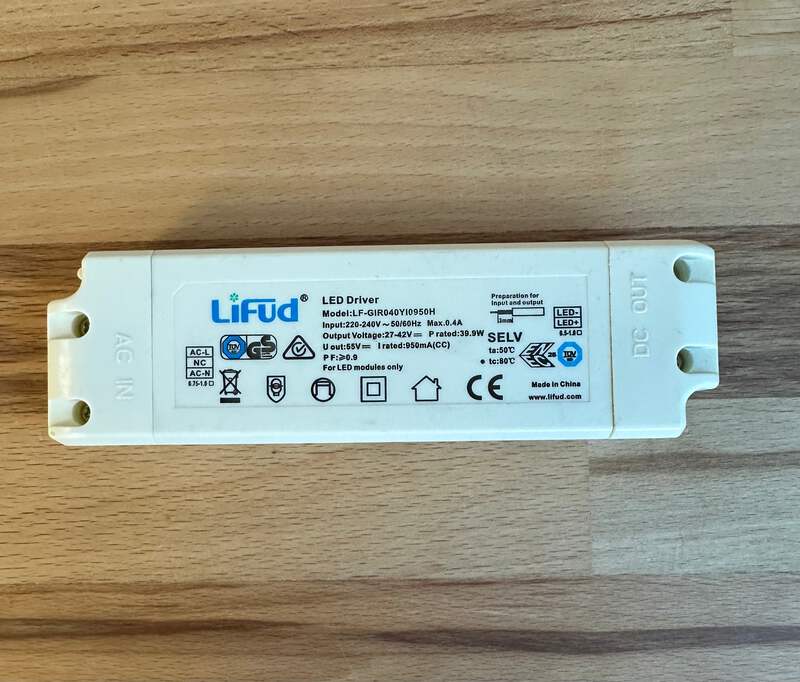

Lifud LF-GIR040Y10950H 40W 950mA LED Driver 25-42V

Lifud LF-GIR040Y10950H-OT 40W 950mA LED Driver 25-42V

Please note this driver comes without leads & end caps

Product description

This Driver from the prestigious company LIFUD specially designed for LED panels, LED downlights, LED plates and LED ceiling lights because it incorporates the Jack... A LED driver is in charge of transforming the alternating current of the electrical network into direct current suitable for making the LED chips shine. To know if a driver is going to work with our luminaire, PCB or panel we must consult the voltage and the output current of the driver. Characteristics of the LIFUD Driver 25-42V DC 39.9W This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be uséd for various applications with different current and voltage requirements. Once the driver is powered up, the voltage will be automatically adjusted and the voltage at the output will be constant. Its power factor is very high, making it a very efficient driver.

Power: 39.9 W
Power Factor: 0.90
Input Voltage: 220~240V AC
Output: 25-42V DC / 950 mA
Frequency: 50-60 Hz
Protection Class: I Open Terminal
Size: 135mm L 37mm W 25mm H
Energy Class: A+
IP Protection: IP20
Warranty: 3 Years
Certifications: CE & RoHS,TÜV
Brand: LIFUD
