DC 8-25V PT100 RTD Converter RS485 Modbus Rtu Temperature Sensor Module

Popular

    Product Introduction

    1. Wide range of applications
    2. Small size
    3. Simple to use
    4. cost-effective
    5. more beautiful with shell

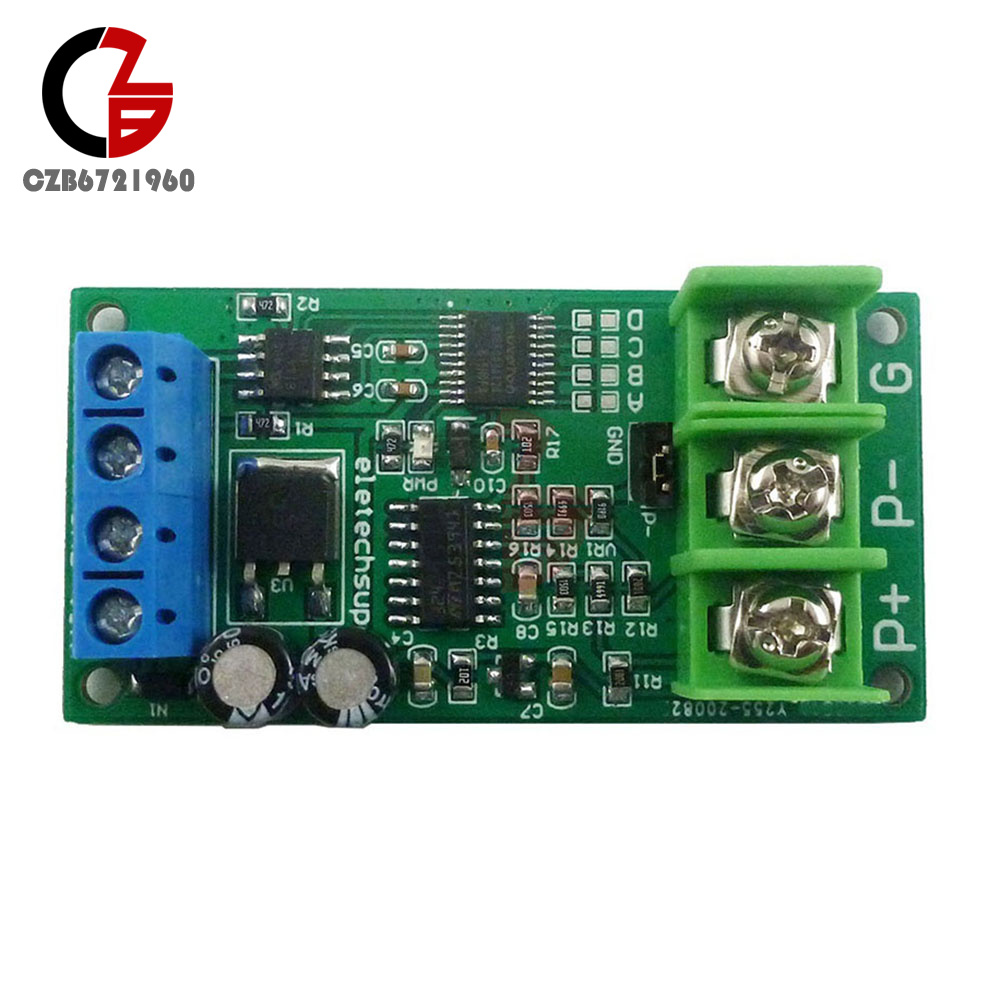

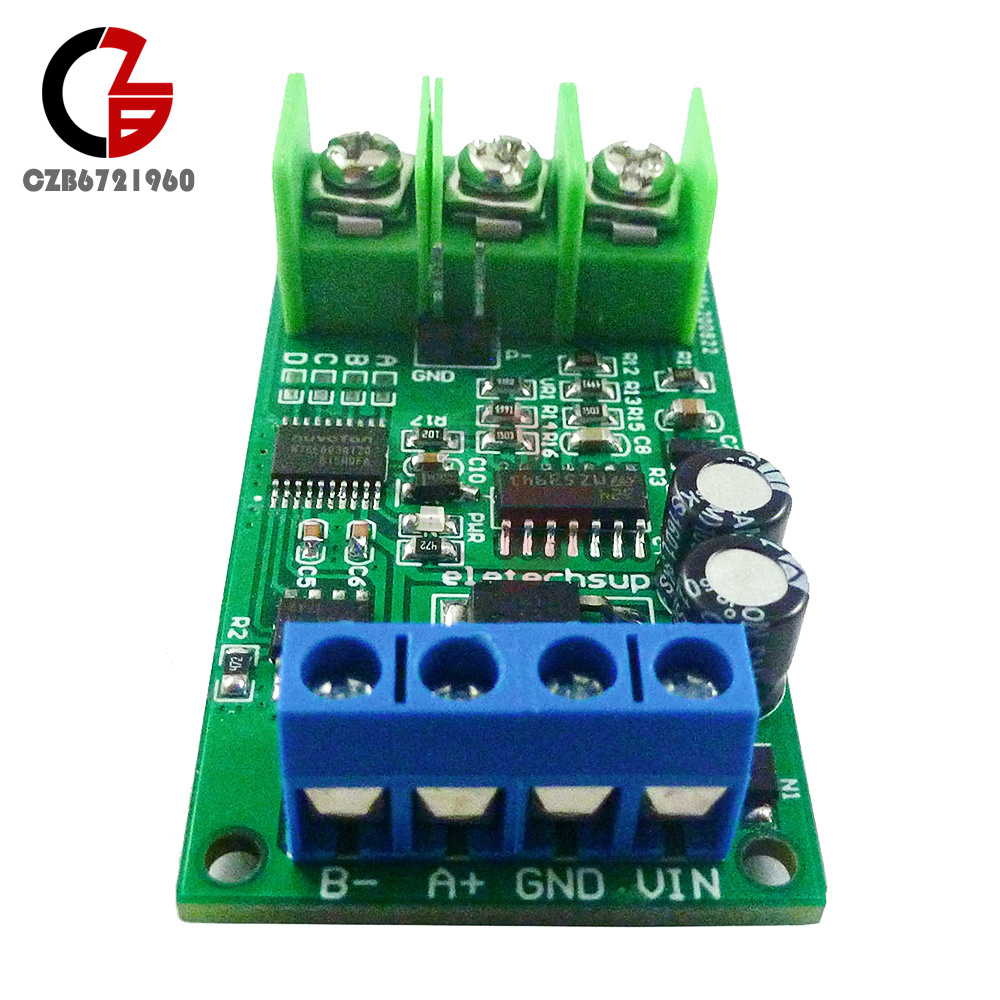

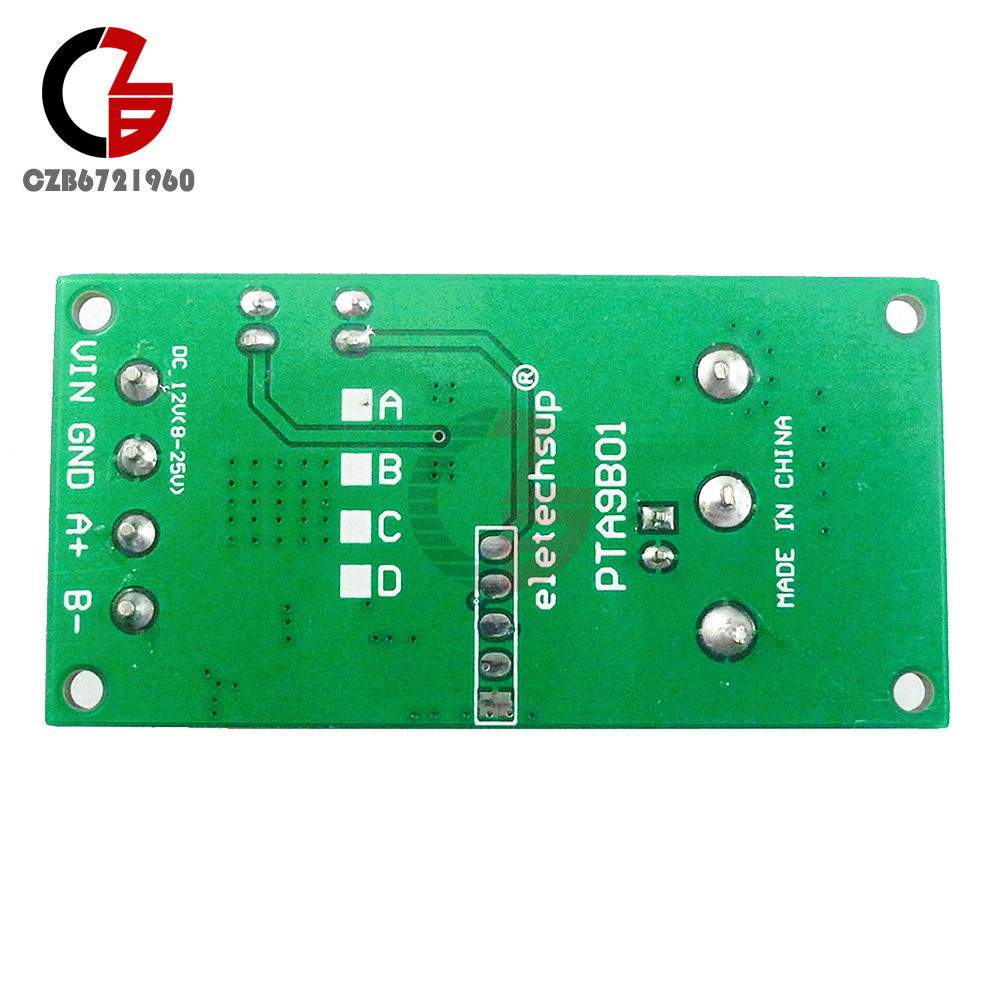

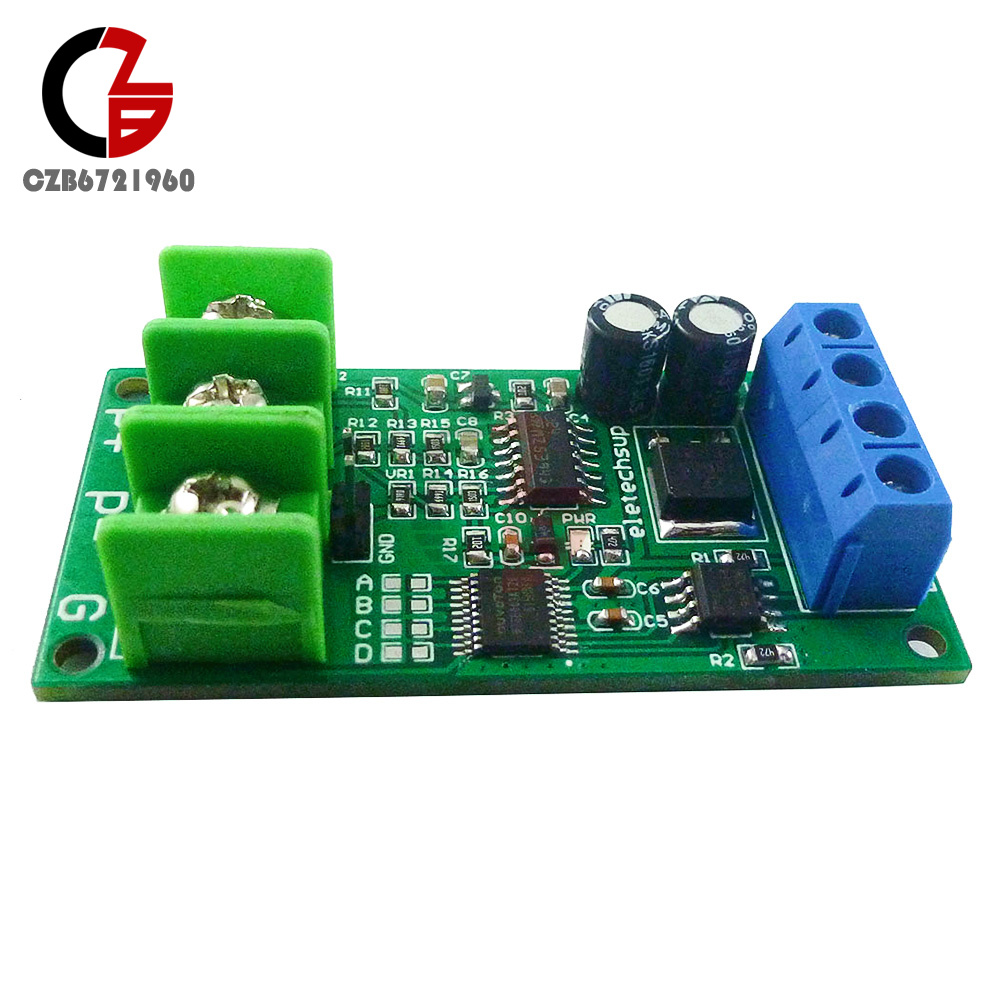

    PTA9B01 PT100 RS485 sensor module function description:
    Power supply voltage: DC 8-25V (recommended 12V)
    Working current: 8-13MA
    MODBUS RTU protocol, 03 read command, 06 write command.
    Serial port baud rate: 9600 (default), N, 8, 1

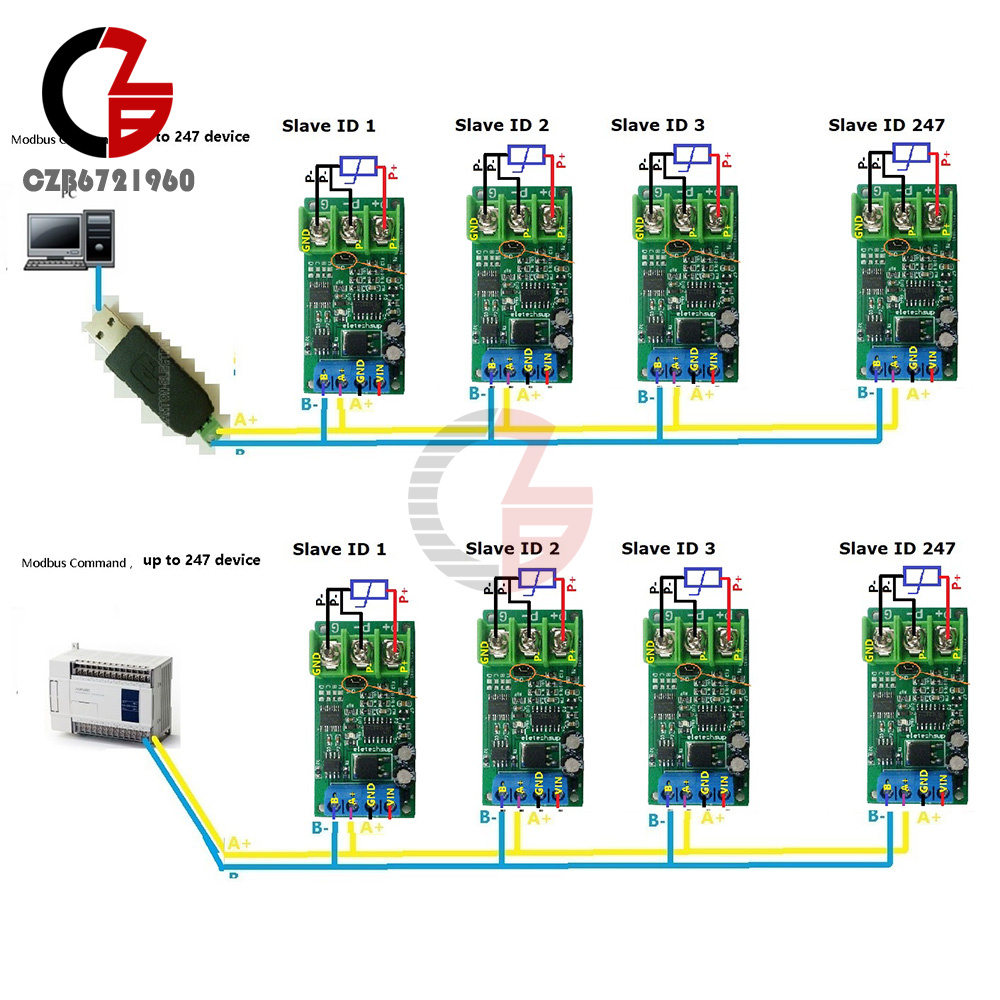

    By modifying the 485 address, up to 247 modules can be cascaded for use (please use R485 repeater for more than 16 modules)
    Can read temperature and PT100 resistance value

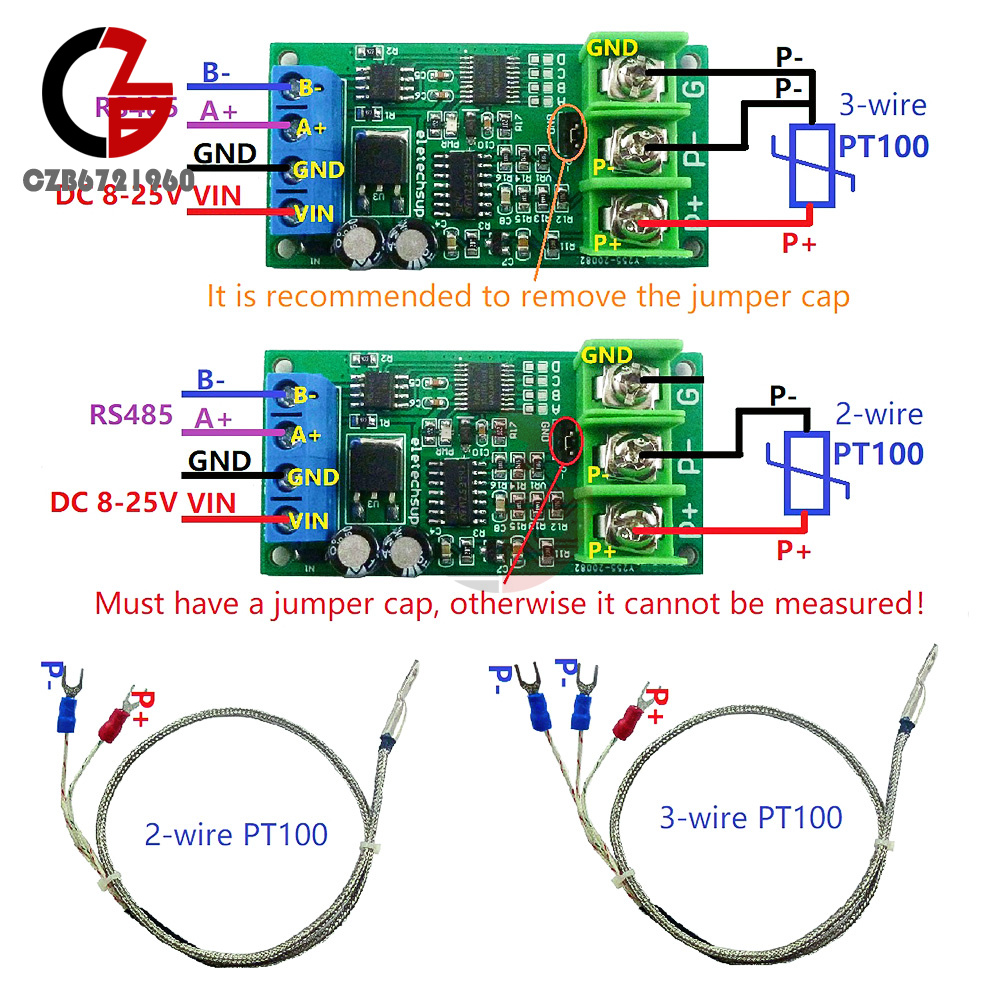

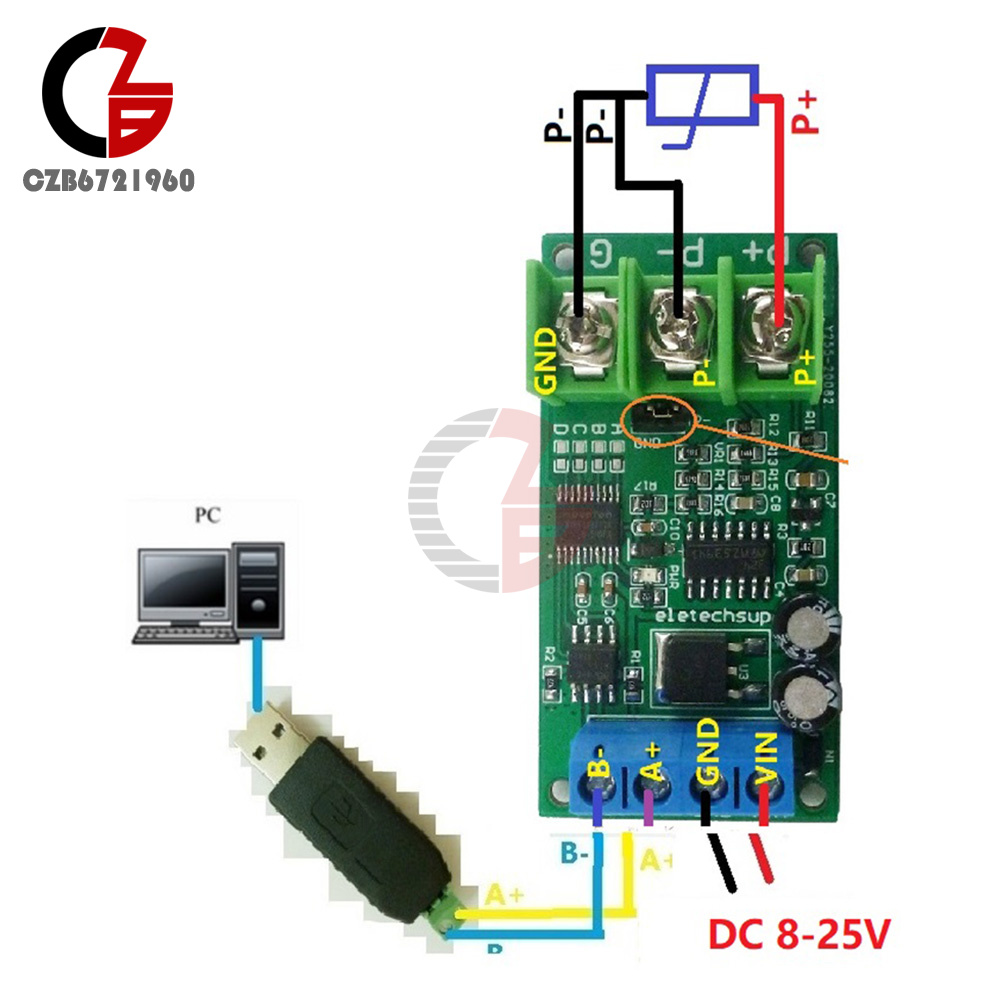

    Compatible sensor: PT100 3-wire or 2-wire sensor

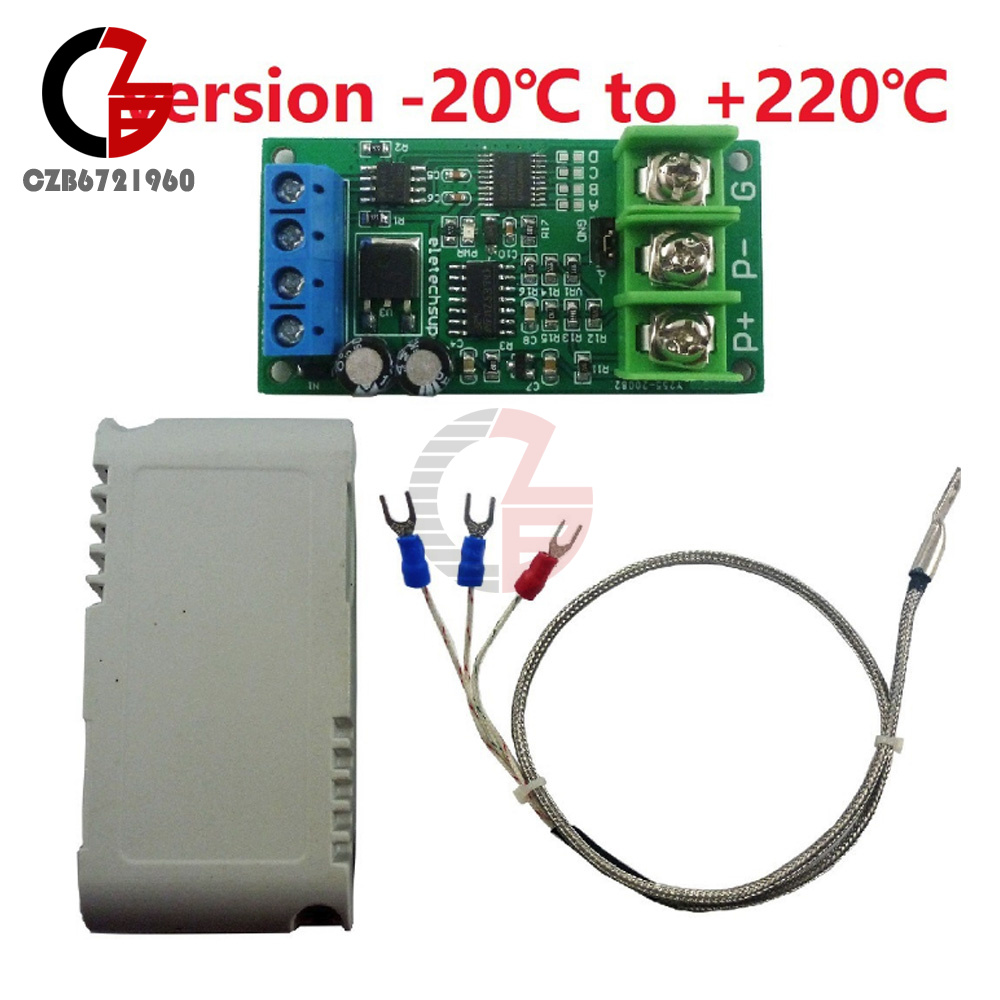

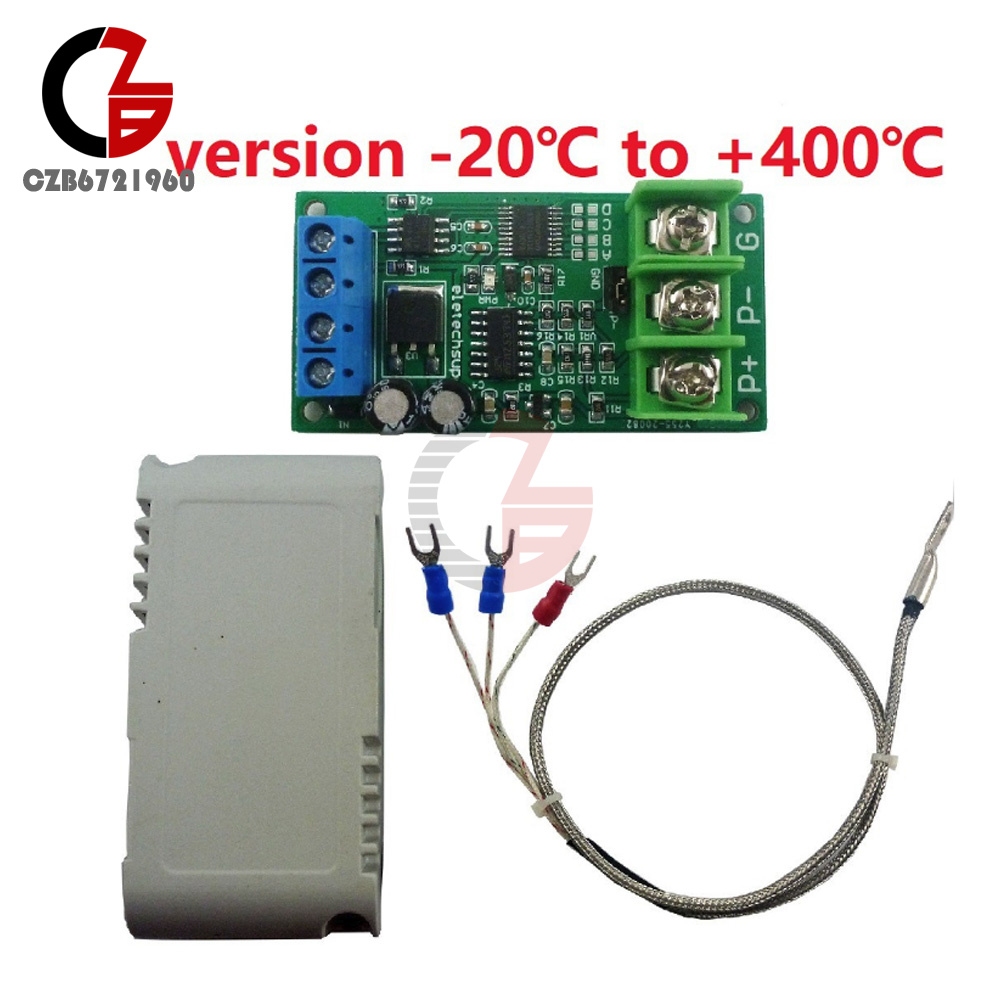

    Temperature measurement range: A version -20°C to +400°C; B version -20°C to +220°C. It is recommended to select a version with a small range within the range that meets the measurement range.
    Temperature measurement accuracy: 1%, if the temperature deviation is too large, please re-calibrate
    Dimensions: 60 X 30 X 16MM
    For protocol details, please refer to "PTA9B01 PT100 Temperature Sensor Setting Protocol"

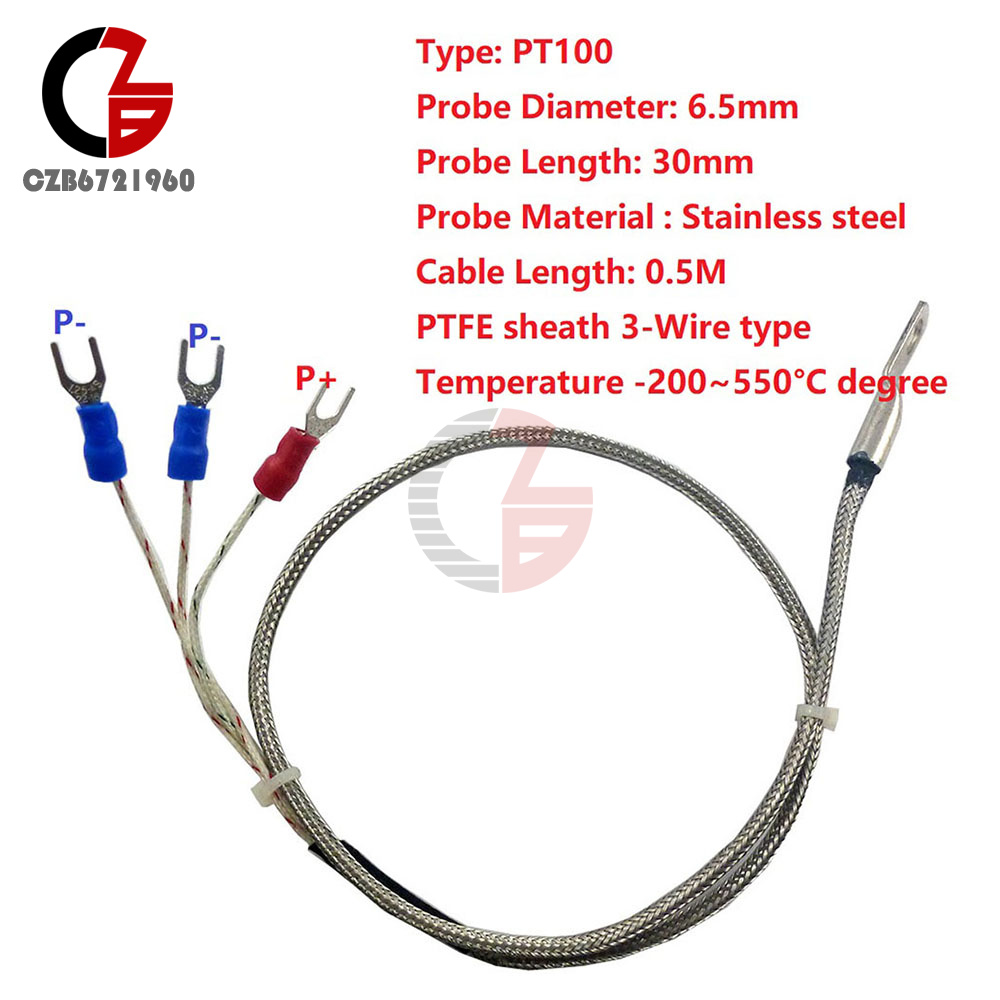

    PT100 sensor specifications:
    Product name: PT100 waterproof high temperature probe
    Probe diameter: 6.5MM
    Probe length: 30MM
    Probe Material: Stainless Steel
    Line length: 0.5 meters
    3-wire
    Measuring temperature range: -200~550 degrees Celsius

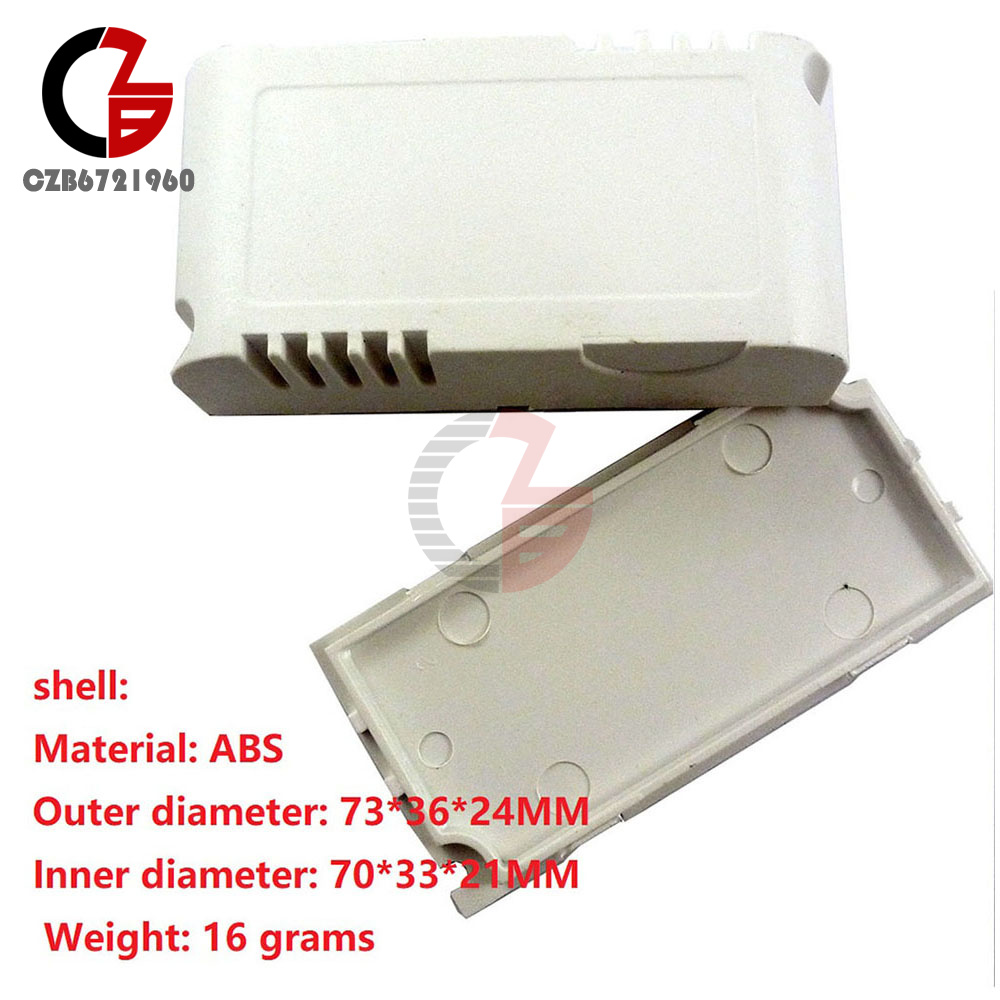

    Shell Specifications:
    Material: ABS
    Outer diameter: 73*36*24MM
    Inner diameter: 70*33*21MM

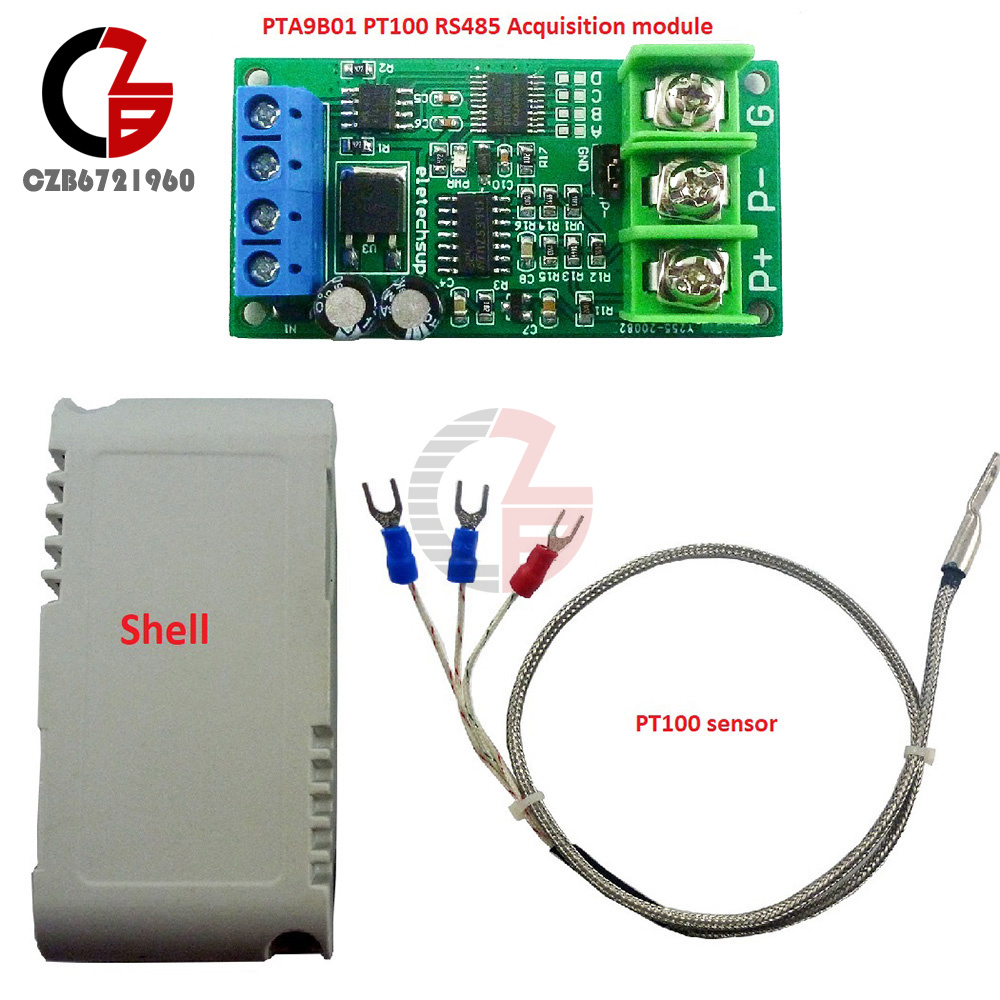

    Package List:
    1*collection module
    1*PT100 sensor
    1* Shell
