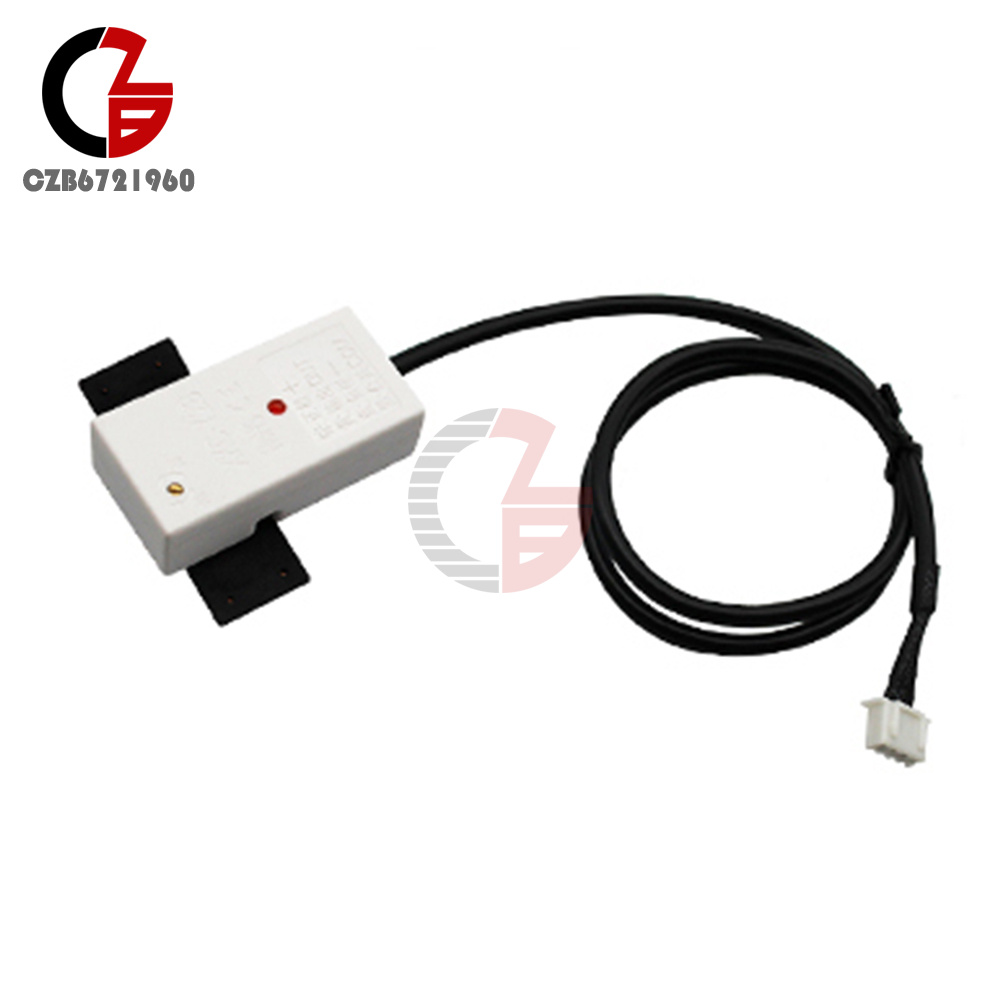

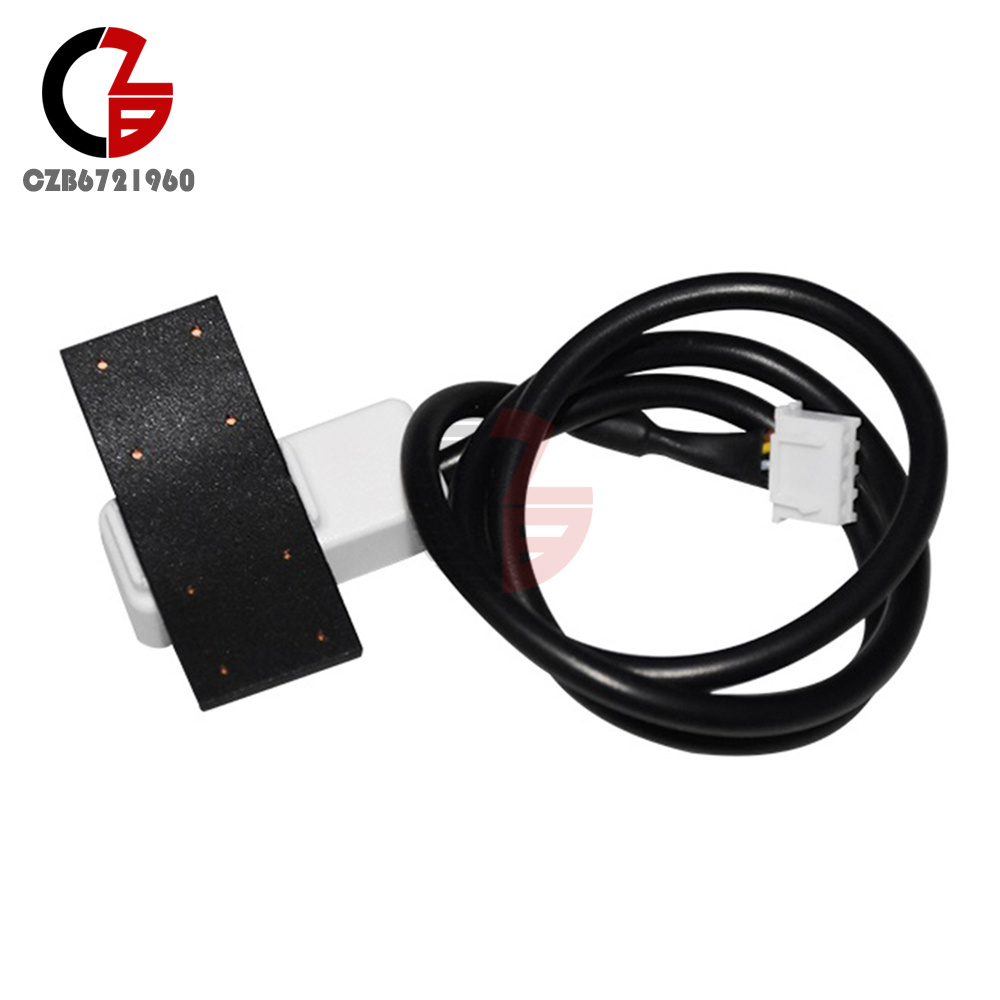

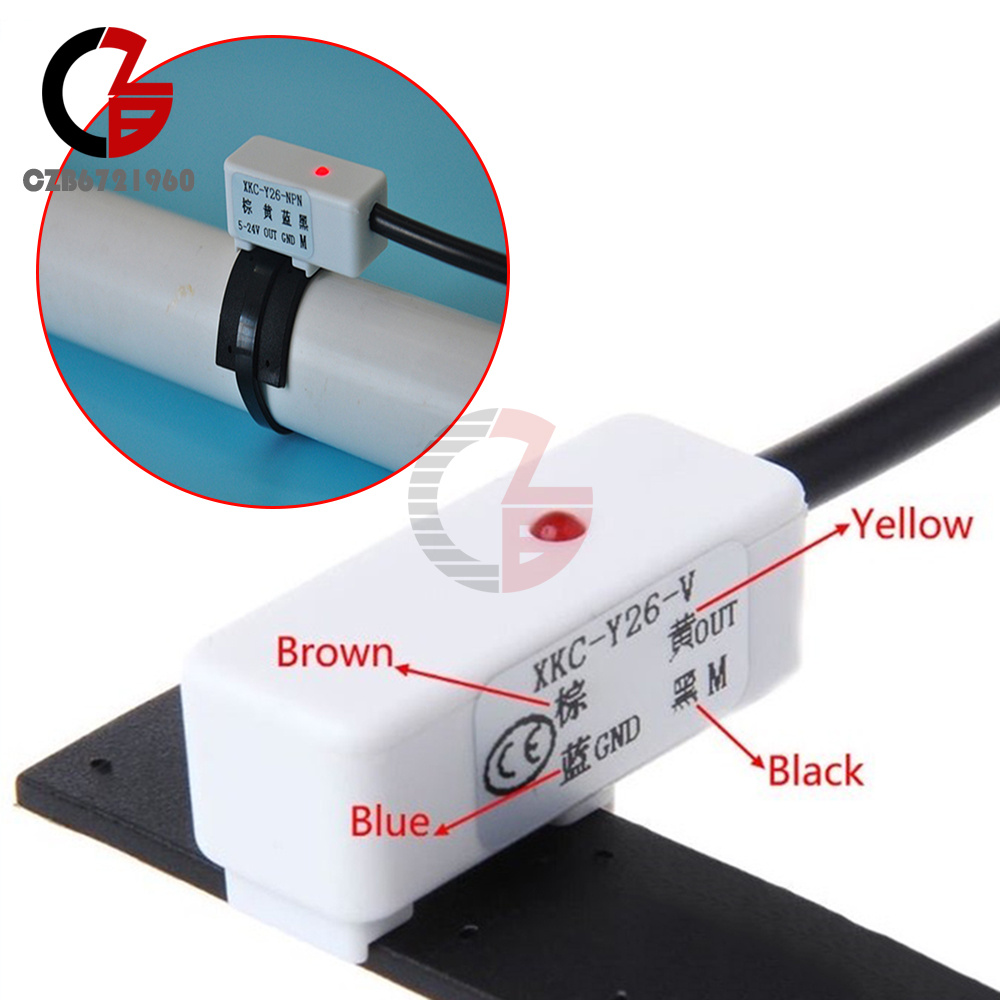

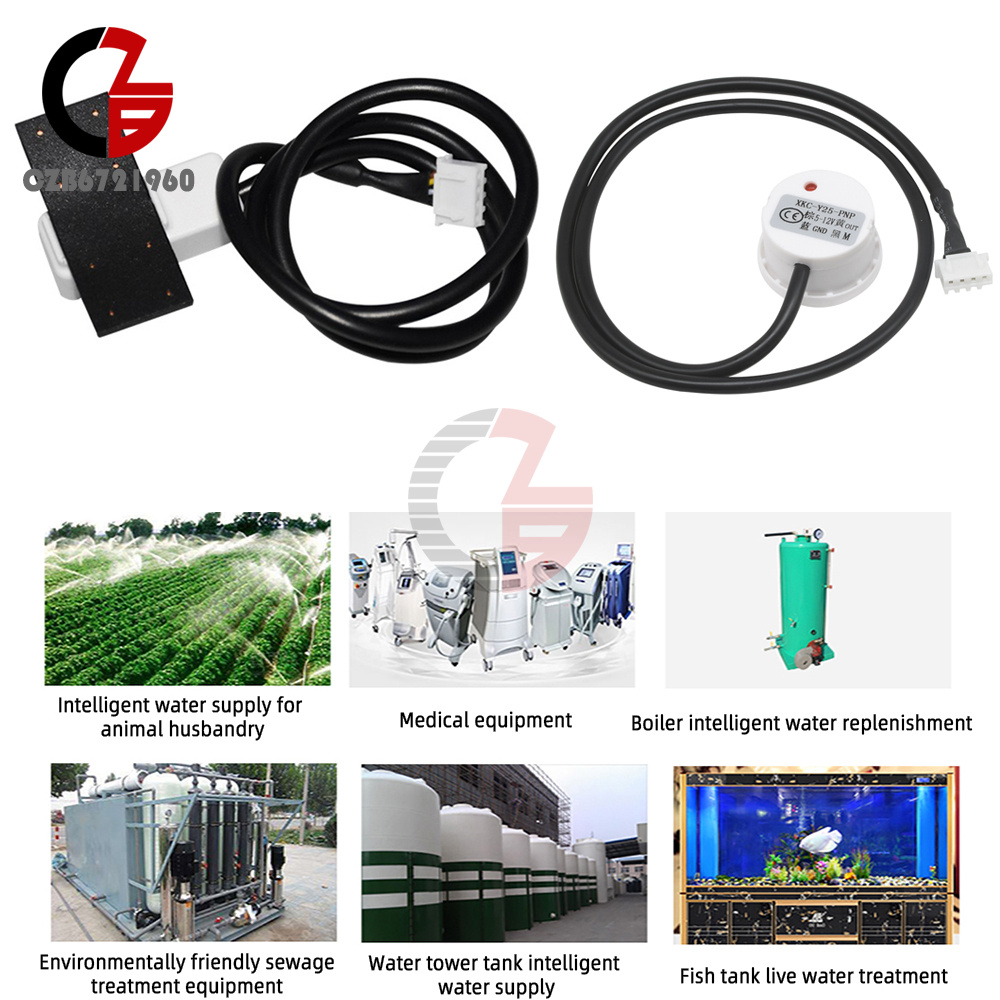

Non-Contact Liquid Water Level Sensor Induction Switch Detector Y26-V/PNP/NPN

Popular

Product Introduction

1. Made of high quality material, durable and practical.
2. Simple installation and beautiful appearance.
3. The liquid level sensor has no special requirements for liquid types and container materials, and can be widely used.
4. No need to contact the liquid, it can be detected through the container.
6. Long service life.
parameter:
XKC-Y26-V:
Voltage: DC5V-24V
Output mode: high and low level
XKC-Y26-PNP:
Voltage: DC5V-12V and DC24V
Output mode: switch value (active high)
XKC-Y26-NPN:
Voltage: DC5V-12V and DC24V
Output mode: switch value (active low)
Output voltage (high level): Vin
Output voltage (low level): 0V
Current consumption: 5mA
Output current: ≤100mA
Material: PC-V0 fireproof material
Waterproof performance: IP65
Response time: 500mS
Liquid Accuracy: ±1.5mm
Humidity: 5%~100%
Working temperature: -20℃~80℃
Remark

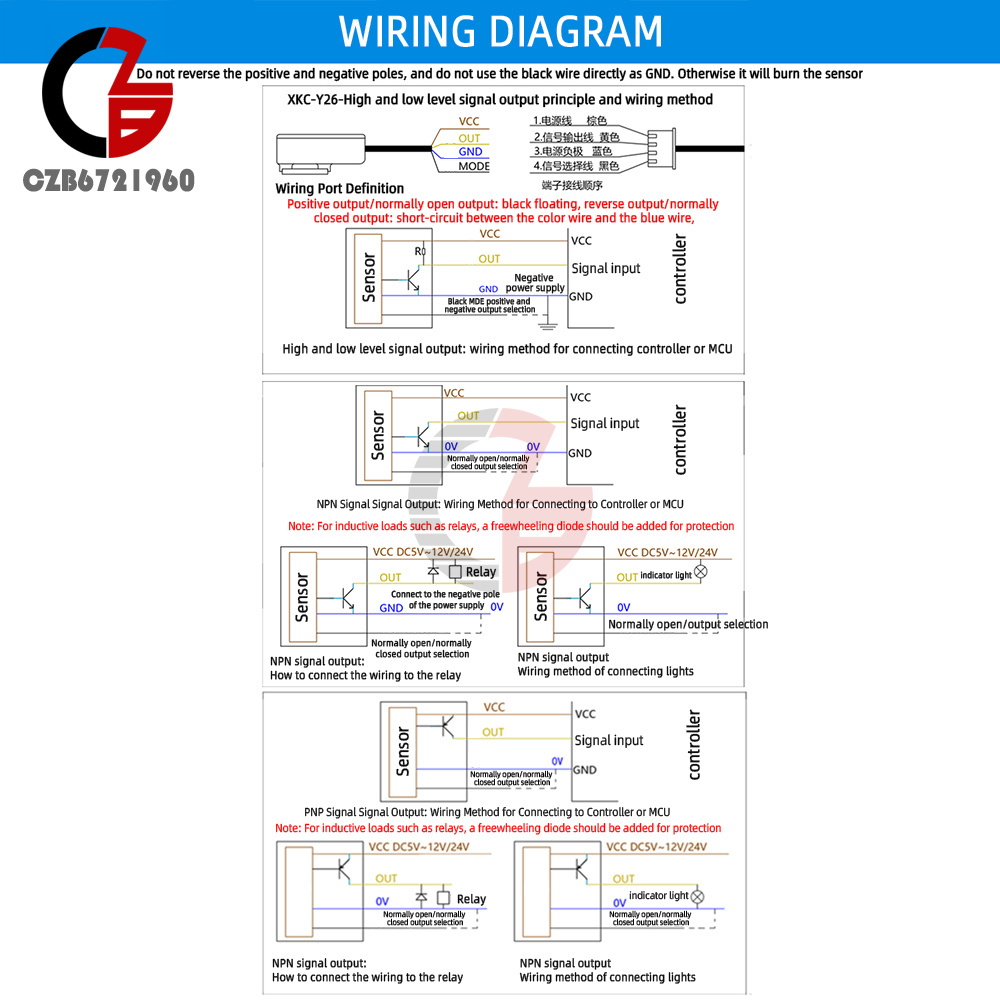

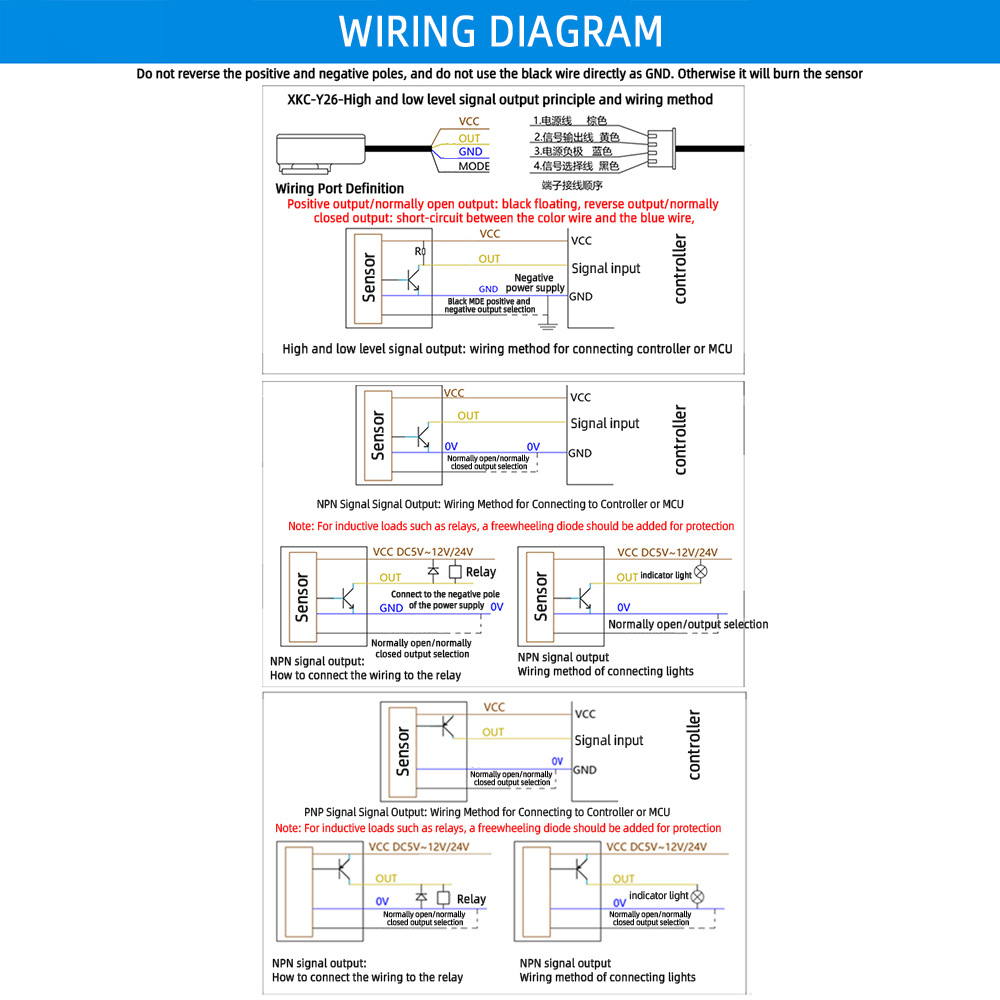

NPN output: there is an induction output low level, no induction is disconnected
PNP output: there is an induction output high level, no induction is disconnected
V high and low level output: high level output with induction, low level without induction
Package list:
Liquid sensor*1


XKC-Y25-PNP 5V-12V

Smart non-contact liquid level sensor/detector
(below: water level sensor/detector)
It uses advanced signal processing technology and
High-speed signal processing chip,
The thickness of the container will be less relevant for the measurement level,
and high-level airtight containers for true non-contact measurement.

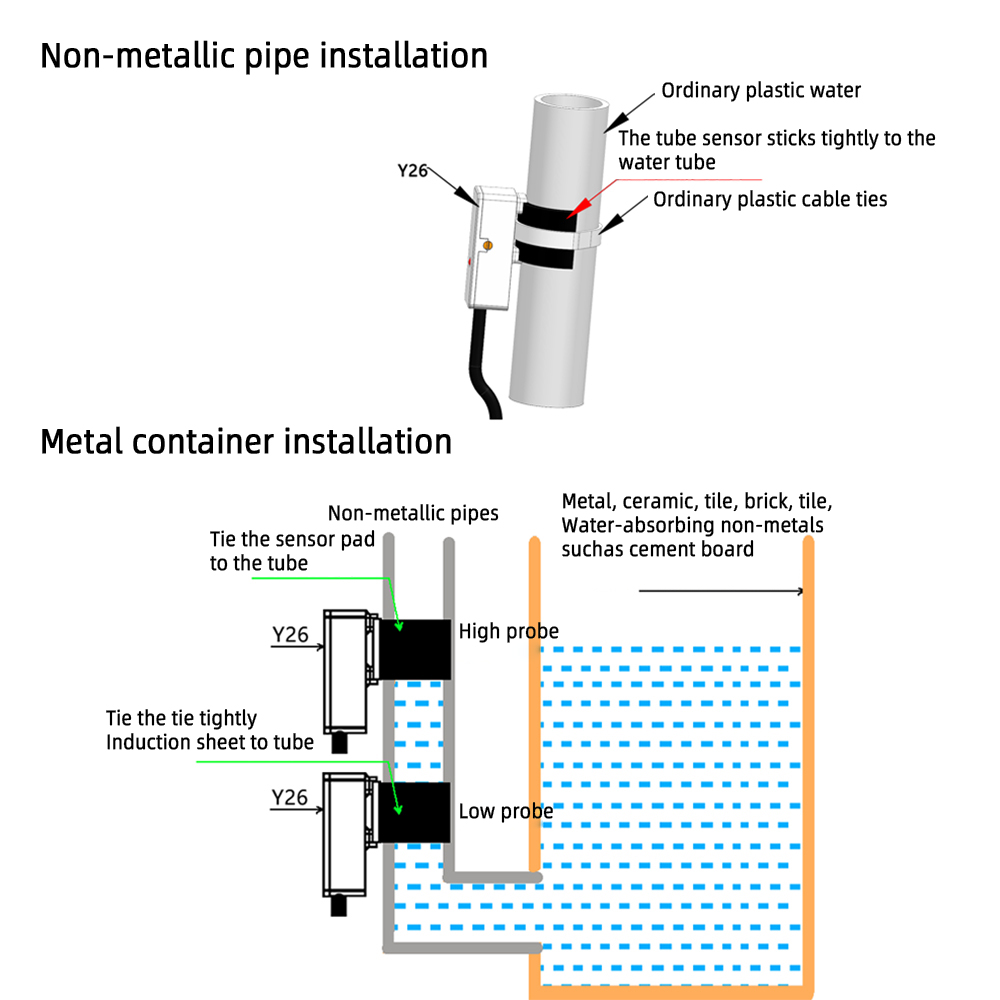

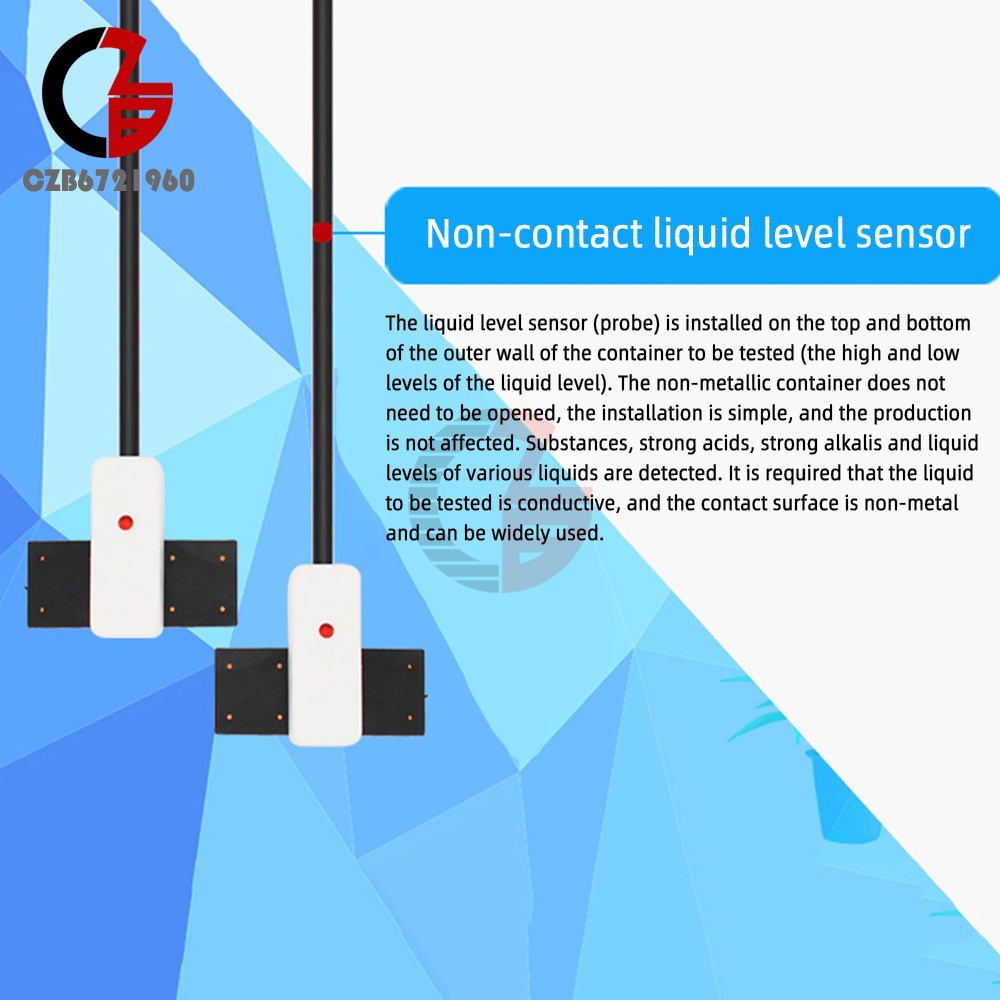

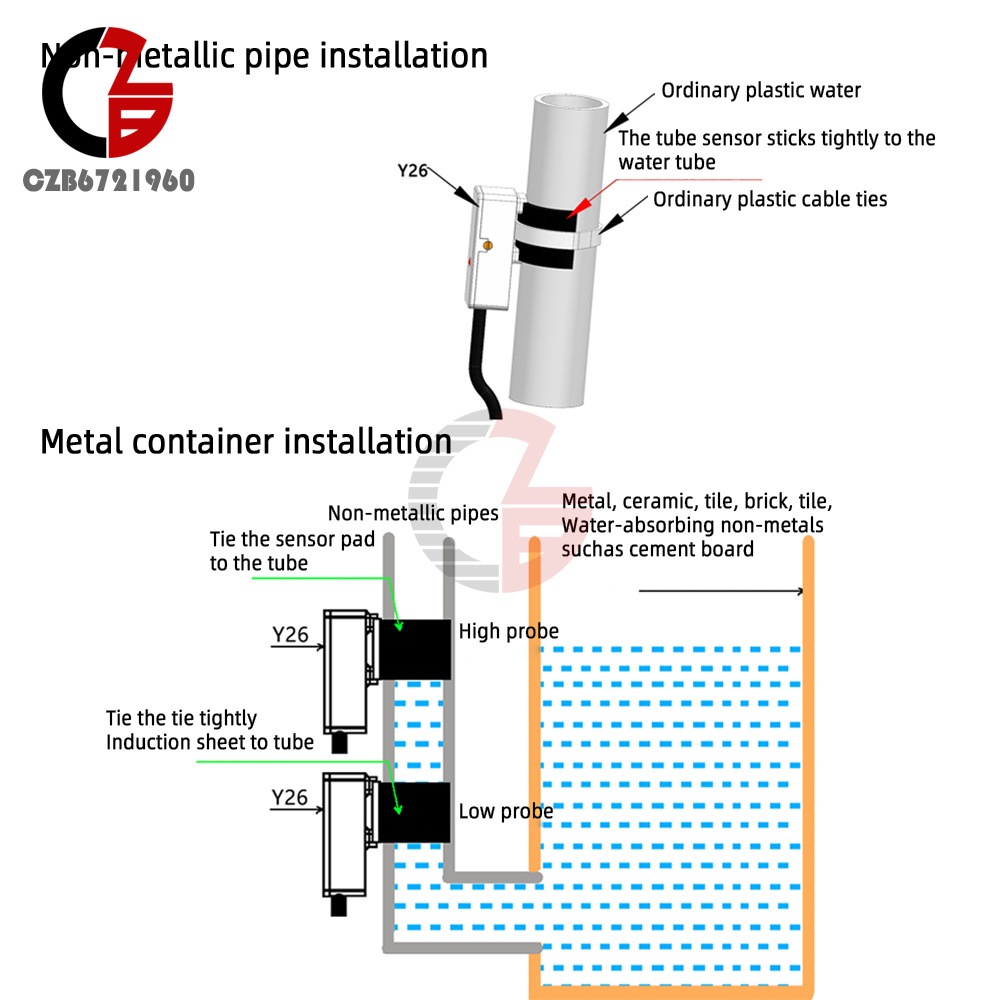

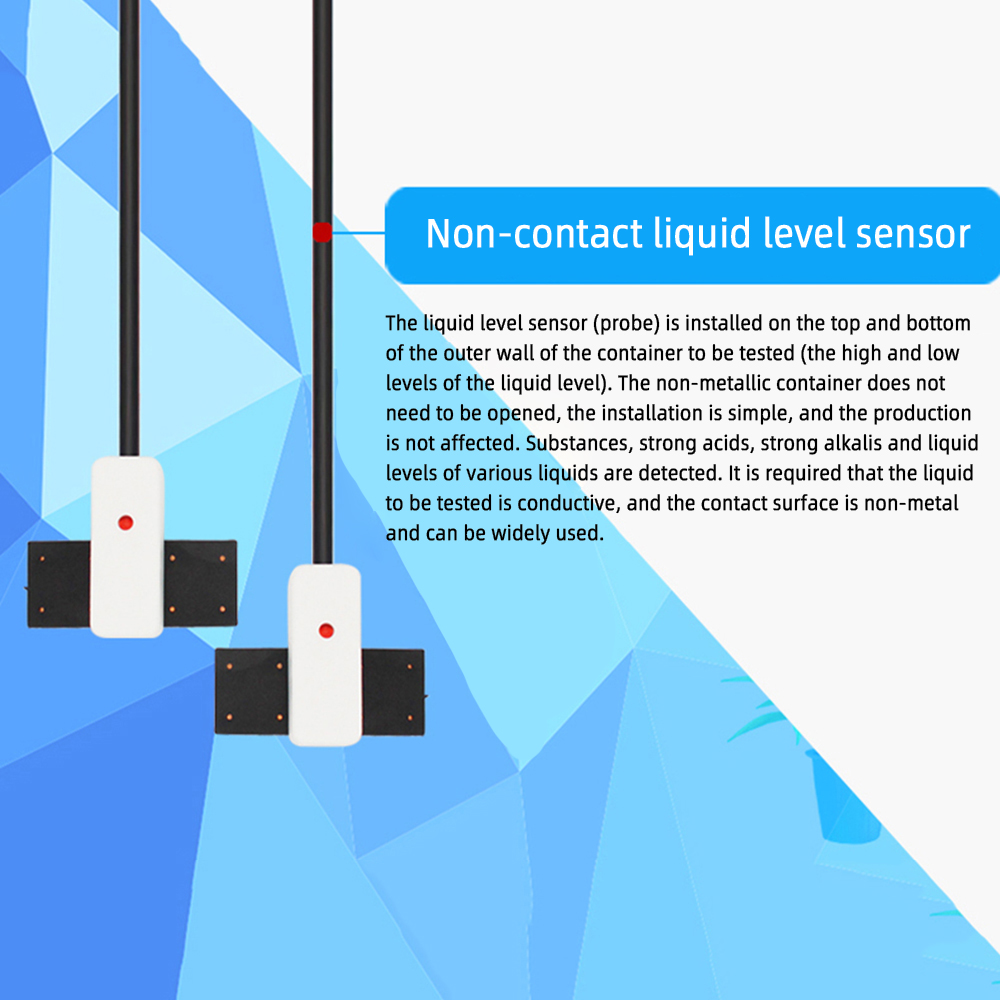

The level sensor (detector) will be installed at the top/bottom of the outer container
(high and low), it is useless to drill a hole in a non-metallic container,
Installation is very simple. This measurement level sensor is the ideal sensor
Various toxic substances, strong acids, strong bases and various liquids in high pressure sealed containers.
There are no special requirements for liquid media and material containers, and they are widely used.
Features
1: Non-contact liquid level sensor for non-metallic walls
the container is not in direct contact with the liquid,
They are not corroded by acids and bases and other corrosive liquids,
or the fouling effect of other debris.

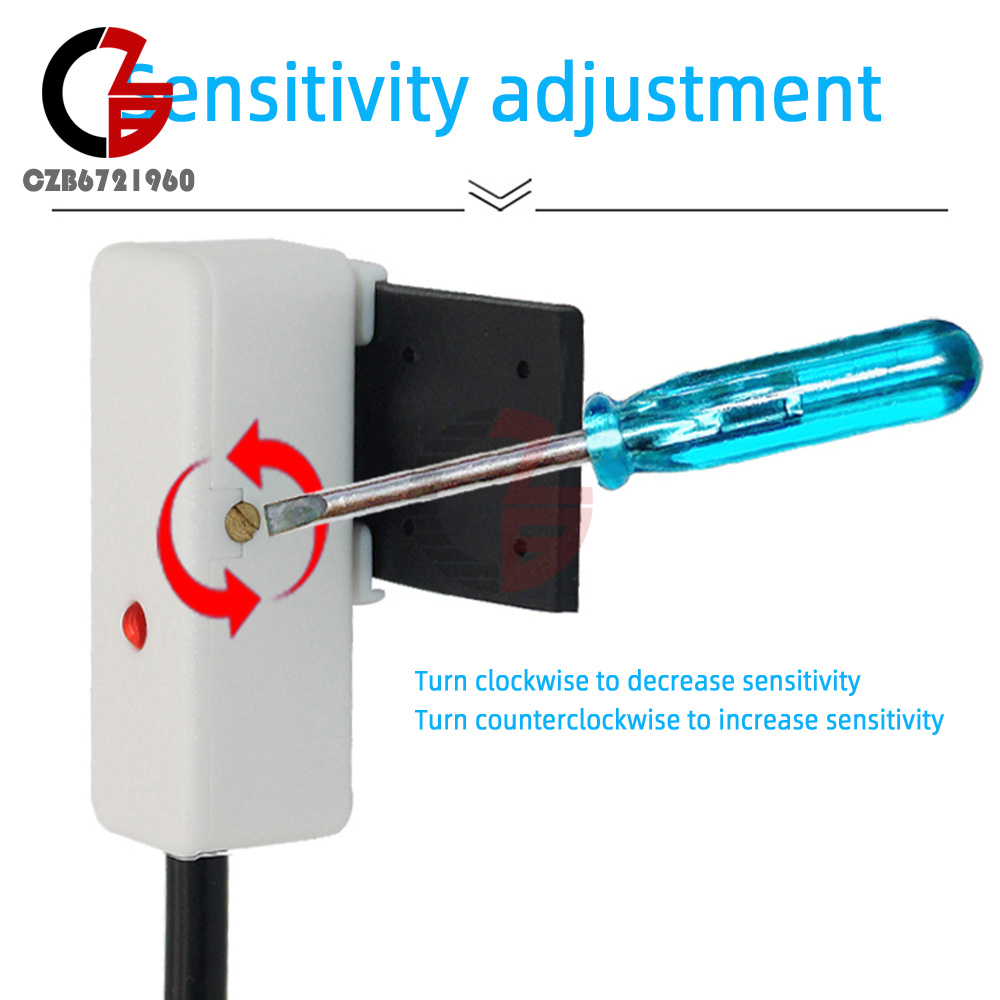

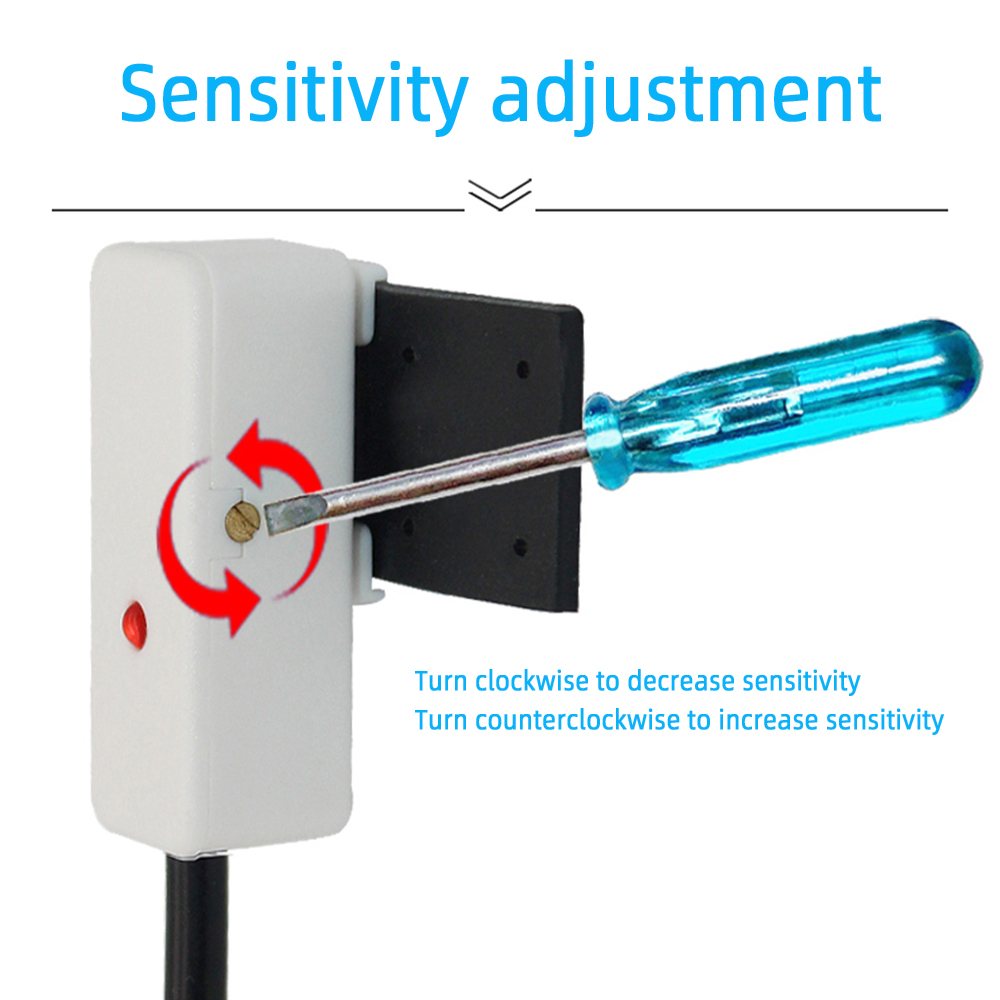

2: Intelligent memory function and level adjustment level,
Status display level, multi-point serial connection;
Support NPN output, high and low output level, PNP output, RS485 output signal
3: The detection is accurate and stable,
Ability to detect the level of boiling water
4: Pure structure of electronic circuits, non-mechanical work,
longevity and stable performance.
5: High stability, high sensitivity, strong interference ability,
No external electromagnetic interference,
There is a special treatment for frequency interference
common mode noise,
Compatible with all 5~24 V power adapters on the market.
6: Strong compatibility, penetrates various non-metallic containers,
Such as plastic, glass, ceramic and other containers,
The sensing distance can reach more than 10mm; liquid, powder,
Particles can be detected.
7: Open collector output, wide voltage range (5 V~12 V or 12 V~24 V)
Products suitable for connecting various circuits and applications.
technical parameter
Voltage input (InVCC): DC 5~12V-DC12~24V
Power consumption: 200 uA
Output current; 1~100mA
Response time: 500 mS
Working temperature: 0~100 degrees
Thickness sensing (sensitivity) range: 0~20mm
Humidity: 5%~100%
Material containers; plastic, glass, ceramic, etc. containers
Sensor Protection: IP67
Principle of Operation
The detection of intelligent non-contact liquid level detector is to use the capacity of water
Detects the presence of liquid, when liquid enters the detector,
c' is static due to the presence of distributed capacitive capacity in the detector,
An increase in parasitic capacitance as the level increases near the detector
The liquid will be coupled to this static volume,
Finally, the capacitance value of the detector becomes larger,
This change is when the IC input capacitance signal converts the signal,
make changes in capability convert some changes in signals,
Then a certain algorithm is used to detect and determine the measure of the amount of change,
When the change exceeds a certain threshold level to the sensor point.
Package Included:
1 x Liquid Level Detector Sensor"
